Filters
Filters 1
Feature
Bandpass 24
F Low MHz
40000 - 46280 4 46400 - 48000 7 48200 - 49000 6 49500 - 50400 4 51000 - 93500 3
–
Center frequency MHz
48700 - 49250 5 49500 - 49750 6 49780 - 50750 5 50800 - 52375 5 52500 - 53050 3
–
F High MHz
11250 - 49750 4 51000 - 51600 5 52000 - 53000 8 53200 - 55100 5 55500 - 60000 2
–
IL on center frequency dB
0.5 2 1 14 2 6 2.8 1 3 1
–
Maximum loss of side frequency dB
1 - 1.5 7 2 - 2.2 8 2.5 - 3 7 3.8 - 4 2
–
Rejection dB
40 - 50 10 60 - 65 7 70 - 75 7
–
Connector
Other 1 2.4 7 Microstrip pad 5 Microstrip needle 1 Waveguide 4 1.85 6
Power Handling
1 - 2 5 3.16 - 5 10 10 - 20 8 30 1
–
Filter type
Cavity&waveguide 19 Thin film 4 MEMS 1
Center frequency：48700 - 53050 MHz× Clear all
matches 24 models Default Newest
STBP508-4R8-N289 Thin film filter

Thin film filter STBP508-4R8-N289

Bandwidth48.4-53.2GHz, Rejection40@DC-36.0GHz, 40@58.6-62.0GHz
In Stock View Details →
STBP488-6R5-M543 Thin film filter

Thin film filter STBP488-6R5-M543

Bandwidth45.5-52.0GHz, Rejection40@DC-41.8GHz, 35@55.0-65.0GHz
In Stock View Details →
WLMX094112K Filter

Filter WLMX094112K

Passband93500~11250MHz, 8.6&12.2GHz≥30dB, 8.35&12.45GHz≥40dB, Microstrip pad, MEMS
In Stock View Details →
STBP509-1R4-K489 Thin film filter

Thin film filter STBP509-1R4-K489

Bandwidth50.2-51.6GHz, Rejection40@DC-45.0GHz, 40@54.0-61.0GHz
In Stock View Details →
STBP497-6R6-K521 Thin film filter

Thin film filter STBP497-6R6-K521

Bandwidth46.4-53.0GHz, Rejection40@DC-41.8GHz, 30@56.5-60.0GHz
In Stock View Details →
ZBF9-W52.5-6G-1226 Filter

Filter ZBF9-W52.5-6G-1226

Passband49.5~55.5GHz, DC-47GHz≥60dB, 59GHz≥60dB, 1.85
In Stock View Details →
ZBF8-C49.73-0.05G-3284 Filter

Filter ZBF8-C49.73-0.05G-3284

Passband49.7~49.75GHz, DC-40.2GHz≥70dBc, 54-60GHz≥35dB, 2.4
In Stock View Details →
ZBF25-C50-20G-3618 Filter

Filter ZBF25-C50-20G-3618

Passband40~60GHz, DC-37GHz≥50dBc, 65-70GHz≥25dBc, 1.85
In Stock View Details →
ZBF25-C49.78-7G-3713 Filter

Filter ZBF25-C49.78-7G-3713

Passband46.28~53.28GHz, DC-45GHz≥40dB, 54.56-60GHz≥40dB, 2.4
In Stock View Details →
ZBF25-C50.7-3.4G-851 Filter

Filter ZBF25-C50.7-3.4G-851

Passband49~52.4GHz, DC-47GHz≥60dB, 54.5-64GHz≥60dB, 1.85-MF
In Stock View Details →
ZBF25-C50-2G-338 Filter

Filter ZBF25-C50-2G-338

Passband49~51GHz, DC-45GHz≥80dB, 45-47GHz≥60dB, 2.4
In Stock View Details →
ZBF8-W53.05-4.1G-2811 Filter

Filter ZBF8-W53.05-4.1G-2811

Passband51~55.1GHz, DC-50GHz≥50dBc, 56GHz≥50dBc
View Details →
ZBF8-W49.25-4.1G-872 Filter

Filter ZBF8-W49.25-4.1G-872

Passband47.3~51.3GHz, DC-45.6GHz≥40dB, Waveguide
View Details →
ZBF8-C52-6G-2496 Filter

Filter ZBF8-C52-6G-2496

Passband49~55GHz, 30-40GHz≥50dBc, 64-71GHz≥50dBc, 2.4-K
View Details →
ZBF8-C50.75-4.5G-2666 Filter

Filter ZBF8-C50.75-4.5G-2666

View Details →
ZBF8-C49.5-7G-2491 Filter

Filter ZBF8-C49.5-7G-2491

Passband46~53GHz, DC-43.5GHz≥50dBc, 55.5-59GHz≥50dBc, 2.4
View Details →
ZBF8-C49.5-5G-1952 Filter

Filter ZBF8-C49.5-5G-1952

Passband47~52GHz, DC-45.5GHz≥70dBc, 56.5-62GHz≥70dBc, 1.85,
View Details →
ZBF5-C53-4G-2549 Filter

Filter ZBF5-C53-4G-2549

Passband51~55GHz, DC-46GHz≥60dBc, 60-68GHz≥40dBc, 1.85
View Details →

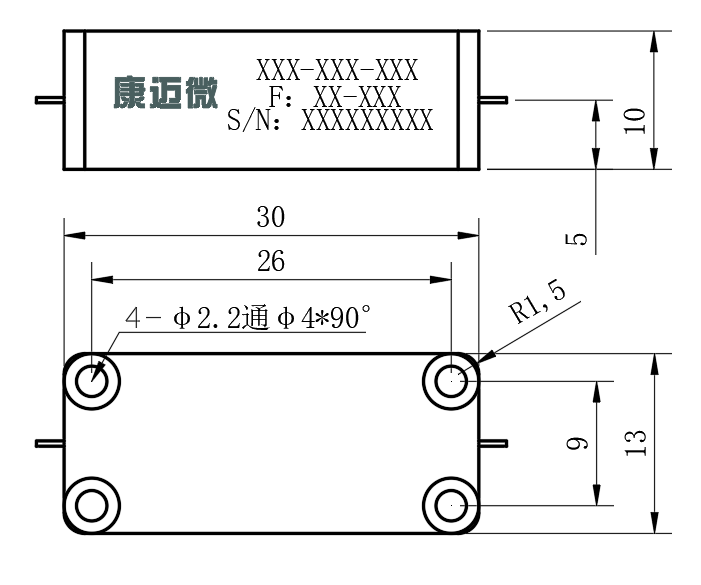

ZBF3-C48.7-1G-4599 Filter

Filter ZBF3-C48.7-1G-4599

Passband48.2~49.2GHz, 10-47.2GHz≥40dB, 50.2-55GHz≥40dB, Pin
View Details →
ZBF3-C48.7-1.4G-2302 Filter

Filter ZBF3-C48.7-1.4G-2302

Passband48000~49400MHz, 47000MHz≥75dB, 50200MHz≥75dB, 2.4
View Details →
ZBF25-W49.75-5.5G-750 Filter

Filter ZBF25-W49.75-5.5G-750

Passband47~52.5GHz, DC-43.5GHz≥65dBc, 53.5-55GHz≥25dBc, Waveguide
View Details →
ZBF25-W49.5-5G-147 Filter

Filter ZBF25-W49.5-5G-147

Passband47~52GHz, DC-45.5GHz≥70dBc, 54.2-62GHz≥70dBc, Waveguide
View Details →
ZBF13-C50.9-1G-3252 Filter

Filter ZBF13-C50.9-1G-3252

Passband50.4~51.4GHz, DC-48.75GHz≥75dBc, 52.3-54.1GHz≥35dBc, 1.85
View Details →
ZBF13-C49-4G-3711 Filter

Filter ZBF13-C49-4G-3711

Passband47~51GHz, DC-43GHz≥65dBc, 55-57GHz≥50dBc, 1.85
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
