Filters
Filters 1
Feature
Bandpass 23
F Low MHz
4380 - 4500 7 4650 - 4900 3 4925 - 5000 6 5050 - 5100 4 5120 - 5180 3
–
Center frequency MHz
5190 1 5195.5 1 5200 20 5202 1
–
F High MHz
5220 - 5260 3 5300 - 5400 7 5450 - 5500 4 5670 - 5800 3 5900 - 6020 6
–
IL on center frequency dB
0.3 - 0.5 5 1 - 2 12 2.5 - 3 4 4 2
–
Maximum loss of side frequency dB
0.5 - 0.8 3 1 - 1.6 4 2 - 2.5 8 3 - 4 5 4.5 - 6 3
–
Rejection dB
30 - 40 12 50 - 55 2 60 - 65 6 70 - 80 3
–
Connector
SMD 2 SMA 9 N 1 Microstrip pad 3 Microstrip needle 7
Power Handling
0.1 - 2 3 3.16 - 5 4 10 - 20 16
–
Filter type
Cavity&waveguide 18 stripline 2 Thin film 1 MEMS 1 FBAR 1
Center frequency：5190 - 5202 MHz× Clear all
matches 23 models Default Newest
CA0397 SMD Filter

SMD Filter CA0397

Bandwidth4.95-5.45GHz, Rejection55@11.5-12.4GHz, 25@10.4GHz, 45@0.7-4.45GHz, 45@5.95-10GHz, 45@3.816-4.216GHz
In Stock View Details →
STBP5R2-1R3-M669 Thin film filter

Thin film filter STBP5R2-1R3-M669

Bandwidth4.5-5.8GHz, Rejection40@DC-3.7GHz, 38@6.7-12.0GHz
In Stock View Details →
WLMF5190B140AK Filter

Filter WLMF5190B140AK

Passband5190MHz, DC-4.9GHz≥35dB, 5.49GHz≥40dB, Microstrip pad, FBAR
In Stock View Details →
WLMD051053K Filter

Filter WLMD051053K

Passband5100~5300MHz, 4.9&5.5GHz≥20dB, 4.85&5.55GHz≥30dB, Microstrip pad, MEMS
In Stock View Details →
ZBF8-C5200-940-3145 Filter

Filter ZBF8-C5200-940-3145

Passband4730~5670MHz, DC-4430MHz≥60dBc, 5970-16000MHz≥60dBc, SMA
In Stock View Details →
ZBF4-C5.2-1.64G-1120 Filter

Filter ZBF4-C5.2-1.64G-1120

Passband4.38~6.02GHz, DC-3.5GHz≥40dB, 6.82-17GHz≥45dB, SMA-KDetachable
In Stock View Details →
ZBF6-C5200-1600-1358 Filter

Filter ZBF6-C5200-1600-1358

Passband4400~6000MHz, DC-4020MHz≥40dB, 6380-10000MHz≥40dB, SMA
View Details →
ZBF5-C5200-550-756 Filter

Filter ZBF5-C5200-550-756

Passband4925~5475MHz, DC-4.2GHz≥60dBc, 6-8.5GHz≥60dBc, SMA
View Details →
ZBF5-C5200-40-2531 Filter

Filter ZBF5-C5200-40-2531

Passband5180~5220MHz, DC-5.04GHz≥30dBc, 5.04-5.08GHz≥80dBc, Pin
View Details →
ZBF5-C5200-1640-1009 Filter

Filter ZBF5-C5200-1640-1009

Passband4380~6020MHz, DC-3000MHz≥60dBc, 6540-11000MHz≥60dBc, SMA
View Details →
ZBF5-C5200-1600-357 Filter

Filter ZBF5-C5200-1600-357

Passband4400~6000MHz, DC-3.5GHz≥30dBc, SMA
View Details →
ZBF5-C5200-1100-804 Filter

Filter ZBF5-C5200-1100-804

Passband4650~5750MHz, DC-4100MHz≥40dBc, 6300-10000MHz≥40dBc, SMA
View Details →
ZBF5-C5.2-0.4G-3890 Filter

Filter ZBF5-C5.2-0.4G-3890

Passband5~5.4GHz, DC-3.1GHz≥40dBc, 6.4-7.4GHz≥40dBc, Pin
View Details →
ZBF4-C5200-200-049 Filter

Filter ZBF4-C5200-200-049

Passband5100~5300MHz, DC-4900MHz≥30dB, 5600-6050MHz≥80dB, Pin
View Details →
ZBF4-C5.2-0.2G-1779 Filter

Filter ZBF4-C5.2-0.2G-1779

Passband5091~5300MHz, DC-4941MHz≥65dB, 5450-10000GHz≥65dB, SMA
View Details →
ZBF4-C5.2-0.1G-911 Filter

Filter ZBF4-C5.2-0.1G-911

Passband5150~5250MHz, DC-5070MHz≥40dB, 5330-14000MHz≥40dB, SMA
View Details →

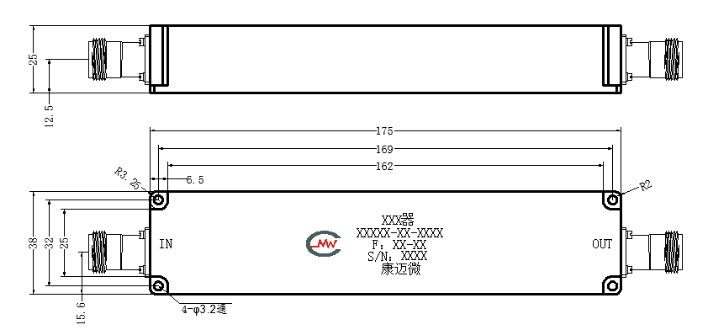

ZBF3-C5200-1600-2073 Filter

Filter ZBF3-C5200-1600-2073

Passband4400~6000MHz, DC-4000MHz≥60dB, 6400-10000MHz≥60dB, N
View Details →
ZBF3-C5200-1400-2811 Filter

Filter ZBF3-C5200-1400-2811

Passband4500~5900MHz, DC-3600MHz≥40dBc, 6800-10000MHz≥40dBc,
View Details →
ZBF15-C5202.5-405-527 Filter

Filter ZBF15-C5202.5-405-527

Passband5~5.405GHz, 1-1.75GHz≥30dBc, 3575-3675MHz≥30dBc, Pin
View Details →
ZBF13-C5200-400-3167 Filter

Filter ZBF13-C5200-400-3167

Passband5000~5400MHz, DC-4.7GHz≥45dBc, 5.7-10GHz≥55dBc, Pin
View Details →
ZBF13-C5200-300-2522 Filter

Filter ZBF13-C5200-300-2522

Passband5050~5350MHz, 4.9&5.5GHz≥40dB, 5.8-6.25GHz≥70dB, Pin
View Details →
ZBF13-C5.2-0.6G-2942 Filter

Filter ZBF13-C5.2-0.6G-2942

Passband4.9~5.5GHz, DC-4GHz≥60dBc, 6-7GHz≥50dBc, Pin
View Details →
CA0397-2503 SMD Filter

SMD Filter CA0397-2503

Bandwidth4.95-5.45GHz, Rejection40@DC-4.4GHz, 40@6.05-11.0GHz
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
