Filters
Filters 1
Feature
Bandpass 48
F Low MHz
450 - 2350 6 2400 - 2840 20 2900 - 3040 13 3100 - 3190 5 3195 - 3200 4
–
Center frequency MHz
3200 41 3204 1 3220 1 3225 5
–
F High MHz
3200 - 3244 6 3245 - 3400 13 3450 - 3700 8 4000 - 4200 20 6000 1
–
IL on center frequency dB
0.2 - 0.5 6 1 - 2 35 2.3 - 4 5 5 - 8.5 2
–
Maximum loss of side frequency dB
0.45 - 1 6 1.3 - 2 22 2.5 - 3.5 14 4 - 6 5 8.5 1
–
Rejection dB
30 - 38 5 40 - 49.999 13 50 - 60 27 65 - 80 3
–
Connector
SMD 5 SMA 16 Microstrip pad 1 Microstrip needle 25
Power Handling
0.1 - 1 15 2 - 5 17 10 - 20 14 30 - 50 2
–
Filter type
LC 22 Cavity&waveguide 23 stripline 2 FBAR 1
Center frequency：3200 - 3225 MHz× Clear all
matches 48 models Default Newest
WLMF3200B000AK Filter

Filter WLMF3200B000AK

Passband3200MHz, 3.1GHz≥4042dB, 3.3GHz≥4050dB, Microstrip pad, FBAR
In Stock View Details →
ZBF16-C3.2-0.4G-327 Filter

Filter ZBF16-C3.2-0.4G-327

Passband3~3.4GHz, DC~2.8GHz≥40dBc, 3.6~10GHz≥40dBc, SMA-KDetachable
In Stock View Details →
ZBF15-L3200-1600-623 Filter

Filter ZBF15-L3200-1600-623

Passband2.4~4GHz, DC-2GHz≥40dBc, 4.6-8GHz≥40dBc, SMA
In Stock View Details →
ZBF-M3200-1600-B4860 Filter

Filter ZBF-M3200-1600-B4860

Passband2400~4000MHz, 2160MHz≥50dB, 4320MHz≥50dB, Pin
In Stock View Details →
ZBF13-C3200-1700-238 Filter

Filter ZBF13-C3200-1700-238

Passband2350~4050MHz, DC-1.2GHz≥50dBc, 4.7-9GHz≥50dBc, SMA
In Stock View Details →
ZBF13-L3.2-1.6G-3753 Filter

Filter ZBF13-L3.2-1.6G-3753

Passband2400~4000MHz, DC-2GHz≥40dBc, 4.5-6GHz≥40dBc, SMD
In Stock View Details →
ZBF5-L3200-400-2581 Filter

Filter ZBF5-L3200-400-2581

Passband3000~3400MHz, DC-2500MHz≥60dB, 3800-4000MHz≥60dB, Pin
View Details →
ZBF5-L3200-300-2289 Filter

Filter ZBF5-L3200-300-2289

Center Frequency3200MHz, 1dB BW300~400MHz, DC-2.7GHz≥50dB, 3.7-6GHz≥50dB, SMA
View Details →
ZBF5-L3200-200-2303 Filter

Filter ZBF5-L3200-200-2303

Passband3100~3300MHz, 3000MHz≥50dB, SMA
View Details →
ZBF5-L3200-1600-636 Filter

Filter ZBF5-L3200-1600-636

Passband2400~4000MHz, DC-1800MHz≥45dBc, 4600-7000MHz≥45dBc, Pin
View Details →
ZBF5-L3200-1000-346 Filter

Filter ZBF5-L3200-1000-346

Passband2700~3700MHz, DC-2200MHz≥45dBc, 4200-5500MHz≥45dBc, Pin
View Details →
ZBF4-L3.2-1.6G-1132 Filter

Filter ZBF4-L3.2-1.6G-1132

Passband2.4~4GHz, 2GHz≥50dB, 4.7GHz≥50dB, SMA
View Details →

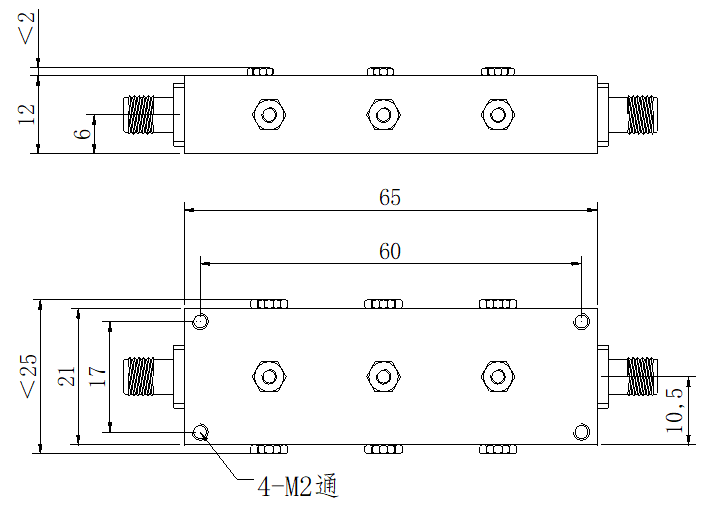

ZBF4-C3200-1600-287 Filter

Filter ZBF4-C3200-1600-287

Passband2400~4000MHz, DC-1800MHz≥40dB, 4200-6000MHz≥35dB, SMA
View Details →
ZBF4-C3200-1000-139 Filter

Filter ZBF4-C3200-1000-139

Passband2700~3700MHz, 2100-2500MHz≥10dB, 3800-5000MHz≥30dB, Pin
View Details →
ZBF3-L3200-1600-2735 Filter

Filter ZBF3-L3200-1600-2735

Passband2400~4000MHz, DC-2100MHz≥45dB, 4600-6500MHz≥45dB, SMD
View Details →
ZBF3-C3200-400-1713 Filter

Filter ZBF3-C3200-400-1713

Passband3000~3400MHz, DC-2900MHz≥40dB, 3900-4800MHz≥70dB, Pin
View Details →
ZBF3-C3200-1000-4083 Filter

Filter ZBF3-C3200-1000-4083

Passband2700~3700MHz, DC-2400MHz≥55dB, 3900-8000MHz≥55dB, SMA
View Details →
ZBF20-L3200-1900-079 Filter

Filter ZBF20-L3200-1900-079

Passband2250~4150MHz, DC-1350MHz≥60dBc, 1350-1550MHz≥30dBc, Pin
View Details →
ZBF2-M3200-0-1371 Filter

Filter ZBF2-M3200-0-1371

Passband3200MHz, DC-3.1GHz≥50dB, 3.3-5GHz≥50dB,
View Details →
ZBF2-M3.2-0.5G-2252 Filter

Filter ZBF2-M3.2-0.5G-2252

Passband2.95~3.45GHz, 3.875GHz≥25dBc, 4.4-7GHz≥45dBc, Pin
View Details →
ZBF2-L3200-1600-2436 Filter

Filter ZBF2-L3200-1600-2436

Passband2400~4000MHz, DC-1.8GHz≥45dBc, 4.6-6GHz≥45dBc, Pin
View Details →
ZBF2-L3.23-1.55G-1676 Filter

Filter ZBF2-L3.23-1.55G-1676

Passband2.45~4GHz, DC-1.5GHz≥55dB, 4.9-12GHz≥55dB, Pin
View Details →
ZBF2-L3.2-0.4G-2222 Filter

Filter ZBF2-L3.2-0.4G-2222

Passband3~3.4GHz, 3.8-6.8GHz≥25dBc, DC-2.2GHz≥30dB, Pin
View Details →
ZBF2-C3225-770-1088 Filter

Filter ZBF2-C3225-770-1088

Passband2840~3610MHz, f0±600MHz≥35dBc, f0±100060dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
