Filters
Filters 1
Feature
Bandpass 19
F Low MHz
21900 - 23900 4 24000 - 24750 6 24800 - 25420 6 25500 - 26000 3
–
Center frequency MHz
25900 2 25920 1 26000 15 26125 1
–
F High MHz
26000 - 26200 2 26420 - 26500 2 27000 - 27500 7 28000 - 28100 5 30000 - 30100 3
–
IL on center frequency dB
0.4 - 0.5 2 0.6 - 1 10 1.5 - 2 5 3 2
–
Maximum loss of side frequency dB
0.8 - 1 2 1.2 - 1.5 3 1.8 - 2 5 2.5 - 2.7 5 3 - 4 4
–
Rejection dB
30 - 40 5 50 - 55 4 60 - 65 5 70 - 80 5
–
Connector
SMA 1 2.92 9 Microstrip pad 4 Microstrip needle 5
Power Handling
1 1 2 4 3.16 1 5 6 10 7
–
Filter type
Cavity&waveguide 15 Thin film 3 MEMS 1
Center frequency：25900 - 26125 MHz× Clear all
matches 19 models Default Newest
STBP259-0R7-M226 Thin film filter

Thin film filter STBP259-0R7-M226

Bandwidth25.5-26.2GHz, Rejection40@DC-24.2GHz, 40@27.5-45.0GHz
In Stock View Details →
WLM250270-SK Filter

Filter WLM250270-SK

Passband25000~27000MHz, 24.1&27.9GHz≥20dB, 23.75&28.2GHz≥30dB, Microstrip pad, MEMS
In Stock View Details →
STBP260-4R2-M280 Thin film filter

Thin film filter STBP260-4R2-M280

Bandwidth23.9-28.1GHz, Rejection40@DC-21.0GHz, 40@31.5-40.0GHz
In Stock View Details →
STBP259-2R2-K631 Thin film filter

Thin film filter STBP259-2R2-K631

Bandwidth24.8-27.0GHz, Rejection35@DC-23.1GHz, 40@28.6-33.0GHz
In Stock View Details →
ZBF8-C26125-2750-2506 Filter

Filter ZBF8-C26125-2750-2506

Passband24.75~27.5GHz, DC-23GHz≥60dB, 29.25-40GHz≥60dB, 2.92
In Stock View Details →
ZBF5-C26-4G-2296 Filter

Filter ZBF5-C26-4G-2296

Passband24~28GHz, DC-22GHz≥65dB, 30-46GHz≥65dB, 2.92-KDetachable
In Stock View Details →
ZBF8-C26-8G-1582 Filter

Filter ZBF8-C26-8G-1582

Passband22~30ghz, dc-20ghz≥50dbc, 31.5-42ghz≥50db, 2.92
In Stock View Details →
ZBF5-C26-4G-3030 Filter

Filter ZBF5-C26-4G-3030

Passband24~28GHz, DC-23.4GHz≥55dB, 30-32GHz≥40dB, Pin
In Stock View Details →
ZBF16-C26-2G-655 Filter

Filter ZBF16-C26-2G-655

Passband25~27GHz, DC~23.5GHz≥50dB, 28~35GHz≥50dB, 2.92
In Stock View Details →
ZBF6-C26-0G-4598 Filter

Filter ZBF6-C26-0G-4598

Passband26~26GHz, DC-25GHz≥80dBc, 27-30GHz≥80dBc,
View Details →
ZBF5-C26-8.2G-1511 Filter

Filter ZBF5-C26-8.2G-1511

Passband21.9~30.1GHz, 1dB BW9GHz, 33-34GHz≥45dBc, DC-18GHz≥70dBc, 2.92
View Details →
ZBF5-C26-4G-764 Filter

Filter ZBF5-C26-4G-764

Passband24~28GHz, DC-22GHz≥65dBc, 30-35GHz≥65dBc, 2.92
View Details →
ZBF5-C26-4G-3330 Filter

Filter ZBF5-C26-4G-3330

Passband24~28GHz, DC-22GHz≥65dB, 30-48GHz≥65dB, 2.92
View Details →
ZBF5-C26-3G-2813 Filter

Filter ZBF5-C26-3G-2813

Passband24.5~27.5GHz, DC-22.95GHz≥60dBc, 29.5-35GHz≥40dBc, Pin
View Details →
ZBF4-C26-1G-419 Filter

Filter ZBF4-C26-1G-419

Passband25.5~26.5GHz, DC-23GHz≥70dBc, 23-24.2GHz≥60dBc, Pin
View Details →
ZBF2-C26-8G-1942 Filter

Filter ZBF2-C26-8G-1942

Passband22~30GHz, DC-21.1GHz≥30dBc, 30.9-43.5GHz≥30dBc, Pin
View Details →

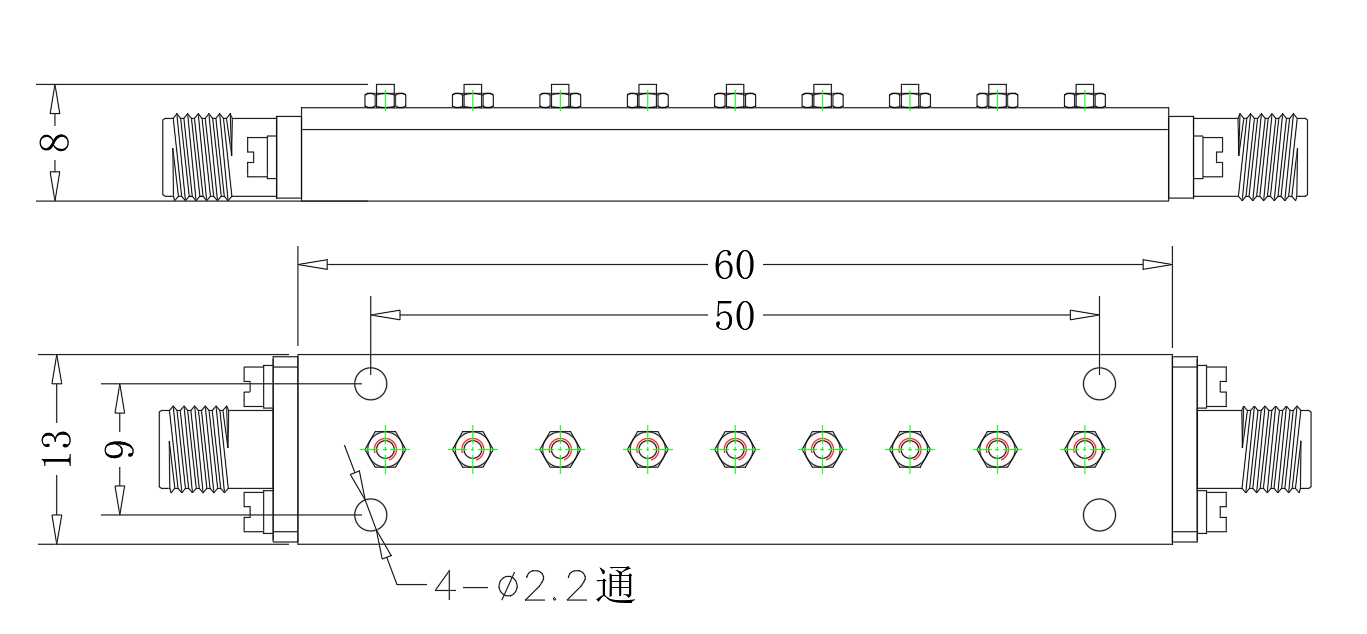

ZBF16-C26-2G-608 Filter

Filter ZBF16-C26-2G-608

Passband25~27GHz, 0.8, DC~23.5GHz≥50dB, 28~35GHz≥50dB, 2.92
View Details →
ZBF13-C26-2G-1381 Filter

Filter ZBF13-C26-2G-1381

Passband25~27GHz, DC-23GHz≥70dBc, 29-40GHz≥70dBc, 2.92
View Details →
ZBF13-C25.92-1G-478 Filter

Filter ZBF13-C25.92-1G-478

Passband25.42~26.42GHz, DC-22.52GHz≥80dB, 23-25GHz≥30dB, SMA
View Details →
