Filters
Filters 1
Feature
Bandpass 17
F Low MHz
1655 - 1910 4 2018 - 2050 4 2055 - 2110 5 2127 - 2160 4
–
Center frequency MHz
2155 4 2156 1 2160 11 2170 1
–
F High MHz
2160 - 2176 3 2183 - 2210 4 2215 - 2290 4 2302 - 2410 3 2415 - 2660 3
–
IL on center frequency dB
0.5 - 1 9 2 - 3.5 6 3.9 - 4 2
–
Maximum loss of side frequency dB
1 - 1.5 3 2 - 3 10 3.5 - 4.5 2 4.9 - 5 2
–
Rejection dB
22 - 40 8 50 - 60 7 75 - 80 2
–
Connector
SMD 3 SMA 2 N 3 Microstrip needle 8 SMP 1
Power Handling
0.5 - 1 4 2 - 5 8 10 - 20 2 25 - 100 3
–
Filter type
LC 10 Cavity&waveguide 5 stripline 1 Dielectric 1
Center frequency：2155 - 2170 MHz× Clear all
matches 17 models Default Newest
ZBF9-D2156-40-3256 Filter

Filter ZBF9-D2156-40-3256

Passband2136~2176MHz, 2105MHz≥22dBc, 2205MHz≥18dB, SMD
In Stock View Details →
ZBF3-L2160-284-4431 Filter

Filter ZBF3-L2160-284-4431

Passband2018~2302MHz, DC-1920MHz≥40dBc, 2400-3500MHz≥40dBc, SMD
In Stock View Details →
ZBF16-C2160-10-486 Filter

Filter ZBF16-C2160-10-486

Passband2155~2165MHz, DC~2135MHz≥50dBc, 2185~5000MHz≥50dBc, N
In Stock View Details →
ZBF5-L2160-510-910 Filter

Filter ZBF5-L2160-510-910

Passband1905~2415MHz, DC-1660MHz≥40dBc, 2660-6000MHz≥40dBc, Pin
View Details →
ZBF5-L2160-210-911 Filter

Filter ZBF5-L2160-210-911

Passband2055~2265MHz, DC-1890MHz≥40dBc, 2430-6000MHz≥40dBc, Pin
View Details →
ZBF5-L2160-1010-909 Filter

Filter ZBF5-L2160-1010-909

Passband1655~2655MHz, DC-1160MHz≥40dBc, 3160-6000MHz≥40dBc, Pin
View Details →
ZBF4-C2155-90-588 Filter

Filter ZBF4-C2155-90-588

Passband2110~2200MHz, DC-2095MHz≥80dB, 2215-4000MHz≥80dB, SMA
View Details →

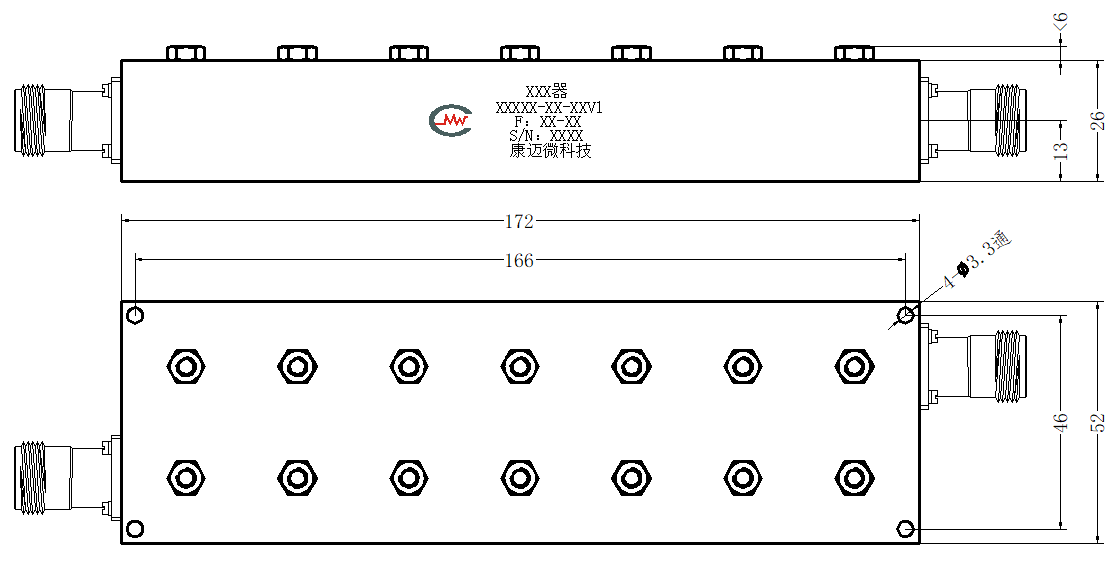

ZBF3-C2155-90-239 Filter

Filter ZBF3-C2155-90-239

Passband2110~2200MHz, DC-2100MHz≥60dB, 2210-4000MHz≥60dB, N
View Details →

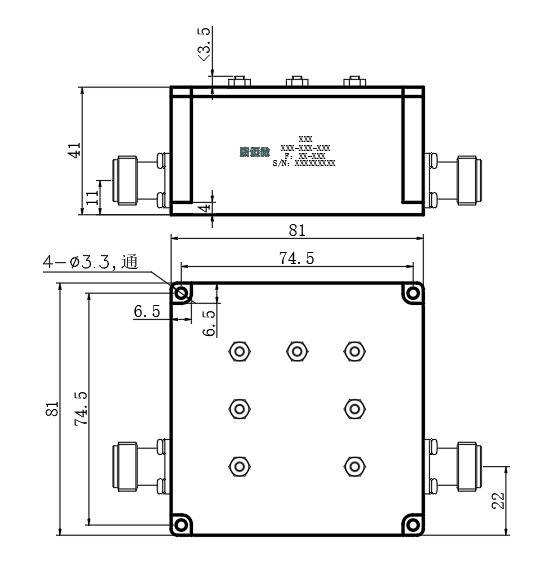

ZBF25-C2160-0-349 Filter

Filter ZBF25-C2160-0-349

Center Frequency2160MHz, DC-2140MHz≥50dB, 2180-4000MHz≥50dB, N
View Details →
ZBF20-L2160-500-243 Filter

Filter ZBF20-L2160-500-243

Passband1910~2410MHz, DC-1640MHz≥50dB, 2680-5000MHz≥50dB, Pin
View Details →
ZBF20-L2160-300-242 Filter

Filter ZBF20-L2160-300-242

Passband2010~2310MHz, DC-1750MHz≥50dB, 2570-5000MHz≥50dB, Pin
View Details →

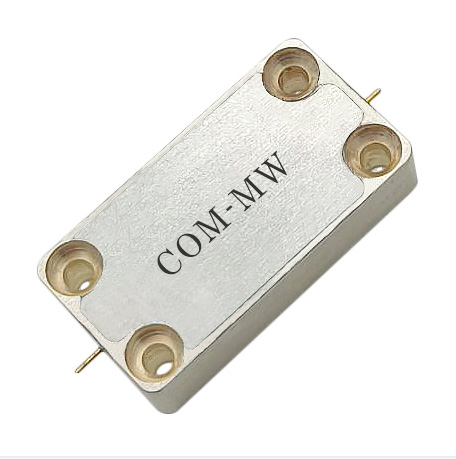

ZBF20-L2160-1000-244 Filter

Filter ZBF20-L2160-1000-244

Passband1660~2660MHz, DC-1310MHz≥50dB, 3010-5000MHz≥50dB, Pin
View Details →
ZBF15-L2160-260-1344 Filter

Filter ZBF15-L2160-260-1344

Passband2030~2290MHz, DC-1874MHz≥40dBc, 2446-6000MHz≥40dB, SMA
View Details →
ZBF15-L2160-110-1343 Filter

Filter ZBF15-L2160-110-1343

Passband2105~2215MHz, DC-1802.5MHz≥40dBc, 2517.5-6000MHz≥40dB, SMA
View Details →

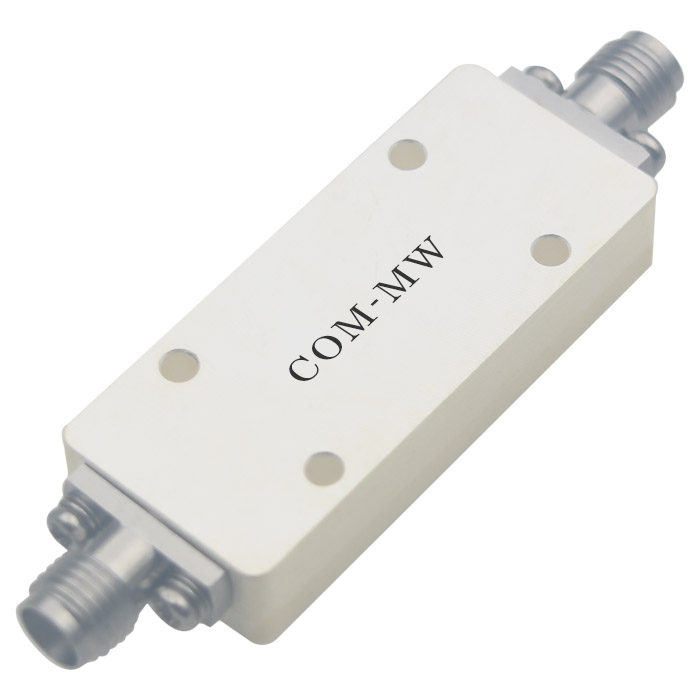

ZBF15-L2155-110-1683 Filter

Filter ZBF15-L2155-110-1683

Passband2100~2210MHz, DC-1600MHz≥60dBc, 1900-2010MHz≥20dBc, SMA
View Details →
ZBF13-C2155-56-3472 Filter

Filter ZBF13-C2155-56-3472

Passband2127~2183MHz, F0±70MHz≥60dB, F0±140MHz≥75dB, SMP
View Details →
CA0477 SMD Filter

SMD Filter CA0477

Bandwidth2.05-2.29GHz, Rejection40@DC-1.8GHz, 40@2.6-7.2GHz
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
