Filters
Filters 1
Feature
Bandpass 18
F Low MHz
17600 2 17700 11 18450 1 18700 1 18850 3
–
Center frequency MHz
19450 18
–
F High MHz
20050 - 20200 4 20450 - 21100 2 21200 - 21300 12
–
IL on center frequency dB
0.2 1 0.5 1 1 16
–
Maximum loss of side frequency dB
0.3 1 1 1 1.5 6 2 10
–
Rejection dB
55 - 60 7 65 - 70 6 75 - 80 5
–
Connector
SMA 12 2.92 1 Microstrip needle 3 Waveguide 1 SMP 1
Power Handling
2 2 5 2 10 13 20 1
–
Filter type
Cavity&waveguide 18
Center frequency：19450 - 19450 MHz× Clear all
matches 18 models Default Newest
ZBF8-C19.45-3.5G-3184 Filter

Filter ZBF8-C19.45-3.5G-3184

Passband17.7~21.2GHz, DC-17GHz≥60dB, 22-35GHz≥60dB, SMA
In Stock View Details →
ZBF13-C19.45-3.5G-1208 Filter

Filter ZBF13-C19.45-3.5G-1208

Passband17.7~21.2GHz, DC-15.45GHz≥70dB, 16-16.95GHz≥30dB, SMA
In Stock View Details →
ZBF5-C19.45-3.5G-1190 Filter

Filter ZBF5-C19.45-3.5G-1190

Passband17.7~21.2GHz, DC-14GHz≥70dBc, 24.7-30GHz≥75dBc, Pin
In Stock View Details →
ZBF8-C19.45-1.2G-3049 Filter

Filter ZBF8-C19.45-1.2G-3049

Passband18.85~20.05GHz, 21-35GHz≥70dB, DC-18GHz≥60dB, SMA
View Details →
ZBF5-C19.45-1.5G-901 Filter

Filter ZBF5-C19.45-1.5G-901

Passband18.7~20.2GHz, DC-18.04GHz≥60dBc, 21-30GHz≥40dBc, Pin
View Details →
ZBF5-C19.45-1.2G-2446 Filter

Filter ZBF5-C19.45-1.2G-2446

Passband18.85~20.05GHz, DC-15GHz≥50dB, Pin
View Details →
ZBF4-C19.45-3.5G-1156 Filter

Filter ZBF4-C19.45-3.5G-1156

Passband17.7~21.2GHz, DC-16.3GHz≥60dB, 23-30GHz≥60dB, SMA
View Details →
ZBF4-C19.45-2G-1700 Filter

Filter ZBF4-C19.45-2G-1700

Passband18.45~20.45GHz, DC-17.65GHz≥60dB, 20.95-38GHz≥60dB, SMA
View Details →
ZBF3-C19.45-3.5G-2111 Filter

Filter ZBF3-C19.45-3.5G-2111

Passband17.7~21.2GHz, 16.5GHz≥55dB, 22.4GHz≥55dB, SMA
View Details →
ZBF3-C19.45-1.2G-3891 Filter

Filter ZBF3-C19.45-1.2G-3891

Passband18850~20050MHz, DC-17050MHz≥80dBc, 18150MHz≥45dBc, SMA
View Details →
ZBF25-W19.45-3.5G-120 Filter

Filter ZBF25-W19.45-3.5G-120

Passband17.7~21.2GHz, 11.7-15.2GHz≥65dB, 27.5-31GHz≥65dB, Waveguide
View Details →
ZBF13-C19.45-3.7G-1913 Filter

Filter ZBF13-C19.45-3.7G-1913

Passband17.6~21.3GHz, 5.3-9GHz≥80dBc, 22-31GHz≥82dBc, SMA
View Details →
ZBF13-C19.45-3.7G-1837 Filter

Filter ZBF13-C19.45-3.7G-1837

Passband17.6~21.3GHz, 5.3-9GHz≥80dBc, 22-31GHz≥90dBc, SMA
View Details →

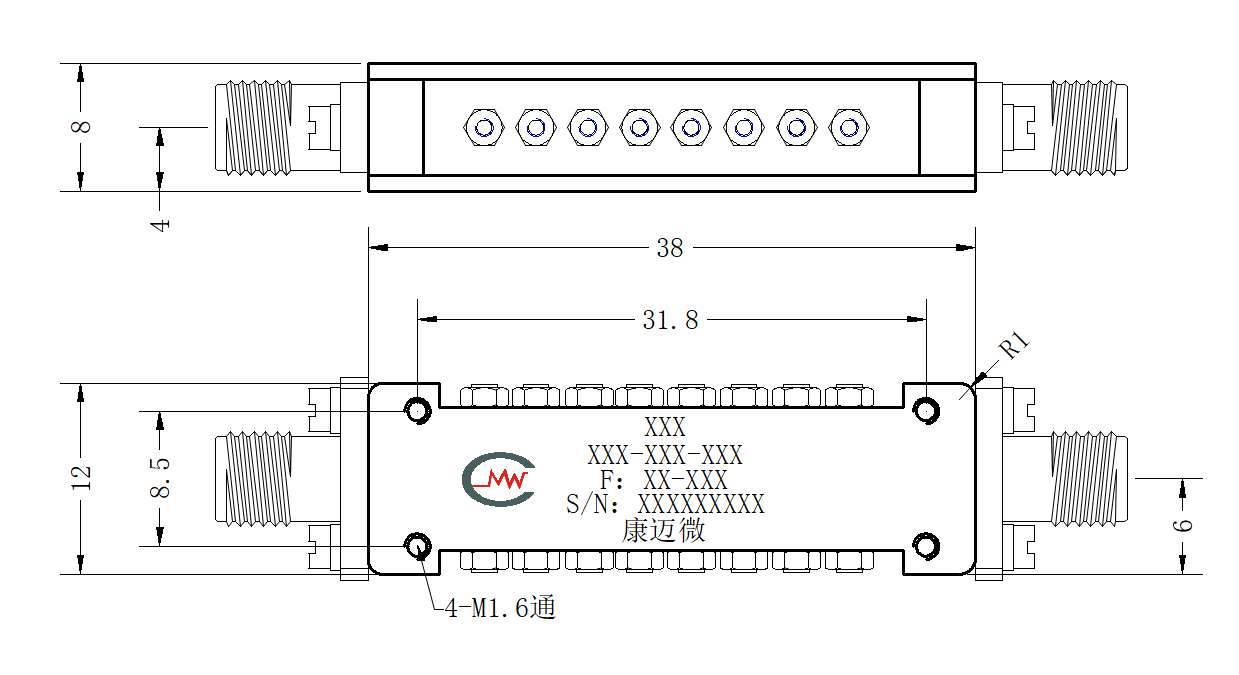

ZBF13-C19.45-3.5G-891 Filter

Filter ZBF13-C19.45-3.5G-891

Passband17.7~21.2GHz, DC-10.6GHz≥70dBc, 24-30GHz≥60dBc, SMA
View Details →
ZBF13-C19.45-3.5G-2779 Filter

Filter ZBF13-C19.45-3.5G-2779

Passband17.7~21.2GHz, DC-15.45GHz≥70dB, 16-16.95GHz≥30dB, 2.92
View Details →
ZBF13-C19.45-3.5G-1964 Filter

Filter ZBF13-C19.45-3.5G-1964

Passband17.7~21.2GHz, DC-17GHz≥45dBc, 22.8-40GHz≥80dBc, SMP, 2.92
View Details →

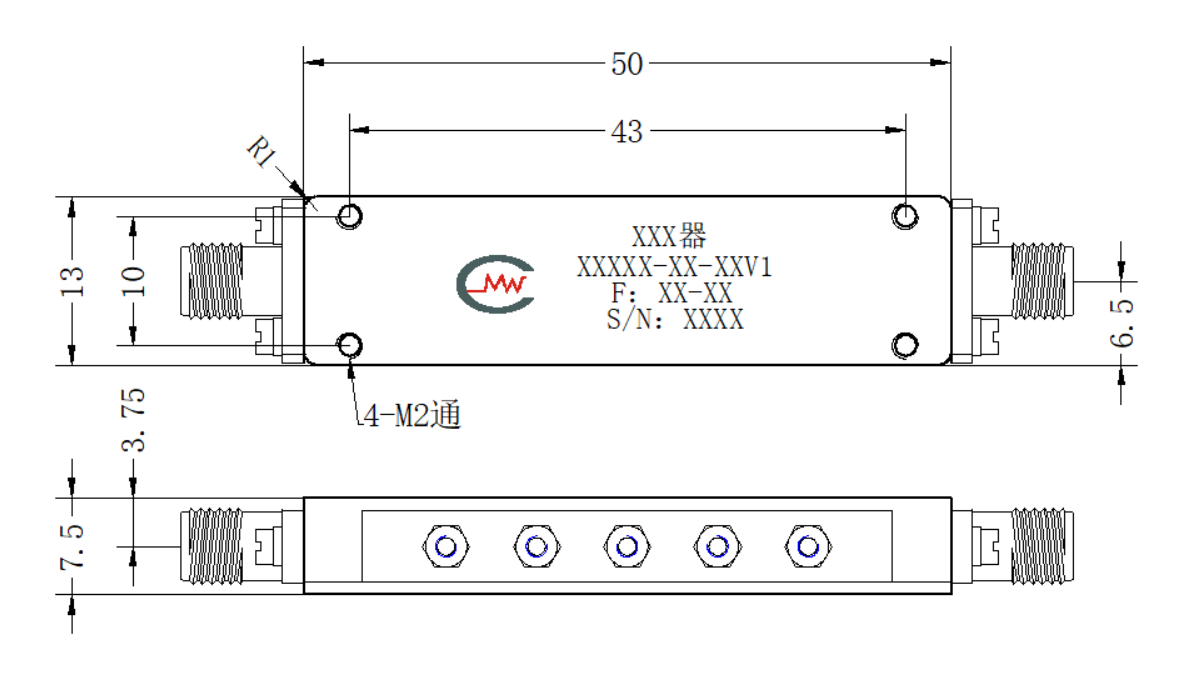

ZBF13-C19.45-3.5G-1823 Filter

Filter ZBF13-C19.45-3.5G-1823

Passband17.7~21.2GHz, DC-16.7GHz≥60dBc, 16.7-17.2GHz≥35dBc, SMA
View Details →

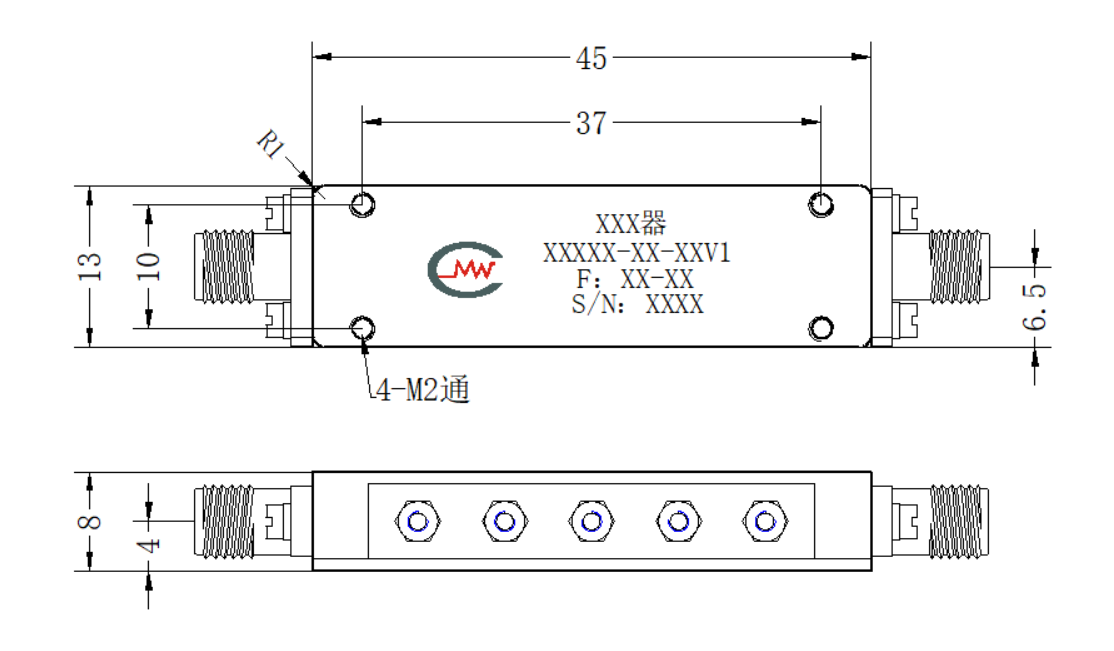

ZBF13-C19.45-3.5G-1666 Filter

Filter ZBF13-C19.45-3.5G-1666

Passband17.7~21.2GHz, DC-15.2GHz≥60dBc, 2.92
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
