Filters
Filters 1
Feature
Bandpass 86 Notch 1
F Low MHz
700 - 1375 9 1390 - 1650 18 1687.5 - 1800 16 1805 - 1874 23 1880 - 1920 21
–
Center frequency MHz
1862.5 - 1880 19 1882.5 - 1902.5 35 1905 - 1915 11 1920 - 1925 19 1930 - 1935 3
–
F High MHz
1780 - 1925 29 1930 - 2000 16 2005 - 2150 15 2155 - 2410 18 2420 - 3100 9
–
IL on center frequency dB
0.5 - 0.6 17 1 - 1.5 37 2 - 3 31 4 1
–
Maximum loss of side frequency dB
1 - 1.2 18 1.5 - 2.2 29 2.5 - 3.1 33 3.8 - 5 7
–
Rejection dB
15 - 28 3 35 - 45 40 49.999 - 55 19 60 - 70 20 75 - 90 5
–
Connector
Other 1 SMD 13 SMA 38 N 3 Microstrip pad 3 Microstrip needle 27
Power Handling
0.1 - 2 42 5 - 20 28 35 - 100 15 150 - 200 2
–
Filter type
LC 43 Cavity&waveguide 40 stripline 2 FBAR 2
Center frequency：1862.5 - 1935 MHz× Clear all
matches 87 models Default Newest
WLMF1909P020AK Filter

Filter WLMF1909P020AK

Passband1909MHz, 0.116-0.487GHz≥4045dB, 1.821-1.997GHz≥4550dB, 1.51-1.54GHz≥3040dB, 1.65-1.705GHz≥3040dB, 3.331-3.702GHz≥3040dB, Microstrip pad, FBAR
In Stock View Details →
WLMF1900B000AK Filter

Filter WLMF1900B000AK

Passband1900MHz, 1.8GHz≥4055dB, 2GHz≥4055dB, Microstrip pad, FBAR
In Stock View Details →

Filter ZBF15-L1.9-1G-955

Passband1.4~2.4GHz, DC-1.2GHz≥28dBc, 2.7-5GHz≥28dBc, Microstrip pad
In Stock View Details →
ZBF3-L1900-300-286 Filter

Filter ZBF3-L1900-300-286

Passband1750~2050MHz, DC-1550MHz≥40dB, 2250-5000MHz≥40dB, SMD
In Stock View Details →
ZBF14-L1862.5-115-774 Filter

Filter ZBF14-L1862.5-115-774

Passband1805~1920MHz, DC-1690MHz≥35dB, 2035-5000MHz≥35dB, SMD
In Stock View Details →
ZBF15-L1900-1000-1075 Filter

Filter ZBF15-L1900-1000-1075

Passband1400~2400MHz, DC-1210MHz≥40dB, 2650-6000MHz≥40dB, SMA
In Stock View Details →
ZBSF6-C1890-1910-1313 Filter

Filter ZBSF6-C1890-1910-1313

Stopband F1890~1910MHz, ≥40dB, PassbandDC~1880MHz, 1920~4000MHz, SMA
View Details →
ZBF6-L1925-350-2313 Filter

Filter ZBF6-L1925-350-2313

Passband1750~2100MHz, DC-1050MHz≥70dB, 2625-4000MHz≥70dB, 微带针 Ø0.5mm
View Details →
ZBF6-C1922.5-145-5194 Filter

Filter ZBF6-C1922.5-145-5194

Passband1850~1995MHz, DC-1780MHz≥40dB, 2070-4500MHz≥40dB, SMA
View Details →
ZBF6-C1920-140-5190 Filter

Filter ZBF6-C1920-140-5190

Passband1850~1990MHz, DC-1780MHz≥40dB, 2070-4500MHz≥40dB, SMA
View Details →
ZBF6-C1905-10-186 Filter

Filter ZBF6-C1905-10-186

Passband1900~1910MHz, DC-1890MHz≥50dB, 1930-4000MHz≥50dB, SMA
View Details →
ZBF6-C1900-40-5200 Filter

Filter ZBF6-C1900-40-5200

Passband1880~1920MHz, DC-1850MHz≥40dB, 1950-6000MHz≥40dB, SMA
View Details →
ZBF6-C1900-40-2131 Filter

Filter ZBF6-C1900-40-2131

Passband1880~1920MHz, DC-1870MHz≥50dB, 1930-4000MHz≥50dB, N
View Details →
ZBF6-C1900-30-5156 Filter

Filter ZBF6-C1900-30-5156

Passband1885~1915MHz, DC-1865MHz≥70dB, 1935-4500MHz≥70dB, SMA
View Details →
ZBF6-C1900-20-2349 Filter

Filter ZBF6-C1900-20-2349

Passband1890~1910MHz, DC-1880MHz≥55dB, 1920-3000MHz≥55dB, L29, -150dBc@2*43dBmdesign assurance
View Details →

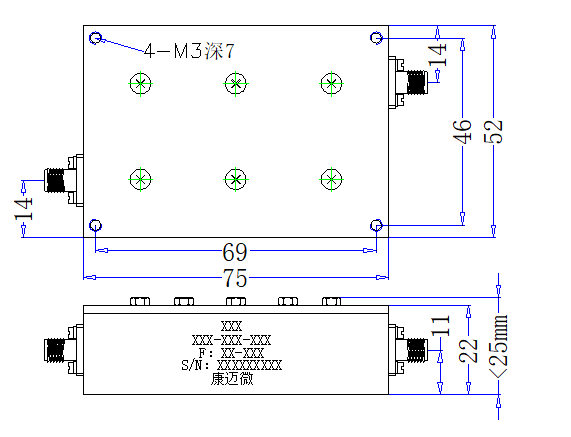

ZBF6-C1882.5-65-4750 Filter

Filter ZBF6-C1882.5-65-4750

Passband1850~1915MHz, DC-1800MHz≥50dB, 1965-4000MHz≥50dB, SMA
View Details →

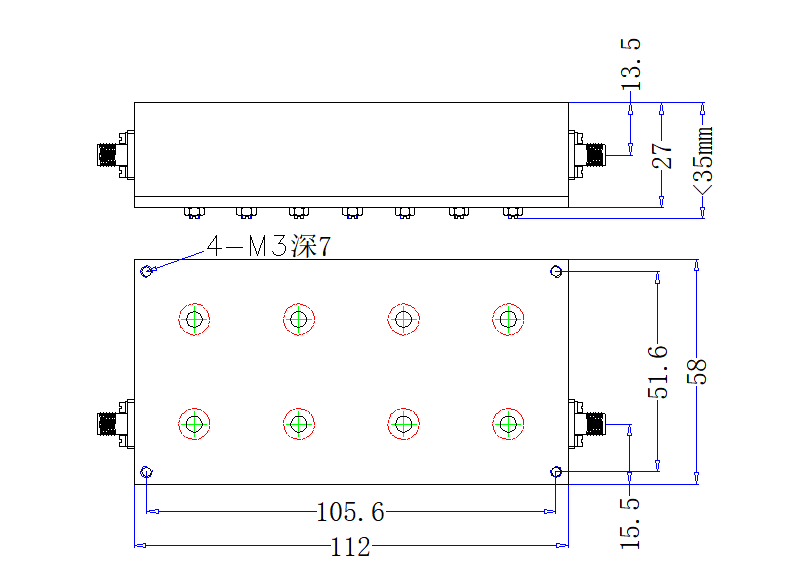

ZBF6-C1882.5-65-3724 Filter

Filter ZBF6-C1882.5-65-3724

Passband1850~1915MHz, DC-1810MHz≥50dB, 1955-4000MHz≥50dB, SMA
View Details →

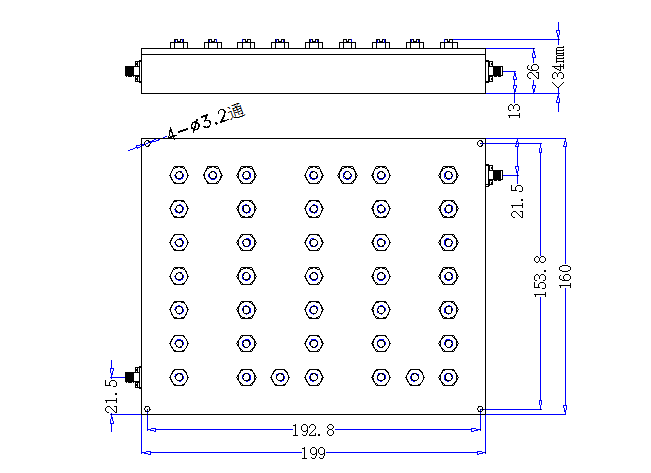

ZBF6-C1882.5-65-3648 Filter

Filter ZBF6-C1882.5-65-3648

Passband1850~1915MHz, DC-1830MHz≥80dB, 1925-6000MHz≥80dB, SMA
View Details →
ZBF6-C1875-350-3248 Band pass filter

Band pass filter ZBF6-C1875-350-3248

Passband1700~2050MHz, DC-1500MHz≥80dB, 2200-4000MHz≥80dB, SMA
View Details →
ZBF5-L1915-220-3342 Filter

Filter ZBF5-L1915-220-3342

Passband1805~2025MHz, DC-1515MHz≥40dB, 2315-3000MHz≥40dB, SMA
View Details →
ZBF5-L1875-375-185 Filter

Filter ZBF5-L1875-375-185

Passband1687.5~2062.5MHz, DC-1512.5MHz≥55dBc, 2275-4000MHz≥35dBc, Pin
View Details →
ZBF5-C1935-370-1643 Filter

Filter ZBF5-C1935-370-1643

Passband1750~2120MHz, 2200-2500MHz≥65dB, DC-1500MHz≥75dB, SMA
View Details →
ZBF5-C1920-20-664 Filter

Filter ZBF5-C1920-20-664

Passband1910~1930MHz, DC-1870MHz≥65dB, 1970-2500MHz≥65dB, Pin
View Details →
ZBF5-C1890-20-1436 Filter

Filter ZBF5-C1890-20-1436

Center Frequency1890MHz, -3dB BW20MHz, DC-1875MHz≥40dB, 1905-2000MHz≥40dB, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
