Filters
Filters 1
Feature
Bandpass 19 Highpass 1
F Low MHz
11000 - 16980 8 17000 - 17800 3 18000 - 18400 6 18700 - 19000 3
–
Center frequency MHz
19000 20
–
F High MHz
19000 - 19300 3 19600 - 20000 6 20200 - 21000 3 21020 - 27000 8
–
IL on center frequency dB
0.5 - 1 13 1.5 - 2 3 2.5 - 3 3 4 1
–
Maximum loss of side frequency dB
1 - 1.6 4 2 - 2.3 9 2.5 - 3 4 3.5 - 5.5 3
–
Rejection dB
30 - 40 6 50 - 59.999 6 60 - 65 5 70 - 80 2 90 1
–
Connector
SMD 3 SMA 9 Microstrip pad 1 Microstrip needle 7
Power Handling
1 1 2 1 5 3 10 15
–
Filter type
Cavity&waveguide 16 stripline 3 Thin film 1
Center frequency：19000 - 19000 MHz× Clear all
matches 20 models Default Newest
CA0341 SMD Filter

SMD Filter CA0341

Bandwidth18.2-19.8GHz, Rejection35@DC-16.7GHz, 40@21.5-32.0GHz
In Stock View Details →
STHP110-M063 Thin film filter

Thin film filter STHP110-M063

Bandwidth11.0-27.0GHz, Rejection30@DC-8.5GHz
In Stock View Details →
ZBF13-C19-6G-272 Filter

Filter ZBF13-C19-6G-272

Passband16~22GHz, DC-14GHz≥50dBc, 23.5-25.5GHz≥50dBc, SMA-KDetachable
In Stock View Details →
ZBF5-C19-2G-2293 Filter

Filter ZBF5-C19-2G-2293

Passband18~20GHz, DC-16GHz≥65dB, 22-36GHz≥65dB, SMA
In Stock View Details →
ZBF1-M19-4G-237 Filter

Filter ZBF1-M19-4G-237

Passband17~21GHz, DC-16GHz≥50dBc, 22.5-24GHz≥40dBc, SMD
In Stock View Details →
ZBF25-C19-3G-288 Filter

Filter ZBF25-C19-3G-288

Passband17.5~20.5GHz, DC-16GHz≥60dBc, 21-40GHz≥40dBc, SMA
In Stock View Details →
ZBF25-C19-0.2G-3582 Filter

Filter ZBF25-C19-0.2G-3582

Passband18.9~19.1GHz, DC-18.4GHz≥40dB, 19.6-25GHz≥40dB, SMA
In Stock View Details →
ZBF6-C19-0G-4591 Filter

Filter ZBF6-C19-0G-4591

Passband19~19GHz, DC~18GHz≥80dBc, 20~30GHz≥80dBc,
View Details →
ZBF5-C19-6G-299 Filter

Filter ZBF5-C19-6G-299

Passband16~22GHz, DC-14GHz≥60dB, 24-27GHz≥60dB, SMA
View Details →
ZBF5-C19-2G-773 Filter

Filter ZBF5-C19-2G-773

Passband18~20GHz, DC-16GHz≥65dBc, 22-25GHz≥65dBc, SMA
View Details →
ZBF5-C19-2G-1562 Filter

Filter ZBF5-C19-2G-1562

Passband18~20GHz, DC-16GHz≥70dBc, 22-25GHz≥65dBc, SMA
View Details →
ZBF4-C19-6G-752 Filter

Filter ZBF4-C19-6G-752

Passband16~22GHz, DC-15GHz≥65dBc, 23-30GHz≥65dBc, Pin
View Details →
ZBF3-C19-6G-2093 Filter

Filter ZBF3-C19-6G-2093

Passband16~22GHz, DC-15GHz≥50dB, 23-30GHz≥50dB, SMA
View Details →
ZBF2-C19-6G-1935 Filter

Filter ZBF2-C19-6G-1935

Passband16~22GHz, DC-14GHz≥50dBc, 23.5-35GHz≥50dBc, Pin
View Details →
ZBF13-C19-6G-3974 Filter

Filter ZBF13-C19-6G-3974

Passband16~22GHz, DC-13GHz≥50dB, 23.5-27.5GHz≥50dB, Pin
View Details →
ZBF13-C19-4.04G-953 Filter

Filter ZBF13-C19-4.04G-953

Passband16.98~21.02GHz, DC-6422MHz≥90dBc, 15.98GHz≥50dBc, SMA
View Details →

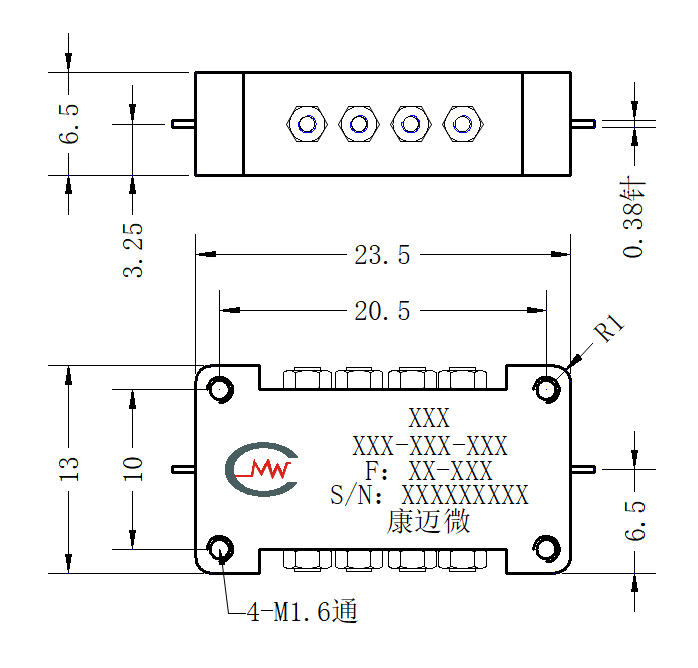

ZBF13-C19-2.4G-986 Filter

Filter ZBF13-C19-2.4G-986

Passband17.8~20.2GHz, DC-15GHz≥60dBc, 23-29GHz≥60dBc, Pin
View Details →
ZBF13-C19-1.2G-3240 Filter

Filter ZBF13-C19-1.2G-3240

Passband18.4~19.6GHz, DC-17.45GHz≥60dBc, 21-30GHz≥60dBc, Pin
View Details →
ZBF13-C19-0.6G-315 Filter

Filter ZBF13-C19-0.6G-315

Passband18.7~19.3GHz, 19.95-35GHz≥40dBc, dB, Pin
View Details →
CA0384-2506 SMD Filter

SMD Filter CA0384-2506

Bandwidth18.0-20.0GHz, Rejection35@10.1-16.6GHz, 40@21.8-34.0GHz,
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
