Filters
Filters 1
Feature
Bandpass 31 Highpass 1
F Low MHz
8400 - 12500 5 12975 - 13700 4 13750 - 13980 6 14000 - 14195 17
–
Center frequency MHz
14200 4 14250 28
–
F High MHz
14205 - 14520 18 14550 - 14800 6 15200 - 15525 3 15900 - 16500 4 20000 1
–
IL on center frequency dB
0.2 - 0.5 4 1 - 1.5 21 2 - 4 7
–
Maximum loss of side frequency dB
0.3 - 0.35 2 1 - 1.3 4 1.5 - 2 16 2.5 - 3 8 5 2
–
Rejection dB
30 - 40 3 50 - 55 7 58 - 60 5 65 - 70 7 75 - 80 10
–
Connector
SMD 3 SMA 13 Microstrip pad 1 Microstrip needle 13 Waveguide 2
Power Handling
1 - 2 2 5 - 10 25 15 - 20 3 100 - 400 2
–
Filter type
Cavity&waveguide 28 stripline 3 Thin film 1
Center frequency：14200 - 14250 MHz× Clear all
matches 32 models Default Newest
CA0025 SMD Filter

SMD Filter CA0025

Bandwidth8.4-20.0GHz, Rejection60@DC-2.0GHz, 30@2.0-7.0GHz
In Stock View Details →
STBP142-3R4-M504 Thin film filter

Thin film filter STBP142-3R4-M504

Bandwidth12.5-15.9GHz, Rejection40@DC-11.0GHz, 40@18.0-34.0GHz
In Stock View Details →
ZBF5-C14.25-0.5G-1960 Filter

Filter ZBF5-C14.25-0.5G-1960

Passband14~14.5GHz, DC-12.75GHz≥65dBc, 16-18GHz≥65dBc, SMA
In Stock View Details →

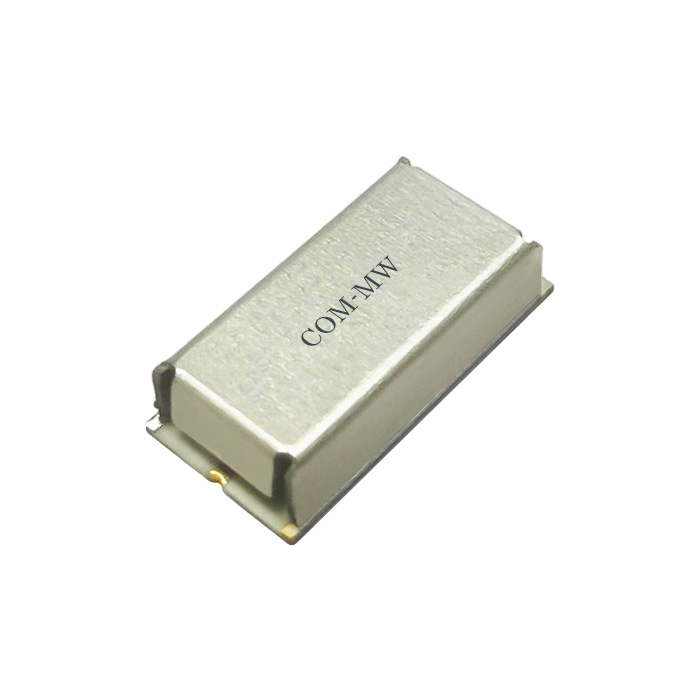

ZBF1-M14.25-3.5G-234 Filter

Filter ZBF1-M14.25-3.5G-234

Passband12.5~16GHz, DC-11GHz≥42dBc, 17.5-20GHz≥55dBc, SMD
In Stock View Details →
ZBF25-W14.25-0.5G-086 Filter

Filter ZBF25-W14.25-0.5G-086

Passband14~14.5GHz, DC-12.75GHz≥80dB, 16-21GHz≥60dB, Waveguide
In Stock View Details →
ZBF25-C14200-10-047 Filter

Filter ZBF25-C14200-10-047

Passband14195~14205MHz, DC-13700MHz≥50dBc, 14700-20000MHz≥50dBc, SMA
In Stock View Details →
ZBF13-C14.25-0.5G-470 Filter

Filter ZBF13-C14.25-0.5G-470

Passband14~14.5GHz, DC-12.75GHz≥75dBc, 12.8-13.2GHz≥50dBc, Pin
In Stock View Details →

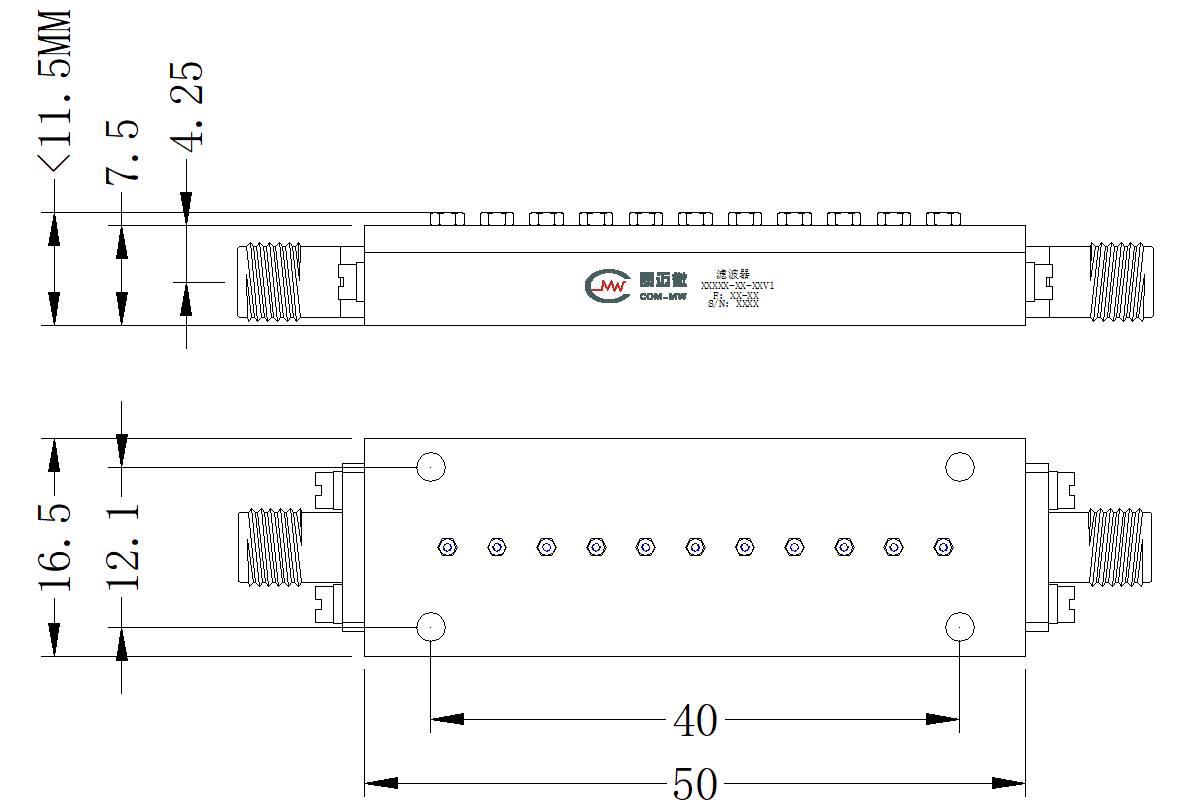

ZBF6-C14.25-0.5G-5120 Filter

Filter ZBF6-C14.25-0.5G-5120

Passband14~14.5GHz, DC-2GHz≥dB, 10-12.9GHz≥dB, SMA
View Details →

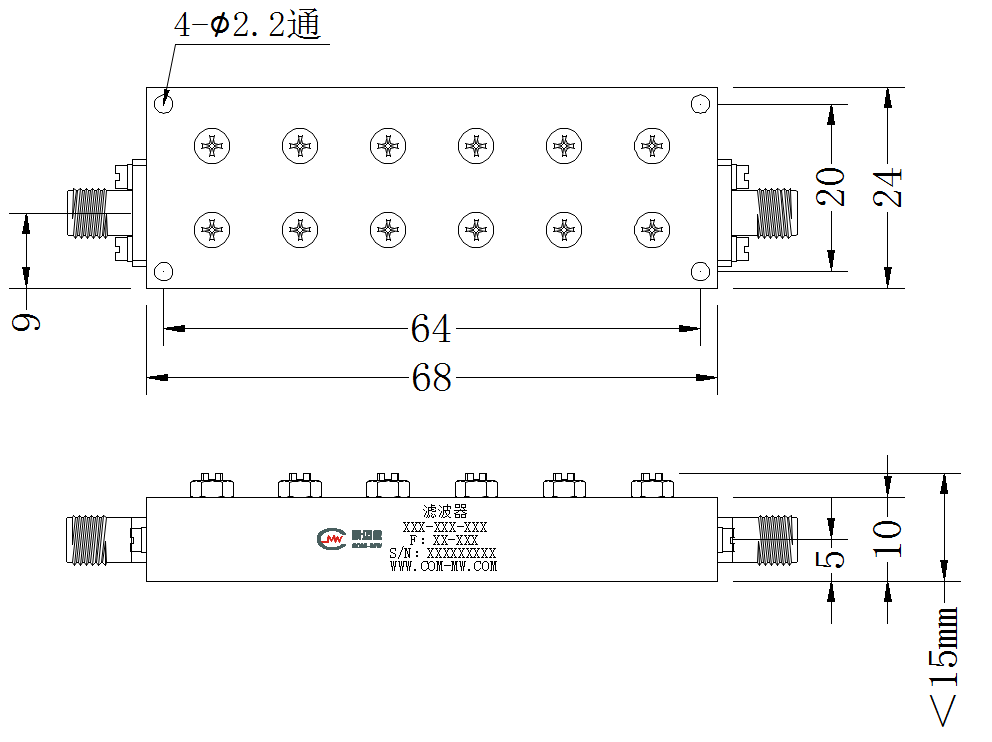

ZBF6-C14.25-0.5G-2420 Filter

Filter ZBF6-C14.25-0.5G-2420

Passband14~14.5GHz, DC-13.8GHz≥50dB, 14.7-20GHz≥50dB, SMA
View Details →
ZBF5-C14.25-2.55G-3126 Filter

Filter ZBF5-C14.25-2.55G-3126

Passband12.975~15.525GHz, DC-4GHz≥75dB, D-12.5GHz≥40dB, Pin
View Details →
ZBF5-C14.25-2.1G-873 Filter

Filter ZBF5-C14.25-2.1G-873

Passband13.2~15.3GHz, DC-12.8GHz≥40dBc, 15.5-18GHz≥15dBc, SMA
View Details →
ZBF5-C14.25-1G-1335 Filter

Filter ZBF5-C14.25-1G-1335

Passband13.75~14.75GHz, 8-12.5GHz≥40dB, 15-16GHz≥20dB, SMA
View Details →
ZBF5-C14.2-2G-845 Filter

Filter ZBF5-C14.2-2G-845

Passband13.2~15.2GHz, 10.9-12.5GHz≥60dBc, Pin
View Details →
ZBF4-C14.25-0.5G-894 Filter

Filter ZBF4-C14.25-0.5G-894

Passband14~14.5GHz, DC-11.2GHz≥80dBc, 14.8-20GHz≥30dBc, Pin
View Details →
ZBF4-C14.25-0.5G-529 Filter

Filter ZBF4-C14.25-0.5G-529

Passband14~14.5GHz, DC-13.2GHz≥50dBc, 15.3-30GHz≥50dBc, Pin
View Details →

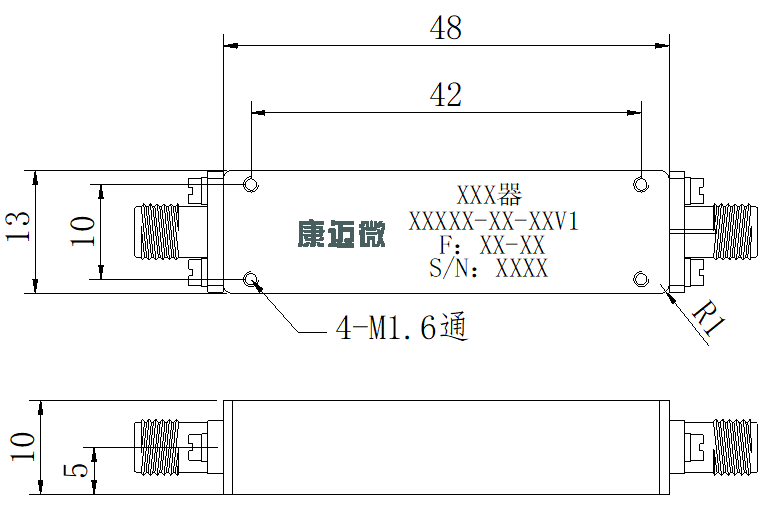

ZBF4-C14.25-0.5G-1155 Filter

Filter ZBF4-C14.25-0.5G-1155

Passband14~14.5GHz, DC-13.7GHz≥60dB, 15-18GHz≥60dB, SMA
View Details →

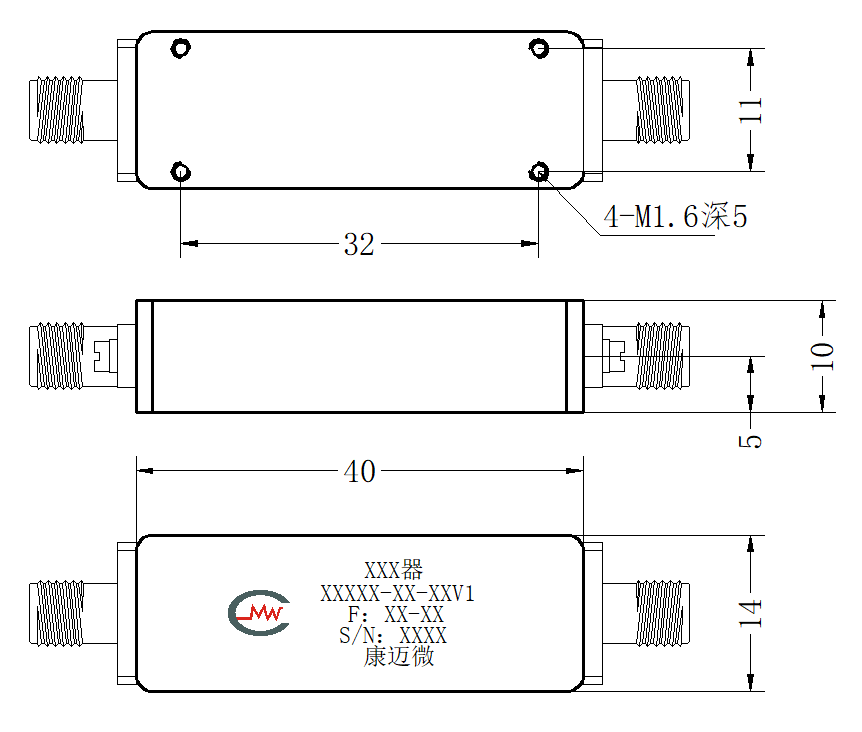

ZBF3-C14.25-0.5G-3427 Filter

Filter ZBF3-C14.25-0.5G-3427

Passband14000~14500MHz, 13750MHz≥15dB, 14750MHz≥15dB, SMA
View Details →
ZBF25-C14250-1100-888 Filter

Filter ZBF25-C14250-1100-888

Passband13700~14800MHz, DC-13375MHz≥18dBc, 16000-20000MHz≥58dBc,
View Details →

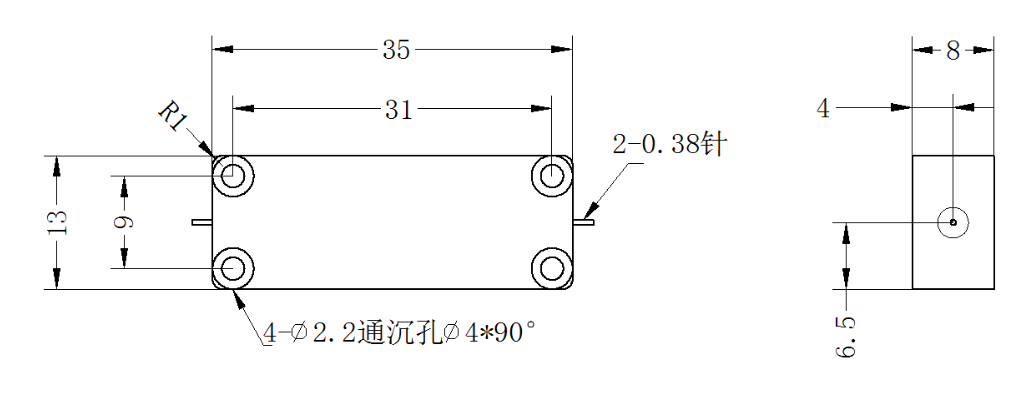

ZBF2-C14.25-0.5G-1882 Filter

Filter ZBF2-C14.25-0.5G-1882

Passband14~14.5GHz, DC-6GHz≥75dB, 7-13GHz≥65dB, Pin
View Details →
ZBF13-W14.25-0.5G-381 Filter

Filter ZBF13-W14.25-0.5G-381

Passband14~14.5GHz, 28-29GHz≥30dB, dB, Waveguide
View Details →
ZBF13-C14250-600-3247 Filter

Filter ZBF13-C14250-600-3247

Center Frequency14.25GHz, Passband13.95~14.55GHz, DC-12.7GHz≥80dBc, 15.8-25GHz≥80dBc, SMA
View Details →
ZBF13-C14.25-4.5G-538 Filter

Filter ZBF13-C14.25-4.5G-538

Passband12~16.5GHz, DC-9GHz≥65dB, 18-28GHz≥40dB, Pin
View Details →
ZBF13-C14.25-1G-693 Filter

Filter ZBF13-C14.25-1G-693

Passband13.75~14.75GHz, DC-12.25GHz≥65dBc, 13GHz≥20dBc, Pin
View Details →

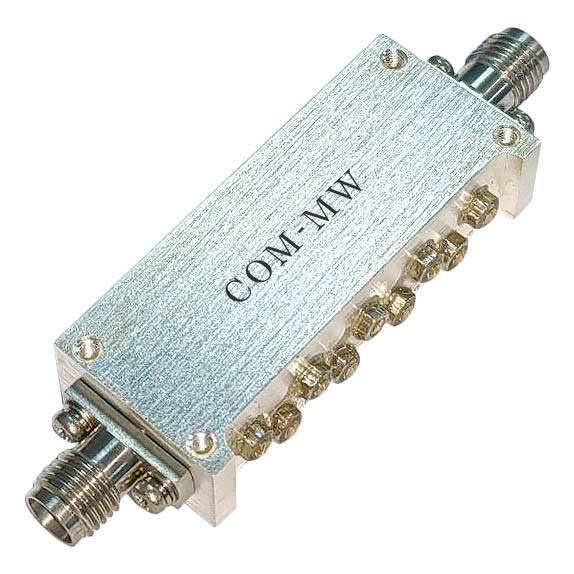

ZBF13-C14.25-0.6G-576 Filter

Filter ZBF13-C14.25-0.6G-576

Passband13.95~14.55GHz, DC-10GHz≥70dB, 10-12MHz≥50dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
