Filters
Filters 1
Feature
Bandpass 14
F Low MHz
9800 - 13182 3 13200 - 13440 4 13500 - 13750 4 13800 - 13950 3
–
Center frequency MHz
13850 6 13900 6 13950 1 13975 1
–
F High MHz
14000 - 14050 5 14260 - 14270 2 14300 - 14500 4 14518 - 14700 2 18000 1
–
IL on center frequency dB
0.3 - 0.4 2 1 - 2 6 4.3 - 4.5 2 5 - 5.5 3 6 1
–
Maximum loss of side frequency dB
0.5 - 1 2 2 - 3 6 5.3 - 5.5 2 6 - 6.5 3 7 1
–
Rejection dB
35 - 40 7 50 - 55 4 60 - 65 2 70 1
–
Connector
SMD 4 SMA 3 Microstrip pad 1 Microstrip needle 6
Power Handling
2 2 5 5 10 6 80 1
–
Filter type
Cavity&waveguide 7 stripline 3 Coaxial 2 Thin film 2
Center frequency：13850 - 13975 MHz× Clear all
matches 14 models Default Newest
CA0350 SMD Filter

SMD Filter CA0350

Bandwidth13.0-14.7GHz, Rejection50@DC-11.2GHz, 50@16.5-22.0GHz
In Stock View Details →
CA0126 SMD Filter

SMD Filter CA0126

Bandwidth13.75-14.05GHz, Rejection35@DC-12.5GHz, 35@15.2-22.0GHz
In Stock View Details →
CA0116 SMD Filter

SMD Filter CA0116

Bandwidth13.5-14.3GHz, Rejection40@DC-12.3GHz, 40@15.5-24.0GHz
In Stock View Details →
STBP139-0R2-N165 Thin film filter

Thin film filter STBP139-0R2-N165

Bandwidth13.8-14.0GHz, Rejection40@DC-13.0GHz, 40@14.7-30.0GHz
In Stock View Details →
STBP139-0R2-K869 Thin film filter

Thin film filter STBP139-0R2-K869

Bandwidth13.8-14.0GHz, Rejection35@DC-13.3GHz, 40@14.6-24.0GHz
In Stock View Details →
CC0116 Filter

Filter CC0116

Bandwidth13.6-14.3GHz, Rejection40@DC-12.3GHz, 40@15.5-24.0GHz
In Stock View Details →
CC0126 Filter

Filter CC0126

Bandwidth13.75-14.05GHz, Rejection35@DC-12.5GHz, 35@15.2-22.0GHz
In Stock View Details →

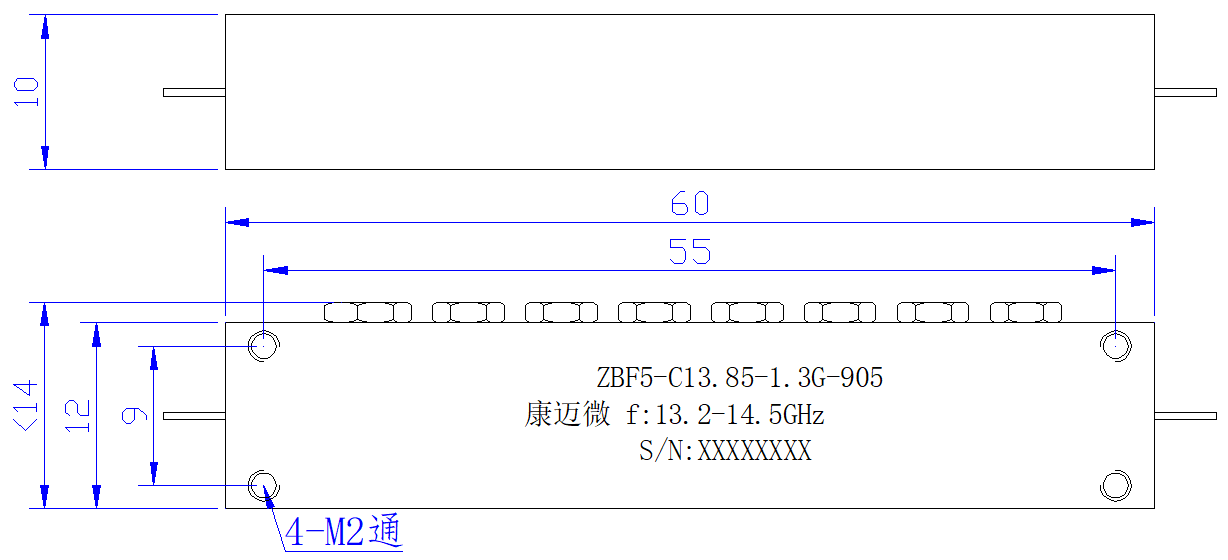

ZBF5-C13.85-1.3G-905 Filter

Filter ZBF5-C13.85-1.3G-905

Passband13.2~14.5GHz, DC-12.34GHz≥60dBc, 15.3-20GHz≥40dBc, Pin
View Details →

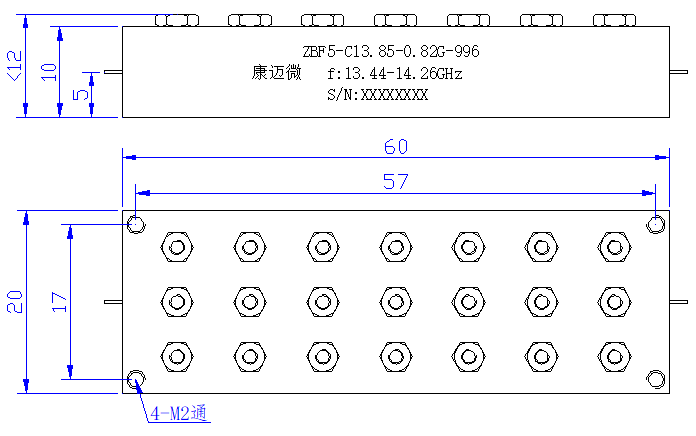

ZBF5-C13.85-0.82G-996 Filter

Filter ZBF5-C13.85-0.82G-996

Passband13.44~14.26GHz, 14.4-16GHz≥50dBc, DC-11.5GHz≥65dBc, Pin
View Details →

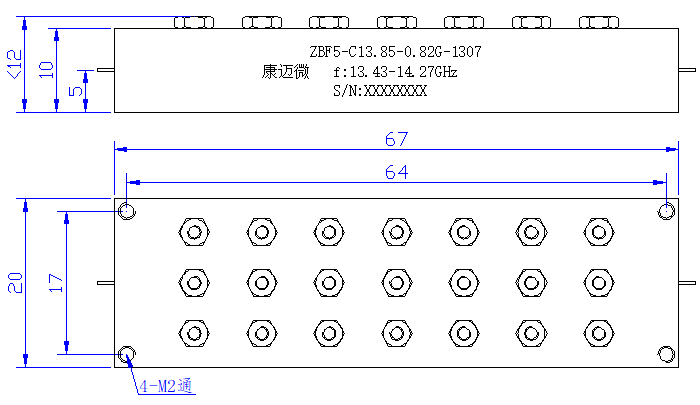

ZBF5-C13.85-0.82G-1307 Filter

Filter ZBF5-C13.85-0.82G-1307

Passband13.43~14.27GHz, 14.4-14.56GHz≥40dB, DC-12.9GHz≥70dB, Pin
View Details →

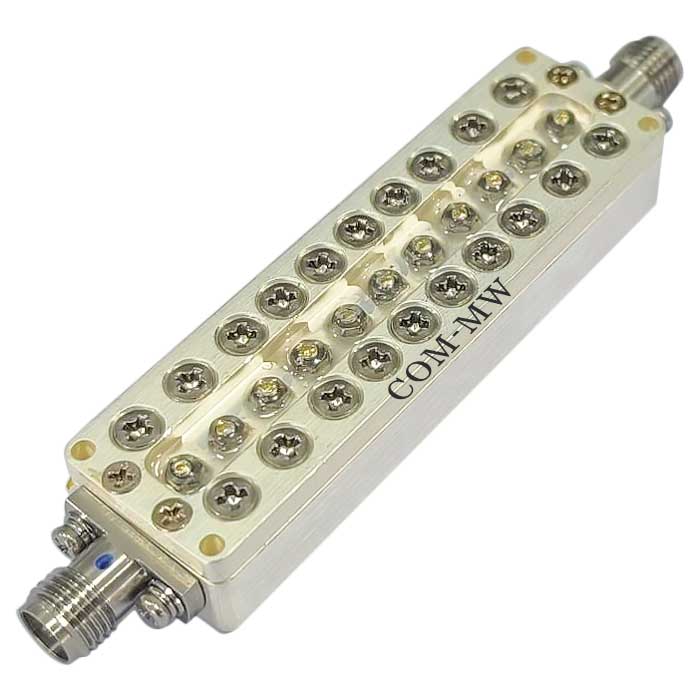

ZBF25-C13975-50-143 Filter

Filter ZBF25-C13975-50-143

Passband13950~14000MHz, 12500-13500MHz≥50dB, 14050-15000MHz≥50dB, SMA
View Details →
ZBF13-C13.9-8.2G-682 Filter

Filter ZBF13-C13.9-8.2G-682

Passband9.8~18GHz, DC-8.6GHz≥50dBc, 18.5-25GHz≥15dBc, Pin
View Details →
ZBF13-C13.85-1.3G-014 Filter

Filter ZBF13-C13.85-1.3G-014

Passband13.2~14.5GHz, DC-11.2GHz≥40dBc, 16-22GHz≥40dBc, Pin
View Details →
ZBF13-C13.85-1.33G-220 Filter

Filter ZBF13-C13.85-1.33G-220

Passband13.182~14.518GHz, DC-12.1GHz≥55dBc, 15.6-25GHz≥55dBc, Pin
View Details →
