Filters
Filters 1
Feature
Bandpass 23
F Low MHz
500 - 840 5 850 - 950 5 1000 - 1060 4 1070 - 1100 7 1130 2
–
Center frequency MHz
1137.5 2 1140 3 1142 1 1150 17
–
F High MHz
1170 - 1215 9 1220 - 1300 4 1325 - 1440 5 1450 - 2000 5
–
IL on center frequency dB
0.4 1 0.5 4 1 7 1.5 2 2 9
–
Maximum loss of side frequency dB
0.7 - 1 5 1.5 - 2 6 2.5 - 3 11 3.5 1
–
Rejection dB
20 - 35 3 40 - 45 9 50 - 60 11
–
Connector
SMD 10 SMA 4 Microstrip needle 9
Power Handling
1 - 2 15 5 - 20 6 30 - 50 2
–
Filter type
LC 20 Cavity&waveguide 1 Dielectric 2
Center frequency：1137.5 - 1150 MHz× Clear all
matches 23 models Default Newest
ZBF15-L1150-100-640 Filter

Filter ZBF15-L1150-100-640

Passband1100~1200MHz, DC-1000MHz≥40dBc, 1300-3000MHz≥40dBc, SMD
In Stock View Details →
ZBF9-D1150-100-3245 Filter

Filter ZBF9-D1150-100-3245

Passband1100~1200MHz, DC-1050MHz≥40dB, 1250MHz≥40dB, SMD
In Stock View Details →
ZBF15-L1150-900-1085 Filter

Filter ZBF15-L1150-900-1085

Passband700~1600MHz, DC-580MHz≥40dB, 1.8-4GHz≥40dB, SMD
In Stock View Details →
ZBF5-L1150-200-3499 Filter

Filter ZBF5-L1150-200-3499

Passband1050~1250MHz, DC-900MHz≥40dB, SMD
In Stock View Details →
ZBF15-L1150-100-639 Filter

Filter ZBF15-L1150-100-639

Passband1100~1200MHz, DC-1000MHz≥40dBc, 1300-3000MHz≥40dBc, SMA
In Stock View Details →

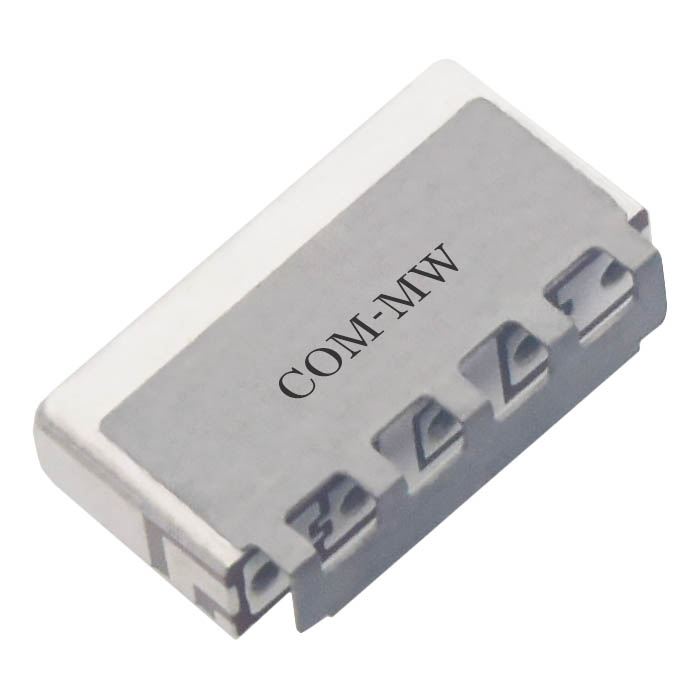

ZBF9-D1150-100-3405 Filter

Filter ZBF9-D1150-100-3405

Passband1100~1200MHz, DC-900MHz≥40dB, 1300-1700MHz≥40dB, SMD
View Details →
ZBF5-L1150-500-2022 Filter

Filter ZBF5-L1150-500-2022

Passband900~1400MHz, DC-700MHz≥50dBc, 1600-2000MHz≥50dBc, Pin
View Details →

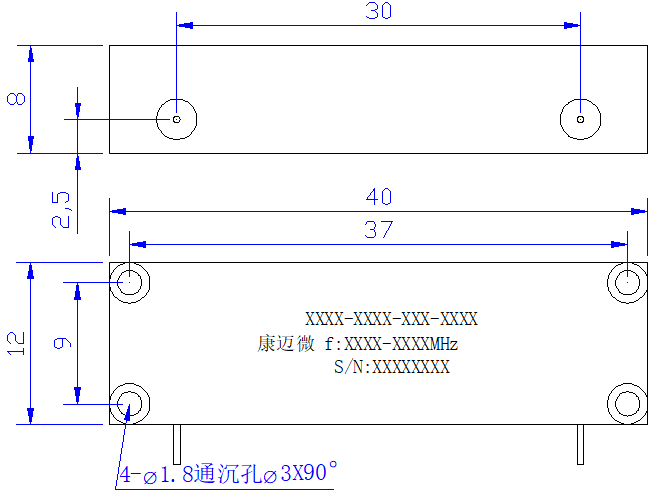

ZBF5-L1150-40-1528 Filter

Filter ZBF5-L1150-40-1528

Passband1130~1170MHz, 800-1000MHz≥20dB, DC-800MHz≥60dB, Pin
View Details →
ZBF5-L1137.5-225-1072 Filter

Filter ZBF5-L1137.5-225-1072

Passband500~2000MHz, DC-960MHz≥40dB, 1400-3000MHz≥50dB, Pin
View Details →
ZBF3-L1150-900-1020 Filter

Filter ZBF3-L1150-900-1020

Passband700~1600MHz, DC-500MHz≥60dB, 1800-3000MHz≥50dB, Pin
View Details →
ZBF3-L1150-900-1018 Filter

Filter ZBF3-L1150-900-1018

Passband700~1600MHz, DC-500MHz≥35dB, 1800-3000MHz≥25dB, Pin
View Details →
ZBF3-L1150-130-1022 Filter

Filter ZBF3-L1150-130-1022

Passband1085~1215MHz, DC-1000MHz≥35dB, 1305-3000MHz≥35dB, Pin
View Details →

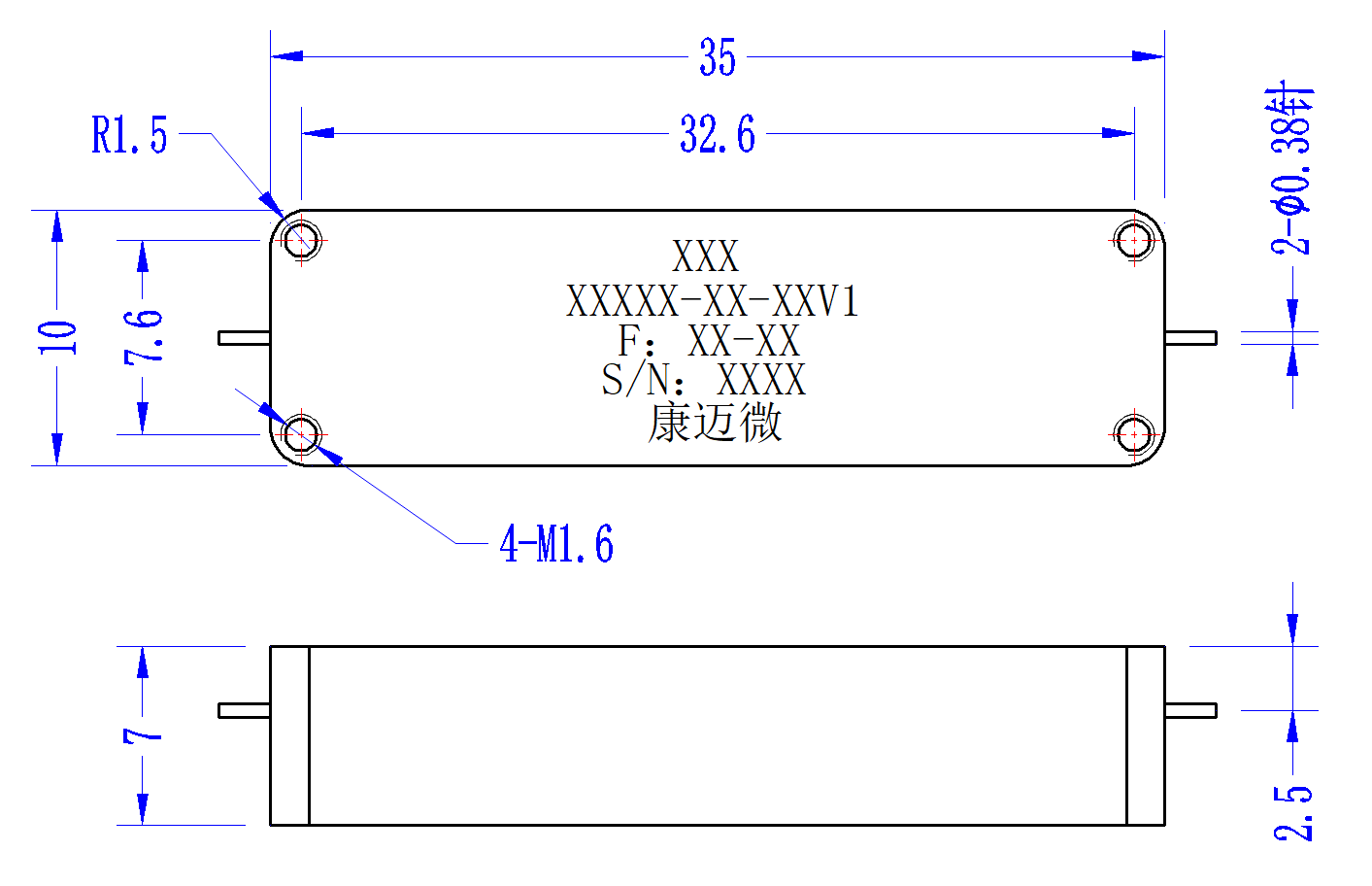

ZBF3-L1150-100-3720 Filter

Filter ZBF3-L1150-100-3720

Passband1100~1200MHz, 900MHz≥60dBc, 1400MHz≥60dBc, DC-750MHz≥70dBc, 1550-2500MHz≥70dBc, Pin
View Details →
ZBF3-L1140-600-4352 Filter

Filter ZBF3-L1140-600-4352

Passband840~1440MHz, DC-771MHz≥20dB, 1577-3000MHz≥20dB, SMD
View Details →

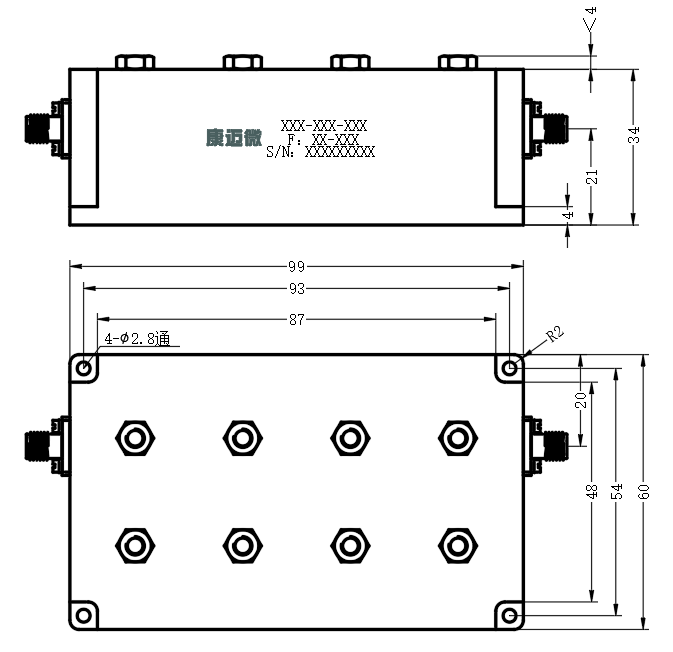

ZBF3-C1140-160-4333 Filter

Filter ZBF3-C1140-160-4333

Passband1060~1220MHz, DC-1000MHz≥40dB, 1300-1800MHz≥40dB, SMA
View Details →
ZBF15-L1150-600-1549 Filter

Filter ZBF15-L1150-600-1549

Passband850~1450MHz, Rectangular coefficient 1.5dB, DC-650MHz≥60dB, SMD
View Details →

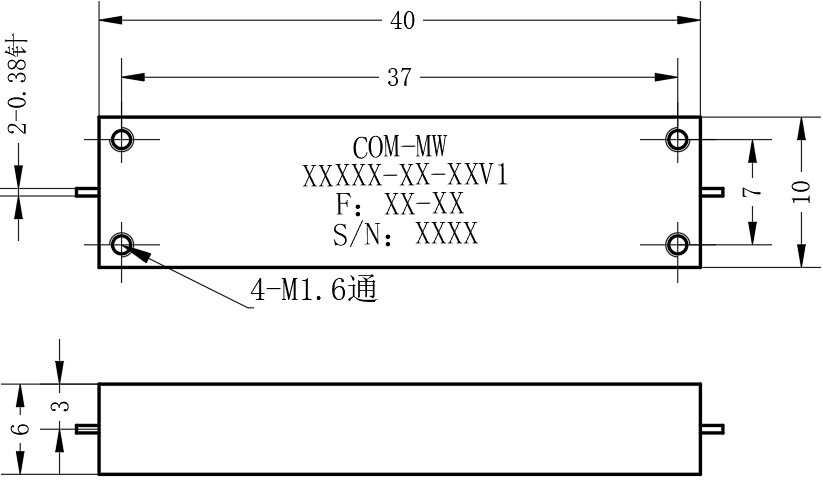

ZBF15-L1150-500-962 Filter

Filter ZBF15-L1150-500-962

Passband900~1400MHz, DC-500MHz≥60dB, 1800-5000MHz≥60dB, Pin
View Details →
ZBF15-L1150-40-1374 Filter

Filter ZBF15-L1150-40-1374

Passband1130~1170MHz, DC-800MHz≥60dBc, 850-1010MHz≥35dBc, Pin
View Details →
ZBF13-L1150-500-2045 Filter

Filter ZBF13-L1150-500-2045

Passband900~1400MHz, DC-600MHz≥50dBc, 1900-3000MHz≥50dBc, SMA
View Details →
ZBF13-L1150-300-3415 Filter

Filter ZBF13-L1150-300-3415

Passband1000~1300MHz, DC-650MHz≥45dB, 1.5-2.5GHz≥45dB, SMD
View Details →
ZBF13-L1142.5-145-1447 Filter

Filter ZBF13-L1142.5-145-1447

Passband1070~1215MHz, DC-0.945GHz≥45dBc, 1.37-3GHz≥45dBc, SMD
View Details →
ZBF13-L1140-160-3092 Filter

Filter ZBF13-L1140-160-3092

Passband1060~1220MHz, DC-0.7GHz≥50dB, 1.56-2GHz≥50dB, SMA
View Details →
ZBF13-L1137.5-375-3209 Filter

Filter ZBF13-L1137.5-375-3209

Passband950~1325MHz, DC-0.6GHz≥50dBc, 1.8-3.4GHz≥60dBc, SMD
View Details →
