RF Filter

Total 54 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 54
F Low MHz
250 - 750 16 790 - 900 9 910 - 970 7 972 - 994 10 995 - 1000 12
–
Center frequency MHz
987.5 1 997 1 1000 51 1012.5 1
–
F High MHz
915 - 1010 19 1015 - 1040 7 1050 - 1125 10 1180 - 1400 16 1500 - 1750 2
–
IL on center frequency dB
0.5 - 1 22 1.5 - 2 13 3 - 3.5 13 4 - 5 6
–
Maximum loss of side frequency dB
1 - 1.8 10 2 - 3 25 3.5 - 4 10 4.2 - 5 7 6 - 6.5 2
–
Rejection dB
20 - 35 2 38 - 40 15 45 - 50 19 55 - 60 15 65 - 70 3
–
Connector
SMD 11 SMA 22 Microstrip needle 20
Power Handling
1 - 2 49 5 - 10 3 20 - 30 2
–
Filter type
LC 48 Cavity&waveguide 5
Center frequency：987.5 - 1012.5 MHz× Clear all
matches 54 models Default Newest
ZBF15-L1000-600-1342 Filter

Filter ZBF15-L1000-600-1342

Passband700~1300MHz, DC-500MHz≥40dBc, 1.4-6MHz≥30dBc, SMD
In Stock View Details →
ZBF5-L1000-100-3479 Filter

Filter ZBF5-L1000-100-3479

Passband950~1050MHz, DC-800MHz≥40dB, SMD
In Stock View Details →
ZBF15-L1000-600-1086 Filter

Filter ZBF15-L1000-600-1086

Passband700~1300MHz, DC-500MHz≥45dB, 1.5-4GHz≥45dB, SMD
In Stock View Details →
ZBF13-L1000-20-1532 Filter

Filter ZBF13-L1000-20-1532

Passband990~1010MHz, DC-0.9GHz≥48dBc, 1.1-3GHz≥50dBc, SMA
In Stock View Details →
ZBF13-L1000-20-1531 Filter

Filter ZBF13-L1000-20-1531

Passband990~1010MHz, DC-900MHz≥40dB, 1.1-3GHz≥40dB, SMD
In Stock View Details →
ZBF15-L1000-600-1087 Filter

Filter ZBF15-L1000-600-1087

Passband700~1300MHz, DC-500MHz≥45dB, 1.5-4GHz≥45dB, SMA
In Stock View Details →
ZBF5-L1000-250-3538 Filter

Filter ZBF5-L1000-250-3538

Passband875~1125MHz, DC-700MHz≥38dB, SMD
In Stock View Details →
ZBF5-L1000-200-3498 Filter

Filter ZBF5-L1000-200-3498

Passband900~1100MHz, DC-750MHz≥40dB, SMD
In Stock View Details →
ZBF15-L1000-10-2802 Filter

Filter ZBF15-L1000-10-2802

Passband995~1005MHz, DC-915MHz≥40dBc, 1085-3000MHz≥45dB, SMA
In Stock View Details →
ZBF13-L1000-500-2417 Filter

Filter ZBF13-L1000-500-2417

Passband750~1250MHz, DC-600MHz≥50dBc, 1420-6000MHz≥50dBc, SMA
In Stock View Details →
ZBF3-L1000-600-2004 Filter

Filter ZBF3-L1000-600-2004

Passband700~1300MHz, DC-500MHz≥50dB, 1500-3000MHz≥50dB, Pin
In Stock View Details →
ZBF2-L997-50-3310 Filter

Filter ZBF2-L997-50-3310

Passband972~1022MHz, DC-800MHz≥55dBc, 1250-1994MHz≥55dBc, SMA
In Stock View Details →
ZBF2-C1000-0-2651 Filter

Filter ZBF2-C1000-0-2651

Passband1000MHz, f0±100MHz≥40dBc, 1.2-1.8GHz≥60dBc, Pin
In Stock View Details →
ZHPF15-L995-1005-843 Filter

Filter ZHPF15-L995-1005-843

View Details →

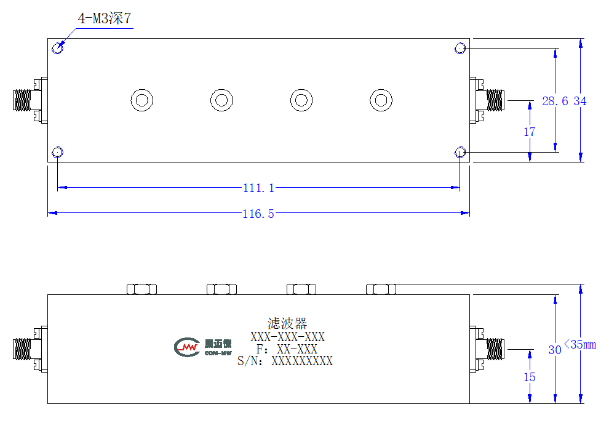

ZBF6-L1000-240-4274 Filter

Filter ZBF6-L1000-240-4274

Passband1000MHz, DC-800MHz≥50dBc, 1200-4500MHz≥50dBc, SMA
View Details →

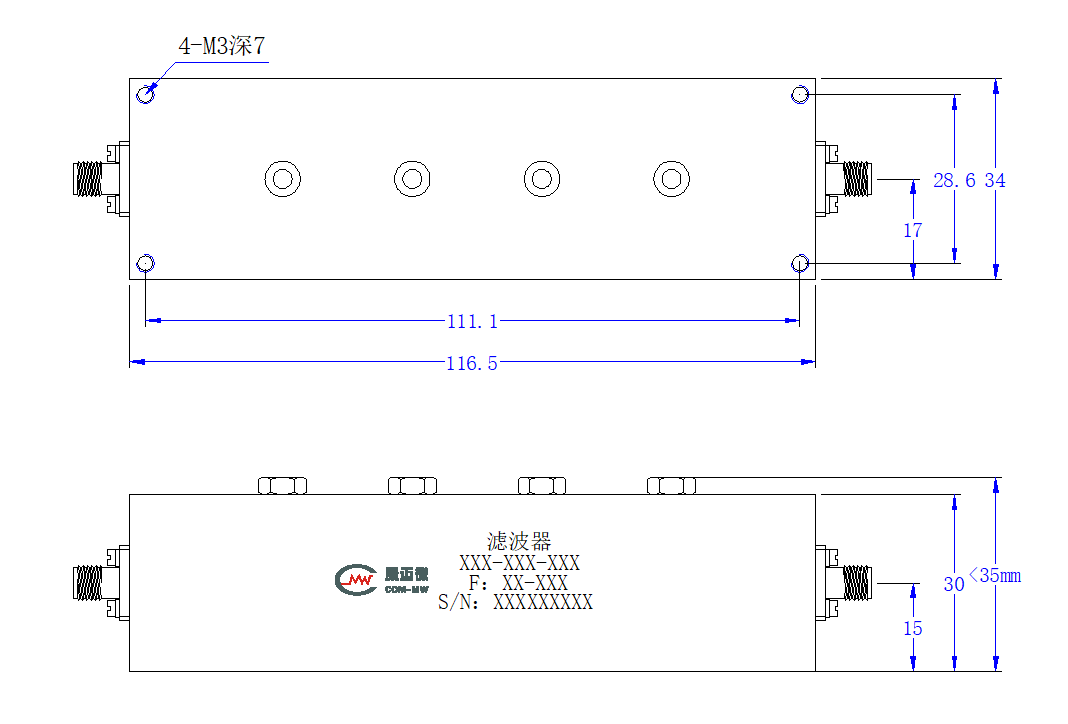

ZBF6-C1000-0-4518 Filter

Filter ZBF6-C1000-0-4518

Passband1000MHz, DC-800MHz≥50dB, 1200-4500MHz≥50dB, SMA
View Details →
ZBF5-L1000-60-1940 Filter

Filter ZBF5-L1000-60-1940

Center Frequency1000MHz, DC-900MHz≥60dB, 1100-3000MHz≥60dB, SMA, Industrial grade
View Details →
ZBF5-L1000-50-1547 Filter

Filter ZBF5-L1000-50-1547

Center Frequency1000MHz, 1dB BW50~80MHz, 500-900MHz≥50dBc, 1100-1500MHz≥50dBc, Pin
View Details →
ZBF5-L1000-420-449 Filter

Filter ZBF5-L1000-420-449

Passband790~1210MHz, DC-600MHz≥20dB, 1600-2000MHz≥20dB, Pin
View Details →

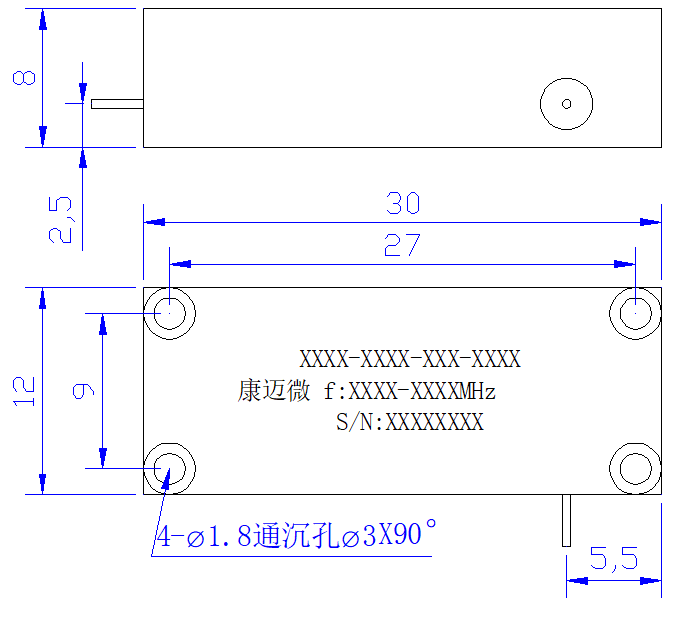

ZBF5-L1000-1200-998 Filter

Filter ZBF5-L1000-1200-998

1dB BW700~1300MHz, 2dB BW400~1600MHz, 2100-3100MHz≥40dBc, 3800-5100MHz≥60dBc, Pin
View Details →
ZBF5-L1000-10-695 Filter

Filter ZBF5-L1000-10-695

Passband995~1005MHz, DC-900MHz≥20dBc, 1100-2000MHz≥20dBc, SMA
View Details →

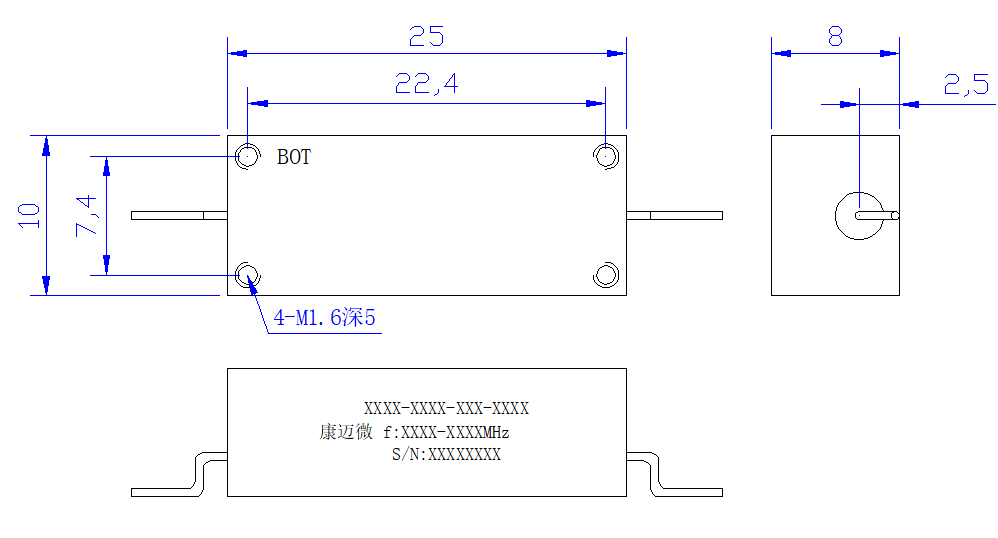

ZBF5-L1000-0-069 Filter

Filter ZBF5-L1000-0-069

Passband1000MHz, DC-800MHz≥50dB, 1200-4000MHz≥50dB, Pin
View Details →
ZBF3-L1000-80-1350 Filter

Filter ZBF3-L1000-80-1350

Passband960~1040MHz, DC-850MHz≥40dB, 1150MHz≥40dB, Pin
View Details →

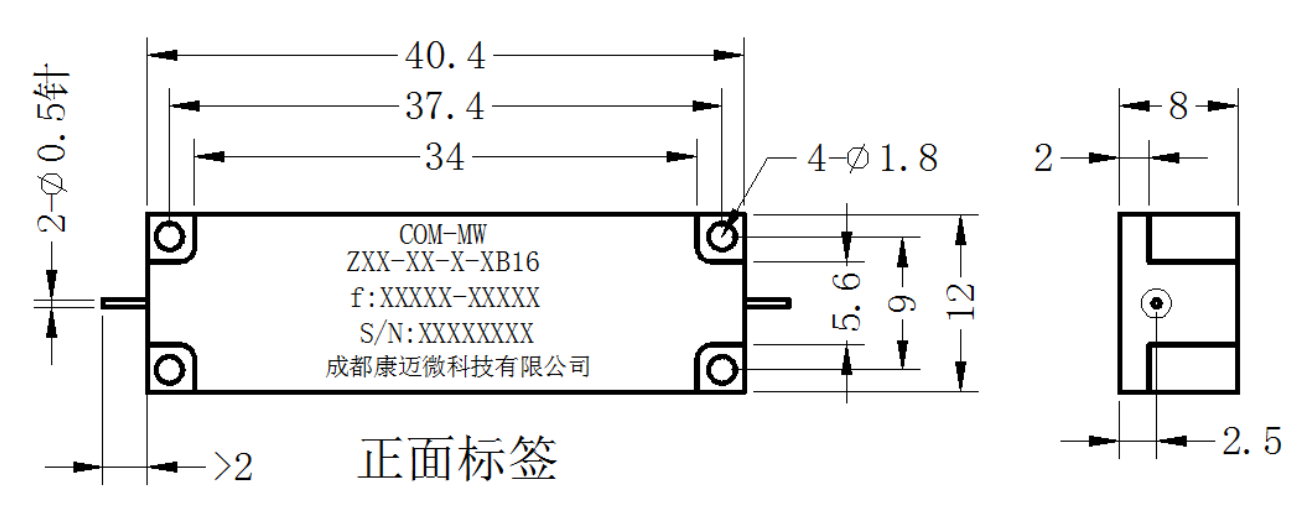

ZBF3-L1000-600-701 Filter

Filter ZBF3-L1000-600-701

Passband700~1300MHz, DC-500MHz≥45dB, 1500MHz≥45dB, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
