Feature：Notch× Connector：SMD× Clear all
matches 23 models Default Newest
CA0419 SMD Filter

SMD Filter CA0419

Passband F1DC-3.9, 4.7-18.0, 带阻带抑制35@4.28-4.32GHz
In Stock View Details →
ZBSF15-L88-108-1063 Filter

Filter ZBSF15-L88-108-1063

Stopband F98MHz, ≥25dB, PassbandDC~88MHz, 108~560MHz, SMD
In Stock View Details →
ZBSF3-L60-60-2532 Filter

Filter ZBSF3-L60-60-2532

Stopband F60~60.01MHz, ≥40dB, PassbandDC~55MHz, 63.5~100MHz, SMD
View Details →
ZBSF3-L1250-1250-4604 Filter

Filter ZBSF3-L1250-1250-4604

Stopband F1250MHz, ≥50dB, PassbandDC~1200MHz, 1300~3000MHz, SMD
View Details →

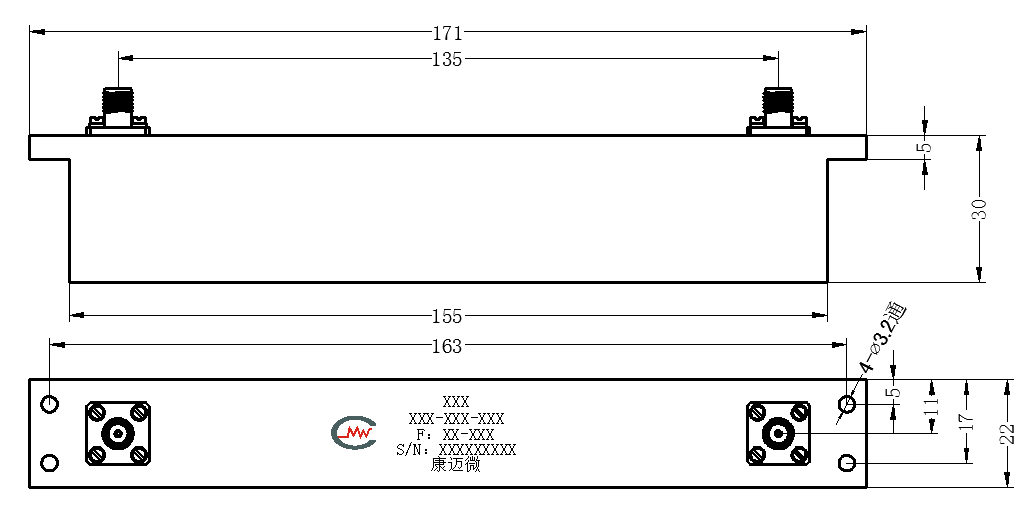

ZBSF3-C2300-2400-3008 Filter

Filter ZBSF3-C2300-2400-3008

Stopband F2300~2400MHz, ≥45dB, PassbandDC~2280MHz, 2420~3000MHz, SMA
View Details →
ZBSF20-L380-2004-193 Filter

Filter ZBSF20-L380-2004-193

Stopband F600~960MHz, ≥30dBc, Passband380~500MHz, 1060~2004MHz, SMD
View Details →
ZBSF15-L90-105-1430 Filter

Filter ZBSF15-L90-105-1430

Stopband F90~105MHz, ≥32dB, PassbandDC~70MHz, 130~260MHz, Pin
View Details →
ZBSF15-L88-108-1578 Filter

Filter ZBSF15-L88-108-1578

Stopband F88~108MHz, ≥32dBc, Passband30~74MHz, 122~225MHz, SMD
View Details →
ZBSF15-L88-108-1313 Filter

Filter ZBSF15-L88-108-1313

Stopband F88~108MHz, ≥30dBc, PassbandDC~75MHz, 125-~300MHz, SMD
View Details →
ZBSF15-L850-960-1011 Filter

Filter ZBSF15-L850-960-1011

Stopband F850~960MHz, ≥30dB, Passband200~780MHz, 1050~1200MHz, SMD
View Details →
ZBSF15-L775-785-1433 Filter

Filter ZBSF15-L775-785-1433

Stopband F775~785MHz, ≥27dB, Passband410~740MHz, 820~900MHz, Pin
View Details →
ZBSF15-L295-105-1431 Filter

Filter ZBSF15-L295-105-1431

Stopband F295~305MHz, ≥22dB, Passband130~260MHz, 330~340MHz, Pin
View Details →
ZBSF15-L1800-2200-979 Filter

Filter ZBSF15-L1800-2200-979

Stopband F1800~2200MHz, ≥46dBc, Passband~MHz, ~MHz, SMD
View Details →
ZBSF15-L1700-2700-980 Filter

Filter ZBSF15-L1700-2700-980

Stopband F1700~2700MHz, ≥46dBc, Passband~MHz, ~MHz, SMD
View Details →
ZBSF15-L1429-1626-1707 Filter

Filter ZBSF15-L1429-1626-1707

Stopband F1429~1626MHz, ≥45dBc, Passband350~1310MHz, 1770~2000MHz, SMD
View Details →
ZBSF15-L1420-1530-1500 Filter

Filter ZBSF15-L1420-1530-1500

Stopband F1300&1650MHz, Stopband Rej.10dB, Stopband F1350&1590MHz, Stopband Rej.30dB, Stopband F1420~1530MHz, ≥70dB, Passband700~1200MHz, 1800~6000MHz, SMD
View Details →
ZBSF15-L1258.3-1278.3-1708 Filter

Filter ZBSF15-L1258.3-1278.3-1708

Stopband F1257.7~1278.3MHz, ≥38dBc, Passband350~1188MHz, 1348~2000MHz, SMD
View Details →
ZBSF15-L1257-1587-730 Filter

Filter ZBSF15-L1257-1587-730

Stopband F1360~1480MHz, ≥32dB, Passband1257~1280MHz, 1564~1587MHz, SMD
View Details →
ZBSF13-L100-1000-1901 Filter

Filter ZBSF13-L100-1000-1901

Stopband F380~400MHz, ≥50dB, PassbandDC~340MHz, 440~1000MHz, SMD
View Details →
CA0421 SMD Filter

SMD Filter CA0421

Passband F1DC-4.7, 5.5-18.0, 带阻带抑制35@5.1GHz
View Details →
CA0420 SMD Filter

SMD Filter CA0420

Passband F1DC-4.4, 5.2-18.0, 带阻带抑制35@4.8GHz
View Details →
CA0418 SMD Filter

SMD Filter CA0418

Passband F1DC-3.6, 4.4-18.0, 带阻带抑制35@4.0GHz
View Details →
CA0417 SMD Filter

SMD Filter CA0417

Passband F1DC-3.1, 3.9-18.0, 带阻带抑制35@3.5GHz
View Details →
