Connector：SMA× Clear all
matches 6033 models Default Newest
ZBSF2570-2620MHZ Filter

Filter ZBSF2570-2620MHZ

Stopband F2570~2620MHz, ≥50dB, PassbandDC~2560MHz, 2630~3000MHz, SMA
View Details →
ZBSF2496-2570MHZ Filter

Filter ZBSF2496-2570MHZ

Stopband F2496~2570MHz, ≥50dB, PassbandDC~2486MHz, 2580~3000MHz, SMA
View Details →
ZBSF2300-2400MHZ Filter

Filter ZBSF2300-2400MHZ

Stopband F2300~2400MHz, ≥50dB, PassbandDC~2290MHz, 2410~3000MHz, SMA
View Details →
ZBSF20-L0-1000-289 Filter

Filter ZBSF20-L0-1000-289

Stopband F566~678MHz, ≥40dB, PassbandDC~516MHz, 728~1500MHz, SMA
View Details →

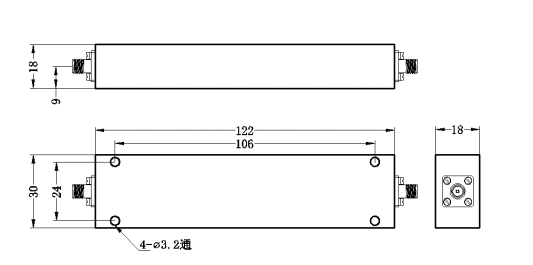

ZBSF2-M4400-5000-3002 Filter

Filter ZBSF2-M4400-5000-3002

Stopband F4400~5000MHz, ≥50dBc, Passband30~4200MHz, 5200~18000MHz, SMA
View Details →
ZBSF2-L325-328-3030 Filter

Filter ZBSF2-L325-328-3030

Stopband F325~328MHz, ＞30dB, PassbandDC~285MHz, 368~1200MHz, SMA
View Details →
ZBSF2-L30-1350-2471 Filter

Filter ZBSF2-L30-1350-2471

Stopband F197.5~98.5MHz, Stopband F2852.5~925MHz, ≥30dBc, Passband30~88MHz, 111~780MHz, 1040~1350MHz, SMA
View Details →
ZBSF2-C840.5-845-3021 Filter

Filter ZBSF2-C840.5-845-3021

Stopband F840.5~845MHz, ＞30dB, PassbandDC~835.5MHz, 850~2500MHz, SMA
View Details →
ZBSF15-L98-98-1655 Filter

Filter ZBSF15-L98-98-1655

Stopband F98~98MHz, ≥30dBc, PassbandDC~88MHz, 108~1350MHz, SMA
View Details →
ZBSF15-L3300-3800-1622 Filter

Filter ZBSF15-L3300-3800-1622

Stopband F3300~3800MHz, ≥50dB, PassbandDC~2750MHz, 4550~18000MHz, SMA, Substitutes BRM50702
View Details →
ZBSF15-L2790-2810-1038 Filter

Filter ZBSF15-L2790-2810-1038

Stopband F2790~2810MHz, ≥50dBc, Passband20~2380MHz, 3330~8000MHz, SMA
View Details →
ZBSF15-L2495-2700-1623 Filter

Filter ZBSF15-L2495-2700-1623

Stopband F2495~2700MHz, ≥50dB, PassbandDC~2170MHz, 3200~18000MHz, SMA, Substitutes BRM50702
View Details →

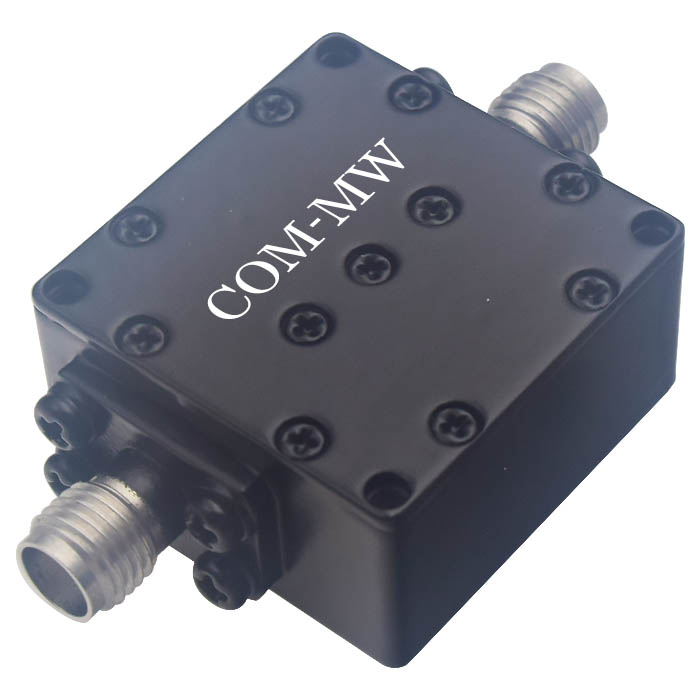

ZBSF15-L2200-2400-1410 Filter

Filter ZBSF15-L2200-2400-1410

Stopband F2200~2400MHz, ≥50dB, PassbandDC~1950MHz, 2630~12000MHz, SMA,
View Details →
ZBSF15-L1920-1980-946 Filter

Filter ZBSF15-L1920-1980-946

Stopband F1920~1980MHz, ≥30dB, Passband100~1750MHz, 2150~3000MHz, SMA
View Details →
ZBSF15-L125-137-1035 Filter

Filter ZBSF15-L125-137-1035

Stopband F125~137MHz, ≥20dBc, Passband20~100MHz, 160~2000MHz, SMA
View Details →
ZBSF15-L1055-1065-1037 Filter

Filter ZBSF15-L1055-1065-1037

Stopband F1055~1065MHz, ≥20dBc, Passband20~955MHz, 1200~6000MHz, SMA
View Details →
ZBSF15-L1025-1035-1036 Filter

Filter ZBSF15-L1025-1035-1036

Stopband F1025~1035MHz, ≥30dBc, Passband20~925MHz, 1150~6000MHz, SMA
View Details →
ZBSF13-L88-108-1051 Filter

Filter ZBSF13-L88-108-1051

Stopband F88~108MHz, ≥40dB, PassbandDC~70MHz, 130~3600MHz, SMA
View Details →
ZBSF13-L80-120-2201 Filter

Filter ZBSF13-L80-120-2201

Stopband F80~120MHz, ≥20dB, PassbandDC~70MHz, 135~1500MHz, SMA
View Details →
ZBSF13-L403-432-998 Filter

Filter ZBSF13-L403-432-998

Stopband F403~432MHz, ≥50dB, PassbandDC~363MHz, 472~1800MHz, SMA
View Details →
ZBSF13-L30-1350-1637 Filter

Filter ZBSF13-L30-1350-1637

Stopband F88~110MHz, Stopband F598~610MHz, ≥40dB, PassbandDC~68MHz, 125~518MHz, 700~1350MHz, SMA
View Details →

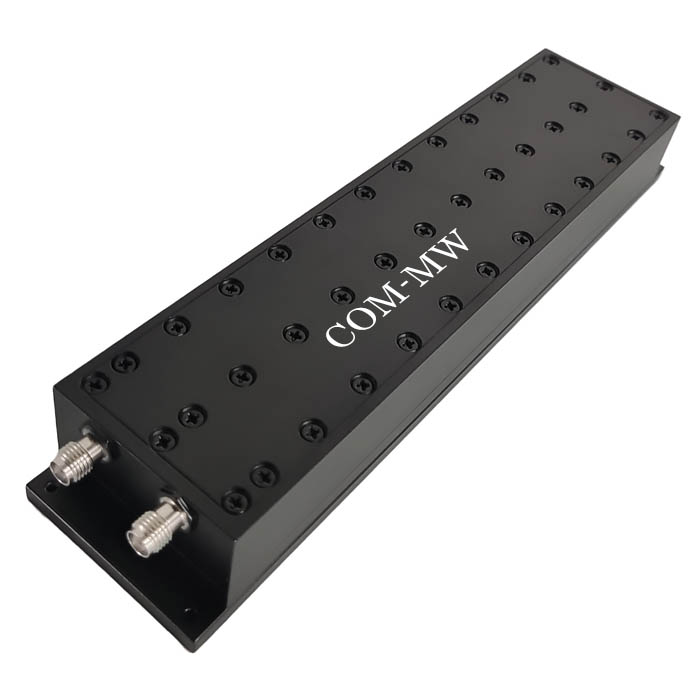

ZBSF13-C5470-5725-995 Filter

Filter ZBSF13-C5470-5725-995

Stopband F5470~5725MHz, ≥40dB, PassbandDC~5420MHz, 5775~8000MHz, SMA
View Details →

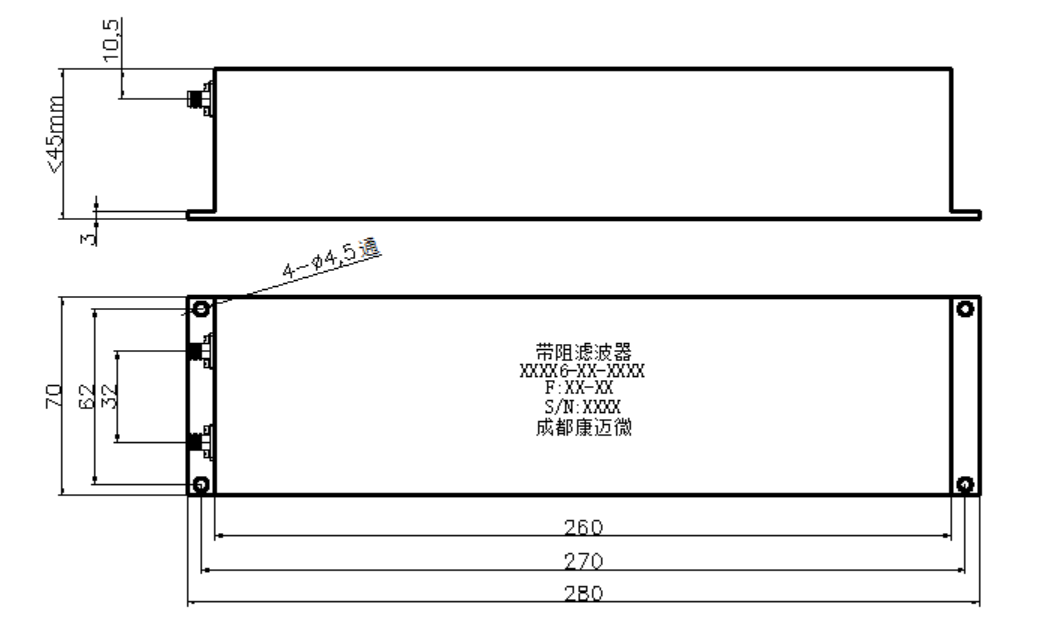

ZBSF13-C5470-5725-994 Filter

Filter ZBSF13-C5470-5725-994

Stopband F5470~5725MHz, ≥40dB, PassbandDC~5450MHz, 5745~7000MHz, SMA
View Details →
ZBSF-C5500-800-1683 Filter

Filter ZBSF-C5500-800-1683

Stopband F5100~5900MHz, ≥40dB, PassbandDC~5000MHz, 6000~10000MHz, SMA
View Details →
