Filters
Filters 1
Feature
Bandpass 3569 low pass 473 Highpass 357 Notch 1629
F Low MHz
0 - 670 1274 675.5 - 1724 1171 1727.5 - 3900 1513 3905 - 8400 1271 8430 - 47290 804
–
Center frequency MHz
1 - 707 568 707.5 - 1842.5 680 1850 - 5175 950 5187.5 - 10530 801 10575 - 47450 633
–
F High MHz
0 - 660 803 673 - 1745 1135 1747.5 - 4010 1582 4025 - 8950 1269 8975 - 83000 1244
–
IL on center frequency dB
0.2 - 1 2604 1.2 - 2.3 544 2.4 - 3.6 248 4 - 6 151 6.5 - 18 29
–
Maximum loss of side frequency dB
0.2 - 1.1 1026 1.2 - 2.4 2606 2.5 - 4 2143 4.2 - 6.2 203 6.5 - 2500 55
–
Rejection dB
15 - 33 317 34 - 45 1915 46 - 59 1682 59.998 - 75 1754 77 - 665 361
–
Connector
Other 89 SMD 2277 SMA 6033 N 1199 2.92 261 2.4 37 Microstrip pad 1131 Microstrip needle 3815 Waveguide 80 1.85 18 SMP 44 SSMA 1 TNC 15 BMA 1
Power Handling
0.01 - 2 1338 3 - 16 2749 18 - 35 592 40 - 80 1090 100 - 200 262
–
Filter type
LC 1554 Cavity&waveguide 3789 stripline 479 Coaxial 195 Dielectric 2 SAW 2 Crystal 3 Manually adjustable 1
Connector：SMA× Clear all
matches 6033 models Default Newest
ZBSF4-L160-300-1580 Filter

Filter ZBSF4-L160-300-1580

Stopband F160~300MHz, ≥40dB, PassbandDC~120MHz, 340~1000MHz, SMA
View Details →
ZBSF4-L108-268-1817 Filter

Filter ZBSF4-L108-268-1817

Stopband F108~268MHz, ≥40dB, PassbandDC~68MHz, 318~2400MHz, SMA
View Details →

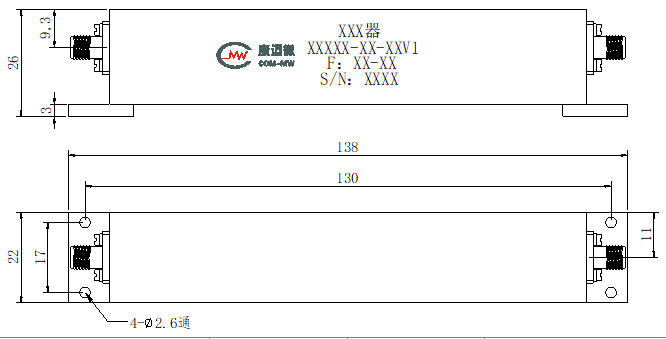

ZBSF4-C9-10G-1553 Filter

Filter ZBSF4-C9-10G-1553

Stopband F9000~10000MHz, ≥50dB, PassbandDC~8700MHz, 10300~15000MHz, SMA
View Details →
ZBSF4-C824-862-1647 Filter

Filter ZBSF4-C824-862-1647

Stopband F824~862MHz, ≥40dB, PassbandDC~807MHz, 879~3000MHz, SMA
View Details →
ZBSF4-C5500-5850-1426 Filter

Filter ZBSF4-C5500-5850-1426

Stopband F5500~5850MHz, ≥50dB, PassbandDC~5420MHz, 5930~10000MHz, SMA
View Details →
ZBSF4-C5150-5350-1425 Filter

Filter ZBSF4-C5150-5350-1425

Stopband F5150~5350MHz, ≥50dB, PassbandDC~5090MHz, 5410~8000MHz, SMA
View Details →
ZBSF4-C5-5.03G-1801 Filter

Filter ZBSF4-C5-5.03G-1801

Stopband F5000~5030MHz, ≥50dB, PassbandDC~4950MHz, 5080~8000MHz, SMA
View Details →
ZBSF4-C4.6-5G-1704 Filter

Filter ZBSF4-C4.6-5G-1704

Stopband F4.6~5GHz, ≥50dB, PassbandDC~4.5GHz, 5.1~11GHz, SMA
View Details →
ZBSF4-C4-4.4G-1544 Filter

Filter ZBSF4-C4-4.4G-1544

Stopband F4000~4400MHz, ≥50dB, PassbandDC~3920MHz, 4480~6000MHz, SMA
View Details →
ZBSF4-C3520-3530-938 Filter

Filter ZBSF4-C3520-3530-938

Stopband F3520~3530MHz, ≥60dB, PassbandDC~3500MHz, 3550~5000MHz, SMA
View Details →
ZBSF4-C3300-4200-1423 Filter

Filter ZBSF4-C3300-4200-1423

Stopband F3300~4200MHz, ≥50dB, PassbandDC~3200MHz, 4300~8000MHz, SMA
View Details →
ZBSF4-C3.2-3.6G-1703 Filter

Filter ZBSF4-C3.2-3.6G-1703

Stopband F3.2~3.6GHz, ≥50dB, PassbandDC~3.1GHz, 3.7~8GHz, SMA
View Details →
ZBSF4-C2570-2625-1058 Filter

Filter ZBSF4-C2570-2625-1058

Stopband F2570~2625MHz, ≥40dB, Passband2483~2535MHz, 2660~2690MHz, SMA
View Details →
ZBSF4-C2300-2390-1589 Filter

Filter ZBSF4-C2300-2390-1589

Stopband F2300~2390MHz, ≥40dB, PassbandDC~2250MHz, 2440~4000MHz, SMA
View Details →
ZBSF4-C2155-2165-1502 Filter

Filter ZBSF4-C2155-2165-1502

Stopband F2155~2165MHz, ≥40dB, PassbandDC~2135MHz, 2185~4000MHz, SMA
View Details →
ZBSF4-C2.6-4G-1481 Filter

Filter ZBSF4-C2.6-4G-1481

Stopband F2600~4000MHz, ≥40dB, PassbandDC~2500MHz, 4100~8500MHz, SMA
View Details →
ZBSF4-C2.2-2.5G-1543 Filter

Filter ZBSF4-C2.2-2.5G-1543

Stopband F2200~2500MHz, ≥50dB, PassbandDC~2150MHz, 2550~4000MHz, SMA
View Details →
ZBSF4-C2.1-2.5G-1702 Filter

Filter ZBSF4-C2.1-2.5G-1702

Stopband F2.1~2.5GHz, ≥50dB, PassbandDC~2GHz, 2.6~6GHz, SMA
View Details →

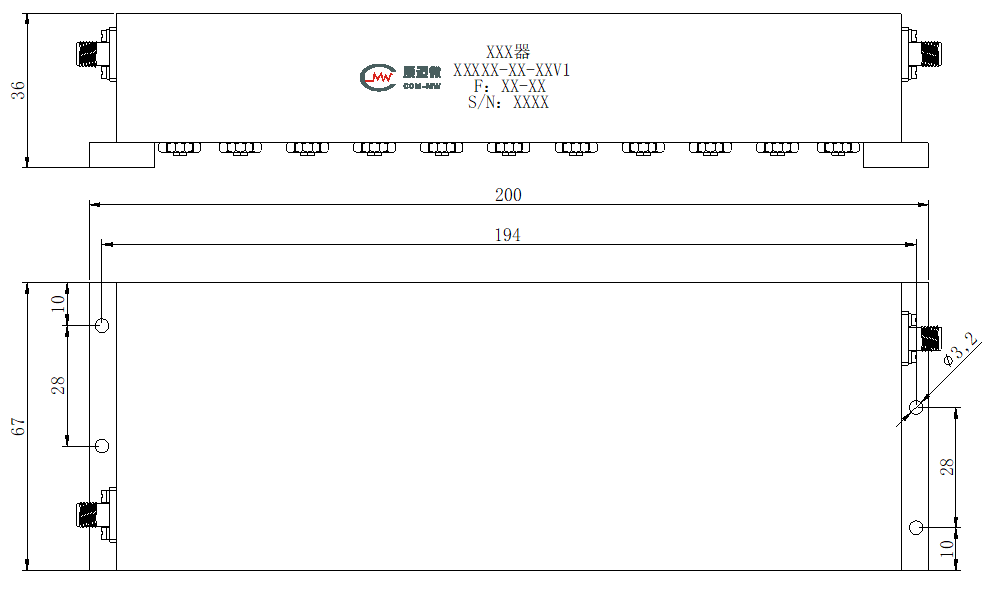

ZBSF4-C2-2.4G-1800 Filter

Filter ZBSF4-C2-2.4G-1800

Stopband F2~2.4GHz, ≥50dB, PassbandDC~1.9GHz, 2.5~5GHz, SMA
View Details →
ZBSF4-C1960-2040-1291 Filter

Filter ZBSF4-C1960-2040-1291

View Details →
ZBSF4-C1930-1990-1820 Filter

Filter ZBSF4-C1930-1990-1820

Stopband F1930~1990MHz, ≥40dB, PassbandDC~1920MHz, 2000~4000MHz, SMA
View Details →
ZBSF4-C1805-2170-1588 Filter

Filter ZBSF4-C1805-2170-1588

Stopband F1805~2170MHz, ≥40dB, PassbandDC~1705MHz, 2270~4000MHz, SMA
View Details →
ZBSF4-C1447-1467-1541 Filter

Filter ZBSF4-C1447-1467-1541

Stopband F1447~1467MHz, ≥50dB, PassbandDC~1442MHz, 1472~3000MHz, SMA
View Details →
ZBSF4-C12.5-13.5G-1554 Filter

Filter ZBSF4-C12.5-13.5G-1554

Stopband F12500~13500MHz, ≥50dB, PassbandDC~12100MHz, 13900~15000MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
