Filters
Filters 1
Feature
Bandpass 70 low pass 6 Notch 12
F Low MHz
0 - 811 20 825 - 1200 16 1290 - 1614 21 1675 - 2620 16 2665 - 59500 16
–
Center frequency MHz
60.15 - 821 13 825 - 1400 19 1425 - 1810 15 1835 - 2685 13 3400 - 62500 13
–
F High MHz
1 - 845 18 856 - 1310 16 1375 - 1725 22 1785 - 2600 15 2630 - 66000 18
–
IL on center frequency dB
0.3 - 0.4 4 0.5 - 0.6 32 1 - 2 34 3 - 6 2
–
Maximum loss of side frequency dB
0.3 - 0.8 8 1 - 1.4 44 1.5 - 2 22 2.5 - 8 15
–
Rejection dB
20 - 35 3 40 - 50 29 53 - 60 43 65 - 75 13 90 1
–
Connector
Other 89 SMD 2277 SMA 6038 N 1200 2.92 261 2.4 37 Microstrip pad 1131 Microstrip needle 3816 Waveguide 80 1.85 18 SMP 44 SSMA 1 TNC 15 BMA 1
Power Handling
1 - 10 34 20 - 50 16 60 - 300 32 350 - 1000 5 2000 2
–
Filter type
LC 16 Cavity&waveguide 69 Dielectric 4
Connector：Other× Clear all
matches 89 models Default Newest

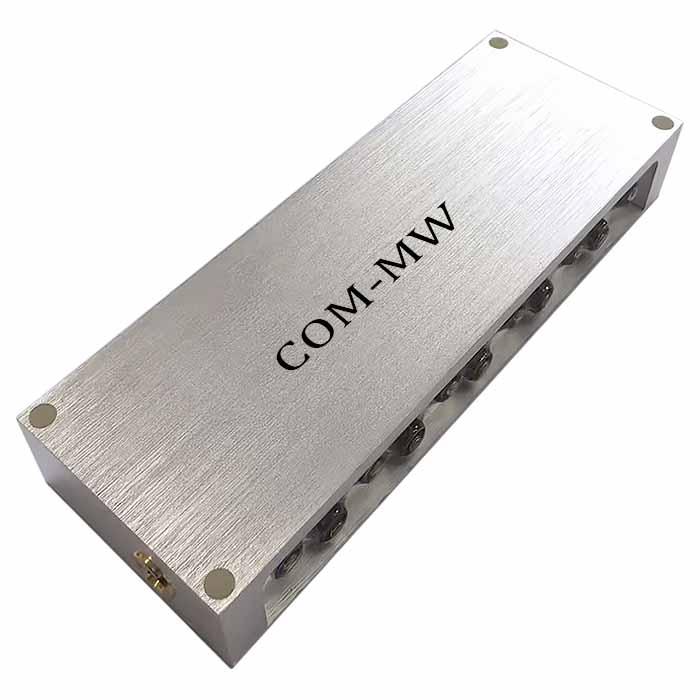

ZBF5-C2491.75-16.32-3735 Filter

Filter ZBF5-C2491.75-16.32-3735

Passband2483.59~2499.91MHz, DC-2480MHz≥25dBc, 2510-2530MHz≥15dB, MCX
View Details →

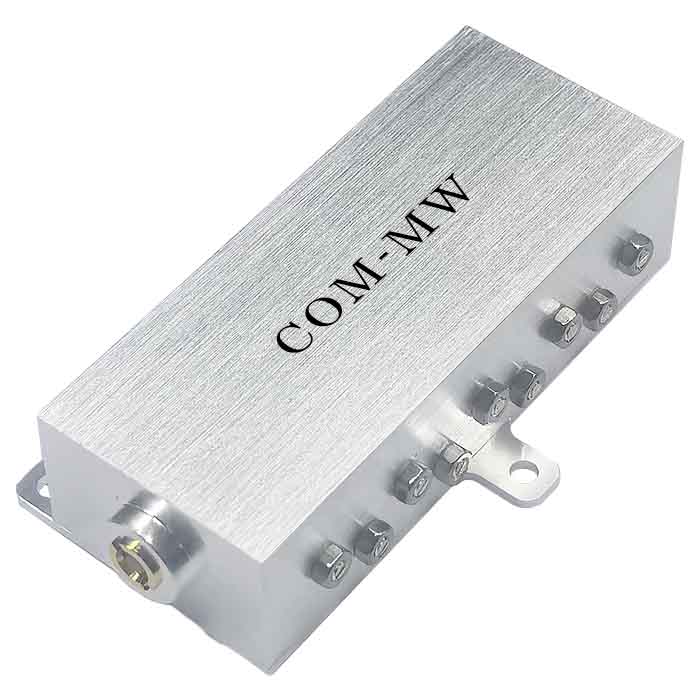

ZBF5-C2491.75-16.32-2115 Filter

Filter ZBF5-C2491.75-16.32-2115

Passband2483.59~2499.91MHz, DC-2390MHz≥45dBc, 2555-5000MHz≥50dBc, MCX
View Details →

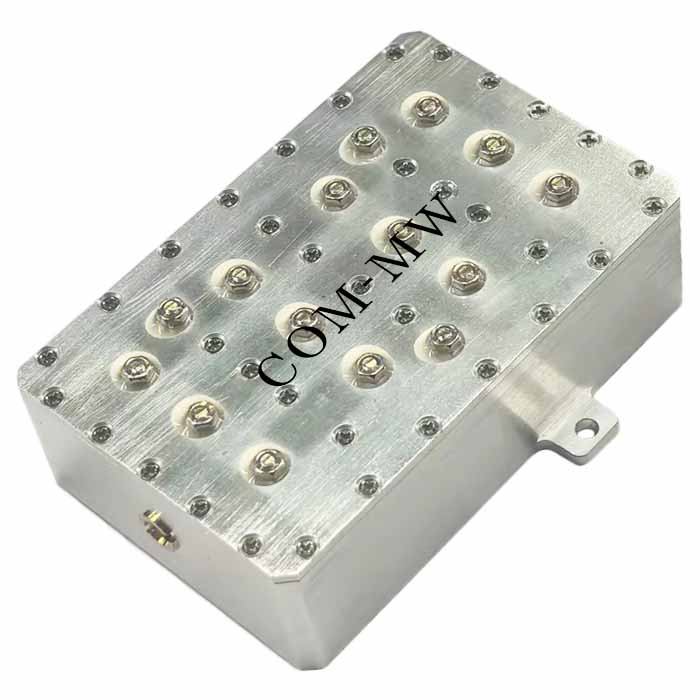

ZBF5-C1618.5-17-2807 Filter

Filter ZBF5-C1618.5-17-2807

Passband1610~1627MHz, DC-1278MHz≥75dB, 1560-1580MHz≥55dB, MCX
View Details →

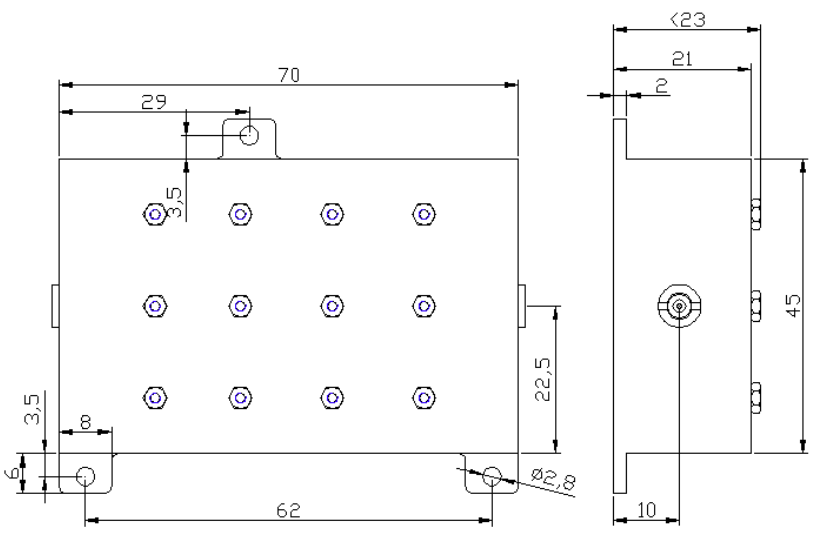

ZBF5-C1618.5-17-1783 Filter

Filter ZBF5-C1618.5-17-1783

Passband1610~1627MHz, DC-1278MHz≥75dB, 1560-1580MHz≥55dB,
View Details →
ZBF5-C14-2G-1452 Filter

Filter ZBF5-C14-2G-1452

Passband13~15GHz, 15.2-17GHz≥40dBc, DC-11GHz≥40dBc,
View Details →

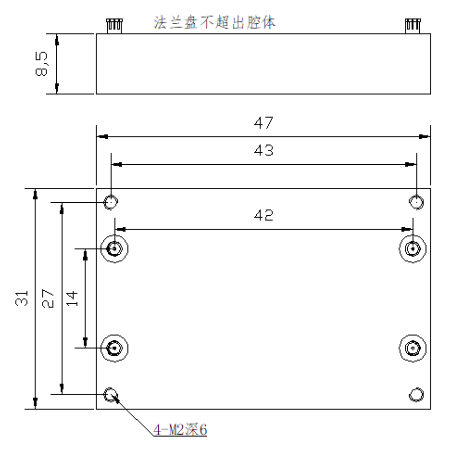

ZBF5-C14-1G-1782 Filter

Filter ZBF5-C14-1G-1782

Passband13.5~14.5GHz, DC-12.6GHz≥60dBc, 14.6-15GHz≥40dBc,
View Details →

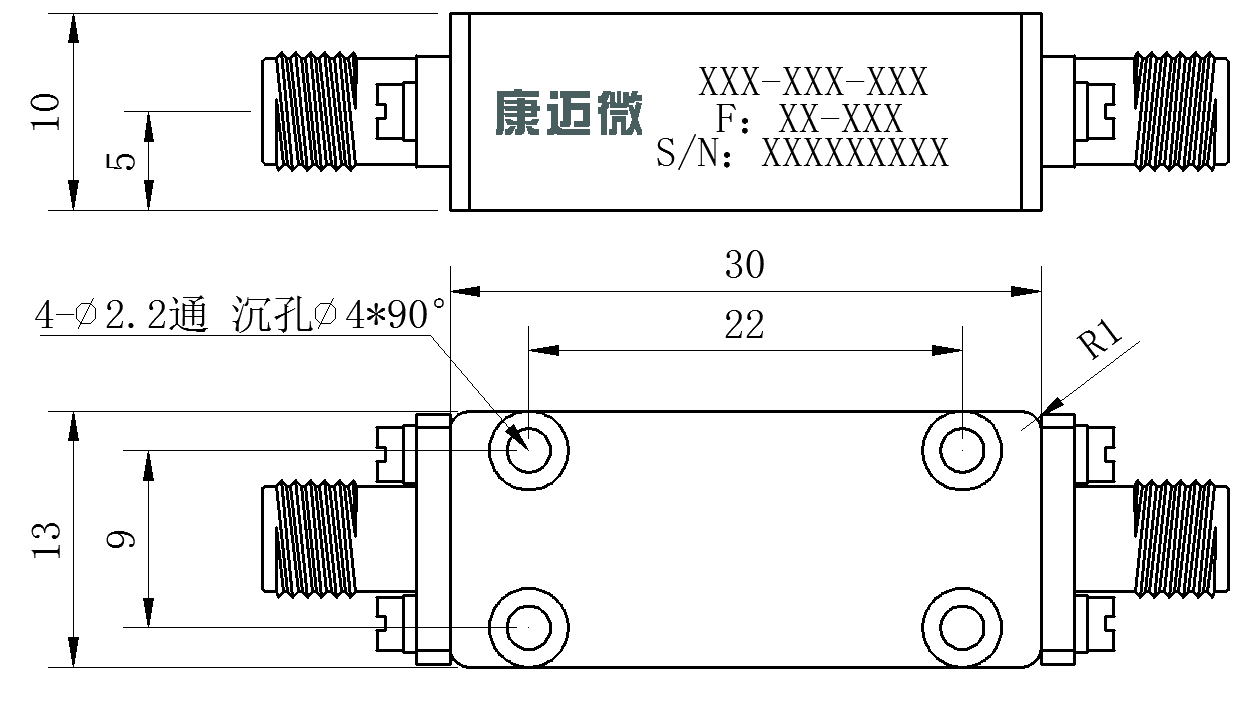

ZBF3-C60.15-4.7G-3573 Filter

Filter ZBF3-C60.15-4.7G-3573

Passband57.8~62.5GHz, DC-56.4GHz≥40dB, 64.5-80GHz≥35dB, 1.85
View Details →

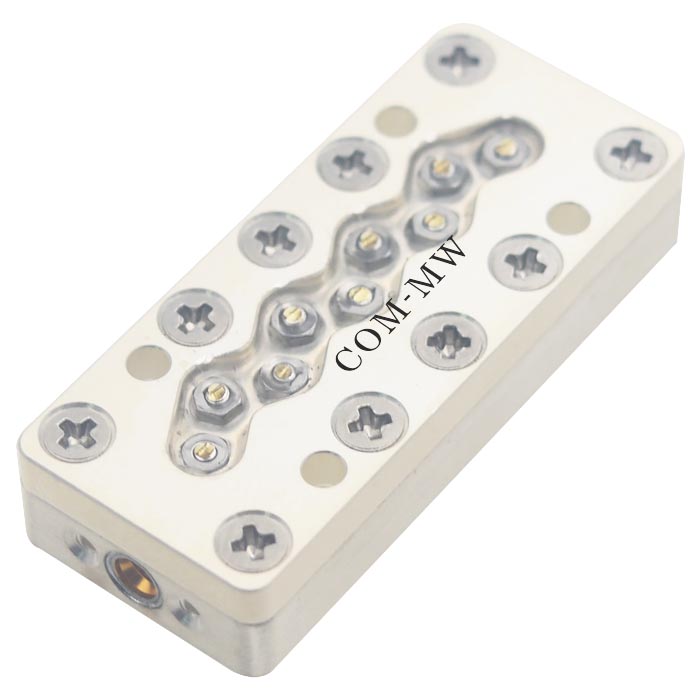

ZBF25-C25.7625-0.46G-298 Filter

Filter ZBF25-C25.7625-0.46G-298

Passband25.53~25.995GHz, DC-24GHz≥35dBc, 24-24.48GHz≥25dBc,
View Details →

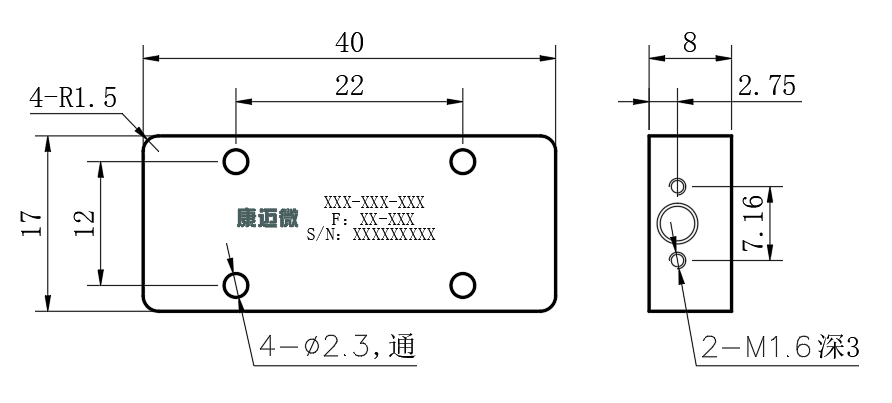

ZBF25-C23.14-0.1G-299 Filter

Filter ZBF25-C23.14-0.1G-299

Passband23.09~23.19GHz, DC-21.48GHz≥45dBc, 21.48-22.09GHz≥30dBc,
View Details →
ZBF20-L592-28-076 Filter

Filter ZBF20-L592-28-076

Passband578~606MHz, 242MHz≥50dBc, 942-2000MHz≥50dBc, MCX-K
View Details →

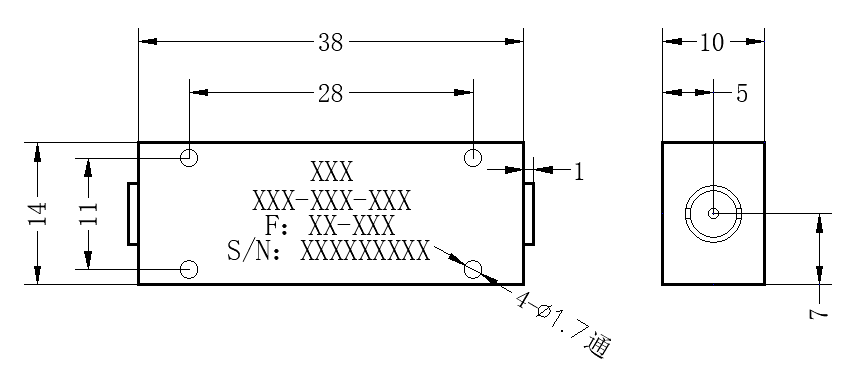

ZBF20-L340-20-088 Filter

Filter ZBF20-L340-20-088

Passband330~350MHz, DC-240MHz≥60dB, 440-1000MHz≥60dB, MCX
View Details →

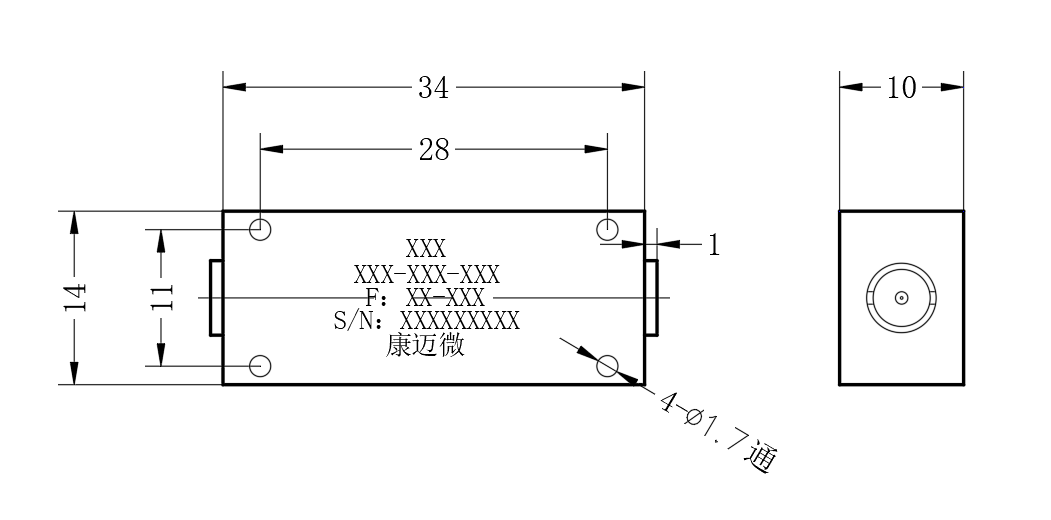

ZBF20-L1570-560-126 Filter

Filter ZBF20-L1570-560-126

Passband1290~1850MHz, DC-0.9GHz≥50dBc, 2.6-6GHz≥50dBc, MCX
View Details →

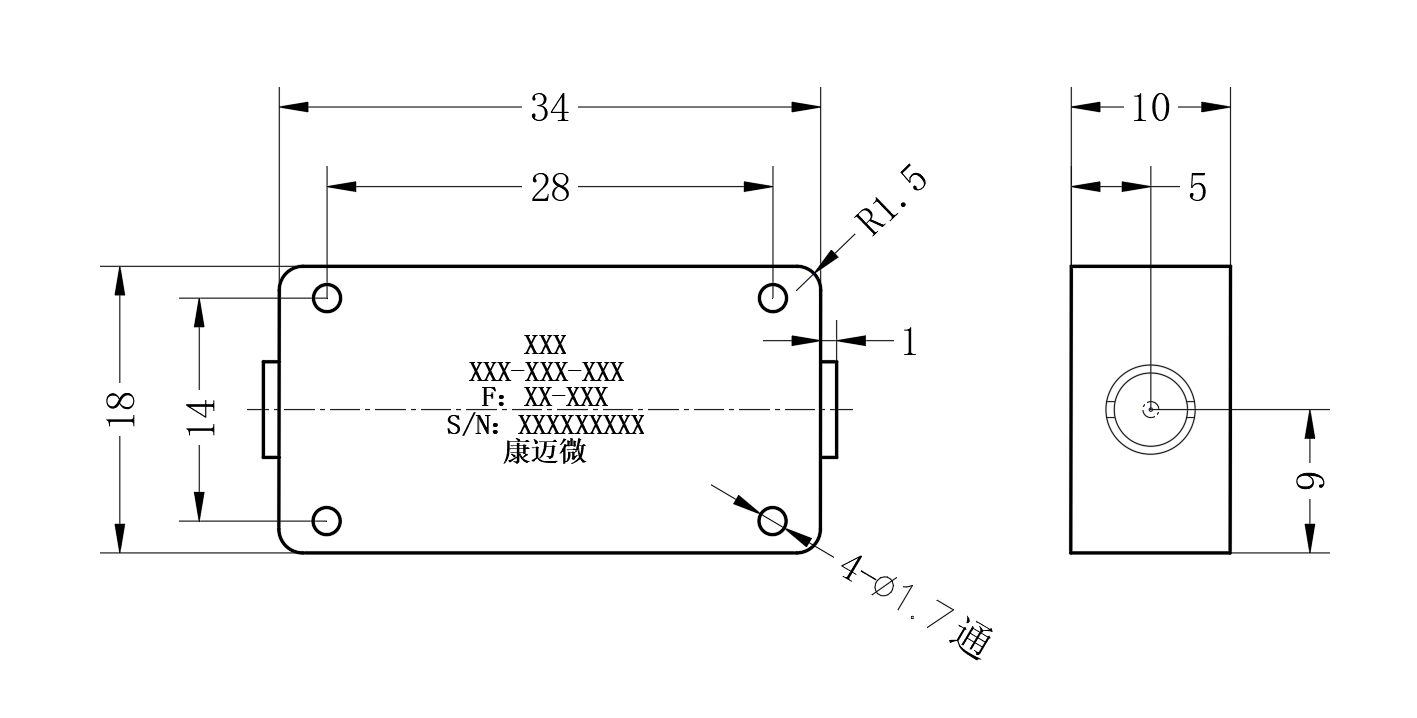

ZBF20-D592-28-071 Filter

Filter ZBF20-D592-28-071

Passband578~606MHz, f0±60MHz≥40dB
View Details →

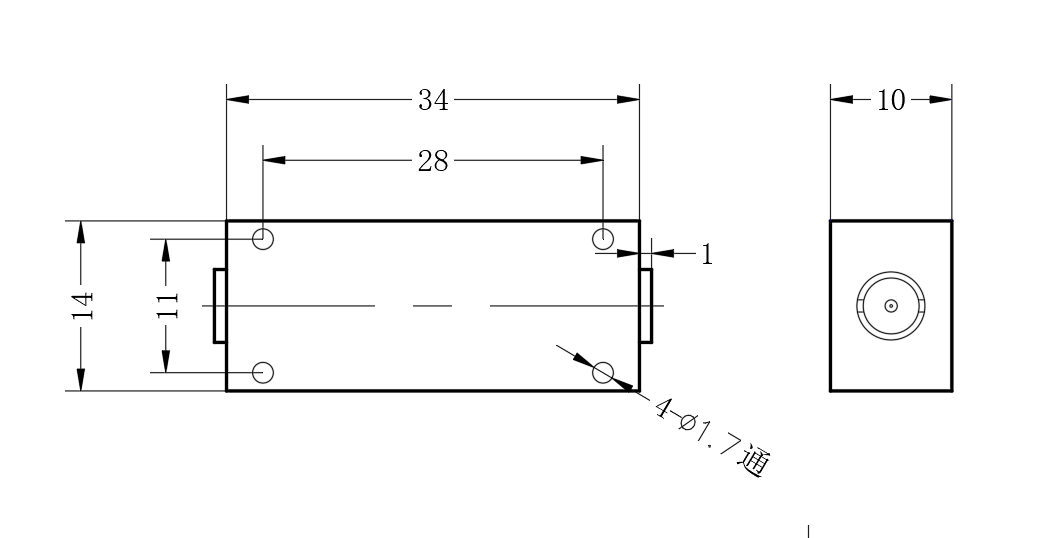

ZBF20-D2070-100-314 Filter

Filter ZBF20-D2070-100-314

Passband2020~2120MHz, DC-1960MHz≥40dB, 2180-2500MHz≥40dB, MCX
View Details →

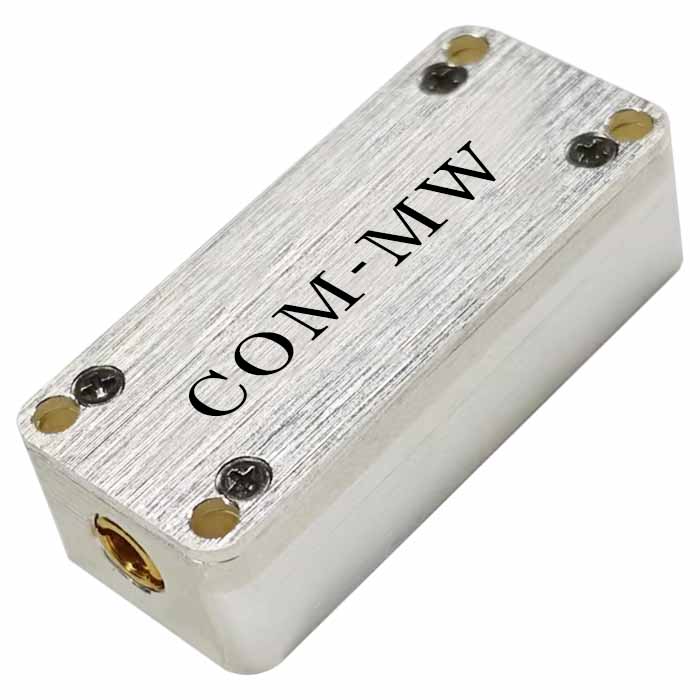

ZBF2-D1425-50-715 Filter

Filter ZBF2-D1425-50-715

Passband1400~1450MHz, 1000-1270MHz≥20dBc, 1560-1700MHz≥20dBc,
View Details →

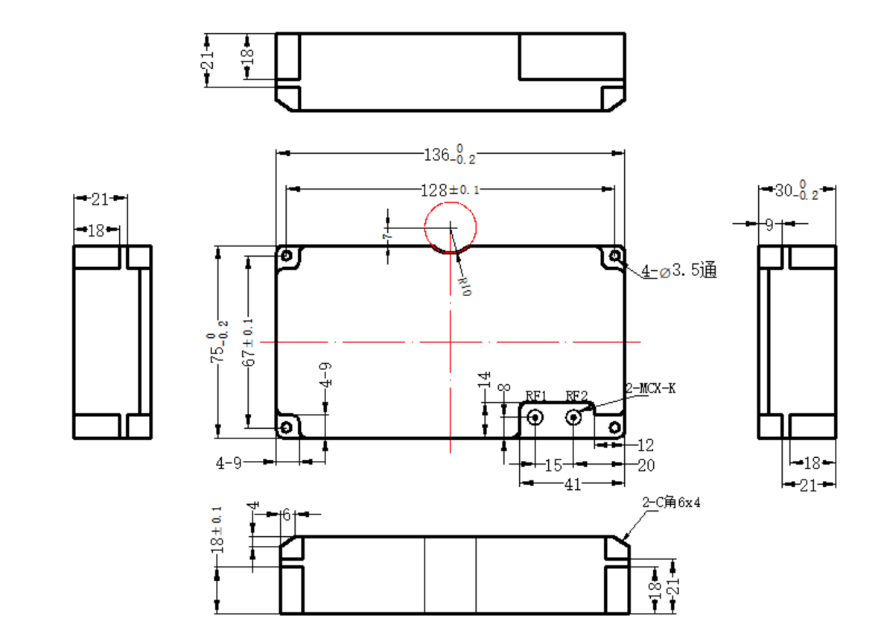

ZBF2-C620-116-1763 Filter

Filter ZBF2-C620-116-1763

Passband552~678MHz, DC-512MHz≥90dBc, 0.785-2GHz≥60dBc, MCX
View Details →

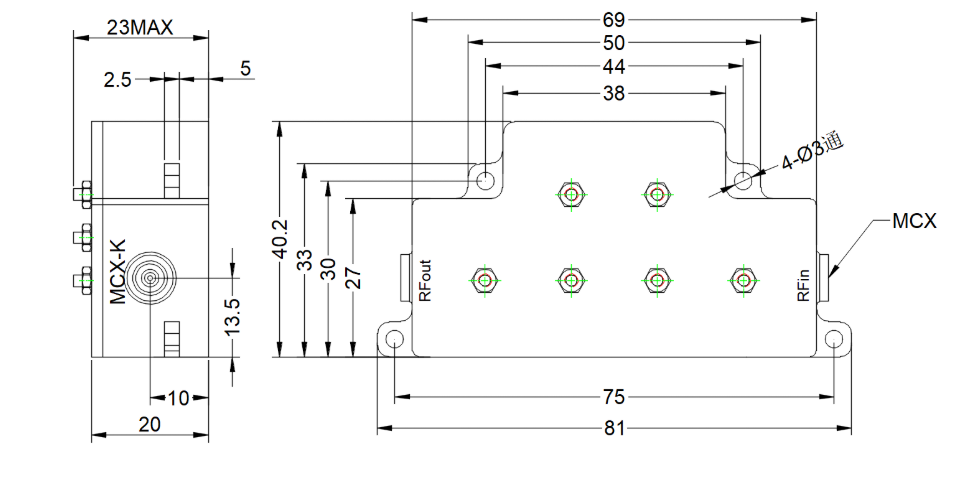

ZBF2-C1645-62-2711 Filter

Filter ZBF2-C1645-62-2711

Passband1614~1676MHz, DC-1000MHz≥40dBc, 1166-1278MHz≥70dBc, MCX
View Details →

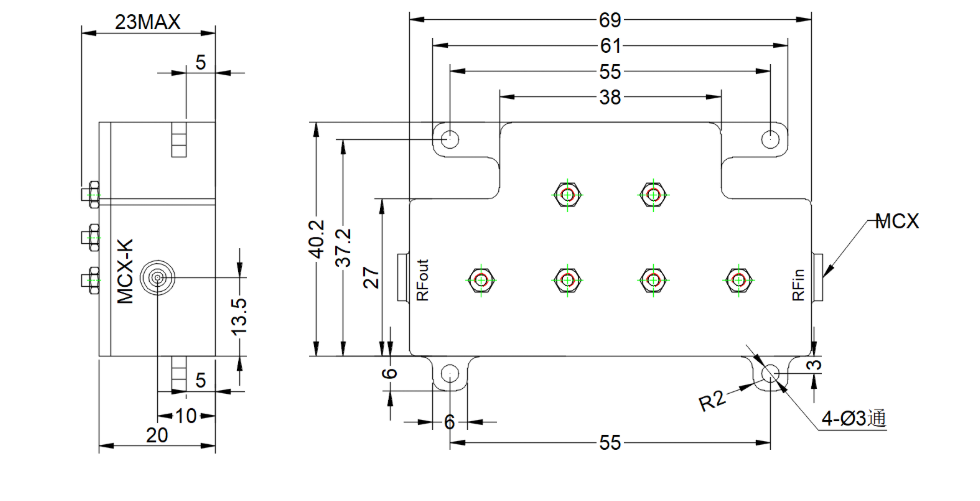

ZBF2-C1645-62-2697 Filter

Filter ZBF2-C1645-62-2697

Passband1614~1676MHz, DC-1000MHz≥40dBc, 1166-1278MHz≥70dBc, MCX
View Details →

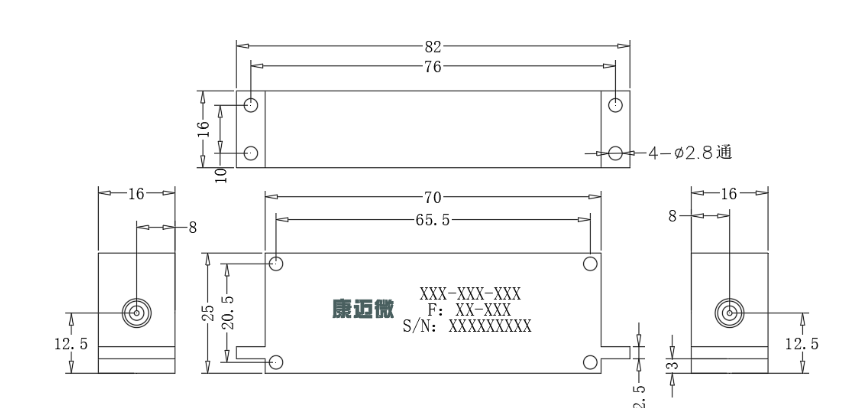

ZBF2-C1350-50-3304 Filter

Filter ZBF2-C1350-50-3304

Passband1325~1375MHz, DC-1250MHz≥60dB, 1450-4000MHz≥60dB, MCX
View Details →

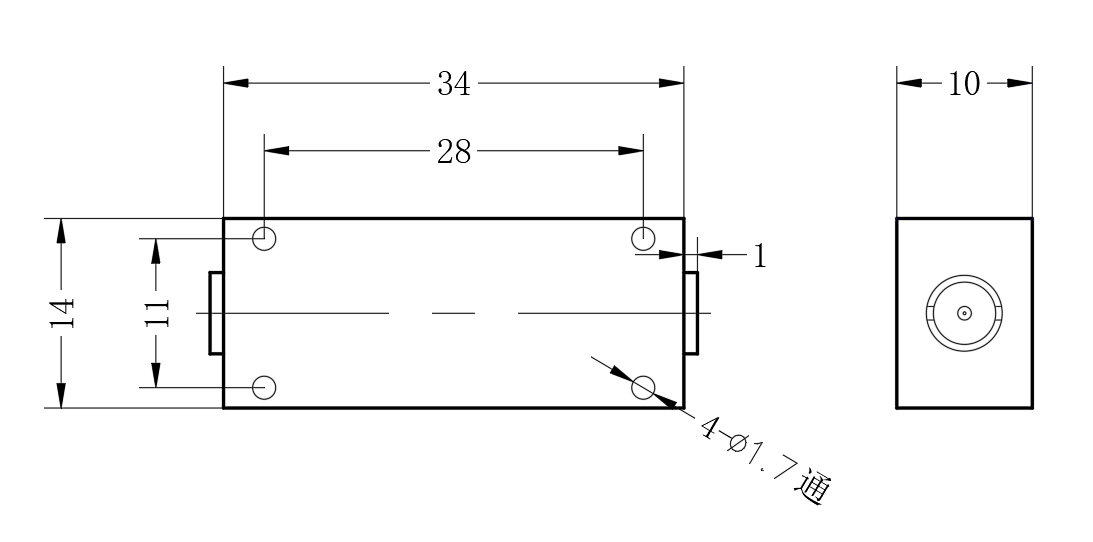

ZBF14-D1700-50-659 Filter

Filter ZBF14-D1700-50-659

Passband1675~1725MHz, DC-1635MHz≥40dB, 1765-2000MHz≥40dB, MCX
View Details →
ZBF14-D1436-16-657 Filter

Filter ZBF14-D1436-16-657

Passband1428~1444MHz, DC-1391MHz≥40dB, 1481-2000MHz≥40dB, MCX
View Details →
ZBF14-D1350-50-656 Filter

Filter ZBF14-D1350-50-656

Passband1325~1375MHz, DC-1295MHz≥40dB, 1405-2000MHz≥40dB, MCX
View Details →

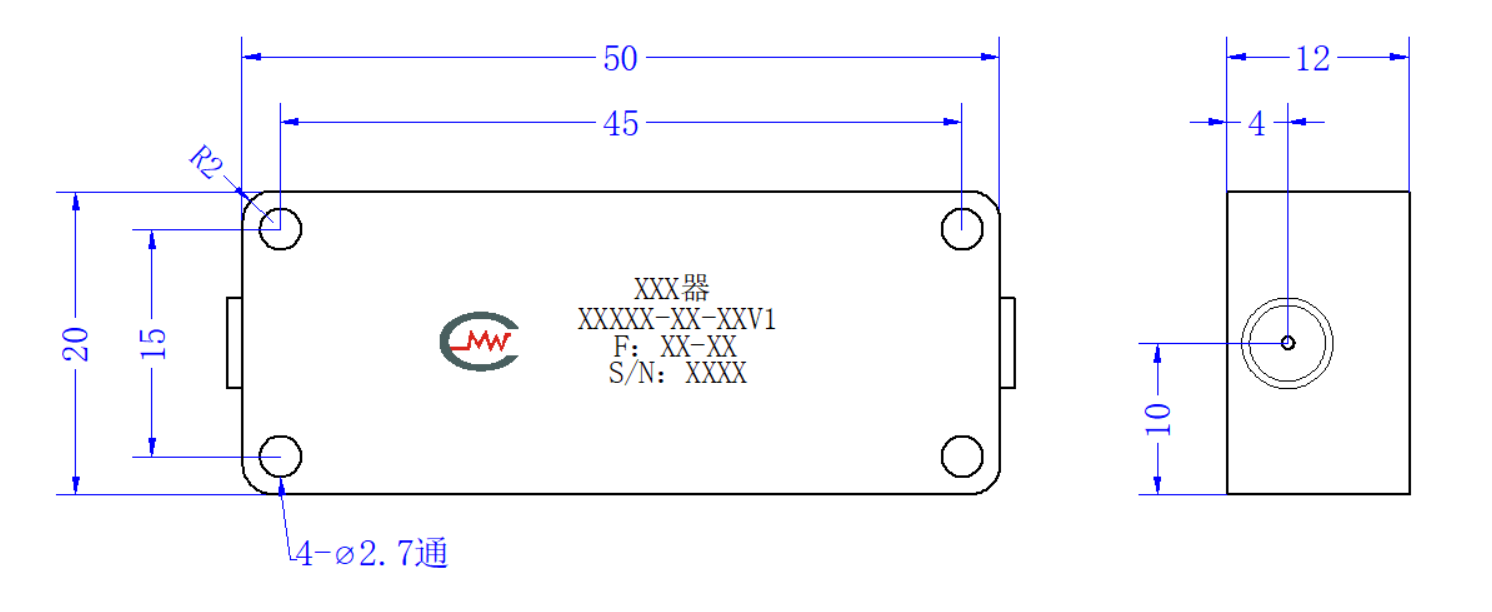

ZBF13-L798-200-2216 Filter

Filter ZBF13-L798-200-2216

Passband698~898MHz, 260-460MHz≥65dBc, 1300-1500MHz≥65dBc, MCX
View Details →

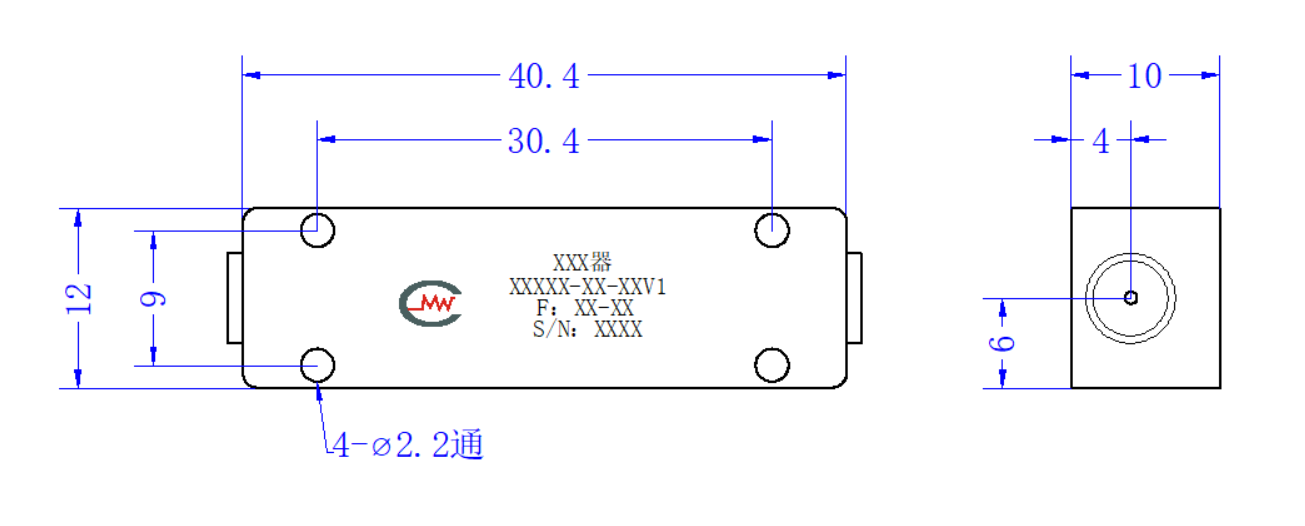

ZBF13-L360-200-2215 Filter

Filter ZBF13-L360-200-2215

Passband260~460MHz, DC-100MHz≥70dBc, 698-1500MHz≥70dBc, MCX
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
