matches 1199 models Default Newest
ZBF16-C1745-70-615 Filter

Filter ZBF16-C1745-70-615

Passband1710~1780MHz, DC~1695MHz≥60dBc, 1795~3000MHz≥60dBc, N
View Details →
ZBF16-C1600-220-013 Filter

Filter ZBF16-C1600-220-013

Passband1490~1710MHz, DC~1300MHz≥20dB, 1890~3000MHz≥20dB, N
View Details →
ZBF16-C1475-50-240 Filter

Filter ZBF16-C1475-50-240

Passband1485~1515MHz, 1310~1370MHz≥30dBc, 1550~1650MHz≥30dBc, N
View Details →
ZBF16-C1425-3-250 Filter

Filter ZBF16-C1425-3-250

Passband1423.5~1426.5MHz, 1310~1370MHz≥35dBc, 1550~1650MHz≥60dBc, N
View Details →
ZBF16-C1300-100-595 Filter

Filter ZBF16-C1300-100-595

Passband1250~1350MHz, 900~1200MHz≥80dB, 1400~1500MHz≥80dB, MHz≥dB, N
View Details →
ZBF16-C1072.5-225-2055 Filter

Filter ZBF16-C1072.5-225-2055

Passband960~1185MHz, 600~800MHz≥60dB, 1200~1600MHz≥60dB, N
View Details →
ZBF13-L829-262-038 Filter

Filter ZBF13-L829-262-038

Passband698~960MHz, DC-500MHz≥30dBc, 1396-1920MHz≥30dBc, N
View Details →
ZBF13-L400-200-037 Filter

Filter ZBF13-L400-200-037

Passband300~500MHz, DC-150MHz≥30dBc, 0.6-1.0GHz≥30dBc, N
View Details →

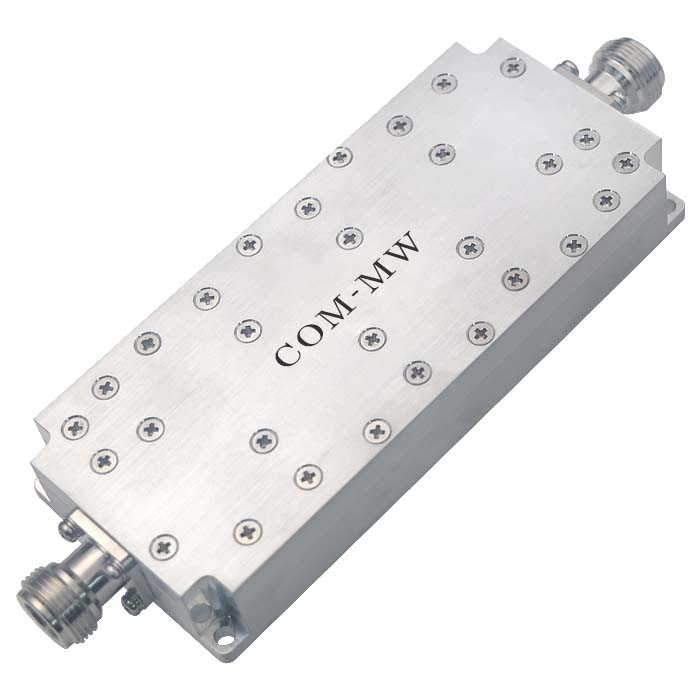

ZBF13-C850-300-455 Filter

Filter ZBF13-C850-300-455

Passband700~1000MHz, DC-340MHz≥40dBc, 1.16-2.0GHz≥40dBc, N
View Details →
ZBF13-C850-300-2565 Filter

Filter ZBF13-C850-300-2565

Passband700~1000MHz, 1.4-2GHz≥50dBc, N
View Details →
ZBF13-C810-10-3340 Filter

Filter ZBF13-C810-10-3340

Passband805~815MHz, DC-775MHz≥40dB, 845-2000MHz≥40dB, N
View Details →
ZBF13-C783-10-1355 Filter

Filter ZBF13-C783-10-1355

Passband778~788, 边频偏10MHz≥30dB, N
View Details →
ZBF13-C774-172-1356 Filter

Filter ZBF13-C774-172-1356

Passband688~860MHz, DC-650MHz≥30dB, N
View Details →
ZBF13-C753-10-1354 Filter

Filter ZBF13-C753-10-1354

Passband748~758, 边频偏10MHz≥30dB, N
View Details →
ZBF13-C723-10-1353 Filter

Filter ZBF13-C723-10-1353

Passband718~728, 边频偏10MHz≥30dB, N
View Details →
ZBF13-C7200-200-2096 Filter

Filter ZBF13-C7200-200-2096

Passband7100~7300MHz, 2.2-2.3GHz≥70dBc, 7.5-9GHz≥60dBc, N
View Details →
ZBF13-C700-200-3512 Filter

Filter ZBF13-C700-200-3512

Passband600~800MHz, DC-400MHz≥40dB, 950-1600MHz≥40dB, N
View Details →
ZBF13-C693-10-1352 Filter

Filter ZBF13-C693-10-1352

Passband688~698, 边频偏10MHz≥30dB, N
View Details →
ZBF13-C6395-110-2672 Filter

Filter ZBF13-C6395-110-2672

Passband6340~6450MHz, 12.68-12.9GHz≥50dBc, N
View Details →
ZBF13-C621-10-884 Filter

Filter ZBF13-C621-10-884

Passband616~626MHz, DC-601MHz≥50dB, 641-1500MHz≥50dB, N
View Details →
ZBF13-C6100-800-1246 Filter

Filter ZBF13-C6100-800-1246

Passband5.7~6.5GHz, 3.6-4.2GHz≥80dBc, 10-13GHz≥80dBc, N
View Details →
ZBF13-C600-200-3511 Filter

Filter ZBF13-C600-200-3511

Passband500~700MHz, DC-350MHz≥40dB, 850-1400MHz≥40dB, N
View Details →
ZBF13-C595-10-883 Filter

Filter ZBF13-C595-10-883

Passband590~600MHz, DC-575MHz≥50dB, 615-1500MHz≥50dB, N
View Details →
ZBF13-C585-10-1317 Filter

Filter ZBF13-C585-10-1317

Passband580~590MHz, DC-565MHz≥50dB, 605-1500MHz≥50dB, N
View Details →
