ZBSF6-C5850-5905-6125 Filter

Filter ZBSF6-C5850-5905-6125

Stopband F5850~5905MHz, ≥60dB, PassbandDC~5840MHz, 5915~7000MHz, N
View Details →
ZBSF6-C5845-6000-3932 Filter

Filter ZBSF6-C5845-6000-3932

Stopband F5845~6000MHz, ≥50dB, PassbandDC~5800MHz, 6045~10000MHz, SMA
View Details →
ZBSF6-C5735-5840-3507 Filter

Filter ZBSF6-C5735-5840-3507

Stopband F5735~5840MHz, ≥80dB, PassbandDC~5705MHz, 5870~6500MHz, N
View Details →
ZBSF6-C5725-5850-2950 Filter

Filter ZBSF6-C5725-5850-2950

Stopband F5725~5850MHz, ≥60dB, PassbandDC~5705MHz, 5870~6000MHz, N
View Details →
ZBSF6-C5470-5850-323 Filter

Filter ZBSF6-C5470-5850-323

Stopband F5470~5850MHz, ≥40dB, PassbandDC~5455MHz, 5895~6000MHz, N
View Details →
ZBSF6-C5470-5725-2949 Filter

Filter ZBSF6-C5470-5725-2949

Stopband F5470~5725MHz, ≥60dB, PassbandDC~5450MHz, 5745~6000MHz, N
View Details →
ZBSF6-C5470-5725-1629 Filter

Filter ZBSF6-C5470-5725-1629

Stopband F5470~5725MHz, ≥60dB, PassbandDC~5450MHz, 5745~6000MHz, N
View Details →
ZBSF6-C5465-6000-4461 Filter

Filter ZBSF6-C5465-6000-4461

Stopband F5465~6000MHz, ≥50dB, PassbandDC~5285MHz, ~MHz, N
View Details →
ZBSF6-C5150-5800-5327 Filter

Filter ZBSF6-C5150-5800-5327

Stopband F5100~5800MHz, ≥50dB, PassbandDC~5000MHz, ~MHz, N
View Details →
ZBSF6-C5150-5350-2948 Filter

Filter ZBSF6-C5150-5350-2948

Stopband F5150~5350MHz, ≥60dB, PassbandDC~5130MHz, 5370~6000MHz, N
View Details →
ZBSF6-C5091-5150-3830 Filter

Filter ZBSF6-C5091-5150-3830

Stopband F5091~5150MHz, ≥60dB, Passband30~5081MHz, 5160~6000MHz, N
View Details →
ZBSF6-C4800-4960-3828 Filter

Filter ZBSF6-C4800-4960-3828

View Details →
ZBSF6-C4800-4900-3493 Filter

Filter ZBSF6-C4800-4900-3493

Stopband F4800~4900MHz, ≥60dB, PassbandDC~4750MHz, 4950~6000MHz, N
View Details →
ZBSF6-C4750-4850-5820 Filter

Filter ZBSF6-C4750-4850-5820

Stopband F4750~4850MHz, ≥60dB, PassbandDC~4730MHz, 4870~7000MHz, N
View Details →
ZBSF6-C4700-4900-3827 Filter

Filter ZBSF6-C4700-4900-3827

View Details →
ZBSF6-C462.5-467.5-5003 Filter

Filter ZBSF6-C462.5-467.5-5003

Stopband F462.5~467.5MHz, ≥60dB, PassbandDC~454.5MHz, 475.5~1200MHz, N
View Details →
ZBSF6-C4600-5000-2768 Filter

Filter ZBSF6-C4600-5000-2768

Stopband F4600~5000MHz, ≥55dB, PassbandDC~4560MHz, 5040~7000MHz, N
View Details →
ZBSF6-C452.5-457.5-5011 Filter

Filter ZBSF6-C452.5-457.5-5011

Stopband F452.5~457.5MHz, ≥60dB, PassbandDC~447.5MHz, 465.5~1000MHz, N
View Details →
ZBSF6-C4400-5000-1685 Filter

Filter ZBSF6-C4400-5000-1685

Stopband F4400~5000MHz, ≥40dB, PassbandDC~4380MHz, 5020~6000MHz, N
View Details →
ZBSF6-C430-445-5012 Filter

Filter ZBSF6-C430-445-5012

Stopband F430~445MHz, ≥60dB, PassbandDC~420MHz, 455~1000MHz, N
View Details →
ZBSF6-C420-430-3903 Filter

Filter ZBSF6-C420-430-3903

Stopband F420~430MHz, ≥70dB, PassbandDC~410MHz, 440~1000MHz
View Details →

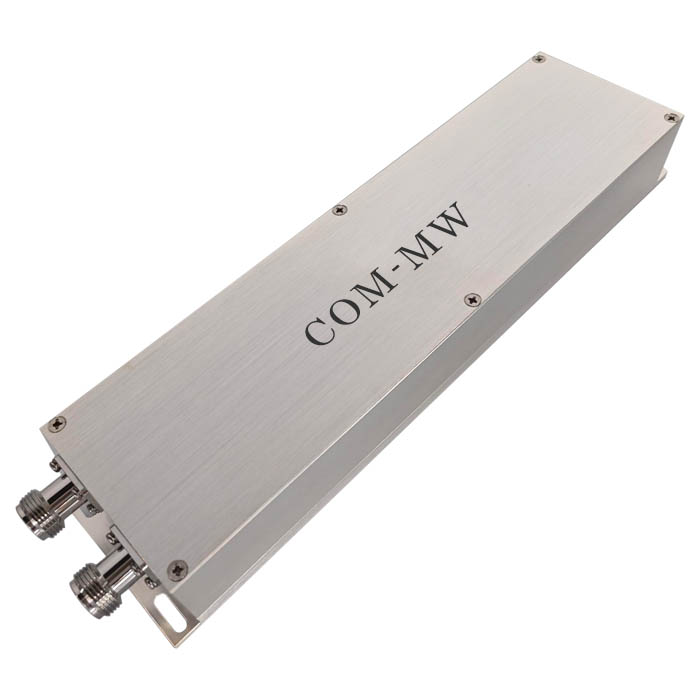

ZBSF6-C3900-4000-5668 Filter

Filter ZBSF6-C3900-4000-5668

Stopband F3900~4000MHz, ≥60dB, PassbandDC~3875MHz, 4020~6000MHz, N, -140dBc@2*43dBm
View Details →
ZBSF6-C3700-3900-4837 Filter

Filter ZBSF6-C3700-3900-4837

Stopband F3700~3900MHz, ≥70dB, PassbandDC~3690MHz, 3910~7000MHz, N
View Details →

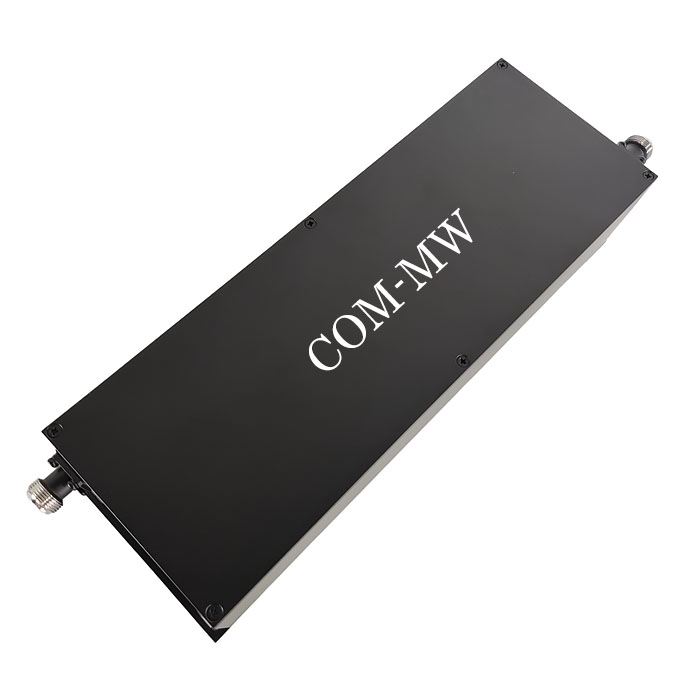

ZBSF6-C3600-4000-2262 Filter

Filter ZBSF6-C3600-4000-2262

Stopband F3600~4000MHz, ≥60dB, PassbandDC~3590MHz, 4010~6000MHz, N
View Details →
