Frequency37.5~50GHz, Power Capacity70W, Rect waveguider, BJ400 or WR22, BJ400 or WR22
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 37.5 | ~ | 50 | GHz |
| IL | 0.5 | dB | ||
| VSWR | 1.25 |
| Power Capacity | 70W Design assurance |
| Waveguide model | Rect waveguider |
| Waveguide shape | straight waveguide |
| Connector 1 | BJ400 or WR22 |
| Connector 2 | BJ400 or WR22 |
| Flange model | Non-standard flange |
| Surface | 内镀银外本导 |
| Product shell material | Aluminum |
| Operation Temp. | -40~+70℃ Design assurance |

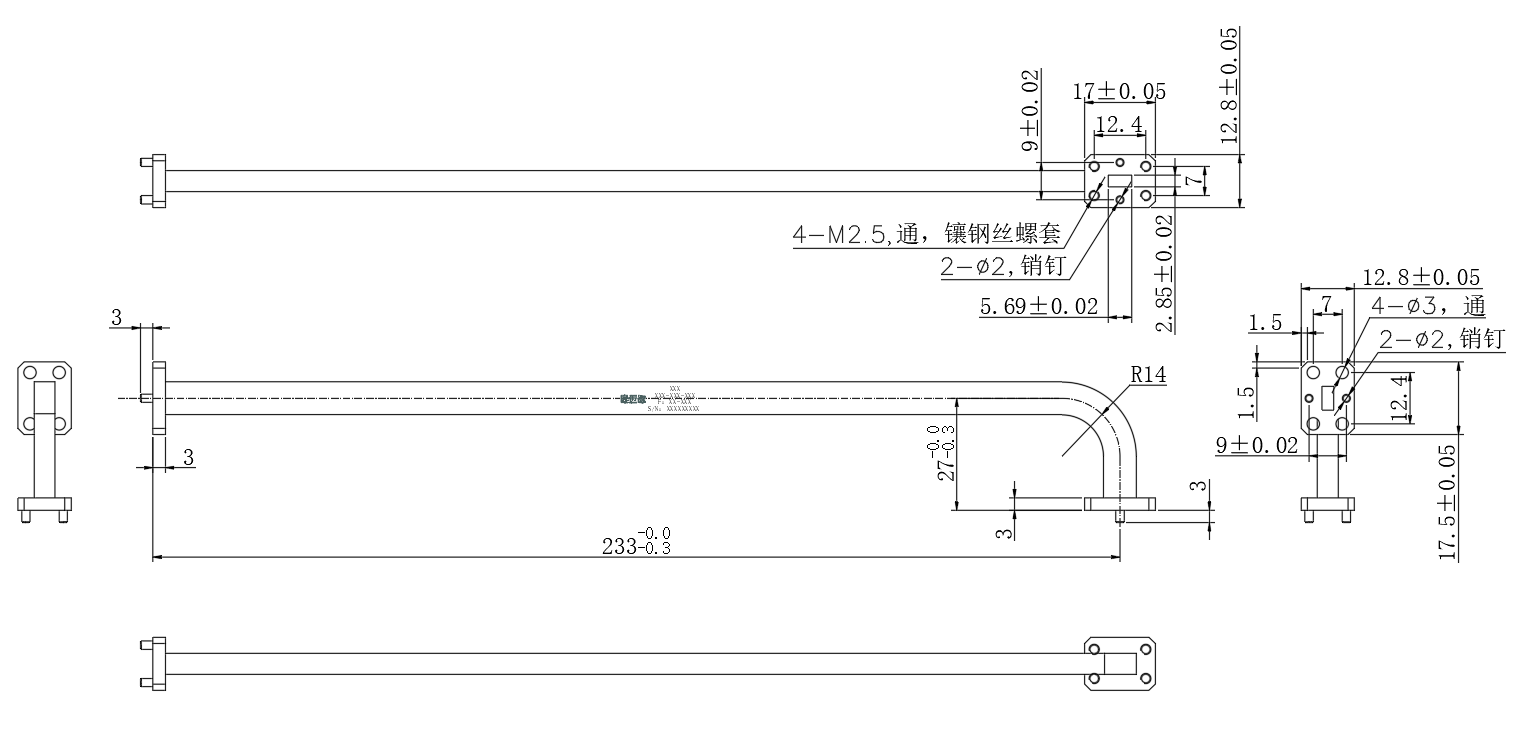

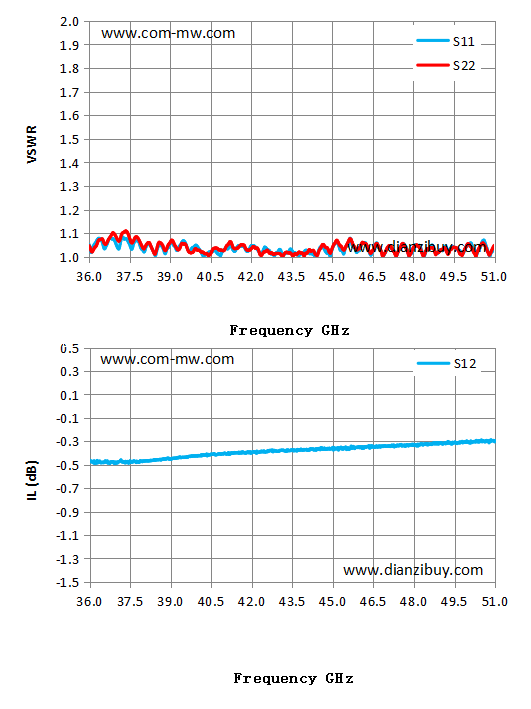

| Frequency GHz | S11 VSWR | S22 VSWR | S12 IL dB |
|---|---|---|---|
| 36.00 | 1.05 | 1.05 | -0.47 |
| 37.07 | 1.04 | 1.07 | -0.48 |
| 38.14 | 1.05 | 1.06 | -0.46 |
| 39.21 | 1.04 | 1.04 | -0.44 |
| 40.29 | 1.01 | 1.01 | -0.42 |
| 41.36 | 1.03 | 1.04 | -0.40 |
| 42.43 | 1.02 | 1.01 | -0.39 |
| 43.50 | 1.03 | 1.01 | -0.38 |
| 44.57 | 1.04 | 1.04 | -0.36 |
| 45.64 | 1.08 | 1.08 | -0.36 |
| 46.71 | 1.04 | 1.05 | -0.34 |
| 47.79 | 1.03 | 1.02 | -0.33 |
| 48.86 | 1.02 | 1.01 | -0.32 |
| 49.93 | 1.03 | 1.04 | -0.30 |
| 51.00 | 1.04 | 1.05 | -0.29 |
