Polarization：Left-hand circular polarization× Clear all
matches 46 models Default Newest

Microstrip antenna ZWD7-Z15-17G-593

Frequency15~17GHz, Gain5dBi, Left-hand circular polarization, SMA-K
In Stock View Details →
ZLB7-Z25-27G-1251 Left-handed conical horn antenna

Left-handed conical horn antenna ZLB7-Z25-27G-1251

Frequency25~27GHz, Gain10dBi, Left-hand circular polarization, 2.92-K
In Stock View Details →
KPSAL-0.5-6-S Planar spiral antenna

Planar spiral antenna KPSAL-0.5-6-S

Frequency0.5~6GHz, Gain2dBi, Left-hand circular polarization, SMA-K
In Stock View Details →

Microstrip antenna ZWD7-4.6-5G-1739

Frequency4.6~5GHz, GaindBi, Left-hand circular polarization, N-J
In Stock View Details →

Left-handed antenna ZTX7-Z2-12G-1263

Frequency2~12GHz, GaindBi, Left-hand circular polarization, 5W, SMA-K
In Stock View Details →

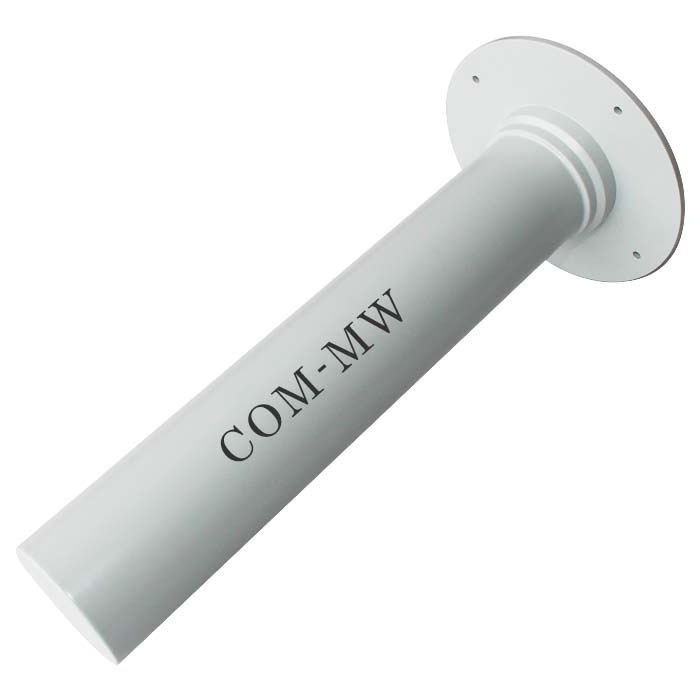

ZLX7-Z1.98-2.2G-2316 Spiral antenna

Spiral antenna ZLX7-Z1.98-2.2G-2316

Frequency1.98~2.2GHz, Gain12dBi, Left-hand circular polarization, N-K
In Stock View Details →
ZLX7-Z1-18G-1821 Planar spiral antenna

Planar spiral antenna ZLX7-Z1-18G-1821

Frequency1~18GHz, Gain2dBi, Left-hand circular polarization, SMA-K
In Stock View Details →

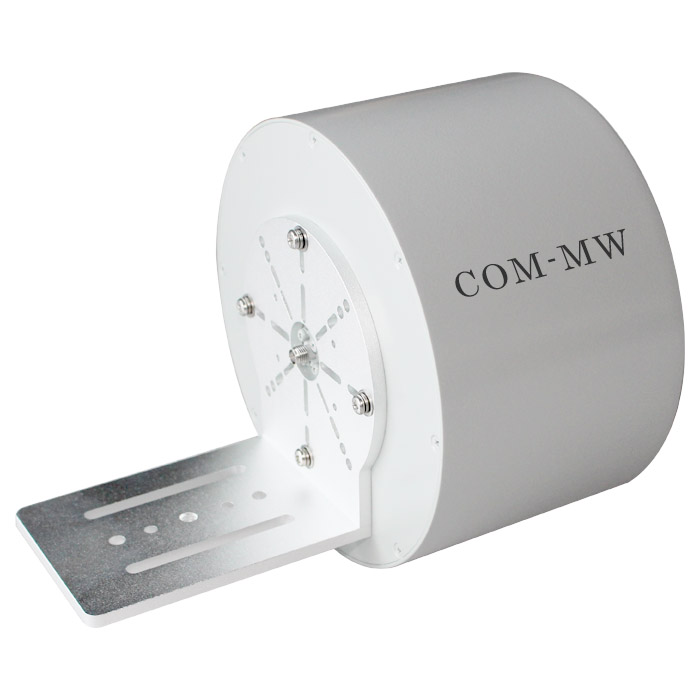

ZLX-0-8T12G-SL Planar spiral antenna

Planar spiral antenna ZLX-0-8T12G-SL

Frequency0.8~12GHz, Gain0dBi, Left-hand circular polarization, SMA-K
In Stock View Details →

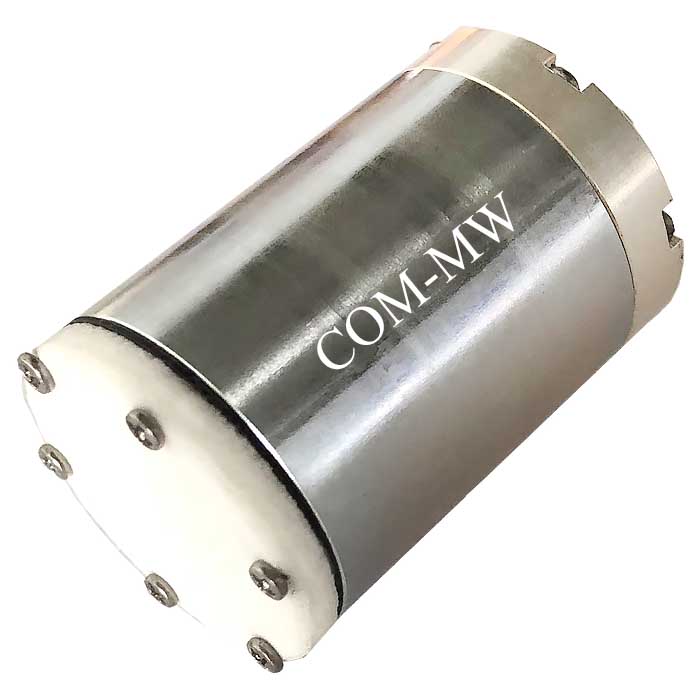

KPSAL-6-18-S Planar spiral antenna

Planar spiral antenna KPSAL-6-18-S

Frequency6~18GHz, Gain2dBi, Left-hand circular polarization, SMA-K
In Stock View Details →

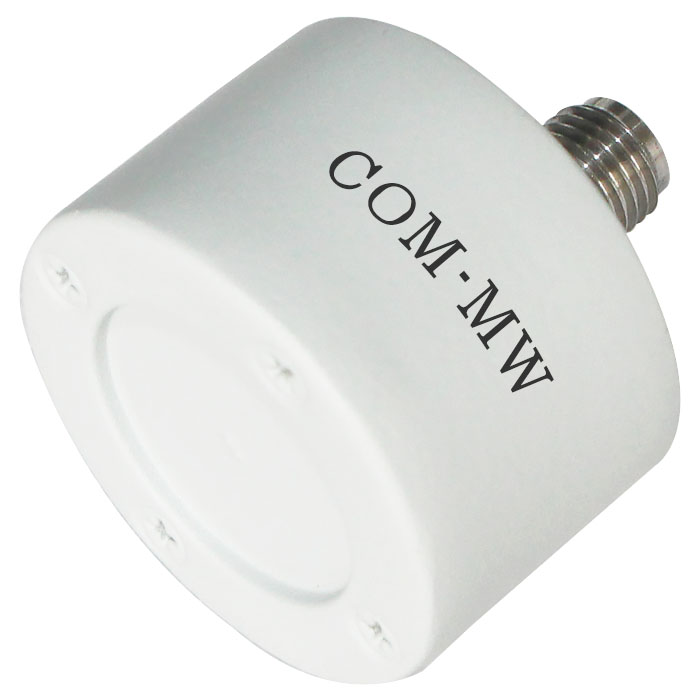

KPSAL-18-40-2.92 Planar spiral antenna

Planar spiral antenna KPSAL-18-40-2.92

Frequency18~40GHz, Gain4dBi, Left-hand circular polarization, 2.92-K
In Stock View Details →
ZLX7-Z1-3G-2759 Planar spiral antenna

Planar spiral antenna ZLX7-Z1-3G-2759

Frequency1~6GHz, Gain2dBi, Left-hand circular polarization, SMP-J
In Stock View Details →

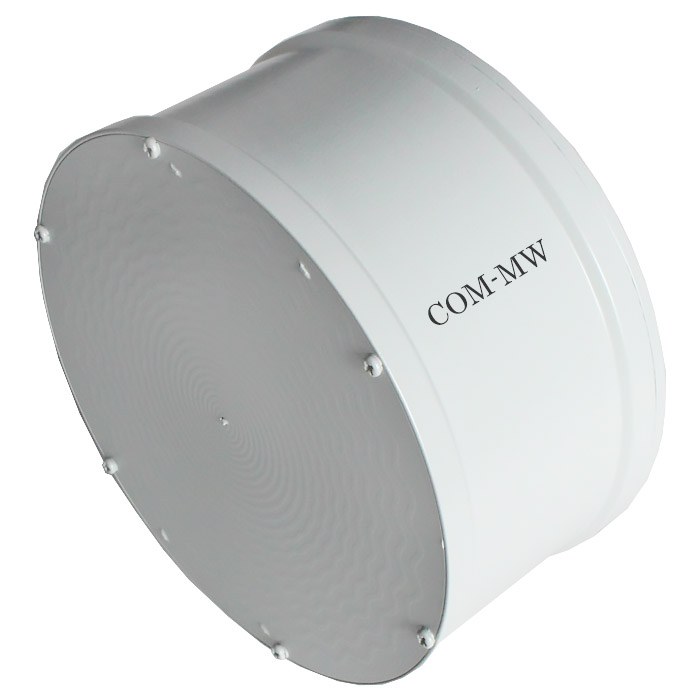

ZLX7-Z0.8-2G-1238 Planar spiral antenna

Planar spiral antenna ZLX7-Z0.8-2G-1238

Frequency0.8~2GHz, GaindBi, Left-hand circular polarization, SMA
In Stock View Details →

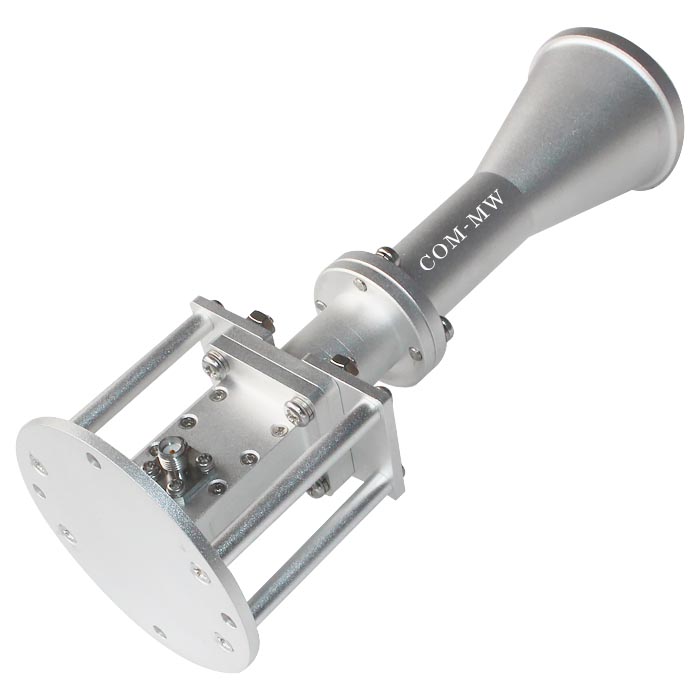

ZLB7-Z14.8-15.2G-920 Horn Antenna

Horn Antenna ZLB7-Z14.8-15.2G-920

Frequency14.8~15.2GHz, Gain15dBi, Left-hand circular polarization, SMA-K
In Stock View Details →

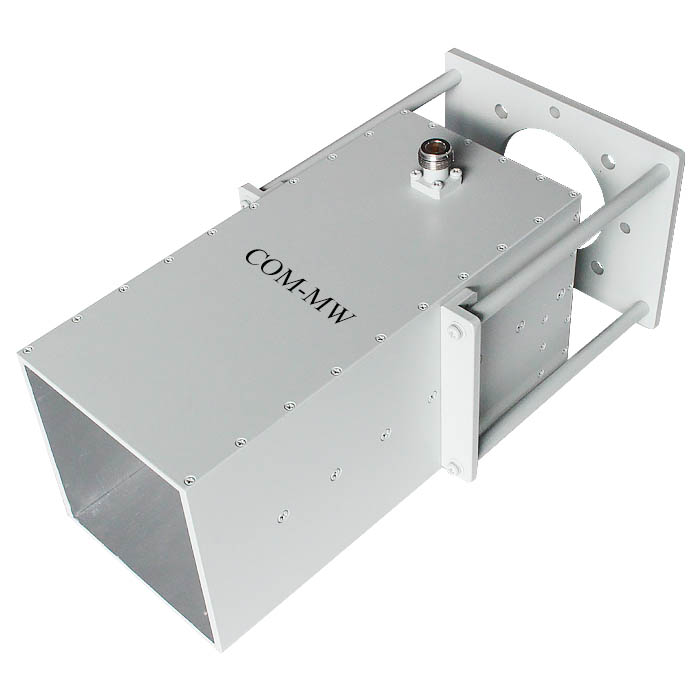

ZLB7-Z1.95-2.35G-1334 Horn Antenna

Horn Antenna ZLB7-Z1.95-2.35G-1334

Frequency1.95~2.35GHz, Gain7dBi, Left-hand circular polarization, N-K
In Stock View Details →

Left handed microstrip array antenna ZWDZ7-Z1550-1620-2538

Frequency1550~1620MHz, Gain10dBi, Left-hand circular polarization, TNC-K
View Details →

Array antenna ZWDZ7-4.6-5G-1738

Frequency4.6~5GHz, Gain11dBi (sector coverage), Gain-3dBi (Hemisphere Coverage), Left-hand circular polarization, SMA-K
View Details →

Microstrip antenna ZWD7-Z8-9G-1424

Frequency8~9GHz, GaindBi, Left-hand circular polarization, SMA
View Details →

Microstrip antenna ZWD7-Z7.1-8.5G-710

Frequency7.1~8.5GHz, Gain6dBi, Left-hand circular polarization, SMA-K
View Details →

Microstrip antenna ZWD7-Z1980-2200-2323

Frequency1980~2200MHz, Gain6dBi, Left-hand circular polarization, SMA-K
View Details →

Microstrip antenna ZWD7-Z1610-1627-2320

Frequency1610~1627MHz, Gain6dBi, Left-hand circular polarization, SMA-K
View Details →

Left-handed parabolic antenna ZPW7-Z18-26.5G-2556

Frequency18~26.5GHz, Gain35dBi, Left-hand circular polarization, 2.92-K
View Details →

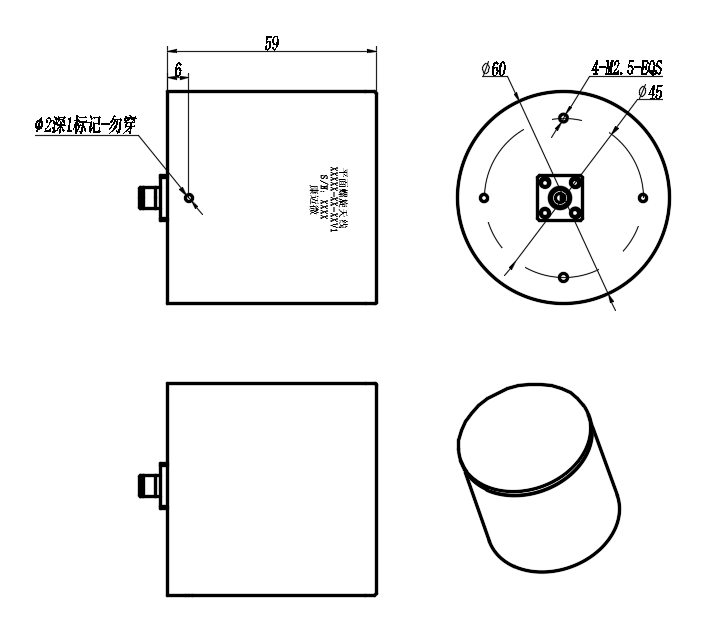

ZLX7-Z8-12G-724 Planar spiral antenna

Planar spiral antenna ZLX7-Z8-12G-724

Frequency8~12GHz, Gain-3dBi, Left-hand circular polarization, SMA
View Details →

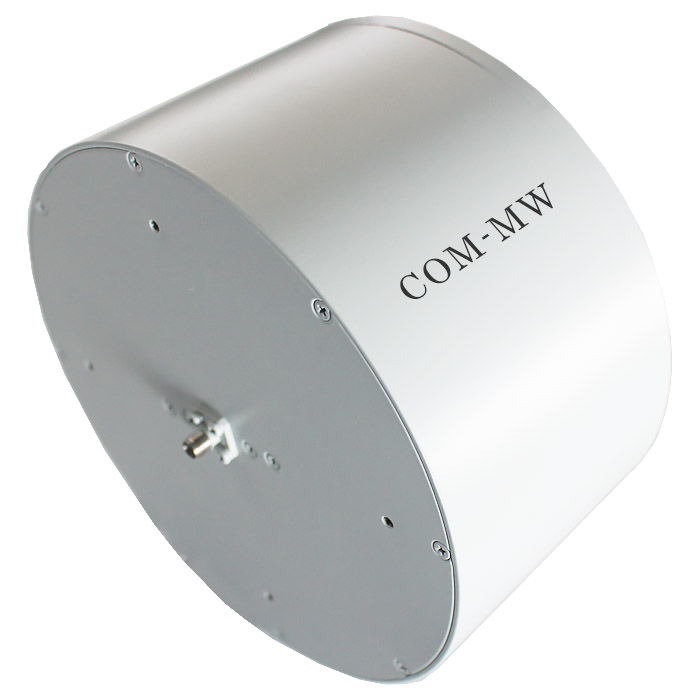

ZLX7-Z500-6000-120 Planar spiral antenna

Planar spiral antenna ZLX7-Z500-6000-120

Frequency500~6000MHz, Gain0dBi, Left-hand circular polarization, SMA-K
View Details →

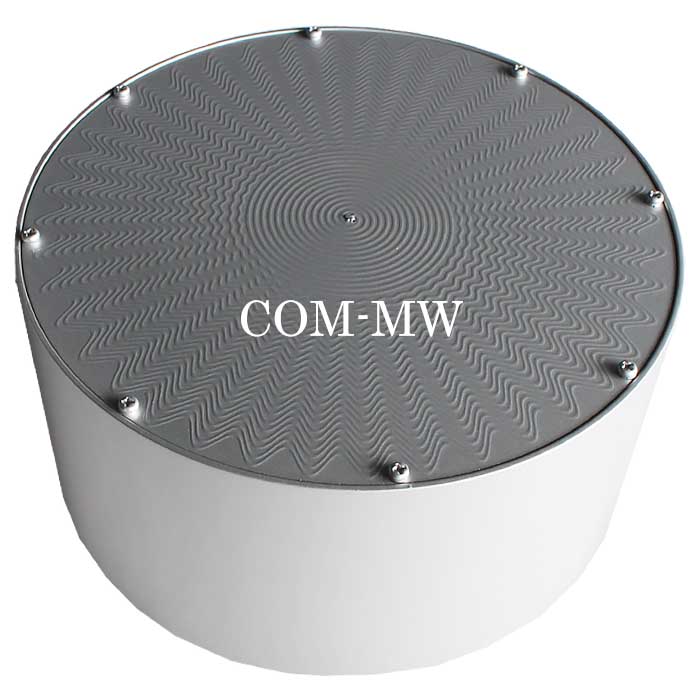

ZLX7-Z380-2000-1211 Planar spiral antenna

Planar spiral antenna ZLX7-Z380-2000-1211

Frequency380~2000MHz, Gain0dBi, Left-hand circular polarization, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
