ZWD7-700-3200-1768 Microstrip antenna

Microstrip antenna ZWD7-700-3200-1768

Frequency700~3200MHz, Gain0dBi, Linear polarization, SMA-K
View Details →
ZWD7-700-1600-1180 Microstrip antenna

Microstrip antenna ZWD7-700-1600-1180

Frequency700~1600MHz, Gain12dBi, Vertical polarization, N-K
View Details →
ZWD7-6-7G-2106 Microstrip antenna

Microstrip antenna ZWD7-6-7G-2106

Frequency6~7GHz, Gain3dBi, Linear polarization, SMA-F
View Details →
ZWD7-5325-5475-872 Microstrip antenna

Microstrip antenna ZWD7-5325-5475-872

Frequency5325~5475MHz, GaindBi, Horizontal polarization, SMA-K
View Details →

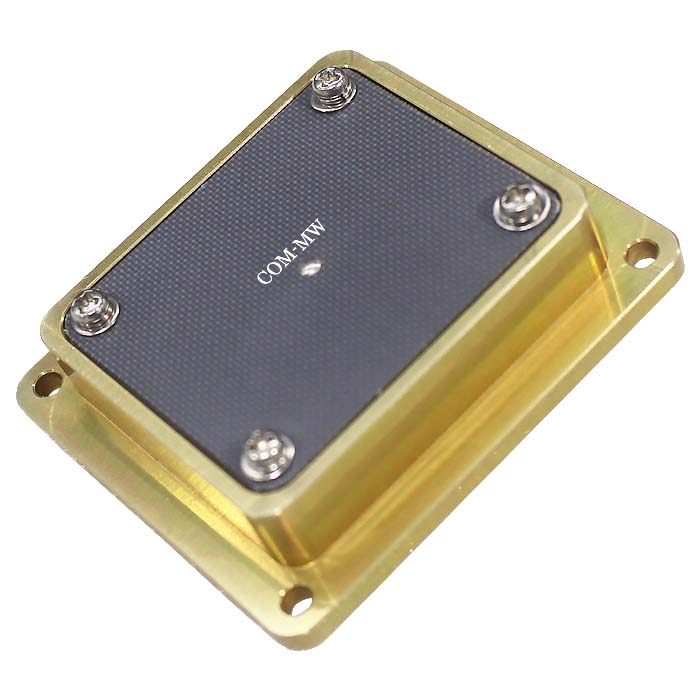

ZWD7-5325-5475-871 Microstrip antenna

Microstrip antenna ZWD7-5325-5475-871

Frequency5325~5475MHz, GaindBi, Linear polarization, SMA-K
View Details →

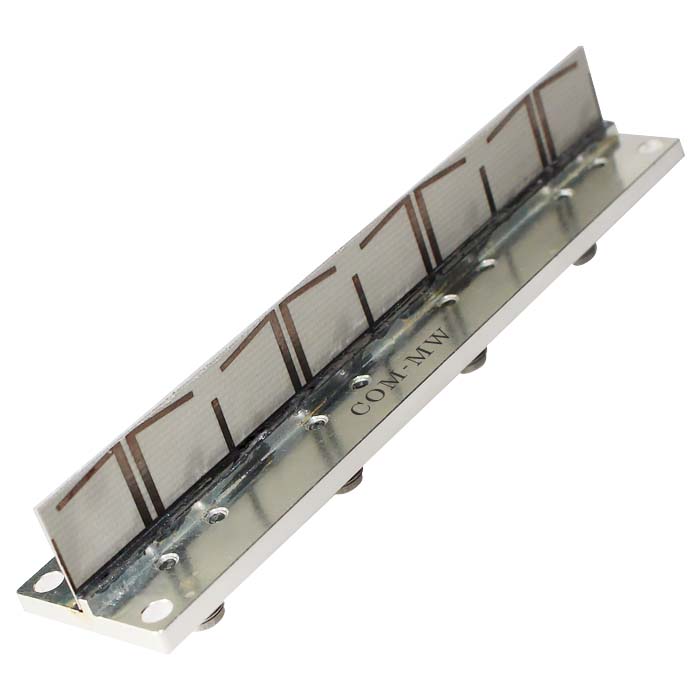

ZWD7-5-6G-2105 Microstrip antenna

Microstrip antenna ZWD7-5-6G-2105

Frequency5~6GHz, Gain3dBi, Linear polarization, SMA-F
View Details →
ZWD7-400-6000-1914 Microstrip antenna

Microstrip antenna ZWD7-400-6000-1914

Frequency0.4~6GHz, Gain @400-1000MHZ7dBi, Gain @1-3GHZ11dBi, Gain @3-6GHZ13dBi, Gain @1.1-1.7GHZ8dBi, Vertical polarization, Right-handed circular polarization, N-K
View Details →

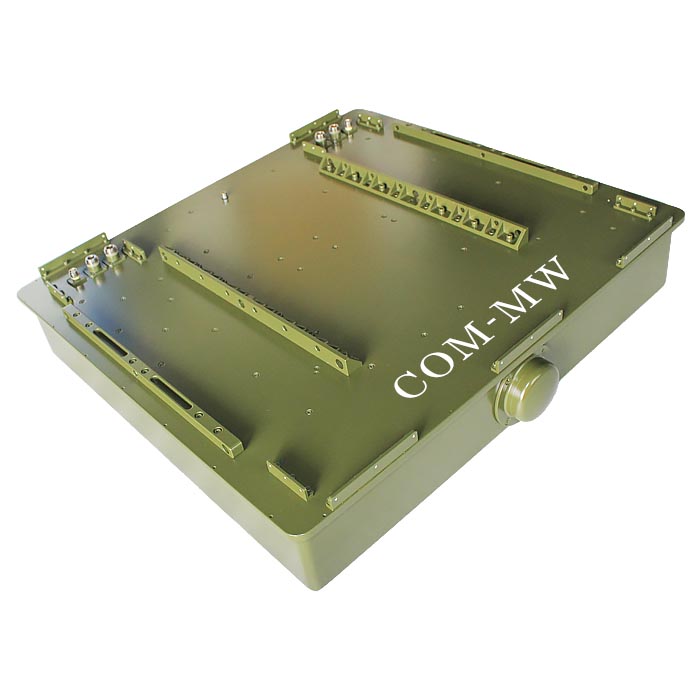

ZWD7-400-6000-1717 Microstrip antenna

Microstrip antenna ZWD7-400-6000-1717

Frequency0.4~6GHz, Gain @400-1000MHZ7dBi, Gain @1-3GHZ11dBi, Gain @3-6GHZ13dBi, Gain @1.1-1.7GHZ7dBi, Vertical polarization, Right-handed circular polarization, N-K
View Details →

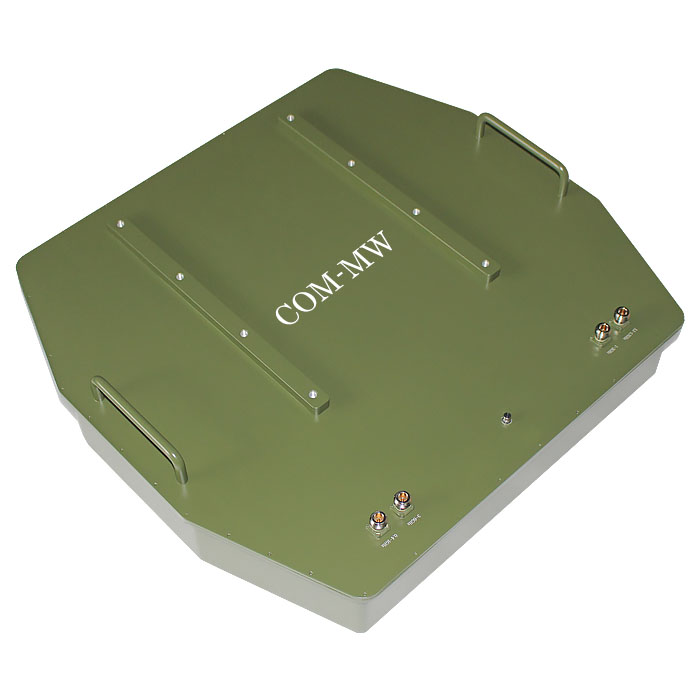

ZWD7-400-6000-1551 Microstrip antenna

Microstrip antenna ZWD7-400-6000-1551

Frequency0.4~6GHz, Gain @400-1000MHZ7dBi, Gain @1-3GHZ11dBi, Gain @3-6GHZ13dBi, Gain @1.1-1.7GHZ8dBi, Vertical polarization, Right-handed circular polarization, N-K
View Details →
ZWD7-4-8G-060 Microstrip antenna

Microstrip antenna ZWD7-4-8G-060

Frequency4~8GHz, Gain2dBi, Vertical polarization, 20W, SMA-K
View Details →
ZWD7-4-5G-2194 Microstrip antenna

Microstrip antenna ZWD7-4-5G-2194

Frequency4~5GHz, Gain3dBi, Linear polarization, SMA-F
View Details →
ZWD7-32-38G-700 Microstrip antenna

Microstrip antenna ZWD7-32-38G-700

Frequency32~38GHz, Gain5dBi, Right-handed circular polarization, 2.92-K
View Details →
ZWD7-2400-6000-1769 Microstrip antenna

Microstrip antenna ZWD7-2400-6000-1769

Frequency2400~6000MHz, GaindBi, Linear polarization, SMA-K
View Details →
ZWD7-2.88-2.92G-715 Microstrip antenna

Microstrip antenna ZWD7-2.88-2.92G-715

Frequency2.88~2.92GHz, Gain5dBi, Linear polarization, SMA-K
View Details →
ZWD7-2.3-2.4G-2171 Microstrip antenna

Microstrip antenna ZWD7-2.3-2.4G-2171

Frequency2.3~2.4GHz, Gain5dBi, Linear polarization, SMA
View Details →
ZWD7-2.2-5.5G-057 Microstrip antenna

Microstrip antenna ZWD7-2.2-5.5G-057

Frequency2.2~5.5GHz, GaindBi, Linear polarization, SMA-K
View Details →
ZWD7-2-18G-1524 Microstrip antenna

Microstrip antenna ZWD7-2-18G-1524

Frequency2~18GHz, GaindBi, Linear polarization, SMA
View Details →
ZWD7-2-18G-1513 Microstrip antenna

Microstrip antenna ZWD7-2-18G-1513

Frequency2~18GHz, GaindBi, Linear polarization, SMA-K
View Details →
ZWD7-2-18G-1405 Microstrip antenna

Microstrip antenna ZWD7-2-18G-1405

Frequency2~18GHz, GaindBi, Linear polarization, SMA-K
View Details →
ZWD7-19.5-20.5G-2045 Microstrip antenna

Microstrip antenna ZWD7-19.5-20.5G-2045

Frequency19.5~20.5GHz, Gain5dBi, Linear polarization, SMA-K
View Details →
ZWD7-1176-1575-2318 Microstrip antenna

Microstrip antenna ZWD7-1176-1575-2318

Frequency 11176.45MHz, Frequency 21575.42MHz, Gain33dBi, Right-handed circular polarization, TNC-K
View Details →
ZWD7-1175-1325-870 Microstrip antenna

Microstrip antenna ZWD7-1175-1325-870

Frequency1175~1325GHz, Gain5dBi, Vertical polarization, SMA-K
View Details →
ZWD7-100-1000-1905 Microstrip antenna

Microstrip antenna ZWD7-100-1000-1905

Frequency100~1000MHz, Gain4dBi, Linear polarization, SMA-K
View Details →

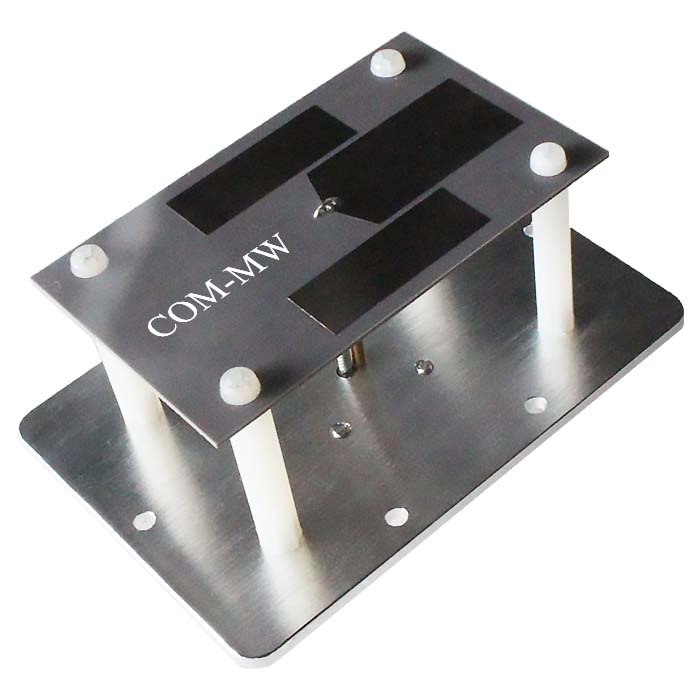

ZWD7-1.5-3G-1358 Microstrip antenna

Microstrip antenna ZWD7-1.5-3G-1358

Frequency1.5~3GHz, GaindBi, Linear polarization, N
View Details →
