Downloads

↓ Datasheet ↓ 3D Model 1.3 MB

Product features

Broadband, Absorption

Tech specifications

Parameters	Min	Typical	Max	Units
Frequency	300	~	6000	MHz
IL			3	dB
Isolation	40			dB
VSWR		1.5	1.8

Other parameters

Switch way	SP3T
Switching characteristic	Electronic switch
Switch time	100ns
Connector	SMA-F Detachable, Pin 0.38mm
Connector material	Stainless steel
Impedance	50Ω
Power Capacity	0.2W
Product shell material	Aluminium
Working voltage	+5.5V
Working current	15mA
Operation Temp.	-40~+85℃ Design assurance
Other
Other
Other
Other	4、批次性幅度一致性±1dB

Truth table

/	C1	C2
J0-J1	1	0
J0-J2	0	1
J0-J3	0	0

Port Definition

Common port	J0
Branching port	J1，J2，J3

Typical test data

Frequency GHz	S00 VSWR	S22 VSWR	S03 IL dB	S12 ISO dB	S02 Phase	S03 Phase (°)
0.10	1.19	1.19	-1.11	-63.2	0.07	0.05
0.81	1.08	1.20	-1.32	-68.2	0.12	0.16
1.51	1.06	1.20	-1.49	-78.1	0.26	0.31
2.22	1.14	1.20	-1.64	-71.6	0.11	0.29
2.93	1.06	1.05	-1.71	-61.3	0.47	0.61
3.64	1.19	1.25	-1.87	-57.3	0.69	0.77
4.34	1.32	1.37	-2.06	-58.8	0.36	0.43
5.05	1.23	1.31	-2.18	-58.8	0.08	0.13
5.76	1.30	1.23	-2.28	-71.4	0.14	0.37
6.46	1.41	1.46	-2.51	-74.7	0.31	0.99
7.17	1.16	1.45	-2.67	-86.9	0.69	1.27
7.88	1.20	1.36	-2.91	-66.7	0.59	1.60
8.59	1.33	1.35	-3.27	-73.9	0.58	2.08
9.29	1.21	1.41	-3.60	-54.6	0.99	2.54
10.00	1.29	1.42	-3.81	-66.3	1.05	2.64

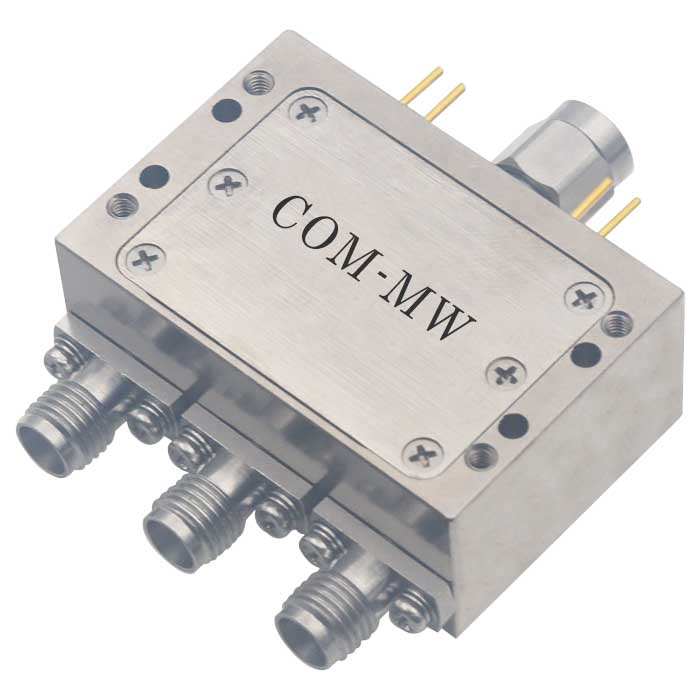

Reference picture

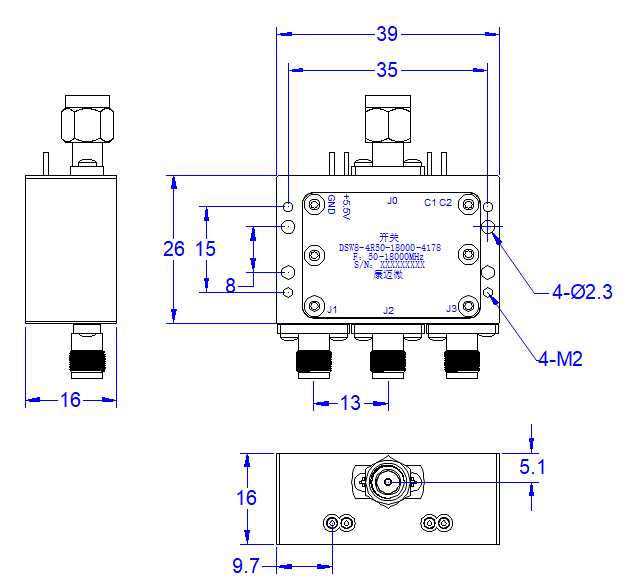

Configuration(mm)

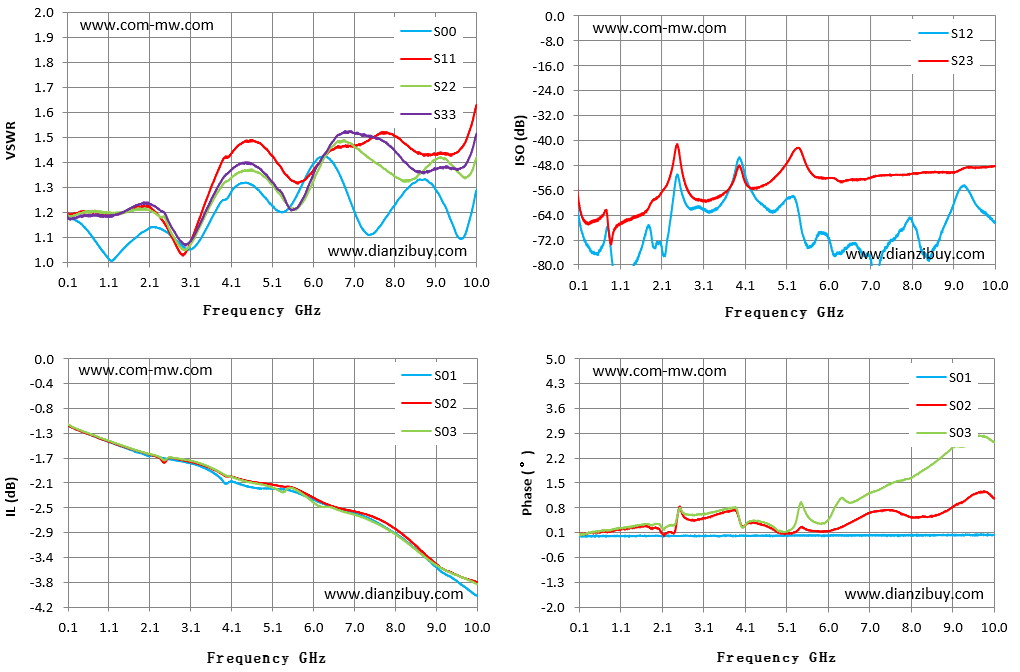

Typical test curve

Note

1	Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
2	If the temperature is higher than 125℃, consult with us before ordering.

Switch DSW8-3R300-6000-4313
