Controller

Total 17 models
Categories
Categories Controller
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
30 - 3000 6 6000 - 8500 5 12000 - 18000 6
–
Connector
SMA 15 N 2
Power Handling
0.2 14 1 1 200 2
–
F Low MHz
0 - 1.5 3 20 - 500 6 2000 - 6000 7 7500 1
–
Control
TTL Control 16 Voltage control 1
Category
Reflective 4 Absorption 13
Ways 路
1 6 2 6 3 2 4 2 8 1
–
Insertion loss dB
0.5 - 1 3 1.2 - 1.3 4 1.5 - 1.6 4 1.8 - 2 2 2.1 - 3.2 4
–
Isolation dB
75 2 80 15
–
Switching time ns
50 2 100 13 20000000 2
–
Isolation：75 - 80 dB× Clear all
matches 17 models Default Newest
DSW8-2R20-3000-1089 Switch

Switch DSW8-2R20-3000-1089

20~3000MHz, SPDT, Absorption, 100ns, SMA
In Stock View Details →
DSW8-3R20-3000-1090 Switch

Switch DSW8-3R20-3000-1090

20~3000MHz, SP3T, Absorption, 100ns, SMA
In Stock View Details →
DSW8-4R20-3000-1091 Switch

Switch DSW8-4R20-3000-1091

20~3000MHz, SP4T, Absorption, 100ns, SMA
In Stock View Details →
DSW8-1R2000-18000-1315 Switch

Switch DSW8-1R2000-18000-1315

2~18GHz, SPST, Electronic absorption switch, 100ns, SMA
In Stock View Details →
DSW8-3R2000-6000-1095 Switch

Switch DSW8-3R2000-6000-1095

2~6GHz, SP3T, Absorption, 100ns, SMA
In Stock View Details →
DSW8-1R20-3000-1317 Switch

Switch DSW8-1R20-3000-1317

20~3000MHz, SPST, Absorption, 100ns, SMA
In Stock View Details →
DSW8-1R6000-18000-1318 Switch

Switch DSW8-1R6000-18000-1318

6~18GHz, SPST, Absorption, 100ns, SMA
In Stock View Details →
DSW8-4R2000-6000-1096 Switch

Switch DSW8-4R2000-6000-1096

2~6GHz, SP4T, Absorption, 100ns, SMA
In Stock View Details →
DSW8-8R20-3000-1093 Switch

Switch DSW8-8R20-3000-1093

20~3000MHz, SP8T, ElectronicAbsorptionSwitch, Switch time100ns, SMA
In Stock View Details →
DSW8-2R2000-6000-1094 Switch

Switch DSW8-2R2000-6000-1094

2~6GHz, SPDT, Absorption, 100ns, SMA
In Stock View Details →
SPST2018-A Switch

Switch SPST2018-A

2~18GHz, SPST, TTL Control, Absorption, 50ns, SMA, ±5V
In Stock View Details →
SPST2018-B Switch

Switch SPST2018-B

2~18GHz, SPST, Reflective, 50ns, SMA
View Details →

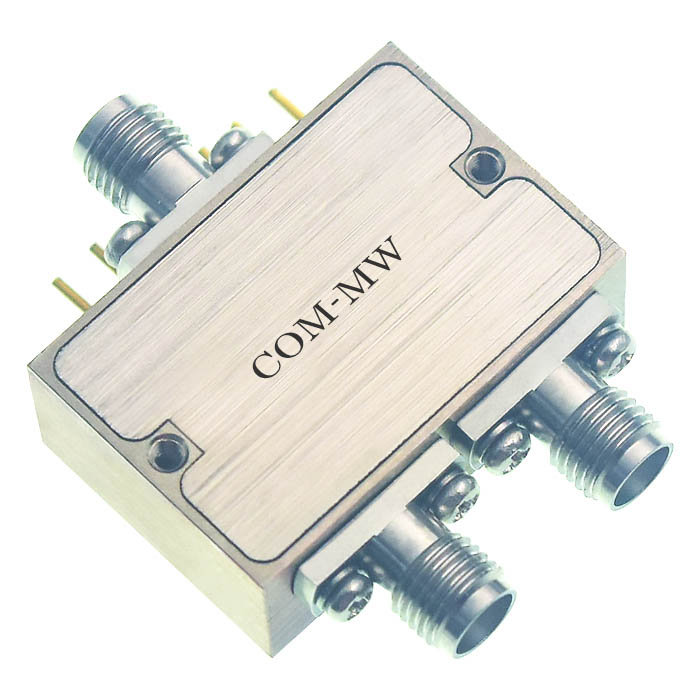

DSW8-2R500-6000-2492 Switch

Switch DSW8-2R500-6000-2492

0.5~6GHz, SPDT, ElectronicAbsorptionSwitch, Switch time100ns, SMA
View Details →

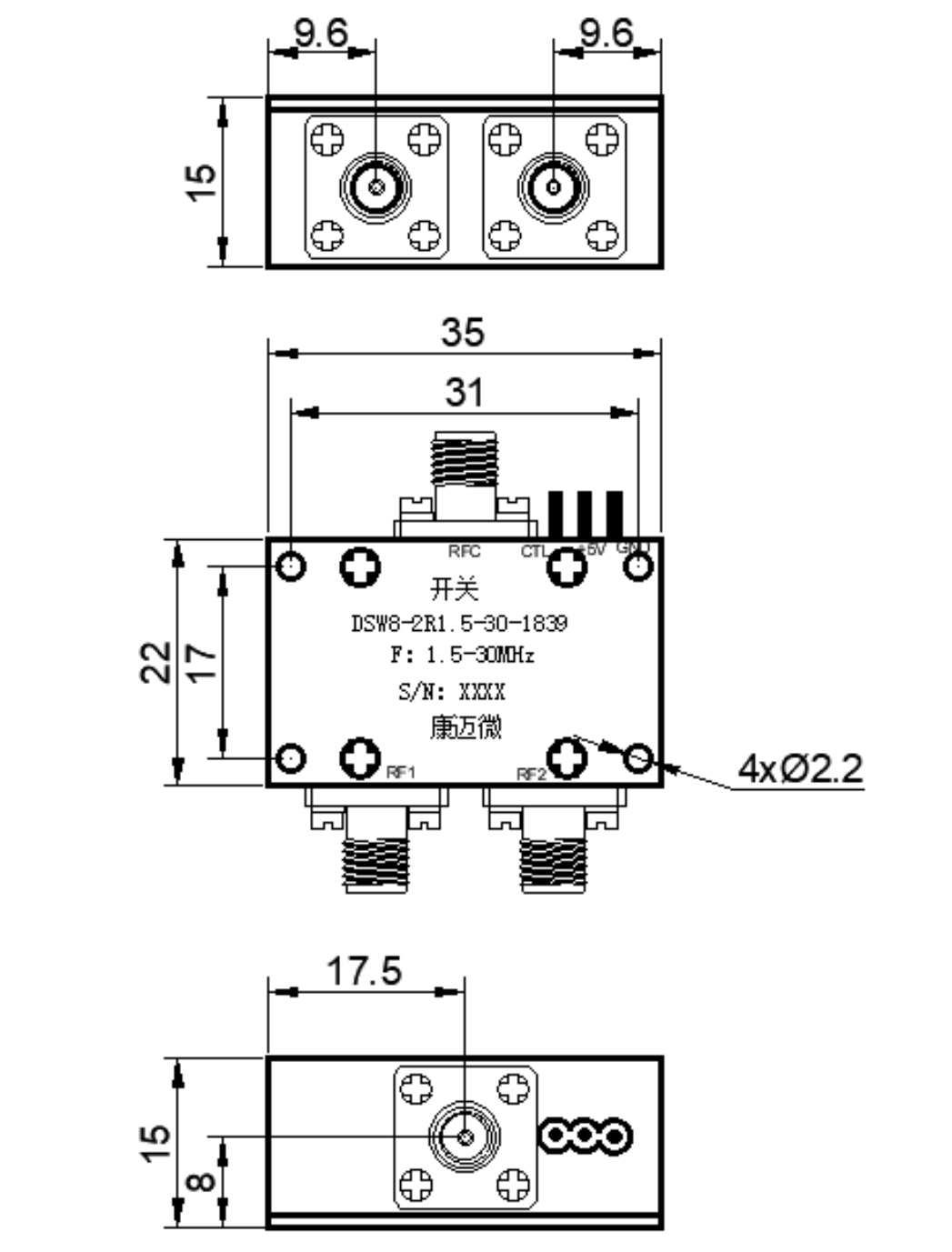

DSW8-2R1.5-30-1839 Switch

Switch DSW8-2R1.5-30-1839

1~30MHz, DPDT, TTL Control, Reflective, 150ns, SMA, 5V
View Details →

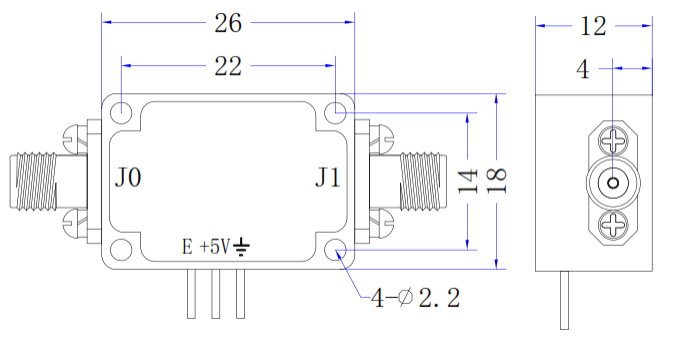

DSW8-1R7500-8000-2846 Switch

Switch DSW8-1R7500-8000-2846

7500~8500MHz, SPST, ElectronicAbsorptionSwitch, Switch time100ns, SMA
View Details →
1N22812T Switch

Switch 1N22812T

DC~12GHz, SPDT,TTL Control, Reflective, 20ms, N, 28V
View Details →
1N22812 Switch

Switch 1N22812

DC~12GHz, SPDT, Reflective, 20ms, N-K, 28V
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
