2.7~2.9GHz, Peak power of 12KW, average power of 2400WW, 3way, Phase0°, Waveguide, Industrial grade
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2.7 | ~ | 2.9 | GHz |
| IL | 0.3 | dB | ||
| Isolation | 6 | dB | ||
| Input VSWR | 1.2 | |||
| Output VSWR | Not have | |||
| Amplitude balance | ±0.2 | dB | ||
| Phase balance | ±3 | ° |
| Power Capacity | Peak power of 12KW, average power of 2400W |
| X-Way | 3-way |
| Phase | 0° |
| Connector | Waveguide |
| Waveguide port | WR284 |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |

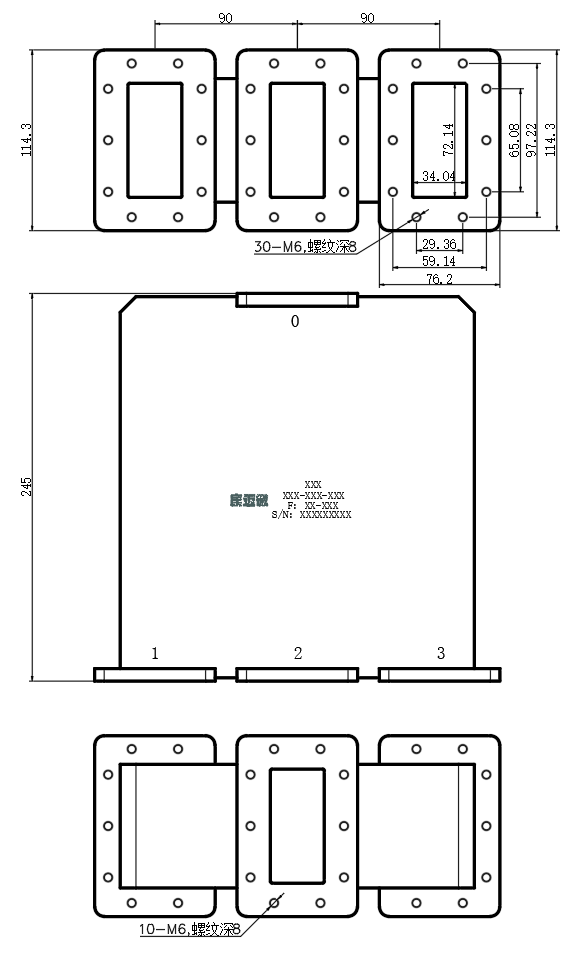

| Common port | 0（FDP32） |
| Dispatch Port | 1，2，3（FDP32） |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
