40~3000MHz, Coupling10dB, SMD, 2W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 40 | ~ | 3000 | MHz |
| IL | 3.5 | dB | ||
| Coupling | 8.5 | 10 | 11.5 | dB |
| Directivity | 10 | dB | ||
| Main line VSWR | 1.8 | |||
| Coupled line VSWR | 1.8 |
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 2W Design assurance |
| Operation Temp. | -45~+85℃ Design assurance |

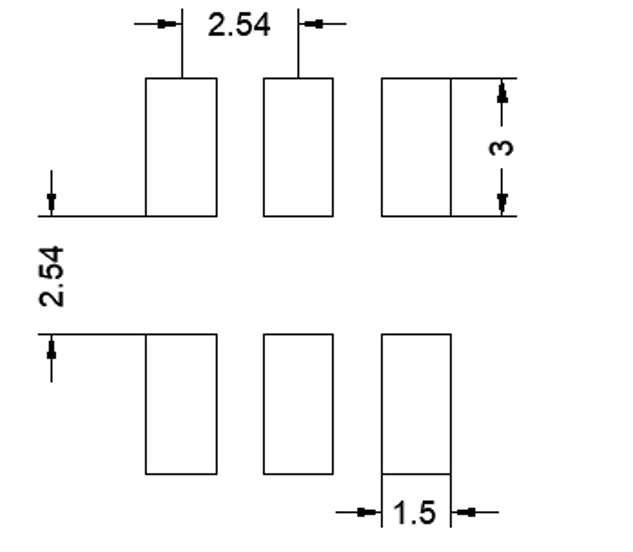

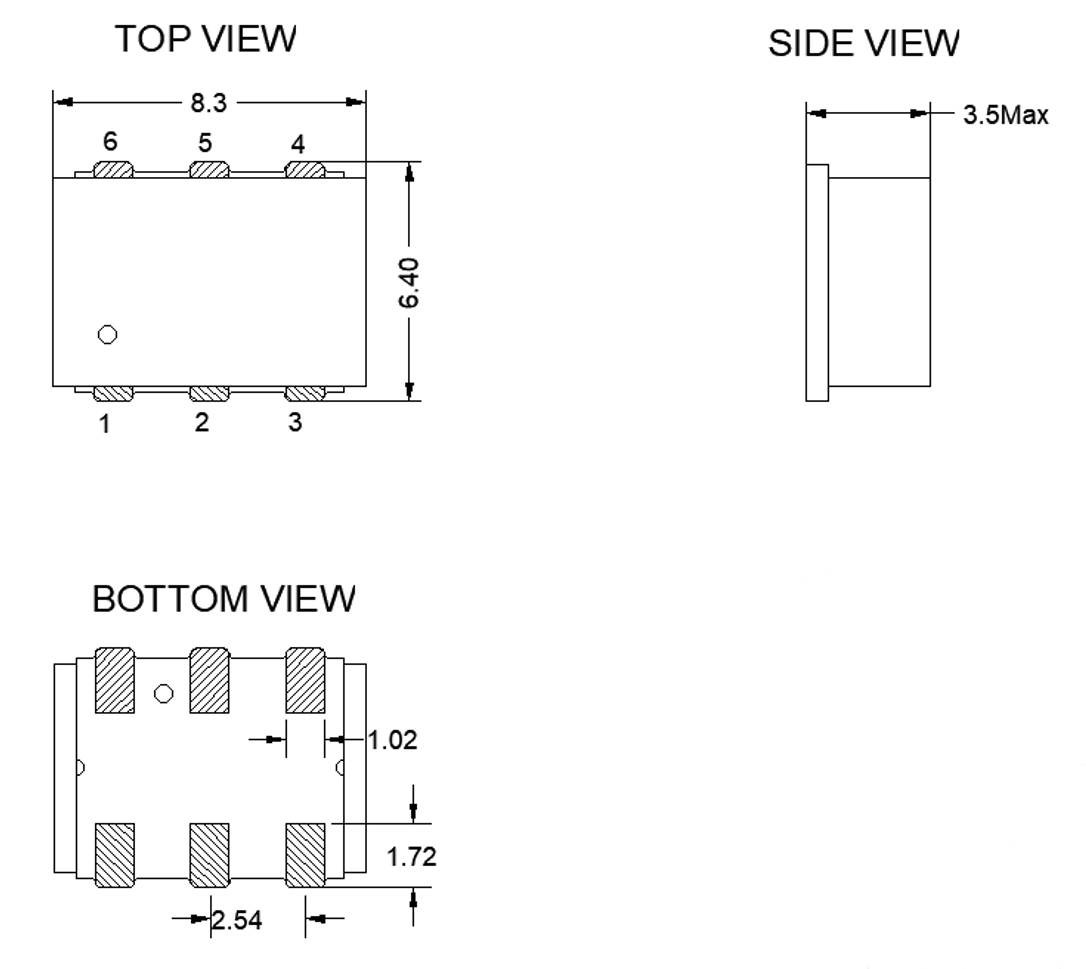

| Input port | 1 | --- |
|---|---|---|
| Output port | 6 | --- |
| Coupling port | 3 | --- |
| Isolated Port | 4 (external 50 Ω load) | --- |
| GND | 2，5 | --- |
| 1 | Short term soaking and cleaning, please dry in a timely manner. |
| 2 | The product supports 220 ℃ reflow soldering. |
