Coupling category
Single directional coupling 72 Dual Directional Coupling 23
F High：26700 - 75000 MHz× Clear all
matches 95 models Default Newest
ZDC8-30M6-40G-1319 Coupler

Coupler ZDC8-30M6-40G-1319

6~40GHz, Coupling30dB, 2.92, 10W,
In Stock View Details →
ZDC8-20M6-40-1562 Coupler

Coupler ZDC8-20M6-40-1562

6~40GHz, Coupling20dB, 2.92, 15W
In Stock View Details →
ZDC25-30W39.2-59.6G-993 Coupler

Coupler ZDC25-30W39.2-59.6G-993

39.2~59.6GHz, Coupling30dB, Waveguide, 500W
In Stock View Details →
ZDC25-30M18-40G-421 Coupler

Coupler ZDC25-30M18-40G-421

18~40GHz, Coupling30dB, 2.92-F, 15W
In Stock View Details →
ZDC25-15M18-50G-551 Coupler

Coupler ZDC25-15M18-50G-551

18~50GHz, Coupling15dB, 2.4, 15W
In Stock View Details →
ZDC8-10M18-40G-2082 Coupler

Coupler ZDC8-10M18-40G-2082

18~40GHz, Coupling10dB, 2.92-F, 20W
In Stock View Details →
ZDC25-6C40-67G-3452 Coupler

Coupler ZDC25-6C40-67G-3452

40~67GHz, Coupling6dB, 1.85, 10W
In Stock View Details →
ZDC8-10M18-50G-2877 Coupler

Coupler ZDC8-10M18-50G-2877

18~50GHz, Coupling10dB, 1.85, 10W
In Stock View Details →
ZDC8-10M6-40G-1862 Coupler

Coupler ZDC8-10M6-40G-1862

6~40GHz, Coupling10dB, 2.92-K, 10W
In Stock View Details →
ZDC25-6M18-40G-3454 Coupler

Coupler ZDC25-6M18-40G-3454

18~40GHz, Coupling6dB, 2.92, 10W
In Stock View Details →

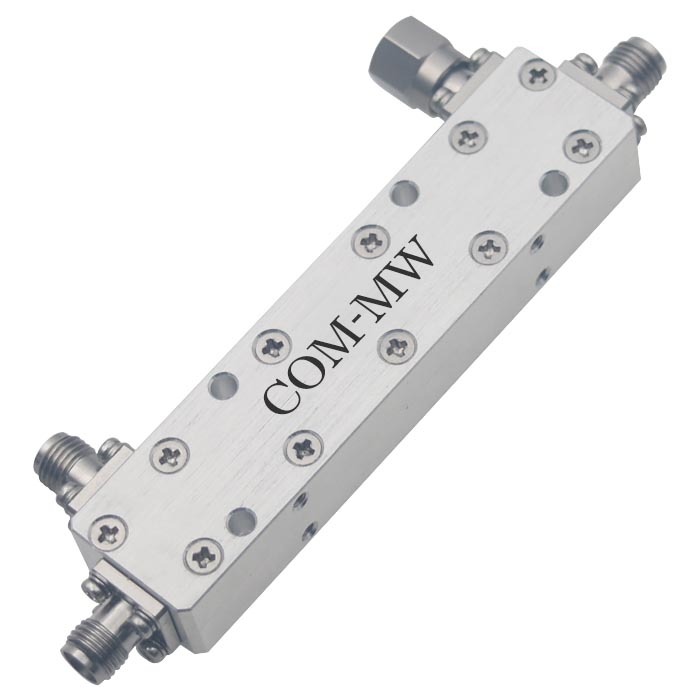

ZDC25-30M1-40G-739 Coupler

Coupler ZDC25-30M1-40G-739

1~40GHz, Coupling30dB, 2.92-F, 20W
In Stock View Details →

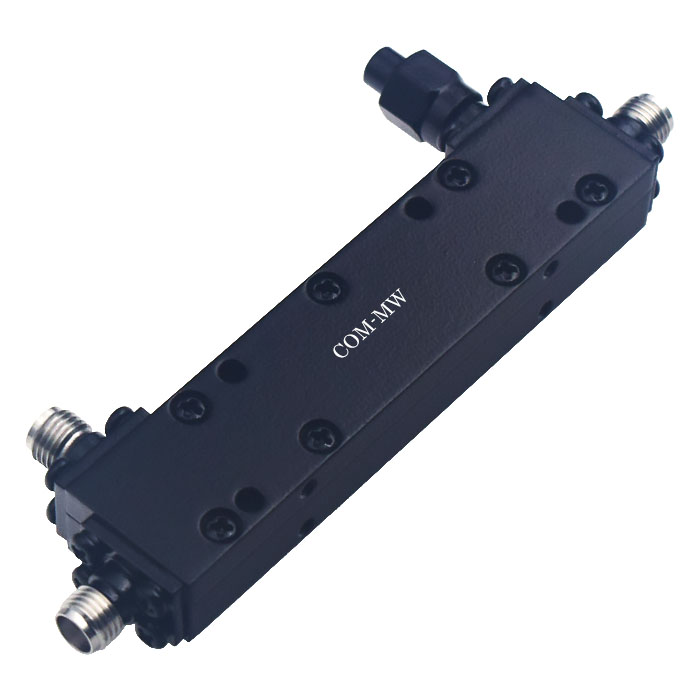

ZDC9-20C1-40G-1661 Coupler

Coupler ZDC9-20C1-40G-1661

Frequency1000~40000MHz, Coupling20dB, Connector2.92
In Stock View Details →

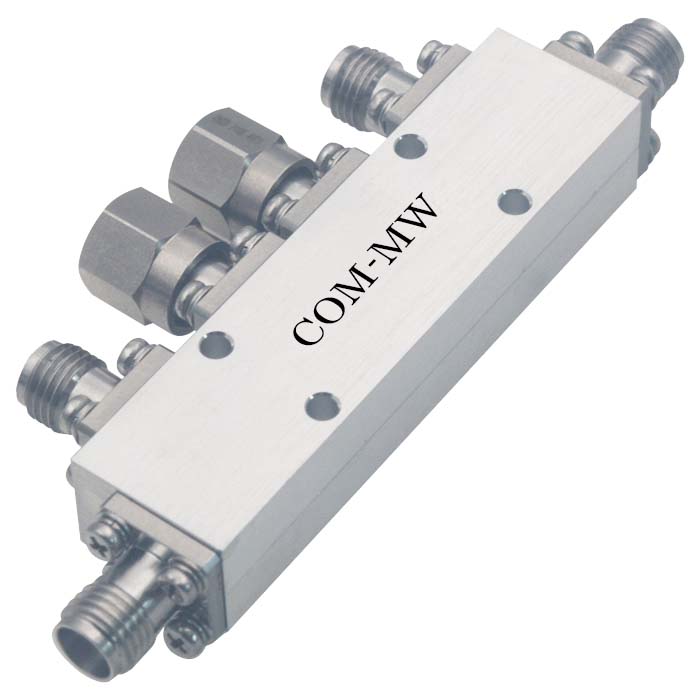

ZDC25-20M6-40G-029 Coupler

Coupler ZDC25-20M6-40G-029

6~40GHz, Coupling20dB, 2.92, 15W
In Stock View Details →
ZDC25-20M1-50G-3729 Coupler

Coupler ZDC25-20M1-50G-3729

1~50GHz, Coupling20dB, 2.4, 10W
In Stock View Details →
ZDC9-10C1-40G-1679 Coupler

Coupler ZDC9-10C1-40G-1679

1000~40000MHz, Coupling10dB, 2.92, 15W
In Stock View Details →
ZDC25-50W17.6-26.7G-3508 Coupler

Coupler ZDC25-50W17.6-26.7G-3508

17.6~26.7GHz, Coupling50dB, Waveguide, 2.92, 500W
In Stock View Details →
ZDC25-41W21.7-33G-3807 Coupler

Coupler ZDC25-41W21.7-33G-3807

21.7~33GHz, Coupling41dB, Waveguide, 300W
In Stock View Details →
ZDC8-50W21.7-33G-2322 Coupler

Coupler ZDC8-50W21.7-33G-2322

21.7~33GHz, Coupling50dB, BJ260, 300W
In Stock View Details →
ZDC8-40W32.9-50.1G-3138 Coupler

Coupler ZDC8-40W32.9-50.1G-3138

32.9~50GHz, Coupling40dB, Waveguide, 70W
In Stock View Details →
ZDC8-30W45-70G-3241 Coupler

Coupler ZDC8-30W45-70G-3241

45~70GHz, Coupling30dB, 1.85, 10W
In Stock View Details →
ZDC8-30W21.7-33-1192 Coupler

Coupler ZDC8-30W21.7-33-1192

21.7~33GHz, Coupling30dB, Waveguide, 300W
In Stock View Details →

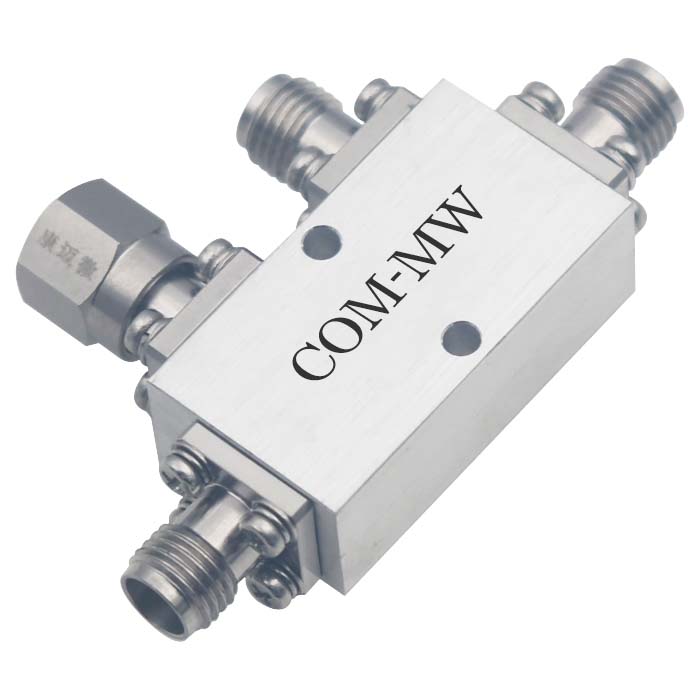

ZDC8-15M18-40G-1708 Coupler

Coupler ZDC8-15M18-40G-1708

18~40GHz, Coupling15dB, 2.92-F, 20W, Industrial grade
In Stock View Details →
ZDC8-10W26.3-40G-2324 Coupler

Coupler ZDC8-10W26.3-40G-2324

26.3~40GHz, Coupling10dB, BJ320, 100W
In Stock View Details →
ZDC8-10C18-50G-2000 Coupler

Coupler ZDC8-10C18-50G-2000

18~50GHz, Coupling10dB, 2.4, 20W
In Stock View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
