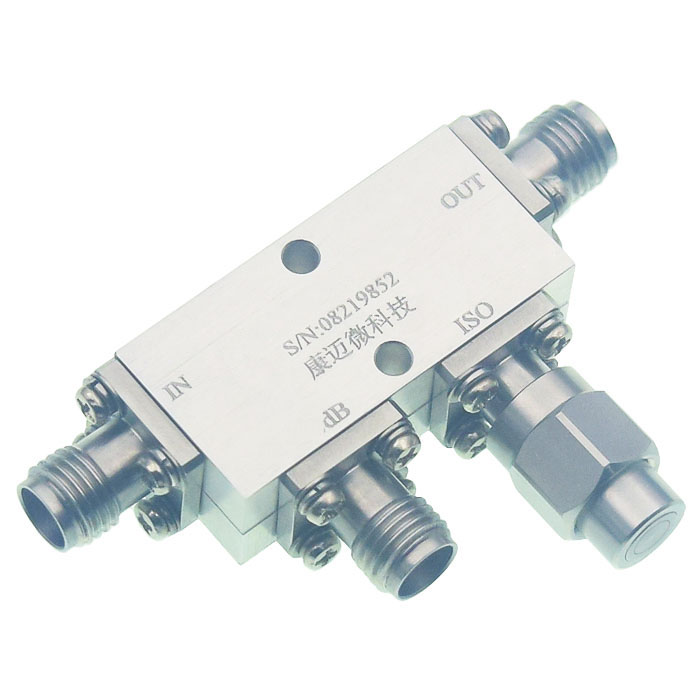

37.5~42.5GHz, Coupling5dB, 1.85-F, 10W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 37.5 | ~ | 42.5 | GHz |
| IL | 2.8 | dB (Excluding theoretical loss 1.65dB) | ||
| Coupling | 4 | 5 | 6 | dB |
| Isolation | 17 | dB | ||
| Main line VSWR | 1.5 | |||
| Coupled line VSWR | 1.5 |
| Connector | 1.85-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Power Capacity | 10W Design assurance |
| Shell Material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
| Input port | IN | --- |
|---|---|---|
| Output port | OUT | --- |
| Coupling port | C | --- |

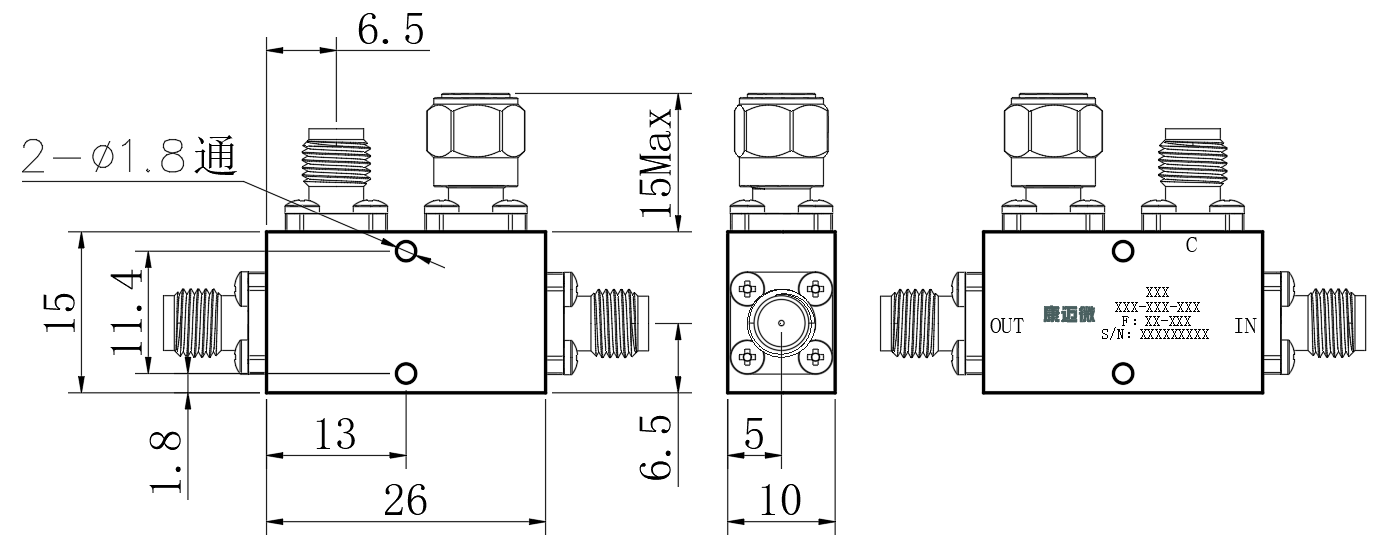

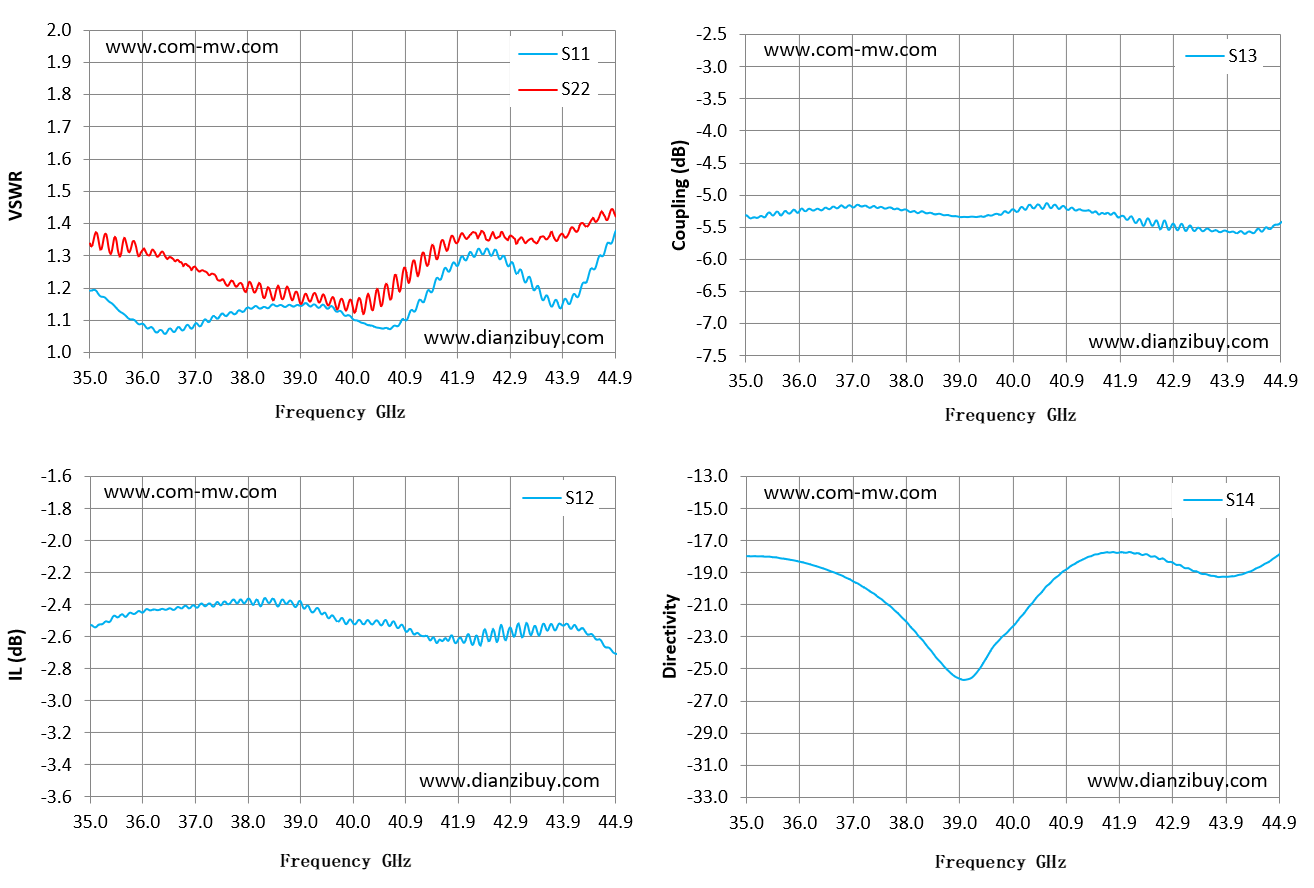

| Frequency GHz | S11 VSWR | S22 VSWR | S12 IL (dB) | S13 Coupling | S14 Directivity |
|---|---|---|---|---|---|
| 35 | 1.19 | 1.34 | -2.53 | -5.31 | -17.98 |
| 35.71 | 1.11 | 1.33 | -2.46 | -5.27 | -18.14 |
| 36.41 | 1.06 | 1.31 | -2.43 | -5.24 | -18.72 |
| 37.12 | 1.09 | 1.25 | -2.4 | -5.17 | -19.79 |
| 37.83 | 1.13 | 1.21 | -2.37 | -5.21 | -21.54 |
| 38.54 | 1.14 | 1.2 | -2.41 | -5.3 | -24.34 |
| 39.24 | 1.15 | 1.18 | -2.44 | -5.34 | -25.45 |
| 39.95 | 1.11 | 1.15 | -2.51 | -5.22 | -22.38 |
| 40.66 | 1.07 | 1.18 | -2.53 | -5.2 | -19.68 |
| 41.36 | 1.19 | 1.27 | -2.6 | -5.24 | -18.01 |
| 42.07 | 1.29 | 1.36 | -2.64 | -5.38 | -17.77 |
| 42.78 | 1.3 | 1.37 | -2.55 | -5.43 | -18.19 |
| 43.49 | 1.19 | 1.36 | -2.58 | -5.54 | -19.09 |
| 44.19 | 1.17 | 1.37 | -2.55 | -5.58 | -19.13 |
| 44.9 | 1.36 | 1.43 | -2.7 | -5.44 | -17.92 |
