matches 16040 models Default Newest
ZBF5-L455-30-2310 Filter

Filter ZBF5-L455-30-2310

Passband440~470MHz, DC-400MHz≥40dB, 510-3000MHz≥40dB, SMA
In Stock View Details →
ZBF5-L4500-3000-2352 Filter

Filter ZBF5-L4500-3000-2352

Passband3000~6000MHz, DC-2500MHz≥40dB, 7000-12000MHz≥40dB, SMA-KDetachable
In Stock View Details →
ZBF5-L312.5-175-2329 Filter

Filter ZBF5-L312.5-175-2329

Passband225~400MHz, DC-180MHz≥40dB, 450-1200MHz≥40dB, SMD
In Stock View Details →
ZBF5-L2500-400-2350 Filter

Filter ZBF5-L2500-400-2350

Passband2300~2700MHz, DC-2100MHz≥40dB, 2900-8000MHz≥45dB, SMA-KDetachable
In Stock View Details →
ZBF5-L1600-800-2343 Filter

Filter ZBF5-L1600-800-2343

Passband1200~2000MHz, DC-960MHz≥40dB, 2400-4000MHz≥40dB, SMD
In Stock View Details →
ZBF5-L1600-800-2319 Filter

Filter ZBF5-L1600-800-2319

Passband1200~2000MHz, DC-960MHz≥40dB, 2400-6000MHz≥40dB, SMA
In Stock View Details →
ZBF5-C9-1G-1431 Filter

Filter ZBF5-C9-1G-1431

Passband8.5~9.5GHz, DC-7GHz≥70dB, 10.5-20GHz≥70dB, SMA
In Stock View Details →
ZBF5-C5000-1000-771 Filter

Filter ZBF5-C5000-1000-771

Passband4500~5500MHz, DC-3.5GHz≥40dBc, 6-14GHz≥38dBc, SMA
In Stock View Details →
ZBF5-C16-4G-2291 Filter

Filter ZBF5-C16-4G-2291

Passband14~18GHz, 13GHz≥55dB, 19GHz≥55dB, SMA
In Stock View Details →

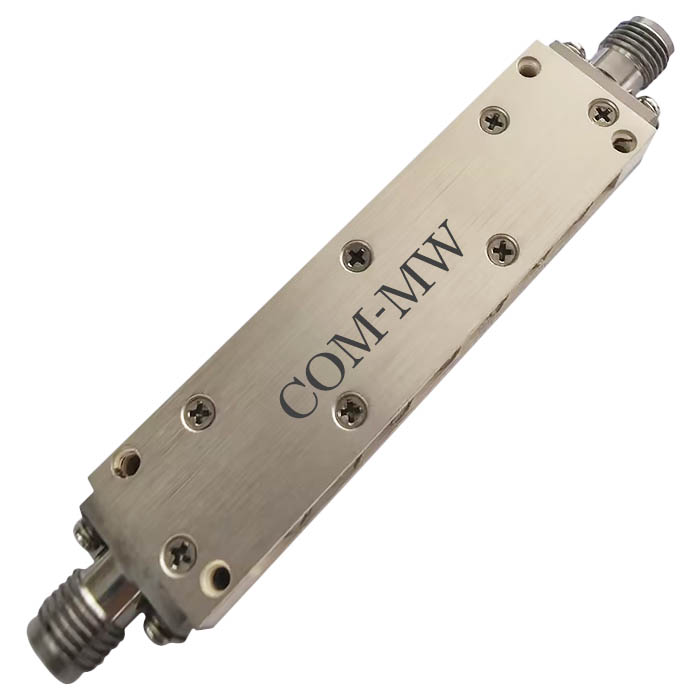

ZBF5-C12-12G-3848 Filter

Filter ZBF5-C12-12G-3848

Passband6~18GHz, 5-5.5GHz≥25dB, 19.5-20GHz≥35dB, 20-26GHz≥55dB, SMA
In Stock View Details →
ZBF4-C4.25-0.5G-1118 Filter

Filter ZBF4-C4.25-0.5G-1118

Passband4~4.5GHz, DC-3.6GHz≥50dB, 4.8-11GHz≥50dB, SMA-KDetachable
In Stock View Details →
ZBF3-L70-23-243 Filter

Filter ZBF3-L70-23-243

Passband58.5~81.5MHz, DC-47MHz≥53dB, 93-200MHz≥53dB, SMD
In Stock View Details →
ZBF3-D3700-20-3887 Filter

Filter ZBF3-D3700-20-3887

Passband3690~3710MHz, DC-3600MHz≥50dBc, 3800-4800MHz≥50dB, SMD
In Stock View Details →
ZBF3-D2800-20-3886 Filter

Filter ZBF3-D2800-20-3886

Passband2790~2810MHz, DC-2700MHz≥50dBc, 2900-3600MHz≥50dB, SMD
In Stock View Details →
ZBF3-D2700-20-3885 Filter

Filter ZBF3-D2700-20-3885

Passband2690~2710MHz, DC-2600MHz≥50dBc, 2800-3500MHz≥50dB, SMD
In Stock View Details →
ZBF3-D2600-20-3884 Filter

Filter ZBF3-D2600-20-3884

Passband2590~2610MHz, DC-2500MHz≥50dBc, 2700-3350MHz≥50dB, SMD
In Stock View Details →
ZBF25-C14.13-0.75G-3650 Filter

Filter ZBF25-C14.13-0.75G-3650

Passband13.75~14.5GHz, 12.9-13.5GHz≥40dBc, 14.7-15GHz≥35dBc, SMA
In Stock View Details →
ZBF20-L1600-900-336 Filter

Filter ZBF20-L1600-900-336

Passband1150~2050MHz, DC-900MHz≥40dB, 2300-5000MHz≥40dB, SMA
In Stock View Details →
ZBF2-L255-30-1789 Filter

Filter ZBF2-L255-30-1789

Passband240~270MHz, DC-220MHz≥50dB, 290-500MHz≥50dB, SMD
In Stock View Details →
ZBF2-D1950-120-2308 Filter

Filter ZBF2-D1950-120-2308

Passband1890~2010MHz, 1700MHz≥30dBc, 2200MHz≥30dBc, SMD
In Stock View Details →
ZBF16-C3.5-0.03G-329 Filter

Filter ZBF16-C3.5-0.03G-329

Passband3.485~3.515GHz, DC~3.4GHz≥40dBc, 3.6~12GHz≥40dBc, SMA-KDetachable
In Stock View Details →
ZBF15-L720-500-1090 Filter

Filter ZBF15-L720-500-1090

Passband470~970MHz, DC-370MHz≥40dB, 1170-3000MHz≥40dB, SMA
In Stock View Details →
ZBF15-L300-100-656 Filter

Filter ZBF15-L300-100-656

Passband250~350MHz, DC-210MHz≥40dBc, 410-1500MHz≥40dBc, SMD
In Stock View Details →
ZBF15-L2090-160-1068 Filter

Filter ZBF15-L2090-160-1068

Passband2010~2170MHz, DC-1900MHz≥40dBc, 2350-6000MHz≥40dBc, SMA
In Stock View Details →
