Filters
Filters 1
F High MHz
600 - 800 4 940 - 1800 4 1900 - 2400 5 2600 - 3200 5 3400 - 7000 4
–
Connector
SMD 1 SMA 18 Microstrip pad 1 Microstrip needle 2
Power Handling
31.62 2 32 9 35 11
–
Ways 路
6 1
–
Maximum loss of side frequency dB
0.8 - 1 14 1.3 - 1.5 3 1.7 - 1.8 2 2 - 3 3
–
Rejection dB
35 - 45 2 50 - 60 17 70 - 90 2 95 1
–
F Low MHz
400 - 670 5 890 - 1610 5 1880 - 2235 4 2540 - 3000 5 3200 - 5000 3
–
Feature
Bandpass 21
Center frequency MHz
500 - 915 5 1600 - 1700 4 1910 - 2317.5 4 2570 - 2900 4 3100 - 6000 4
–
IL on center frequency dB
0.3 2 0.4 4 0.5 8 1 6 2 1
–
Filter type
LC 7 Cavity&waveguide 14
Power Handling：31.62 - 35× Clear all
matches 22 models Default Newest
ZBF4-C6000-2000-161 Filter

Filter ZBF4-C6000-2000-161

Passband5~7GHz, DC-4.8GHz≥35dB, 7.2-16GHz≥35dB, SMA-KDetachable
In Stock View Details →

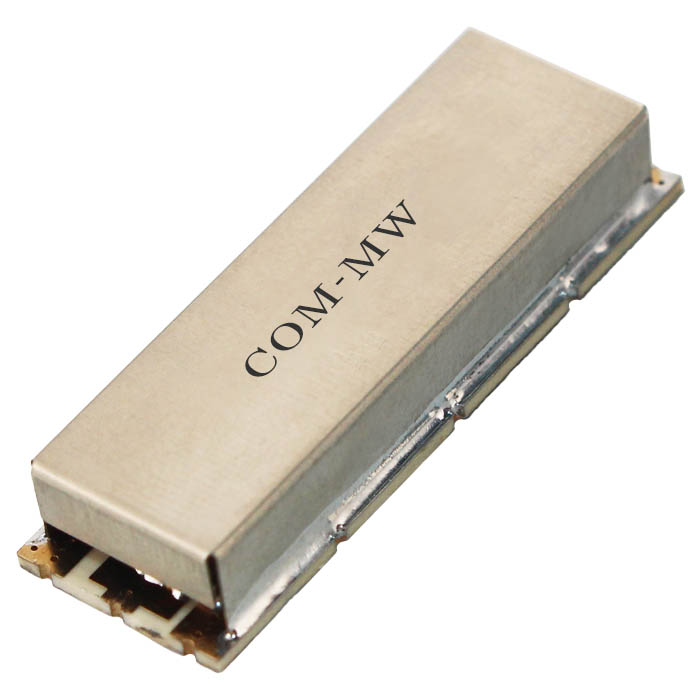

ZBF2-L1600-600-2670 Filter

Filter ZBF2-L1600-600-2670

Passband1300~1900MHz, 680-1100MHz≥30dBc, 2200-2600MHz≥30dBc, SMD
In Stock View Details →

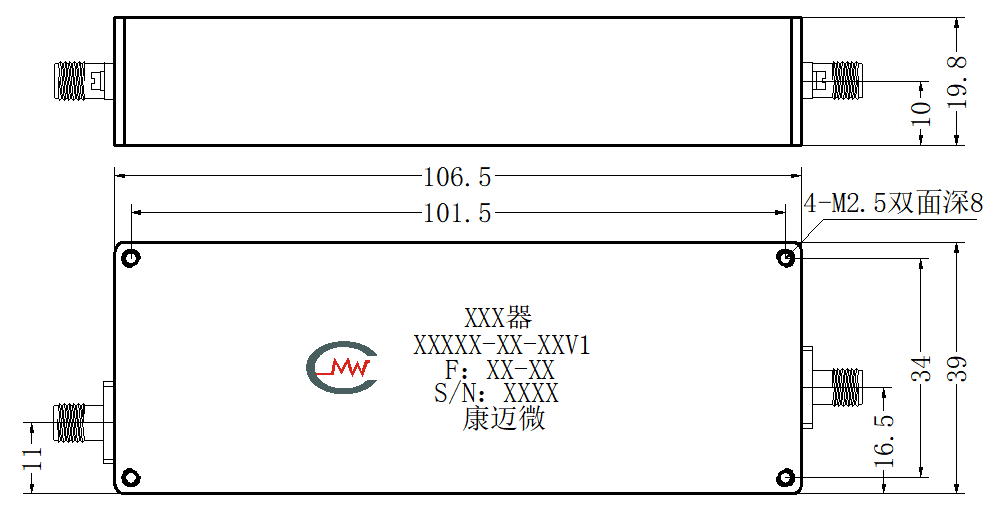

ZBF3-C2317.5-165-2317 Filter

Filter ZBF3-C2317.5-165-2317

Passband2235~2400MHz, 2170-2200MHz≥90dB, 2485-4050MHz≥80dB, SMA
In Stock View Details →
ZBF3-L1618.5-17-4043 Filter

Filter ZBF3-L1618.5-17-4043

Passband1610~1627MHz, DC-1268MHz≥50dB, 2491-3500MHz≥60dB, SMA
View Details →

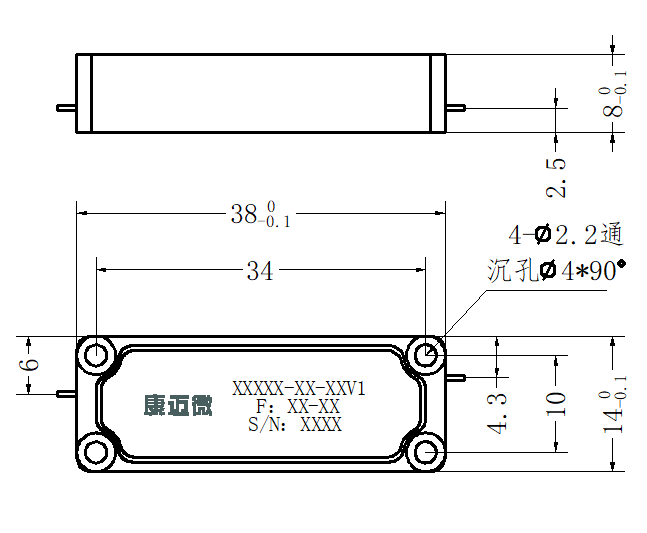

ZBF3-L1618.5-17-2647 Filter

Filter ZBF3-L1618.5-17-2647

Passband1610.18~1626.5MHz, DC-1268MHz≥50dBc, 2491MHz≥60dBc, Pin
View Details →

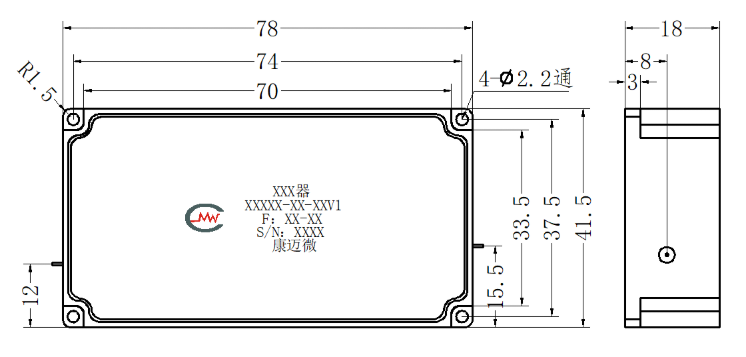

ZBF3-C2300-200-2504 Filter

Filter ZBF3-C2300-200-2504

Passband2200~2400MHz, DC-2150MHz≥95dBc, 2450MHz≥95dBc, Pin
View Details →

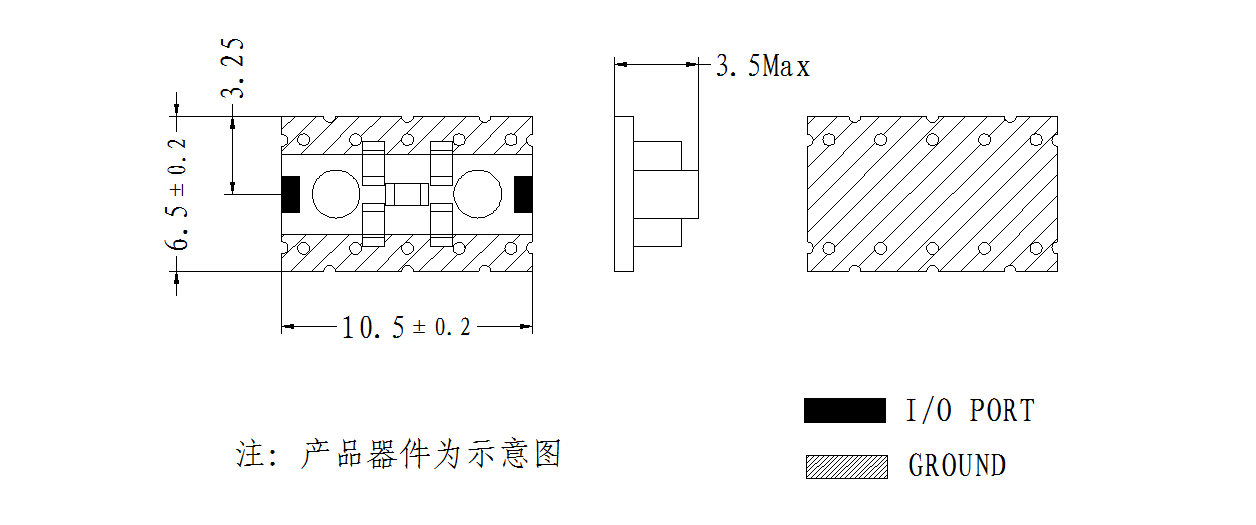

ZBF2-L2800-400-2682 Filter

Filter ZBF2-L2800-400-2682

Passband2.6~3GHz, 2.3-2.4MHz≥25dBc, 2.4-2.5MHz≥10dBc, Microstrip pad
View Details →
ZBF13-L700-200-3492 Filter

Filter ZBF13-L700-200-3492

Passband600~800MHz, DC-460MHz≥50dB, 1000-2000MHz≥50dB, SMA
View Details →
ZBF13-L600-200-3491 Filter

Filter ZBF13-L600-200-3491

Passband500~700MHz, DC-390MHz≥50dB, 900-2000MHz≥50dB, SMA
View Details →
ZBF13-L500-200-3490 Filter

Filter ZBF13-L500-200-3490

Passband400~600MHz, DC-310MHz≥50dB, 780-2000MHz≥50dB, SMA
View Details →
ZBF13-C3300-200-3497 Filter

Filter ZBF13-C3300-200-3497

Passband3200~3400MHz, DC-3000MHz≥50dB, 3.6-6GHz≥50dB, SMA
View Details →
ZBF13-C3100-200-3508 Filter

Filter ZBF13-C3100-200-3508

Passband3000~3200MHz, DC-2800MHz≥50dB, 3.4-6GHz≥50dB, SMA
View Details →
ZBF13-C2900-200-3496 Filter

Filter ZBF13-C2900-200-3496

Passband2800~3000MHz, DC-2600MHz≥50dB, 3.2-6GHz≥50dB, SMA
View Details →
ZBF13-C2700-200-3495 Filter

Filter ZBF13-C2700-200-3495

Passband2600~2800MHz, DC-2400MHz≥50dB, 3-6GHz≥50dB, SMA
View Details →

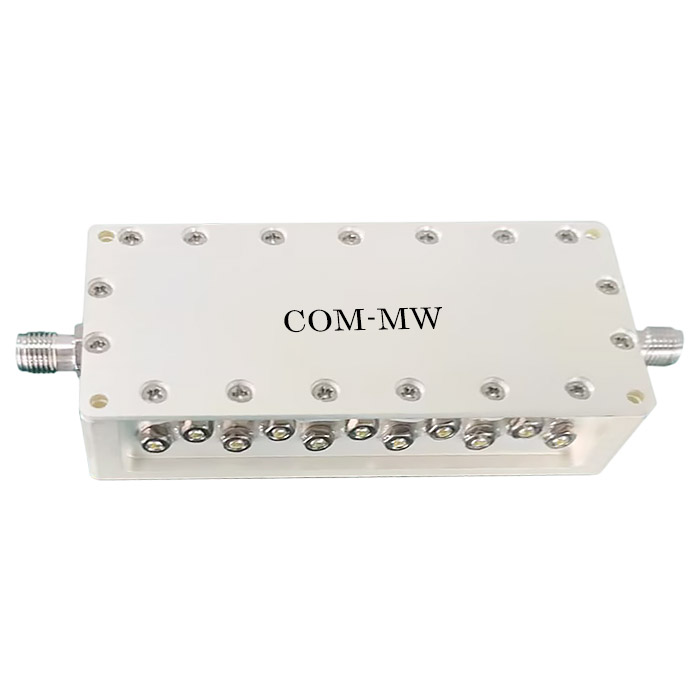

ZBF13-C2100-200-3494 Filter

Filter ZBF13-C2100-200-3494

Passband2000~2200MHz, DC-1800MHz≥50dB, 2.4-5GHz≥50dB, SMA
View Details →
ZBF13-C1700-200-3493 Filter

Filter ZBF13-C1700-200-3493

Passband1600~1800MHz, DC-1400MHz≥50dB, 2-5GHz≥50dB, SMA
View Details →
OQ-ZBF6-C915-50-SMA Filter

Filter OQ-ZBF6-C915-50-SMA

Passband890~940MHz, 1780-2900MHz≥60dB, DC-680MHz≥60dB, SMA
View Details →
OQ-ZBF6-C700-60-SMA Filter

Filter OQ-ZBF6-C700-60-SMA

Passband670~730MHz, 1340-2200MHz≥60dB, DC-450MHz≥60dB, SMA
View Details →
OQ-ZBF6-C3500-60-SMA Filter

Filter OQ-ZBF6-C3500-60-SMA

Passband3470~3530MHz, 6940-10600MHz≥60dB, DC-3170MHz≥60dB, SMA
View Details →
OQ-ZBF6-C2570-60-SMA Filter

Filter OQ-ZBF6-C2570-60-SMA

Passband2540~2600MHz, 5080-7800MHz≥60dB, DC-2250MHz≥60dB, SMA
View Details →
OQ-ZBF6-C1910-60-SMA Filter

Filter OQ-ZBF6-C1910-60-SMA

Passband1880~1940MHz, 3760-5820MHz≥60dB, DC-1580MHz≥60dB, SMA
View Details →
DFSHPF15-L400-6000-1438 Filter Assembly

Filter Assembly DFSHPF15-L400-6000-1438

0.4~5GHz, 0.7~5GHz, 1~5GHz, 1.6~5GHz, 2.4~6GHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
