Power Handling：0.2 - 0.2× Clear all
matches 13 models Default Newest
ZLPF8-M0-4G-2569 Filter

Filter ZLPF8-M0-4G-2569

PassbandDC~4GHz, 5.9GHz≥20dB, 6.5-16GHz≥40dB, SMA-KDetachable, Industrial grade
In Stock View Details →
ZLPF8-M0-2G-2567 Filter

Filter ZLPF8-M0-2G-2567

PassbandDC~2GHz, 3.4GHz≥20dB, 4-15GHz≥35dB, SMA-KDetachable, Industrial grade
In Stock View Details →
ZLPF8-M0-13G-2926 Filter

Filter ZLPF8-M0-13G-2926

PassbandDC~13GHz, 18GHz≥20dB, 20.5GHz≥40dB, SMA-KDetachable, Industrial grade
In Stock View Details →
ZLPF8-M0-11G-2924 Filter

Filter ZLPF8-M0-11G-2924

PassbandDC~11GHz, 16.1GHz≥20dB, 18.5GHz≥40dB, SMA-KDetachable, Industrial grade
In Stock View Details →
ZLPF8-M0-8G-2573 Filter

Filter ZLPF8-M0-8G-2573

PassbandDC~8GHz, 12GHz≥20dB, 14.1-30GHz≥40dB, SMA-KDetachable, Industrial grade
In Stock View Details →
ZLPF8-M0-9G-2574 Filter

Filter ZLPF8-M0-9G-2574

PassbandDC~9GHz, 12.7GHz≥20dB, 14.7-34GHz≥40dB, SMA-KDetachable, Industrial grade
In Stock View Details →
ZLPF8-M0-16G-2929 Filter

Filter ZLPF8-M0-16G-2929

PassbandDC~16GHz, 22.4GHz≥20dB, 25.3GHz≥40dB, SMA-KDetachable, Industrial grade
In Stock View Details →
ZLPF8-M0-6G-2571 Filter

Filter ZLPF8-M0-6G-2571

PassbandDC~6GHz, 8.7GHz≥20dB, 10.2-30GHz≥40dB, SMA-KDetachable, Industrial grade
In Stock View Details →
ZLPF8-M0-10G-2575 Filter

Filter ZLPF8-M0-10G-2575

PassbandDC~10GHz, 14.5GHz≥20dB, 16.7-35GHz≥40dB, SMA-KDetachable, Industrial grade
In Stock View Details →
ZLPF8-M0-14G-2927 Filter

Filter ZLPF8-M0-14G-2927

PassbandDC~14GHz, 19.5GHz≥20dB, 22GHz≥40dB, SMA-KDetachable, Industrial grade
In Stock View Details →

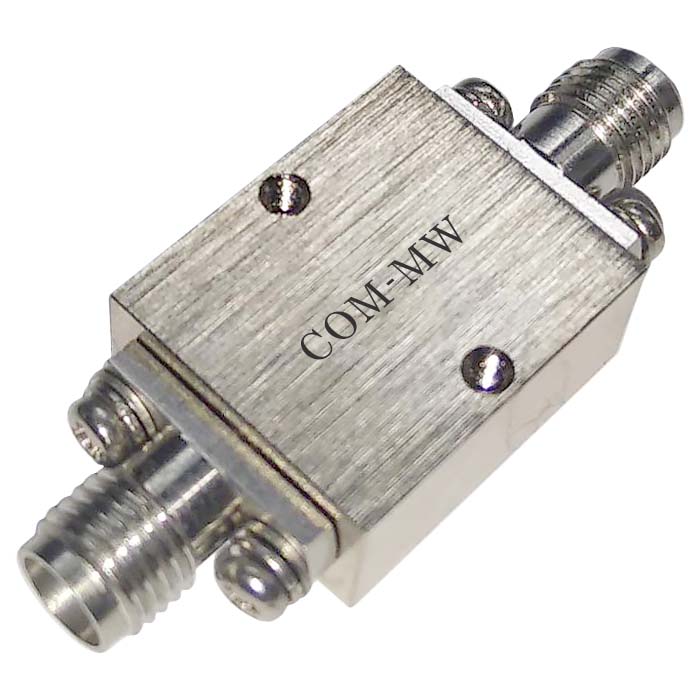

ZLPF8-M0-1G-2566 Filter

Filter ZLPF8-M0-1G-2566

PassbandDC~1GHz, 1.8GHz≥20dB, 2.1-10GHz≥dB, SMA-KDetachable, Industrial grade
View Details →
ZHPF5-L3-18G-3902 Filter

Filter ZHPF5-L3-18G-3902

Passband3~18GHz, DC-2.6GHz≥40dB, Pin
View Details →

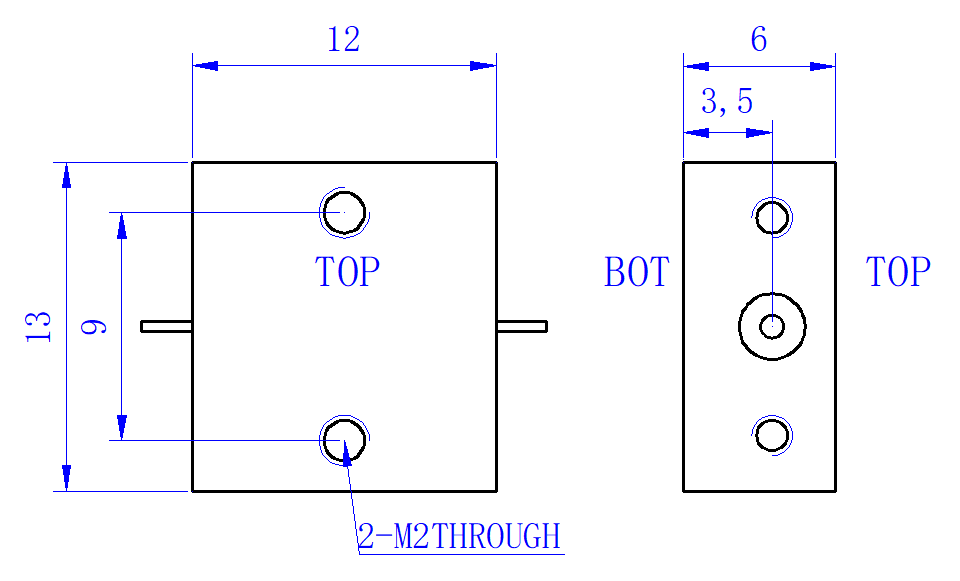

ZHPF5-L2-18G-3901 Filter

Filter ZHPF5-L2-18G-3901

Passband2~18GHz, DC-1.7GHz≥40dB, Pin
View Details →
