ZBF16-C9.5-1G-340 Filter

Filter ZBF16-C9.5-1G-340

Passband9~10GHz, DC~8.5GHz≥55dBc, 10.5~22GHz≥60dBc, SMA-KDetachable
In Stock View Details →
ZBF13-C3.75-0.5G-1223 Filter

Filter ZBF13-C3.75-0.5G-1223

Passband3500~4000MHz, DC-3GHz≥80dBc, 4.4-10GHz≥80dBc, SMA
In Stock View Details →
ZBF13-C8-2G-276 Filter

Filter ZBF13-C8-2G-276

Passband7~9GHz, DC-6.5GHz≥60dB, 6.5-6.8GHz≥20dB, SMA
In Stock View Details →

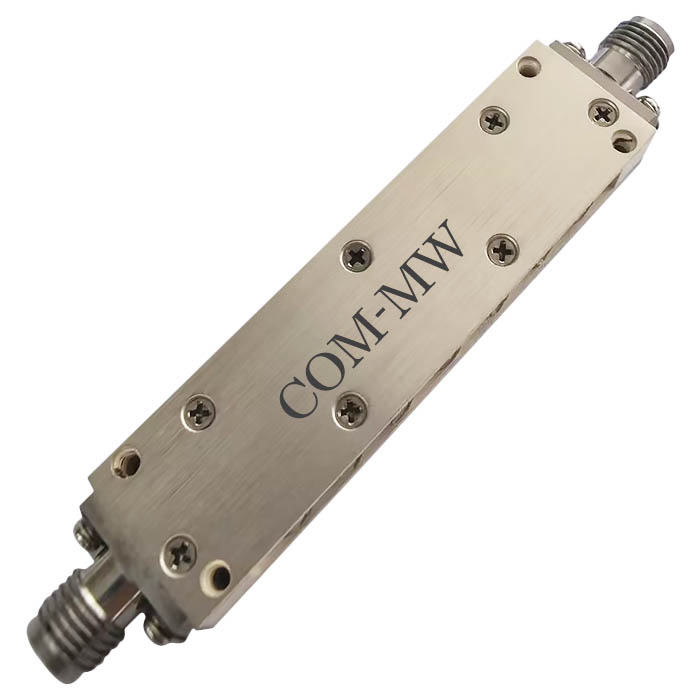

ZBF5-C12-12G-3588 Filter

Filter ZBF5-C12-12G-3588

Passband6~18GHz, 5-5.5GHz≥30dB, 19.5-20GHz≥40dB, 20-26GHz≥55dB, SMA
In Stock View Details →
ZBF8-C26-8G-1582 Filter

Filter ZBF8-C26-8G-1582

Passband22~30ghz, dc-20ghz≥50dbc, 31.5-42ghz≥50db, 2.92
In Stock View Details →
ZBF2-C4750-1500-1933 Filter

Filter ZBF2-C4750-1500-1933

Passband4~5.5GHz, DC-3.5GHz≥40dBc, 6-13GHz≥40dBc, SMA
In Stock View Details →
ZBF1-M1500-1000-119 Filter

Filter ZBF1-M1500-1000-119

Passband1~2GHz, DC-0.8GHz≥50dB, 2.3-4GHz≥50dB, SMA
In Stock View Details →
ZBF8-C18.2-1G-3130 Filter

Filter ZBF8-C18.2-1G-3130

Passband17.7~18.7GHz, DC-15.8GHz≥100dB, 15.8-16.75GHz≥90dB, 16.75-17.2GHz≥45dB, 2.92
In Stock View Details →
ZBF6-C2595-190-5189 Filter

Filter ZBF6-C2595-190-5189

Passband2500~2690MHz, DC-2400MHz≥40dB, 2790-500MHz≥40dB, SMA
In Stock View Details →
ZBF25-C17700-4-513 Filter

Filter ZBF25-C17700-4-513

Passband17698~17702MHz, DC-17GGHz≥60dB, 18.4-38GHz≥60dB, SMA-F
In Stock View Details →
ZLPF5-L415-455-113 Filter

Filter ZLPF5-L415-455-113

Passband415~455MHz, 700MHz≥30dB, SMA-K
View Details →
ZBF8-W70.5-2G-2936 Filter

Filter ZBF8-W70.5-2G-2936

Passband69.5~71.5GHz, DC-67GHz≥50dBc, dB, Waveguide
View Details →
ZBF8-W67-1G-2935 Filter

Filter ZBF8-W67-1G-2935

Passband66.5~67.5GHz, 70GGHz≥50dBc, dB, Waveguide
View Details →
ZBF8-C19345-910-3329 Filter

Filter ZBF8-C19345-910-3329

-3dB BW18890~19800MHz, DC-18400MHz≥45dBc, 20290-32000MHz≥42dBc, SMA
View Details →

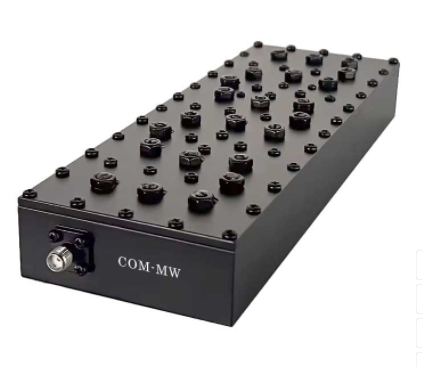

ZBF6-C722.5-47-5191 Filter

Filter ZBF6-C722.5-47-5191

Passband699~746MHz, DC-675MHz≥40dB, 770-4000MHz≥40dB, SMA
View Details →

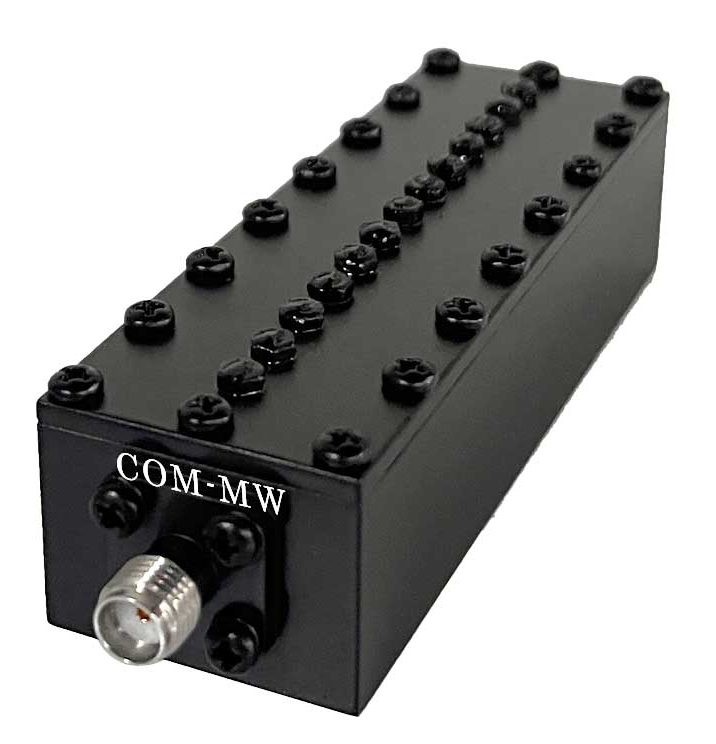

ZBF6-C3550-500-5199 Filter

Filter ZBF6-C3550-500-5199

Passband3300~3800MHz, DC-3020MHz≥40dB, 4060-7000MHz≥40dB, SMA
View Details →
ZBF6-C2675-20-5420 Filter

Filter ZBF6-C2675-20-5420

Passband2665~2685MHz, DC-2655MHz≥55dB, 2695-3500MHz≥55dB, L29
View Details →
ZBF6-C2620-20-5419 Filter

Filter ZBF6-C2620-20-5419

Passband2610~2630MHz, DC-2600MHz≥55dB, 2640-3500MHz≥55dB, L29
View Details →

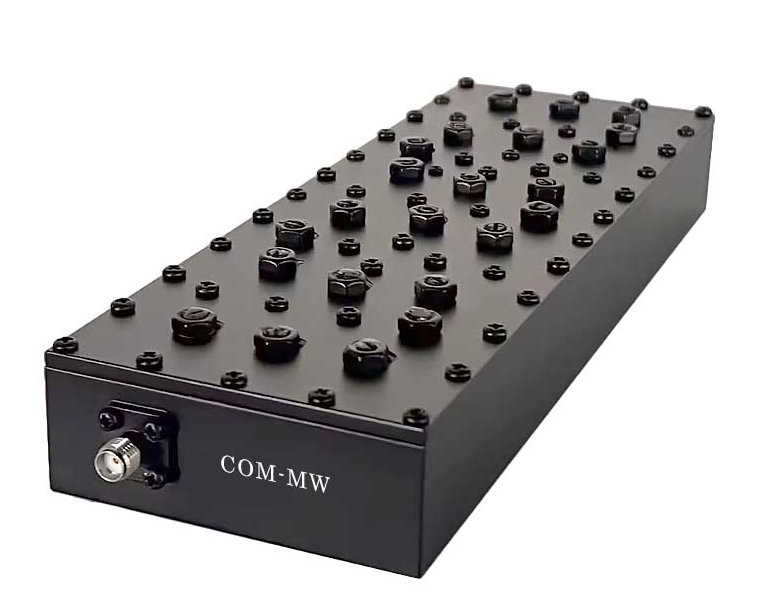

ZBF6-C2593-194-5198 Filter

Filter ZBF6-C2593-194-5198

Passband2496~2690MHz, DC-2400MHz≥40dB, 2780-5000MHz≥40dB, SMA
View Details →
ZBF6-C2350-100-5197 Filter

Filter ZBF6-C2350-100-5197

Passband2300~2400MHz, DC-2250MHz≥40dB, 2450-4500MHz≥40dB, SMA
View Details →
ZBF6-C2045-250-5195 Filter

Filter ZBF6-C2045-250-5195

Passband1920~2170MHz, DC-1880MHz≥40dB, 2210-4500MHz≥40dB, SMA
View Details →

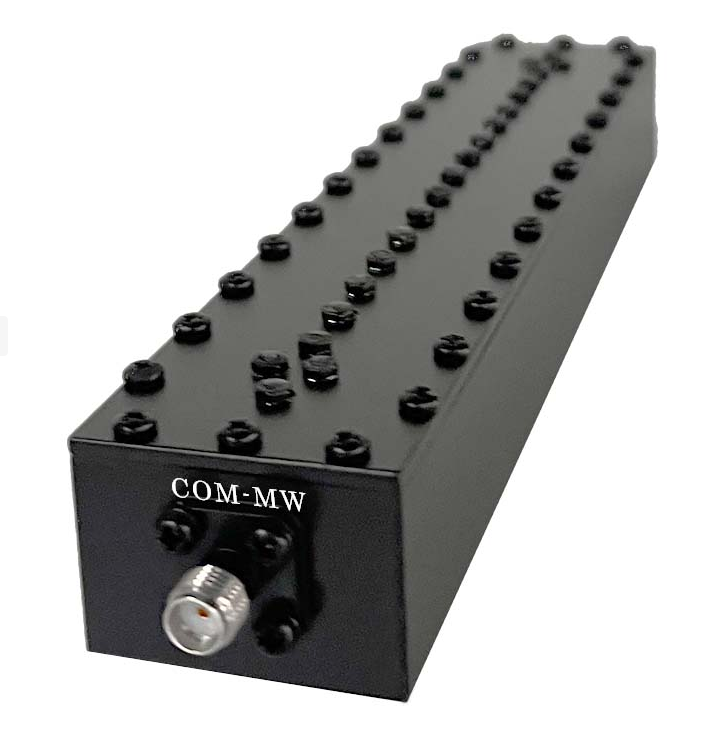

ZBF6-C1955-490-5192 Filter

Filter ZBF6-C1955-490-5192

Passband1710~2200MHz, DC-150040dB, 2350-400040dB, SMA
View Details →

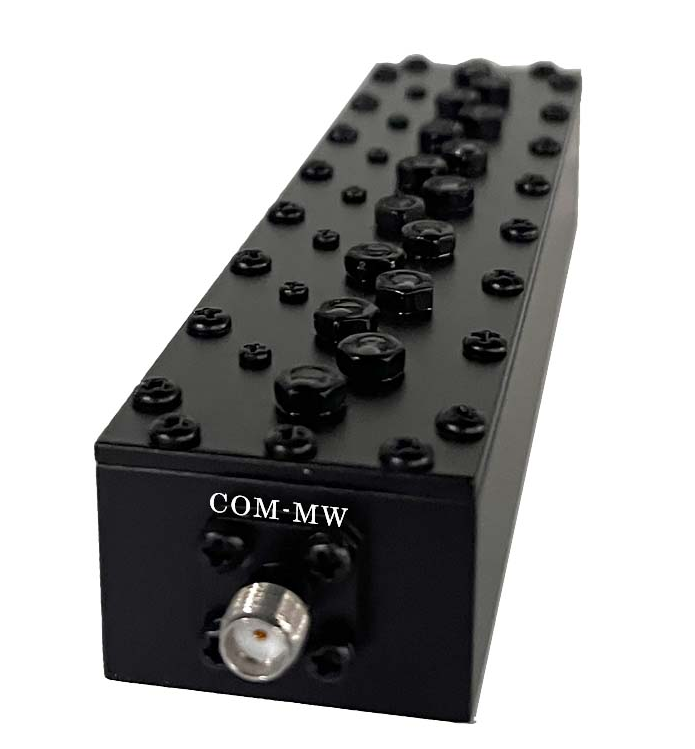

ZBF6-C1922.5-145-5194 Filter

Filter ZBF6-C1922.5-145-5194

Passband1850~1995MHz, DC-1780MHz≥40dB, 2070-4500MHz≥40dB, SMA
View Details →

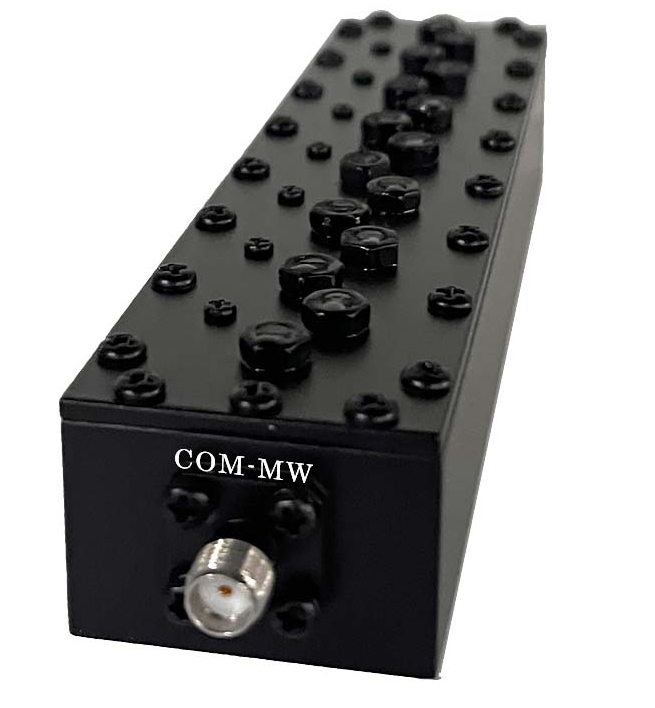

ZBF6-C1920-140-5190 Filter

Filter ZBF6-C1920-140-5190

Passband1850~1990MHz, DC-1780MHz≥40dB, 2070-4500MHz≥40dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
