Feature：Highpass× Clear all
matches 622 models Default Newest
ZHPF1-M3.52-18G-484 Filter

Filter ZHPF1-M3.52-18G-484

Passband3.52~18GHz, 2.66GHz≥70dB, SMA
View Details →
ZHPF1-M23-40G-129 Filter

Filter ZHPF1-M23-40G-129

Passband23~40GHz, DC-18GHz≥60dB, 2.92-F
View Details →
ZHPF1-M22-40G-250 Filter

Filter ZHPF1-M22-40G-250

Passband22~40GHz, DC-17GHz≥60dB, 2.92
View Details →
ZHPF1-M20-50G-487 Filter

Filter ZHPF1-M20-50G-487

Passband20~50GHz, DC-16GHz≥50dB, 2.4-K
View Details →
ZHPF1-M2.5-13G-008 Filter

Filter ZHPF1-M2.5-13G-008

Passband2.5~13GHz, DC-2GHz≥60dB, dB, N
View Details →
ZHPF1-M2.3-12.75G-302 Filter

Filter ZHPF1-M2.3-12.75G-302

Passband2300~12750MHz, DC-2100MHz≥20dB, SMA
View Details →
ZHPF1-M2.1-12.75G-303 Filter

Filter ZHPF1-M2.1-12.75G-303

Passband2100~12750MHz, DC-1920MHz≥20dB, SMA
View Details →
ZHPF1-M1.5-7G-090 Filter

Filter ZHPF1-M1.5-7G-090

Passband1.5~7GHz, DC-1.2GHz≥70dB, N
View Details →
ZHPF1-M1.2-7G-089 Filter

Filter ZHPF1-M1.2-7G-089

Passband1.2~7GHz, DC-960MHz≥70dB, N
View Details →
ZHPF1-M1.2-14G-057 Filter

Filter ZHPF1-M1.2-14G-057

Passband1.2~14GHz, DC-0.7GHz≥60dB, SMA
View Details →

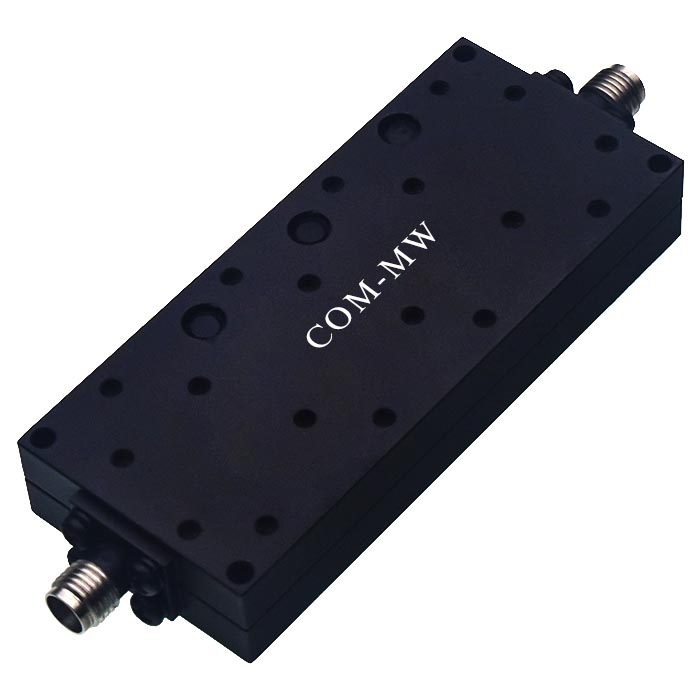

ZHPF1-M0-8-12G-220 Filter

Filter ZHPF1-M0-8-12G-220

Passband800~12000MHz, DC-700MHz≥40dB, SMA
View Details →

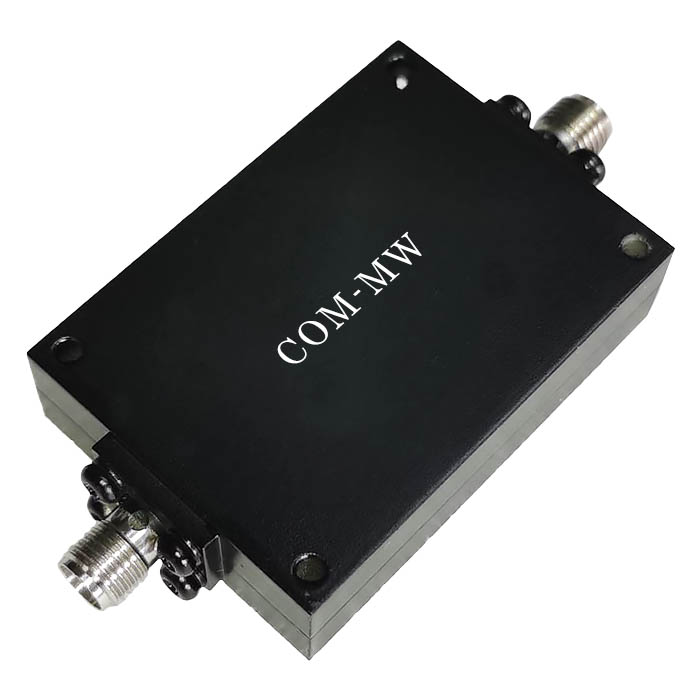

ZHPF-M3-12.75G-B2746 Filter

Filter ZHPF-M3-12.75G-B2746

Passband3000~12750MHz, DC-2700MHz≥50dB, dB, SMA
View Details →

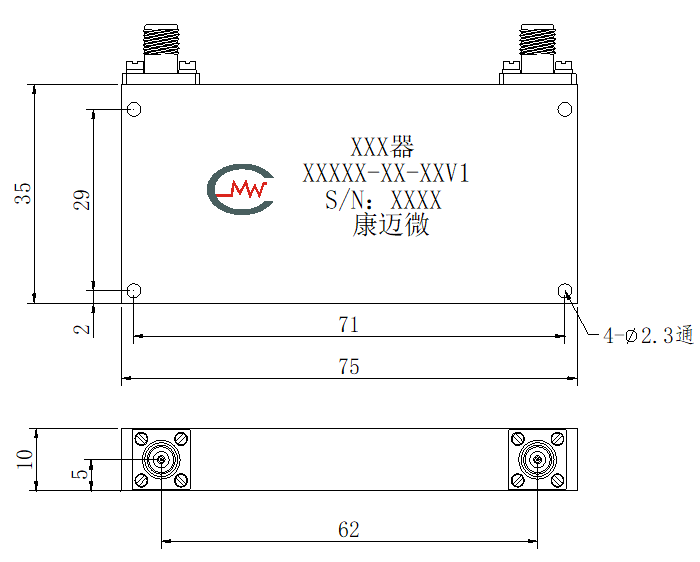

ZHPF-M3-12.75G-3869 Filter

Filter ZHPF-M3-12.75G-3869

Passband3000~12750MHz, DC-2650MHz≥80dB, 2650-2700MHz≥70dB, SMA
View Details →

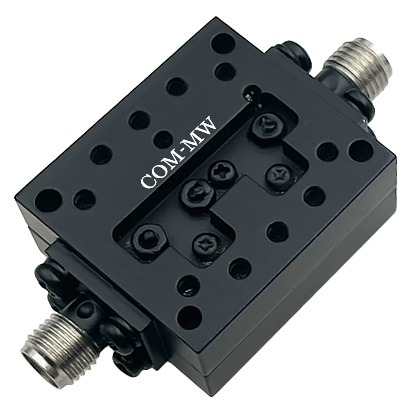

ZHPF-M2-18-B4798 Highpass filter

Highpass filter ZHPF-M2-18-B4798

Passband2000~18000MHz, DC-1700MHz≥40dB, dB, SMA
View Details →

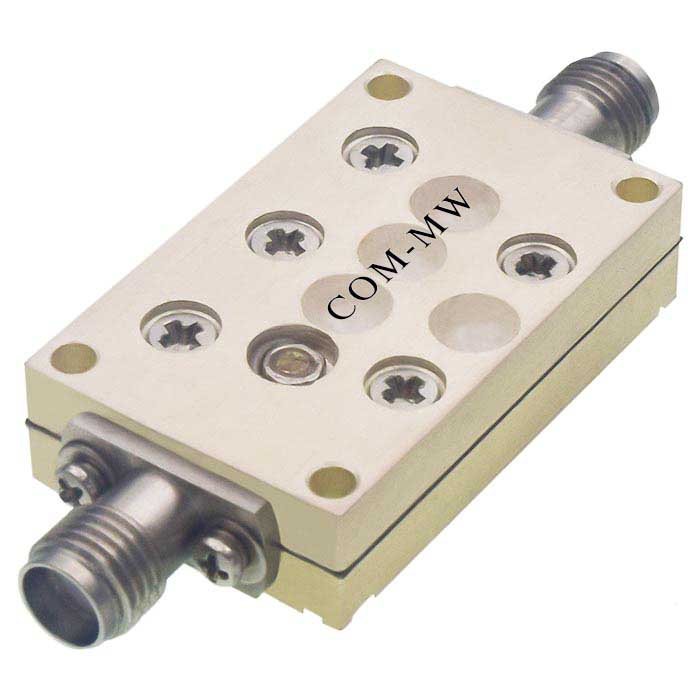

ZHPF-M10.8-20G-B4830 Filter

Filter ZHPF-M10.8-20G-B4830

Passband10.8~20GHz, 9.5-9.8GHz≥50dB, 5-9.5GHz≥60dB, SMA-KDetachable
View Details →

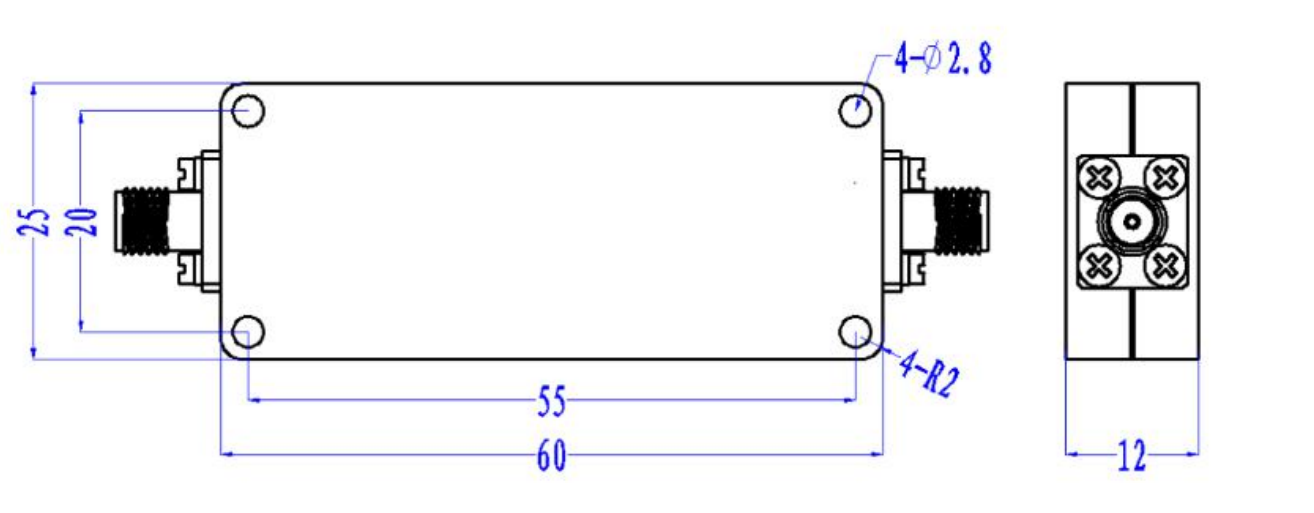

ZHPF-M1-10G-01 Filter

Filter ZHPF-M1-10G-01

Passband1~10GHz, DC-0.8GHz≥40dB, SMA
View Details →

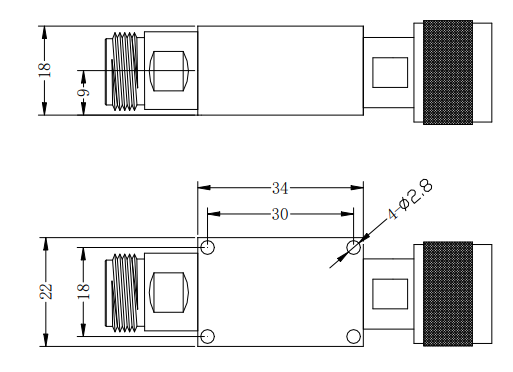

ZHPF-L550-860-4409 Filter

Filter ZHPF-L550-860-4409

Passband550~860MHz, 400-470MHz≥40dB, dB,
View Details →
ZHPF-L1.2-3G-B8 Filter

Filter ZHPF-L1.2-3G-B8

Passband1200~3000MHz, DC-1000MHz≥50dBc, SMA
View Details →
ZHPF-L0.6-1.2G-B8 Filter

Filter ZHPF-L0.6-1.2G-B8

Passband600~1200MHz, DC-500MHz≥50dBc, SMA
View Details →
ZHPF-1.2-3G-B8 Filter

Filter ZHPF-1.2-3G-B8

Passband1200~3000MHz, DC-1000MHz≥50dBc, SMA
View Details →
ZHPF-1.2-2.4G-B8 Highpass filter

Highpass filter ZHPF-1.2-2.4G-B8

Passband1200~2400MHz, DC-1000MHz≥50dBc, SMA
View Details →
ZHPF-0.6-1.2G-B8 Filter

Filter ZHPF-0.6-1.2G-B8

Passband600~1200MHz, DC-500MHz≥50dBc, SMA
View Details →
ZBSF6-C200-1400-4881 Filter

Filter ZBSF6-C200-1400-4881

Passband200~1400MHz, DC-137MHz≥40dB, SMA
View Details →
ZBF5-L650-700-3282 Filter

Filter ZBF5-L650-700-3282

Passband300~1000MHz, DC-200MHz≥30dBc, 1200-2000MHz≥30dBc, SMA-K
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
