Feature：Highpass× Clear all
matches 619 models Default Newest

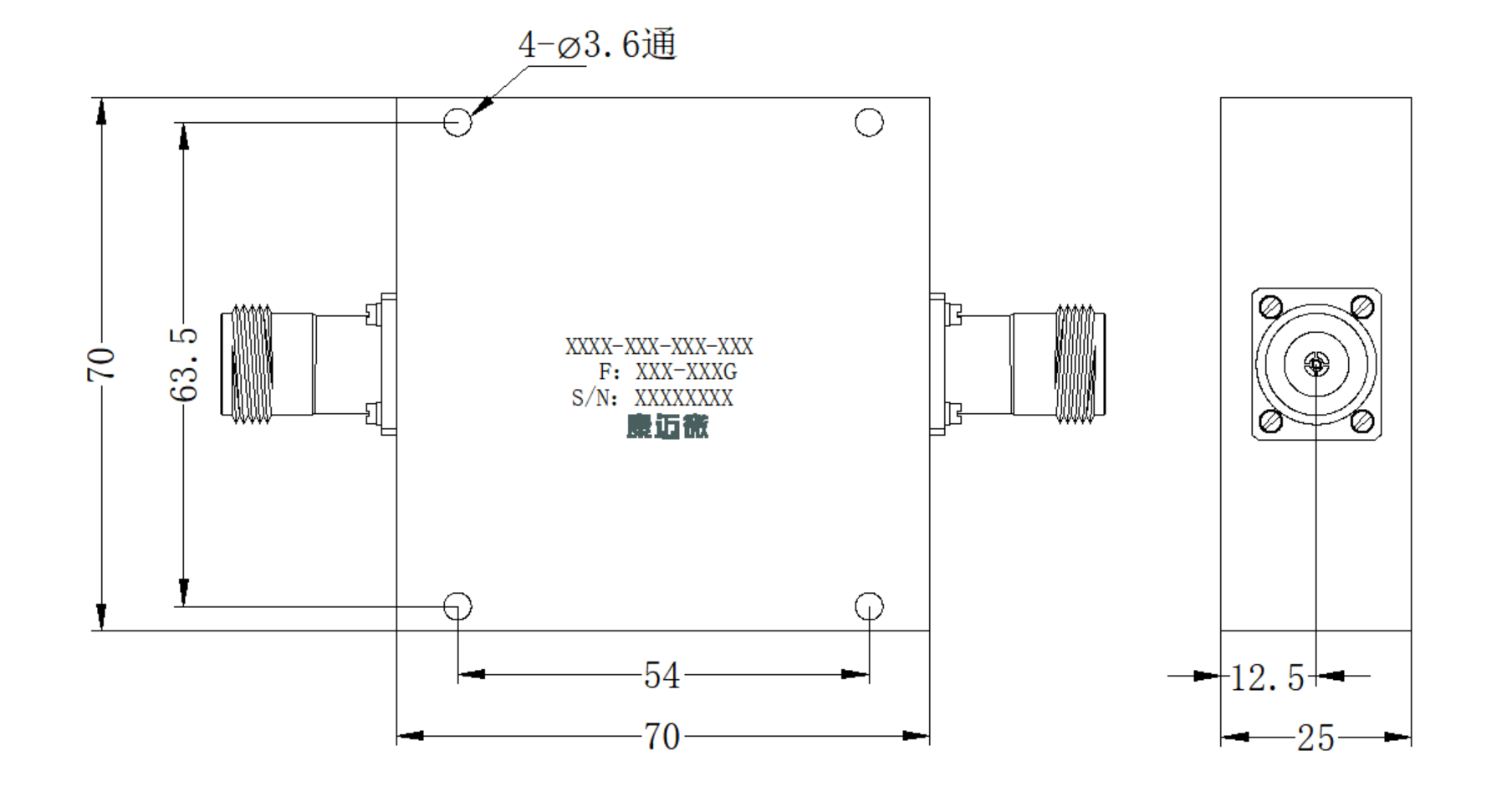

ZHPF2-M2.4-6G-2911 Filter

Filter ZHPF2-M2.4-6G-2911

Passband2.4~6GHz, DC-2GHz≥50dBc, dB, N
View Details →

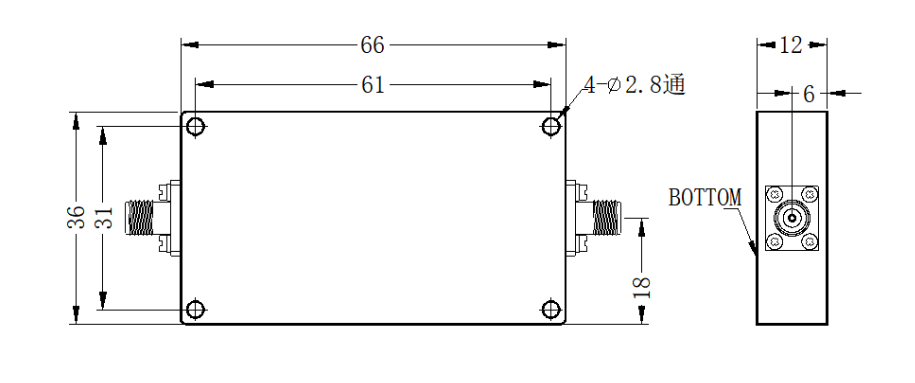

ZHPF2-M2.4-18G-03 Filter

Filter ZHPF2-M2.4-18G-03

Passband2.4~18GHz, DC-2.2GHz≥60dB, dB, SMA
View Details →

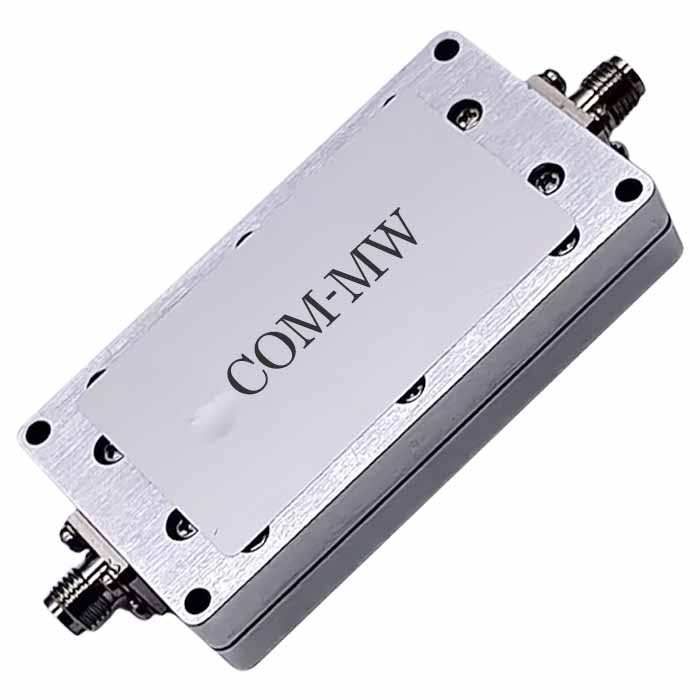

ZHPF2-M2.2-18G-2527 Filter

Filter ZHPF2-M2.2-18G-2527

Passband2.2~18GHz, 1800-2025MHz≥40dB, DC-1800MHz≥60dB, SMA
View Details →

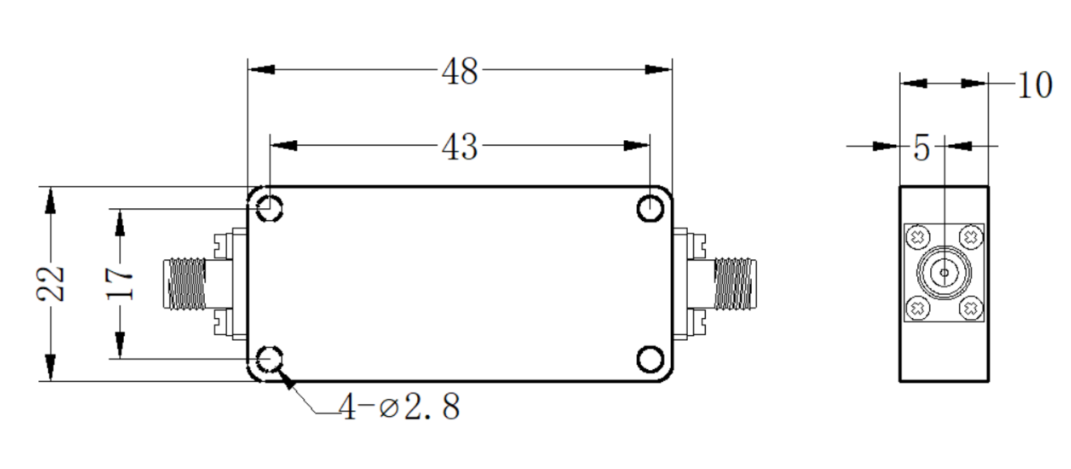

ZHPF2-M10-20G-2276 Filter

Filter ZHPF2-M10-20G-2276

Passband10~20GHz, DC-9GHz≥40dB, dB, SMA
View Details →
ZHPF2-M1.3-18G-2355 Filter

Filter ZHPF2-M1.3-18G-2355

Passband1.3~10GHz, DC-1150MHz≥50dB, dB, SMA
View Details →

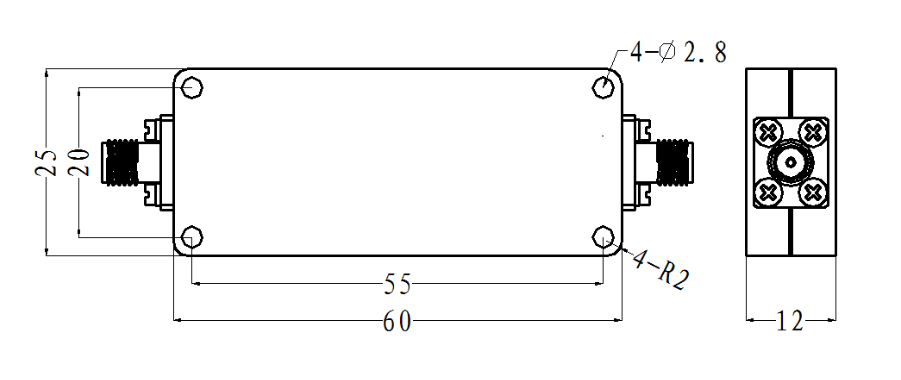

ZHPF2-M1-9G-2552 Filter

Filter ZHPF2-M1-9G-2552

Passband1~9GHz, DC-0.88GHz≥50dB, DC-0.86GHz≥60dB, SMA
View Details →

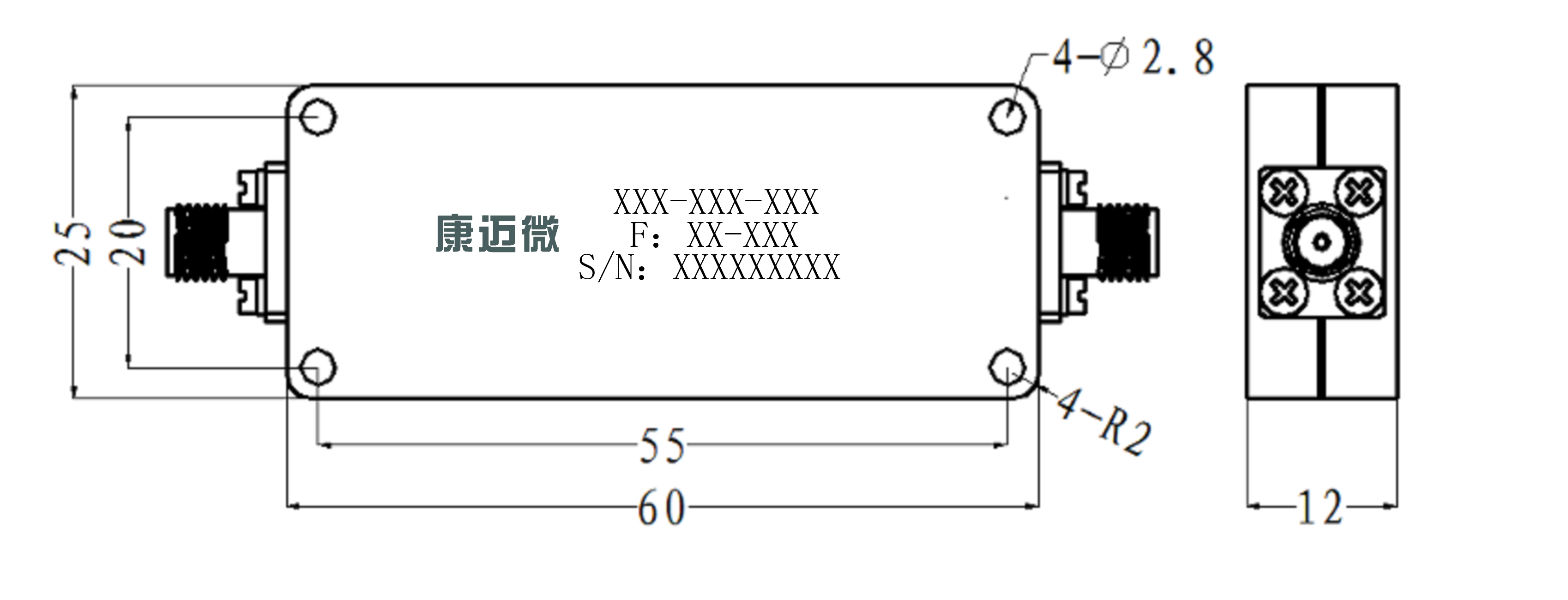

ZHPF2-M1-11G-03 Filter

Filter ZHPF2-M1-11G-03

Passband1~11GHz, DC-0.915GHz≥45dB, dB, SMA
View Details →
ZHPF2-L915-3000-2345 Filter

Filter ZHPF2-L915-3000-2345

Passband1100~3000MHz, DC-928MHz≥25dBc, dB, SMD
View Details →
ZHPF2-L800-2000-2514 Filter

Filter ZHPF2-L800-2000-2514

Passband800~2000MHz, 700MHz≥45dB, DC-400MHz≥60dB,
View Details →
ZHPF2-L80-2000-1314 Filter

Filter ZHPF2-L80-2000-1314

Passband80~2000MHz, DC-30MHz≥50dBc, dB, Pin
View Details →
ZHPF2-L3.2-7G-1926 Filter

Filter ZHPF2-L3.2-7G-1926

Passband3200~7000MHz, 1.4-2.8GHz≥45dBc, DC-1.4GHz≥30dBc, SMD
View Details →
ZHPF2-L2700-6200-2542 Filter

Filter ZHPF2-L2700-6200-2542

Passband2700~6200MHz, 2400MHz≥52dBc, 2280MHz≥67dBc, SMD
View Details →
ZHPF2-L2.8-18G-2340 Filter

Filter ZHPF2-L2.8-18G-2340

Passband2.8~18GHz, 2.4-2.6GHz≥40dBc, DC-2.4GHz≥45dBc, Pin
View Details →
ZHPF2-L1020-1800-1732 Filter

Filter ZHPF2-L1020-1800-1732

Passband1020~1800MHz, DC-960MHz≥35dBc, Pin
View Details →
ZHPF2-L1.9-2.3G-2218 Filter

Filter ZHPF2-L1.9-2.3G-2218

Passband1.9~2.3GHz, DC-1550MHz≥40dBc, dB, SMD
View Details →

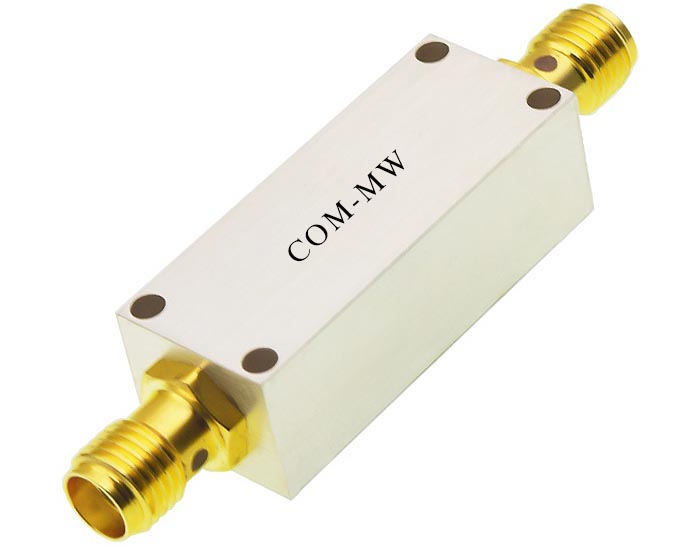

ZHPF2-L1.7-8G-F2 Filter

Filter ZHPF2-L1.7-8G-F2

Passband1.7~8GHz, DC-1000MHz≥50dB, dB, SMA
View Details →
ZHPF2-L0.5-6G-03 Filter

Filter ZHPF2-L0.5-6G-03

Passband500~6000MHz, DC-450MHz≥50dBc, dBc, dBc, dBc, SMA
View Details →

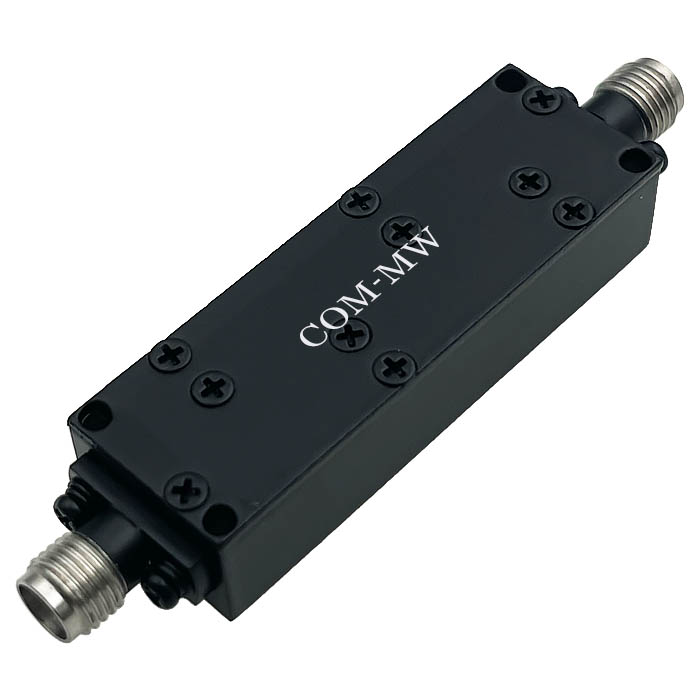

ZHPF15-ML3000-10000-1658 Filter

Filter ZHPF15-ML3000-10000-1658

Passband3000~10000MHz, DC-2205MHz≥40dB, dB, SMA
View Details →
ZHPF15-ML1500-10000-1657 Filter

Filter ZHPF15-ML1500-10000-1657

Passband1500~10000MHz, DC-1102.5MHz≥40dB, dB, SMA
View Details →
ZHPF15-L80-1000-1407 Filter

Filter ZHPF15-L80-1000-1407

Passband80~1000MHz, DC-55MHz≥40dB, dB, SMA
View Details →
ZHPF15-L700-6000-1039 Filter

Filter ZHPF15-L700-6000-1039

Passband700~6000MHz, DC-500MHz≥60dBc, dB,
View Details →
ZHPF15-L600-8000-1153 Filter

Filter ZHPF15-L600-8000-1153

Passband600~8000MHz, DC-433MHz≥50dBc, dB, SMA
View Details →

Filter ZHPF15-L600-3000-1059

Passband600~3000MHz, DC-510MHz≥50dB, dB, N
View Details →

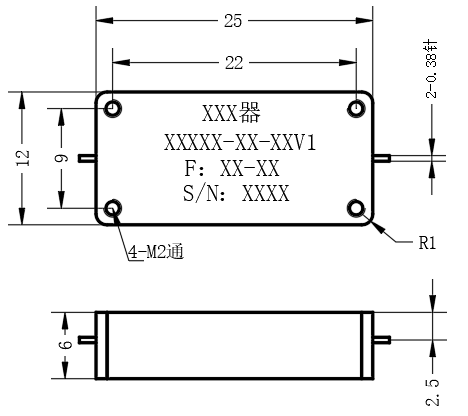

ZHPF15-L500-3000-552 Filter

Filter ZHPF15-L500-3000-552

Passband500~3000MHz, DC-320MHz≥35dBc, dB,
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
