F Low：786 - 945 MHz× Clear all
matches 678 models Default Newest
ZBF5-L900-200-3478 Filter

Filter ZBF5-L900-200-3478

Passband800~1000MHz, DC-600MHz≥45dB, SMD
In Stock View Details →
ZBF14-L1200-600-757 Filter

Filter ZBF14-L1200-600-757

Passband900~1500MHz, DC-720MHz≥40dB, 1800-3000MHz≥40dB, SMD
In Stock View Details →
ZBF15-L1200-800-867 Filter

Filter ZBF15-L1200-800-867

Passband800~1600MHz, DC-620MHz≥50dB, 1.95-2.4GHz≥50dB, SMD
In Stock View Details →
ZHPF5-L0.9-6G-3107 Filter

Filter ZHPF5-L0.9-6G-3107

Passband0.9~6GHz, RejectionDC-650MHz≥40dB, SMD
In Stock View Details →
ZHPF5-L0.85-6G-3106 Filter

Filter ZHPF5-L0.85-6G-3106

Passband0.85~6GHz, RejectionDC-600MHz≥40dB, SMD
In Stock View Details →
WLD009013K Filter

Filter WLD009013K

Passband900~1250MHz, 650MHz≥20dBc, 1600MHz≥20dBc, Microstrip pad, MMIC
In Stock View Details →

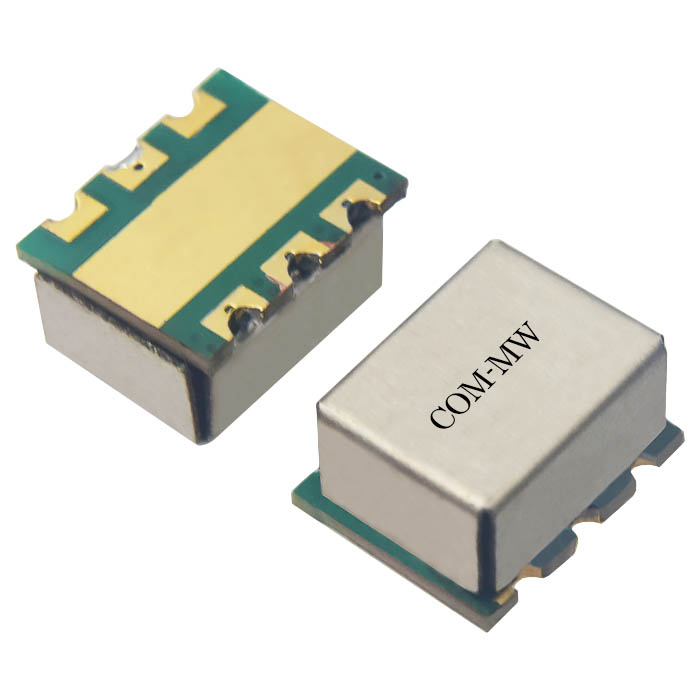

BF067 Filter

Filter BF067

Passband800~1000MHz, DC-530MHz≥20dB, 1550-3000MHz≥20dB, Industrial grade, Substitutes SYBP-92+
In Stock View Details →
BF092 Filter

Filter BF092

Passband800~1800MHz, 535MHz≥20dB, 2220MHz≥20dB, SMD, /
In Stock View Details →
HF023 Filter

Filter HF023

Highpass F825~4000MHz, DC-250MHz≥30dB, 475MHz≥20dB, SMD, Industrial grade, 替代THP-825+
In Stock View Details →
HF043 Filter

Filter HF043

Passband910~3000MHz, 520-660MHz≥20dB, DC-520MHz≥40dB, SMA
In Stock View Details →

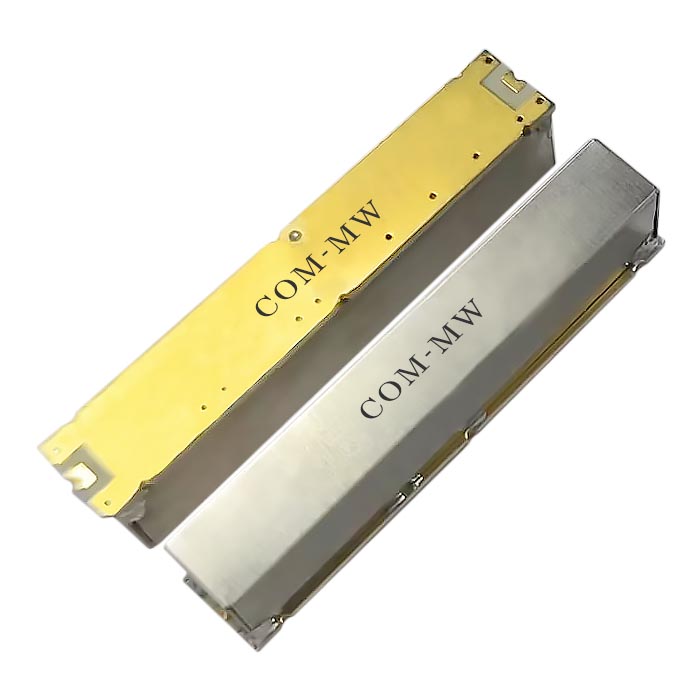

ZBF3-L1200-680-2979 Filter

Filter ZBF3-L1200-680-2979

Passband860~1540MHz, 650MHz≥40dBc, 1750MHz≥40dBc, SMD
In Stock View Details →
ZBF14-L1200-600-758 Filter

Filter ZBF14-L1200-600-758

Passband900~1500MHz, DC-720MHz≥40dB, 1800-3500MHz≥40dB, SMA
In Stock View Details →
ZBF14-L1100-600-243 Filter

Filter ZBF14-L1100-600-243

Passband800~1400MHz, DC-700MHz≥50dB, 1.6-6GHz≥50dB, SMA-K
In Stock View Details →
ZBF15-L850-44-1080 Filter

Filter ZBF15-L850-44-1080

Passband828~872MHz, DC-780MHz≥40dB, 920-4000MHz≥40dB, SMD
In Stock View Details →
ZBF15-L1200-800-762 Filter

Filter ZBF15-L1200-800-762

Passband800~1600MHz, DC-620MHz≥60dB, 1.95-2.4GHz≥60dB, SMA
In Stock View Details →
ZBF13-L915-90-1529 Filter

Filter ZBF13-L915-90-1529

Passband870~960MHz, DC-700MHz≥40dB, 1.15-3GHz≥40dB, SMD
In Stock View Details →
ZHPF3-L900-11000-4291 Filter

Filter ZHPF3-L900-11000-4291

Passband900~11000MHz, Passband IL, DC-500MHz≥60dB, 500-600MHz≥40dB, SMD
In Stock View Details →
ZHPF3-L850-11000-4290 Filter

Filter ZHPF3-L850-11000-4290

Passband850~11000MHz, Passband IL, DC-450MHz≥60dB, 450-550MHz≥40dB, SMD
In Stock View Details →
ZBF5-L854.5-31-2314 Filter

Filter ZBF5-L854.5-31-2314

Passband839~870MHz, DC-780MHz≥40dB, 920-3500MHz≥40dB, SMA
In Stock View Details →
ZBF15-L850-44-1079 Filter

Filter ZBF15-L850-44-1079

Passband828~872MHz, DC-780MHz≥40dB, 920-4000MHz≥40dB, SMA
In Stock View Details →
ZBF15-L1400-1200-1082 Filter

Filter ZBF15-L1400-1200-1082

Passband800~2000MHz, DC-640MHz≥40dB, 2.4-5GHz≥40dB, SMA
In Stock View Details →
ZBF13-L915-90-1530 Filter

Filter ZBF13-L915-90-1530

Passband870~960MHz, DC-800MHz≥40dB, 1040-4000MHz≥40dB, SMA
In Stock View Details →
ZCB-L800-3600-C5340 Diplexer

Diplexer ZCB-L800-3600-C5340

Passband F1800~1700MHz, Passband F21900~3600MHz, SMA
In Stock View Details →
ZBF5-L854.5-31-2337 Filter

Filter ZBF5-L854.5-31-2337

Passband839~870MHz, DC-780MHz≥40dB, 920-3000MHz≥40dB, SMD
In Stock View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
