F Low：824 - 828 MHz× Clear all
matches 63 models Default Newest
HF023 Filter

Filter HF023

Highpass F825~4000MHz, DC-250MHz≥30dB, 475MHz≥20dB, SMD, Industrial grade, 替代THP-825+
In Stock View Details →
ZBF15-L850-44-1080 Filter

Filter ZBF15-L850-44-1080

Passband828~872MHz, DC-780MHz≥40dB, 920-4000MHz≥40dB, SMD
In Stock View Details →
ZBF15-L850-44-1079 Filter

Filter ZBF15-L850-44-1079

Passband828~872MHz, DC-780MHz≥40dB, 920-4000MHz≥40dB, SMA
In Stock View Details →
ZBF2-L850-44-801 Filter

Filter ZBF2-L850-44-801

Passband828~872MHz, f0±75MHz≥35dBc, Pin
In Stock View Details →
K6-824-849-10S60100-002 Notch filter

Notch filter K6-824-849-10S60100-002

Stopband F824~849MHz, ≥50dB, PassbandDC~814MHz, 859~4000MHz, SMA
In Stock View Details →
K6-824-849-10N60100-001 Notch filter

Notch filter K6-824-849-10N60100-001

Stopband F824~849MHz, ≥50dB, PassbandDC~814MHz, 859~3000MHz, N
In Stock View Details →
K6-824-849-30S5050-005 Filter

Filter K6-824-849-30S5050-005

Stopband F824~849MHz, ≥50dB, PassbandDC~794MHz, 879~3500MHz, SMA
In Stock View Details →
ZCB6-C824-894-6194 Diplexer

Diplexer ZCB6-C824-894-6194

Passband frequency C1824~849MHz, Passband frequency C2869~894MHz, SMA
View Details →
ZCB4-C825-885-406 Diplexer

Diplexer ZCB4-C825-885-406

Passband F1825~840MHz, Passband F2870~885MHz, SMA
View Details →
ZCB4-C824-894-249 Diplexer

Diplexer ZCB4-C824-894-249

Passband L824~849MHz, Passband H869~894MHz, SMA
View Details →

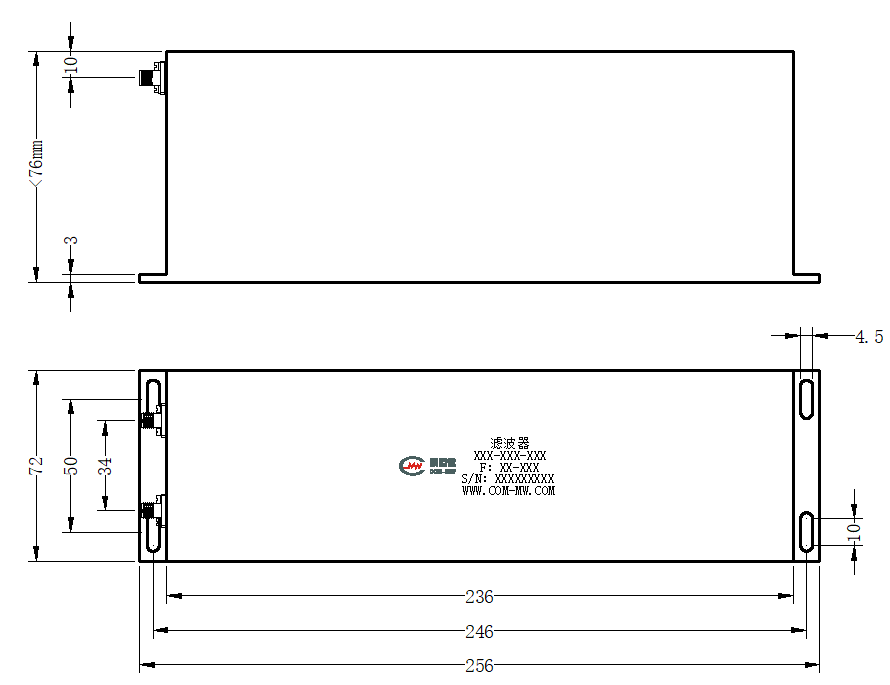

ZBSF6-C826.5-846.5-4033 Filter

Filter ZBSF6-C826.5-846.5-4033

Stopband F826.5~846.5MHz, ≥55dB, PassbandDC~806.5MHz, 866.5~2500MHz, SMA
View Details →

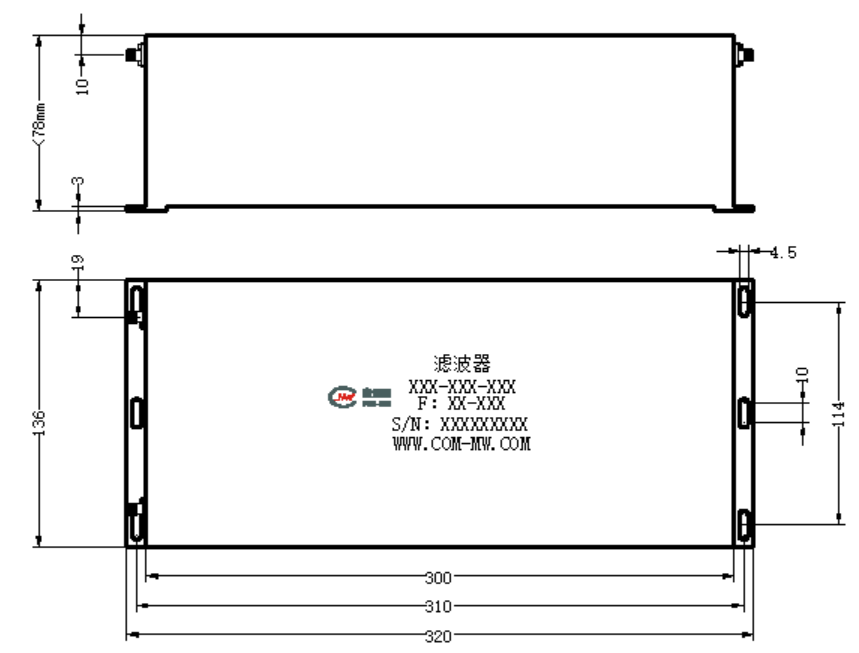

ZBSF6-C825-960-3195 Filter

Filter ZBSF6-C825-960-3195

Stopband F825~835MHz, Stopband F870~880MHz, Stopband F890~915MHz, Stopband F935~960MHz, ≥40dB, PassbandDC~820MHz, Passband840~865MHz, Passband883~885MHz, Passband920~930MHz, 965~3000MHz, SMA
View Details →

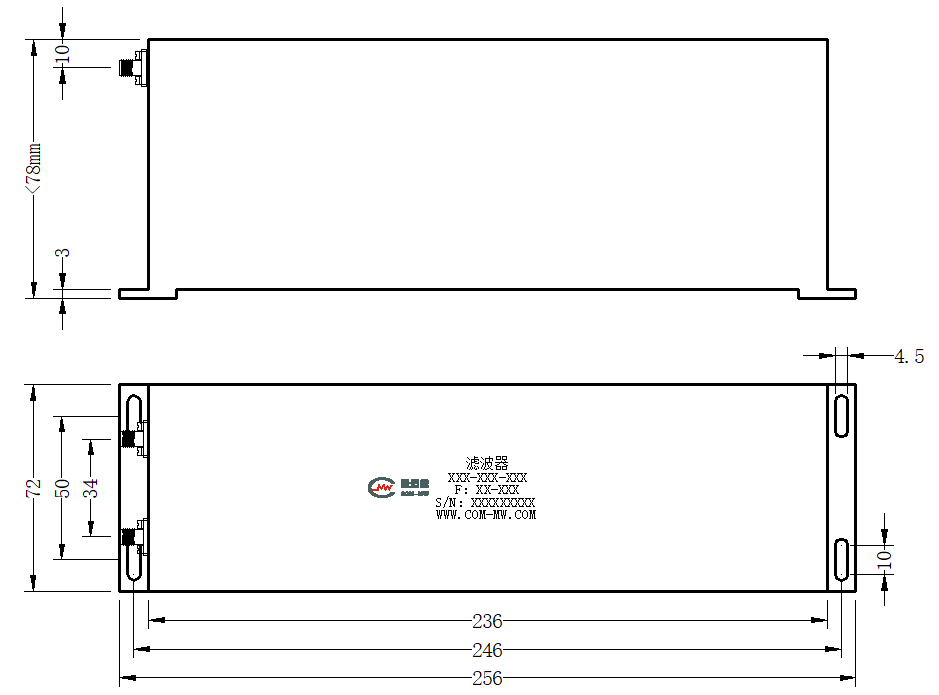

ZBSF6-C825-850-4502 Filter

Filter ZBSF6-C825-850-4502

Stopband F825~850MHz, ≥50dB, PassbandDC~800MHz, 875~2000MHz, SMA
View Details →

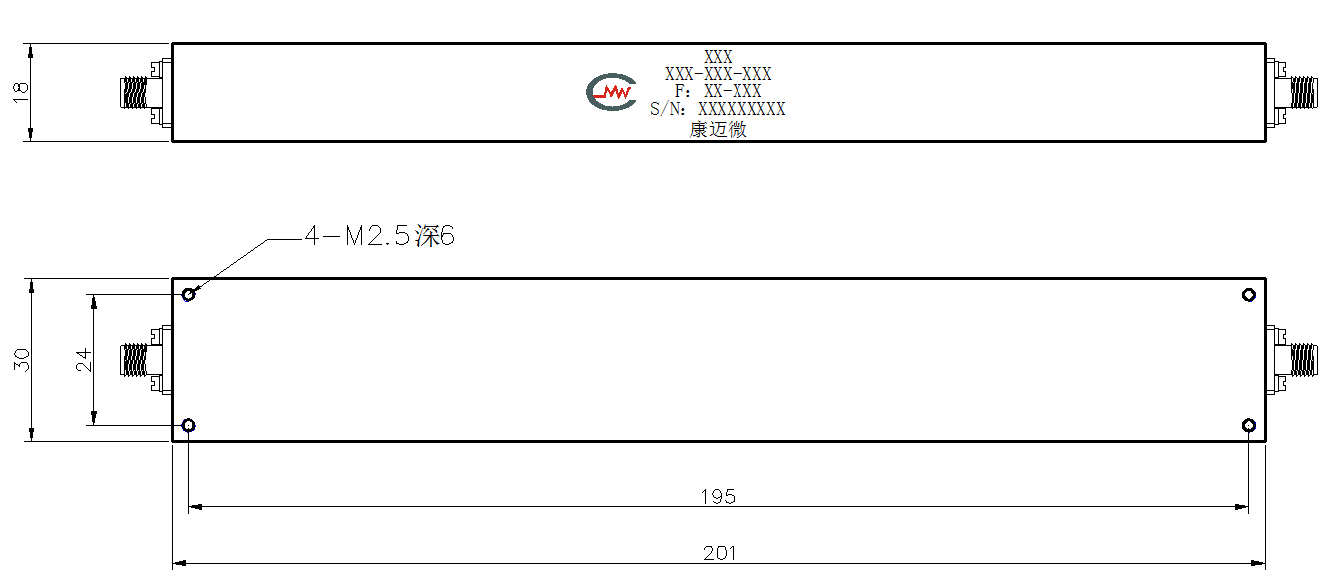

ZBSF6-C824-915-2542 Filter

Filter ZBSF6-C824-915-2542

Stopband F824~915MHz, ≥50dB, PassbandDC~794MHz, 945~3500MHz, SMA
View Details →
ZBSF6-C824-849-3440 Filter

Filter ZBSF6-C824-849-3440

Stopband F824~849MHz, ≥50dB, PassbandDC~804MHz, 869~2500MHz, SMA
View Details →
ZBSF6-C824-849-3036 Filter

Filter ZBSF6-C824-849-3036

Stopband F824~849MHz, ≥40dB, PassbandDC~814MHz, 859~2600MHz, SMA
View Details →

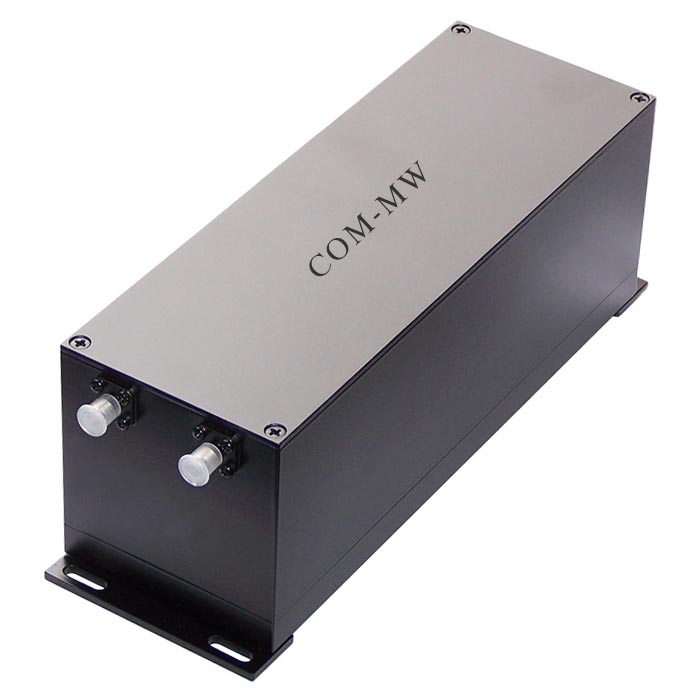

ZBSF6-C824-849-1978 Filter

Filter ZBSF6-C824-849-1978

Stopband F824~849MHz, ≥50dB, PassbandDC~814MHz, 859~2500MHz, SMA
View Details →
ZBSF6-C824-844-4032 Filter

Filter ZBSF6-C824-844-4032

Stopband F824~844MHz, ≥55dB, PassbandDC~804MHz, 864~2500MHz, SMA
View Details →
ZBSF6-C824-835-645 Filter

Filter ZBSF6-C824-835-645

Stopband F824~835MHz, ≥100dB, PassbandDC~821MHz, ~MHz, SMA
View Details →

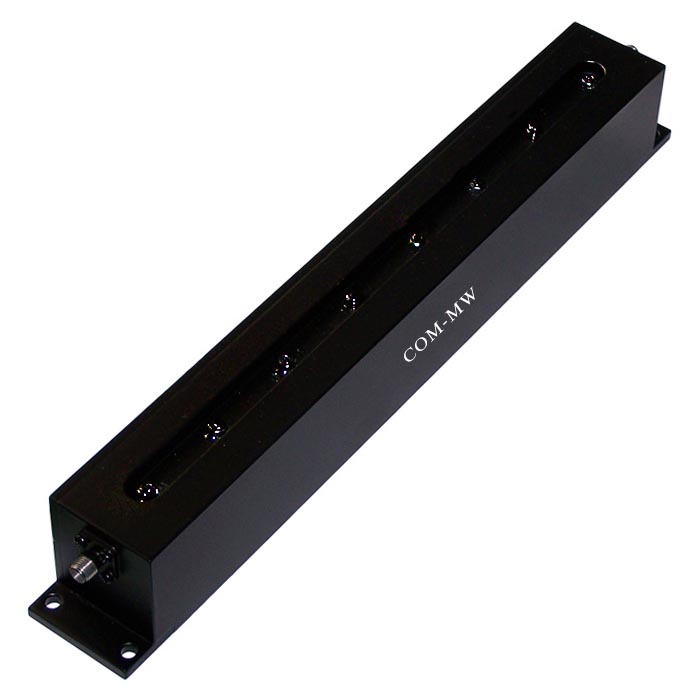

ZBSF6-C824-835-4671 Filter

Filter ZBSF6-C824-835-4671

Stopband F824~835MHz, ≥50dB, PassbandDC~814MHz, 845~4000MHz, SMA
View Details →

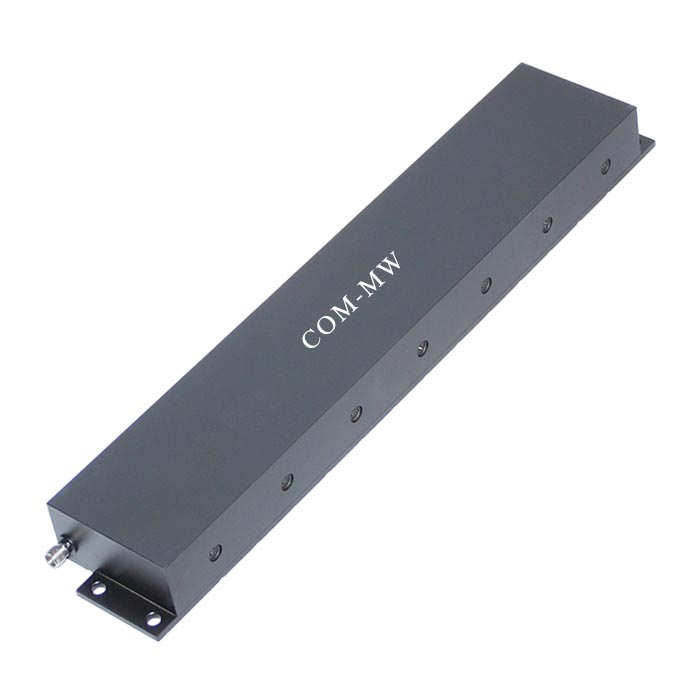

ZBSF4-C824-862-1647 Filter

Filter ZBSF4-C824-862-1647

Stopband F824~862MHz, ≥40dB, PassbandDC~807MHz, 879~3000MHz, SMA
View Details →
ZBF6-C859-70-5860 Filter

Filter ZBF6-C859-70-5860

Passband824~894MHz, DC-754MHz≥40dB, 964-6000MHz≥40dB, SMA
View Details →
ZBF6-C859-70-5681 Filter

Filter ZBF6-C859-70-5681

Passband824~894MHz, DC~785MHz≥50dB, 930~3300MHz≥50dB, SMA
View Details →
ZBF6-C835-20-2347 Filter

Filter ZBF6-C835-20-2347

Passband825~845MHz, DC-815MHz≥55dB, 855-2000MHz≥55dB, L29, -150dBc@2*43dBmdesign assurance
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
