F Low：786 - 795 MHz× Clear all
matches 23 models Default Newest
ZBSF6-C791-821-4737 Filter

Filter ZBSF6-C791-821-4737

Stopband F791~821MHz, ≥60dB, PassbandDC~781MHz, 831~4000MHz, N
In Stock View Details →
K6-791-821-10S60100-006 Notch filter

Notch filter K6-791-821-10S60100-006

Stopband F791~821MHz, ≥60dB, PassbandDC~781MHz, 831~4000MHz, SMA
In Stock View Details →
ZCB4-C832-791-250 Diplexer

Diplexer ZCB4-C832-791-250

Passband L791~821MHz, Passband H832~862MHz, SMA
View Details →
ZCB15-2L790-6000-1372 Diplexer

Diplexer ZCB15-2L790-6000-1372

Passband F1790~2700MHz, Passband F23400~6000MHz, N
View Details →
ZBSF6-C791-821-6010 Filter

Filter ZBSF6-C791-821-6010

Stopband F791~821MHz, ≥105dB, PassbandDC~770MHz, 842~3000MHz, SMA
View Details →
ZBSF6-C788-798-883 Filter

Filter ZBSF6-C788-798-883

Stopband F788~798MHz, ≥40dB, PassbandDC~778MHz, 808~3000MHz, SMA
View Details →

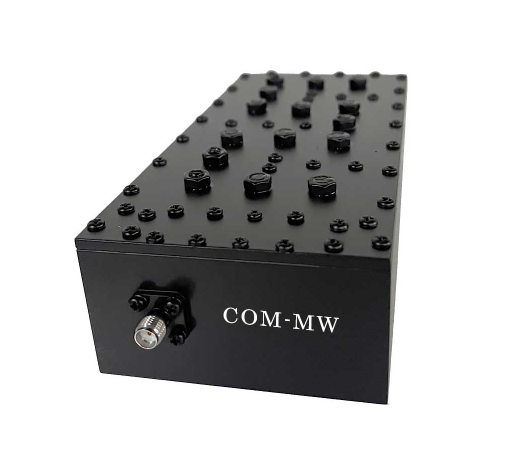

ZBF6-C826.5-71-5188 Filter

Filter ZBF6-C826.5-71-5188

Passband791~862MHz, DC-760MHz≥40dB, 890-4000MHz≥40dB, SMA
View Details →
ZBF6-C796-20-5436 Filter

Filter ZBF6-C796-20-5436

Passband786~806MHz, DC-776MHz≥55dB, 816-2000MHz≥55dB, L29
View Details →
ZBF6-C795-10-2336 Filter

Filter ZBF6-C795-10-2336

Passband790~800MHz, DC-780MHz≥55dB, 810-2000MHz≥55dB, L29, -150dBc@2*43dBmdesign assurance
View Details →
ZBF5-L875-160-1222 Filter

Filter ZBF5-L875-160-1222

Passband795~955MHz, DC-635MHz≥40dB, 1115-2000MHz≥40dB, Pin
View Details →
ZBF5-L1000-420-449 Filter

Filter ZBF5-L1000-420-449

Passband790~1210MHz, DC-600MHz≥20dB, 1600-2000MHz≥20dB, Pin
View Details →

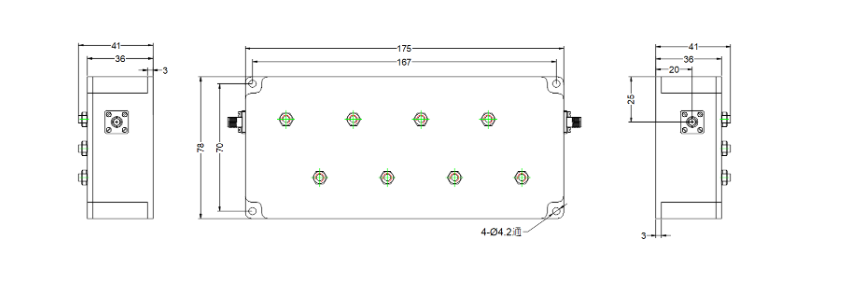

ZBF16-C806-30-036 Filter

Filter ZBF16-C806-30-036

Passband791~821MHz, DC-781MHz≥50dBc, 831-1000MHz≥50dBc, SMA
View Details →

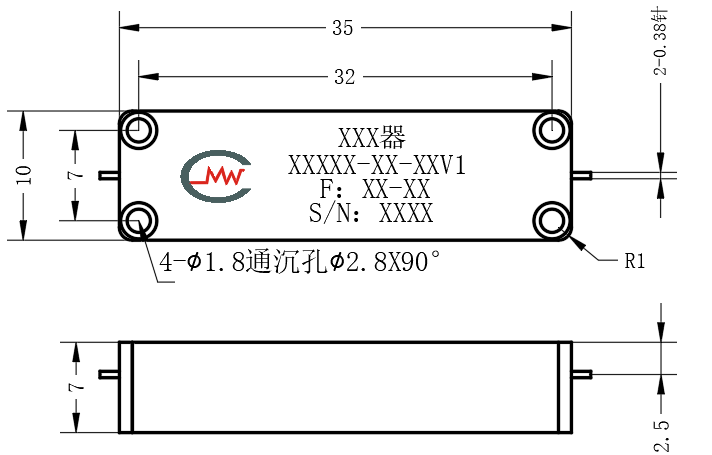

ZBF15-L825-60-519 Filter

Filter ZBF15-L825-60-519

Passband795~855MHz, 740MHz≥50dBc, 915MHz≥50dBc, Pin
View Details →
K6-791-821-30S5050-003 Filter

Filter K6-791-821-30S5050-003

Stopband F791~821MHz, ≥50dB, PassbandDC~761MHz, 851~3300MHz, SMA
View Details →
K6-791-821-30N5050-004 Filter

Filter K6-791-821-30N5050-004

Stopband F791~821MHz, ≥50dB, PassbandDC~761MHz, 851~3300MHz, N
View Details →

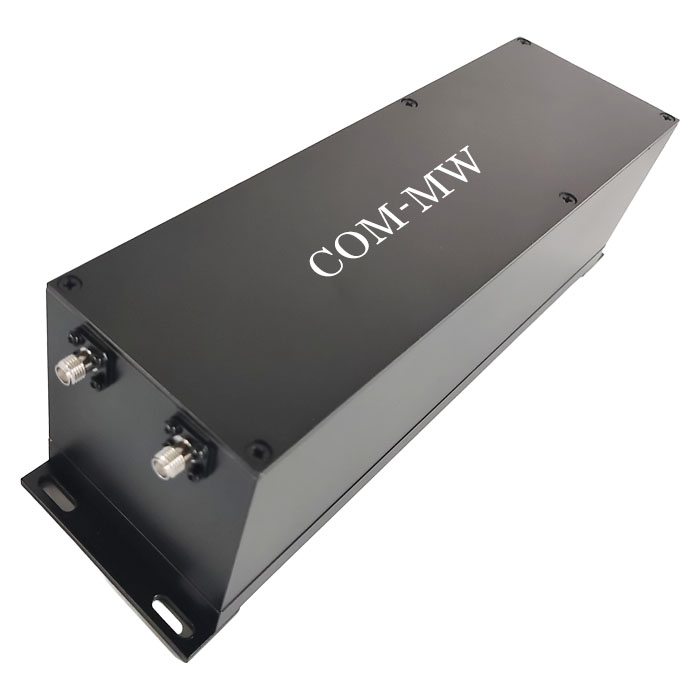

K6-791-821-10S5050-001 Filter

Filter K6-791-821-10S5050-001

Stopband F791~821MHz, ≥50dB, PassbandDC~781MHz, 831~3000MHz, SMA
View Details →
K6-791-821-10N70150M-005 Filter

Filter K6-791-821-10N70150M-005

Stopband F791~821MHz, ≥70dB, PassbandDC~781MHz, 831~3000MHz, N
View Details →
K6-791-821-10N5050-002 Filter

Filter K6-791-821-10N5050-002

Stopband F791~821MHz, ≥50dB, PassbandDC~781MHz, 831~3000MHz, N
View Details →
K6-788-798-8S4050-001 Filter

Filter K6-788-798-8S4050-001

Stopband F788~798MHz, ≥40dB, PassbandDC~780MHz, 806~2500MHz, SMA
View Details →

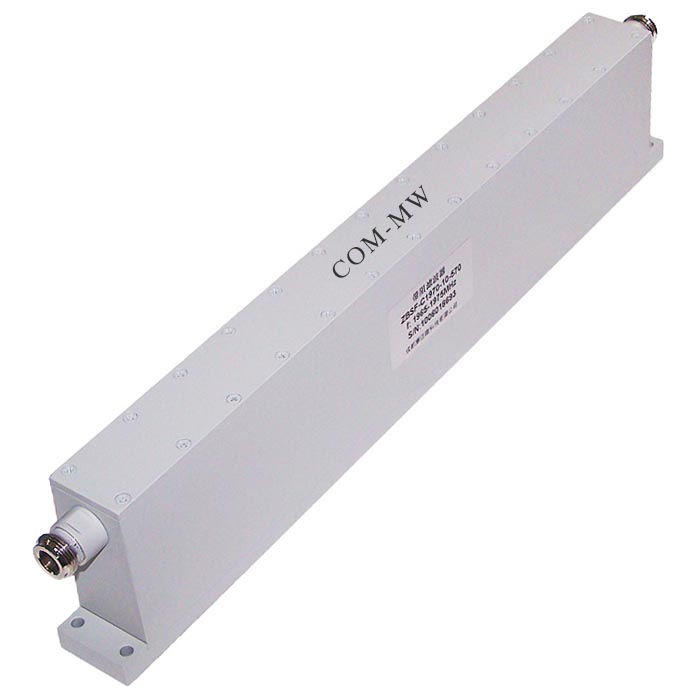

K6-788-798-8N4050-002 Filter

Filter K6-788-798-8N4050-002

Stopband F788~798MHz, ≥40dB, PassbandDC~780MHz, 806~2500MHz, N
View Details →
K6-788-798-30S5050-003 Filter

Filter K6-788-798-30S5050-003

Stopband F788~798MHz, ≥50dB, PassbandDC~758MHz, 828~3300MHz, SMA
View Details →
K6-788-798-30N5050-004 Filter

Filter K6-788-798-30N5050-004

Stopband F788~798MHz, ≥50dB, PassbandDC~758MHz, 828~3300MHz, N
View Details →
B14/788-798 Notch filter

Notch filter B14/788-798

Stopband F788~798MHz, ≥55dB, PassbandDC~748MHz, 838~3000MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
