Total 22 models
Categories
Categories RF Filter
RF Filter16048
RF Filter15376 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1427
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter192 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
6545 - 6650 3 6810 - 7125 11 7150 - 7340 4 7350 - 9410 4
–
Connector
SMD 2 SMA 16 Microstrip pad 1 Microstrip needle 3
Power Handling
2 2 5 6 10 8 20 3 50 3
–
Maximum loss of side frequency dB
1 - 2 4 2.5 - 2.8 3 3 - 3.4 10 4 - 4.5 3 5.8 1
–
Rejection dB
35 - 40 7 45 - 50 7 55 - 60 4 70 - 80 4
–
F Low MHz
6505 1 6520 1 6525 10 6550 8 6590 2
–
Feature
Bandpass 10 Notch 11
Center frequency MHz
6250 - 6570 2 6700 - 6900 3 6930 - 6950 3 7000 - 8000 2
–
IL on center frequency dB
0.5 - 1 3 1.8 - 2 4 2.4 - 3 2 4 1
–
Insertion loss dB
1 1
–
Filter type
Cavity&waveguide 13 stripline 5 Coaxial 2 Thin film 1
F Low：6505 - 6590 MHz× Clear all
matches 22 models Default Newest
CA0096 SMD Filter

SMD Filter CA0096

Bandwidth6.55-7.25, Rejection35@DC-5.5GHz, 30@8.5-18.0GHz
In Stock View Details →
CA0082 SMD Filter

SMD Filter CA0082

Bandwidth6.55-7.35GHz, Rejection35@DC-5.5GHz, 30@8.5-18.0GHz
In Stock View Details →
K6-6525-6875-200S4020-003 Filter

Filter K6-6525-6875-200S4020-003

Stopband F6525~6875MHz, ≥50dB, PassbandDC~6425MHz, 6975~18000MHz, SMA
In Stock View Details →
CC0096 Filter

Filter CC0096

Bandwidth6.55-7.25GHz, Rejection35@DC-5.5GHz, 30@8.4-18.0GHz
In Stock View Details →
CC0082 Filter

Filter CC0082

Bandwidth6.55-7.35GHz, Rejection35@DC-5.5GHz, 35@8.8-19.8GHz
In Stock View Details →
ZCB-C6600-6800-02 Filter

Filter ZCB-C6600-6800-02

Passband F16750~6850MHz, Passband F26550~6650MHz, SMA
View Details →
ZBSF6-M6525-7125-2914 Filter

Filter ZBSF6-M6525-7125-2914

Stopband F6525~7125MHz, ≥50dB, PassbandDC~6250MHz, 7400~13000MHz, SMA
View Details →
ZBSF6-M6525-6875-5061 Filter

Filter ZBSF6-M6525-6875-5061

Stopband F6525~6875MHz, ≥50dB, PassbandDC~6350MHz, 7050~14200MHz, SMA
View Details →
ZBSF6-C6525-6875-3309 Filter

Filter ZBSF6-C6525-6875-3309

Stopband F6525~6875MHz, ≥50dB, PassbandDC~6485MHz, 6915~10000MHz, SMA
View Details →
ZBSF6-C6525-6875-2953 Filter

Filter ZBSF6-C6525-6875-2953

Stopband F6525~6875MHz, ≥40dB, PassbandDC~6485MHz, 6915~10000MHz, SMA
View Details →
ZBSF6-C6505-6545-4209 Filter

Filter ZBSF6-C6505-6545-4209

Stopband F6505~6545MHz, ≥55dB, PassbandDC~6475MHz, 6575~10000MHz, SMA
View Details →
ZBF5-C8000-2820-311 Filter

Filter ZBF5-C8000-2820-311

Passband6590~9410MHz, DC-5220MHz≥70dB, 11000-17000MHz≥60dB, SMA
View Details →
ZBF4-C7000-900-335 Filter

Filter ZBF4-C7000-900-335

Passband6550~7450MHz, DC-3000MHz≥40dB, 9300-12000MHz≥80dB, SMA
View Details →
ZBF3-C6930-820-4497 Filter

Filter ZBF3-C6930-820-4497

Passband6520~7340MHz, DC-5000MHz≥60dB, 8100-8600MHz≥50dB, Pin
View Details →

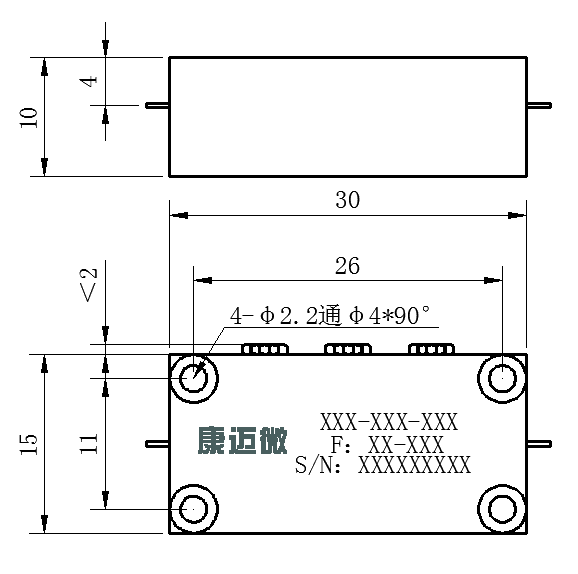

ZBF3-C6570-40-3485 Filter

Filter ZBF3-C6570-40-3485

Passband6550~6590MHz, 6410MHz≥60dB, 6250MHz≥70dB, Pin
View Details →
ZBF2-M6700-220-2161 Filter

Filter ZBF2-M6700-220-2161

Passband6590~6810MHz, 300-5950MHz≥42dB, 5950-6100MHz≥40dB, Microstrip pad
View Details →
ZBF13-C6250-600-2251 Filter

Filter ZBF13-C6250-600-2251

Passband6550~7150MHz, DC-6.15GHz≥60dBc, 8.05-15GHz≥70dBc, Pin
View Details →
K6-6525-6875-40S50100-001 Filter

Filter K6-6525-6875-40S50100-001

Stopband F6525~6875MHz, ≥50dB, PassbandDC~6485MHz, 6915~10000MHz, SMA
View Details →
K6-6525-6875-40S5010-004 Filter

Filter K6-6525-6875-40S5010-004

Stopband F6525~6875MHz, ≥50dB, PassbandDC~6485MHz, 6915~10000MHz, SMA
View Details →
K6-6525-6875-40S5010-002 Filter

Filter K6-6525-6875-40S5010-002

Stopband F6525~6875MHz, ≥50dB, PassbandDC~6485MHz, 6915~10000MHz, SMA
View Details →
K6-6525-6875-40S4010-001 Filter

Filter K6-6525-6875-40S4010-001

Stopband F6525~6875MHz, ≥40dB, PassbandDC~6485MHz, 6915~10000MHz, SMA
View Details →
K6-6525-6875-200S4010-003 Filter

Filter K6-6525-6875-200S4010-003

Stopband F6525~6875MHz, ≥40dB, PassbandDC~6325MHz, 7075~18000MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
