F Low：620 - 620 MHz× Clear all
matches 16 models Default Newest
ZBF13-L720-200-1524 Filter

Filter ZBF13-L720-200-1524

Passband620~820MHz, DC-500MHz≥40dB, 960-2000MHz≥40dB, SMD
In Stock View Details →
ZBF13-L720-200-1525 Filter

Filter ZBF13-L720-200-1525

Passband620~820MHz, DC-500MHz≥40dBc, 960-3000MHz≥50dBc, SMA
In Stock View Details →
ZBF5-L720-200-3692 Filter

Filter ZBF5-L720-200-3692

Passband620~820MHz, DC-520MHz≥40dBc, 900-2500MHz≥40dBc, Pin
View Details →
ZBF5-L720-200-3168 Filter

Filter ZBF5-L720-200-3168

Passband620~820MHz, Pin
View Details →
ZBF5-L720-200-2741 Filter

Filter ZBF5-L720-200-2741

Passband620~820MHz, DC-500MHz≥40dBc, Pin
View Details →
ZBF5-L715-190-1259 Filter

Filter ZBF5-L715-190-1259

Passband620~810MHz, DC-500MHz≥70dBc, 900-2000MHz≥70dBc, Pin
View Details →
ZBF4-C660-80-695 Filter

Filter ZBF4-C660-80-695

Passband620~700MHz, DC-580MHz≥30dB, 740-1100MHz≥30dB, SMA
View Details →
ZBF3-L720-200-4500 Filter

Filter ZBF3-L720-200-4500

Passband620~820MHz, 590MHz≥10dB, 850MHz≥20dB, Pin
View Details →
ZBF2-L720-200-1690 Filter

Filter ZBF2-L720-200-1690

Passband620~820MHz, DC-500MHz≥60dBc, 1-3GHz≥60dBc, Pin
View Details →
ZBF2-L720-200-1681 Filter

Filter ZBF2-L720-200-1681

Passband620~820MHz, DC-540MHz≥60dBc, 900-2000MHz≥60dBc, Pin
View Details →
ZBF15-L720-200-1649 Filter

Filter ZBF15-L720-200-1649

Passband620~820MHz, DC-500MHz≥55dBc, 1.1-3GHz≥55dBc, SMD
View Details →
ZBF15-L720-200-1544 Filter

Filter ZBF15-L720-200-1544

Passband620~820MHz, DC-500MHz≥40dBc, 1140-3000MHz≥40dBc, SMD
View Details →
ZBF14-L650-60-685 Filter

Filter ZBF14-L650-60-685

Passband620~680MHz, DC-525MHz≥42dBc, 875-3000MHz≥45dBc, Pin
View Details →

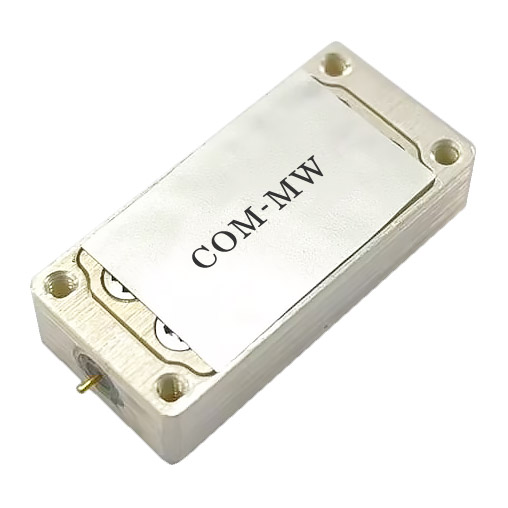

ZBF13-L720-200-2442 Filter

Filter ZBF13-L720-200-2442

Passband620~820MHz, F0±600MHz≥40dBc, 5594MHz≥65dBc, Pin
View Details →
ZBF13-L645-50-573 Filter

Filter ZBF13-L645-50-573

Passband620~670MHz, DC-540MHz≥60dB, 1.1-1.5GHz≥50dB, Pin
View Details →
ZBF-L720-200-S2010 Filter

Filter ZBF-L720-200-S2010

Passband620~820MHz, DC-500MHz≥40dB, 1000-250040dB, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
