RF Filter

Total 19 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
596 - 600 4 605 - 613 4 614 - 690 4 845 - 910 7
–
Connector
SMD 5 SMA 9 N 1 Microstrip needle 4
Power Handling
1 - 2 11 5 - 10 6 30 - 50 2
–
Maximum loss of side frequency dB
1 - 1.3 2 1.5 - 1.6 4 2 - 2.5 7 3 - 4 5 5 1
–
Rejection dB
20 - 30 2 40 - 50 12 55 - 60 4 65 1
–
F Low MHz
587 1 588 1 590 10 592.5 1 595 6
–
Feature
Bandpass 19
Center frequency MHz
593 - 595 4 600 - 602 5 615 - 640 3 717.5 - 720 4 750 3
–
IL on center frequency dB
0.5 1 1 10 2 4 3 3 4 1
–
Filter type
LC 12 Cavity&waveguide 7
F Low：587 - 595 MHz× Clear all
matches 19 models Default Newest
ZBF5-L750-320-2335 Filter

Filter ZBF5-L750-320-2335

Passband590~910MHz, DC-490MHz≥40dB, 1100-2000MHz≥40dB, SMD
In Stock View Details →
ZBF5-L750-320-2311 Filter

Filter ZBF5-L750-320-2311

Passband590~910MHz, DC-490MHz≥40dB, 1100-2700MHz≥40dB, SMA
In Stock View Details →
ZBF15-L602-24-1460 Filter

Filter ZBF15-L602-24-1460

Passband590~614MHz, DC-564MHz≥30dBc, 640-2000MHz≥30dBc, SMD
In Stock View Details →
ZBF6-H595-10-2511 Filter

Filter ZBF6-H595-10-2511

Passband590~600MHz, DC-550MHz≥40dB, 640-1200MHz≥40dB, SMA
View Details →
ZBF6-H593-10-2511 Spiral filter

Spiral filter ZBF6-H593-10-2511

Passband588~598MHz, DC-557MHz≥40dB, 628-1200MHz≥40dB, SMA
View Details →
ZBF5-L600-10-1477 Filter

Filter ZBF5-L600-10-1477

Passband595~605MHz, DC-500MHz≥40dBc, 700-1200MHz≥40dBc, Pin
View Details →
ZBF4-C600-10-1274 Filter

Filter ZBF4-C600-10-1274

Passband595~605MHz, DC-575MHz≥40dB, 625-1500MHz≥40dB, SMA
View Details →
ZBF3-L720-255-3909 Filter

Filter ZBF3-L720-255-3909

Passband592.5~847.5MHz, DC-465MHz≥40dB, 1000-3000MHz≥40dB, SMD
View Details →
ZBF3-L600-33.6-839 Filter

Filter ZBF3-L600-33.6-839

Passband587~613MHz, DC-552MHz≥40dB, 648-1500MHz≥40dB, SMA
View Details →
ZBF3-L600-20-3616 Filter

Filter ZBF3-L600-20-3616

Passband590~610MHz, DC-550MHz≥40dB, 650-2000MHz≥40dB, SMA
View Details →

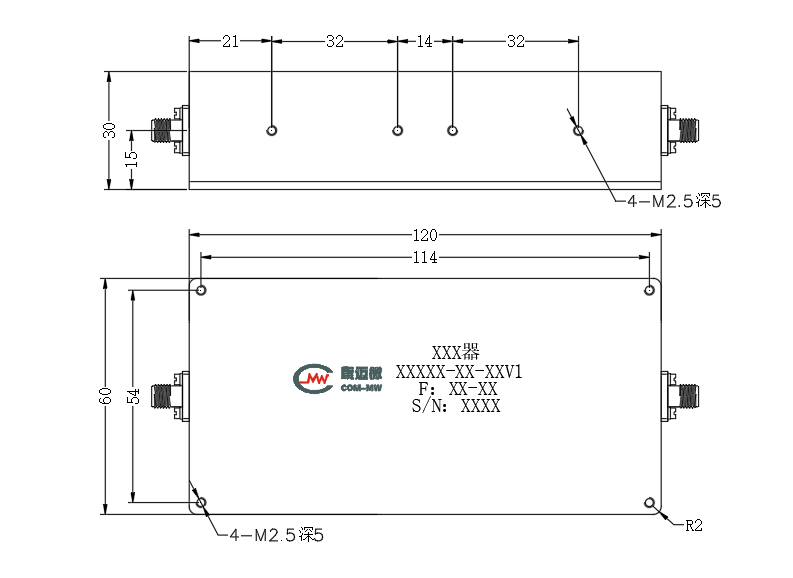

ZBF16-C615-40-225 Filter

Filter ZBF16-C615-40-225

Passband595~635MHz, 545MHz≥60dBc, 1000MHz≥80dBc, SMA
View Details →
ZBF13-L750-320-2480 Filter

Filter ZBF13-L750-320-2480

Passband590~910MHz, DC-0.4GHz≥60dBc, 1.1-2GHz≥60dBc, Pin
View Details →
ZBF13-L720-250-2940 Filter

Filter ZBF13-L720-250-2940

Passband595~845MHz, DC-0.47GHz≥40dBc, 0.97-4GHz≥40dBc, Pin
View Details →
ZBF13-L717.5-255-1198 Filter

Filter ZBF13-L717.5-255-1198

Passband590~845MHz, 450MHz≥60dBc, 500MHz≥25dBc, SMD
View Details →

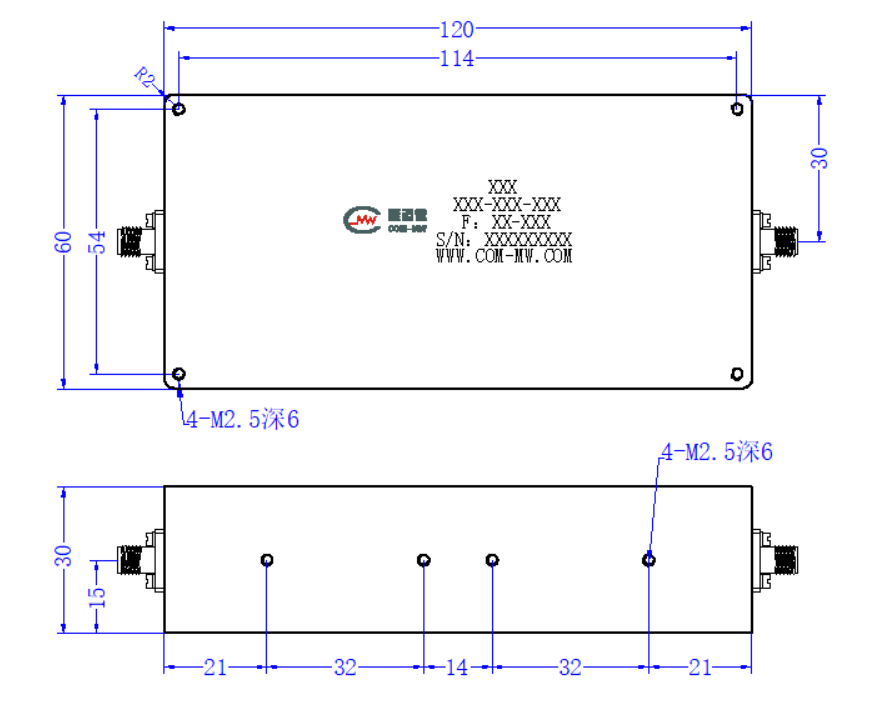

ZBF13-C615-40-1796 Filter

Filter ZBF13-C615-40-1796

Passband595~635MHz, 545MHz≥50dBc, 685MHz≥50dBc, F0±140MHz≥65dBc, 2.6-2.8GHz≥60dBc, SMA
View Details →

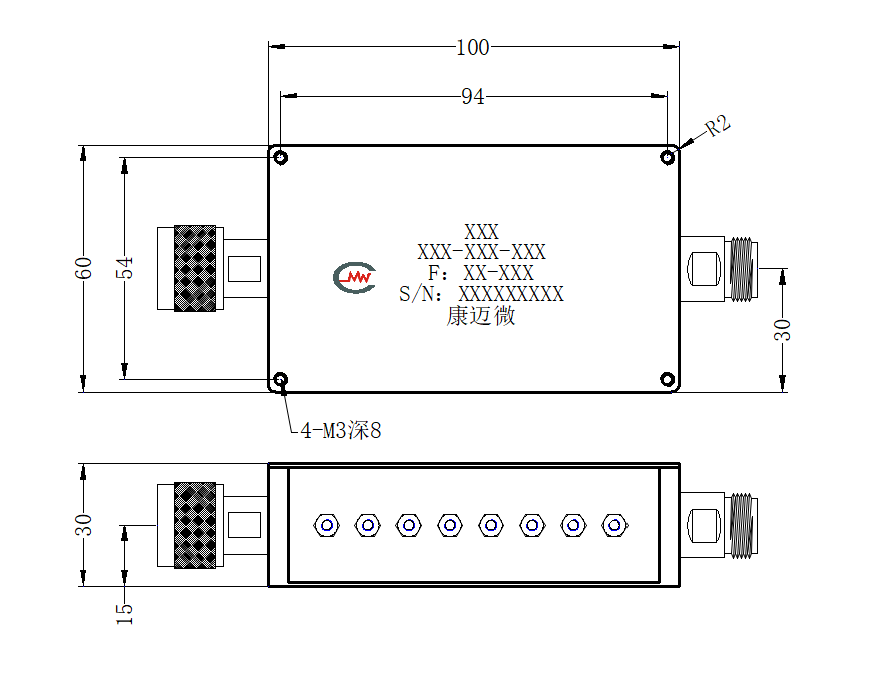

ZBF13-C595-10-883 Filter

Filter ZBF13-C595-10-883

Passband590~600MHz, DC-575MHz≥50dB, 615-1500MHz≥50dB, N
View Details →

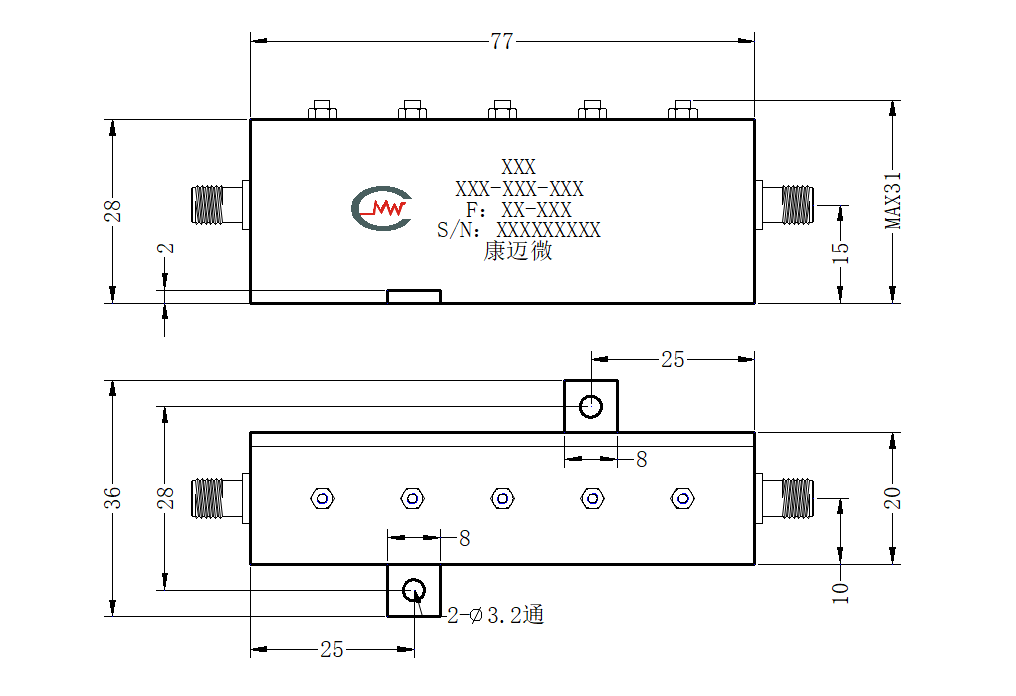

ZBF-H593-6-75C Filter

Filter ZBF-H593-6-75C

Passband590~596MHz, 578MHz≥20dBc, 584MHz≥8dBc, SMA
View Details →
XPF-L720M250M-T Filter

Filter XPF-L720M250M-T

Passband595~845MHz, DC-470GHz≥55dBc, 0.97-2.5GHz≥55dBc, SMD
View Details →
XPF-L640M100M-Z Filter

Filter XPF-L640M100M-Z

Passband590~690MHz, DC-400MHz≥60dBc, 490MHz≥30dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
