F Low：4700 - 4899 MHz× Clear all
matches 151 models Default Newest
CA0504 SMD Filter

SMD Filter CA0504

Bandwidth4.7-7.5GHz, Rejection20@1.8-3.9GHz, 30@8.6-9.4GHz
In Stock View Details →
CA0265 SMD Filter

SMD Filter CA0265

Bandwidth4.85-5.7GHz, Rejection35@DC-4.2GHz, 35@6.3-14.0GHz
In Stock View Details →
CA0230-2410 SMD Filter

SMD Filter CA0230-2410

Bandwidth4.75-4.9GHz, Rejection38@DC-4.2GHz, 36@5.6-14.0GHz
In Stock View Details →
CA0230 SMD Filter

SMD Filter CA0230

Bandwidth4.8-5.0GHz, Rejection40@DC-4.2GHz, 40@5.7-9.0GHz
In Stock View Details →
STBP5R7-1R8-K509 Thin film filter

Thin film filter STBP5R7-1R8-K509

Bandwidth4.8-6.6GHz, Rejection40@DC-3.7GHz, 40@8.2-13.0GHz
In Stock View Details →
ZBF16-C5.4-1.2G-335 Filter

Filter ZBF16-C5.4-1.2G-335

Passband4.8~6GHz, DC~4GHz≥50dBc, 6.8~14GHz≥60dBc, SMA-KDetachable
In Stock View Details →
ZBF8-C5200-940-3145 Filter

Filter ZBF8-C5200-940-3145

Passband4730~5670MHz, DC-4430MHz≥60dBc, 5970-16000MHz≥60dBc, SMA
In Stock View Details →
ZBF13-C5000-600-622 Filter

Filter ZBF13-C5000-600-622

Passband4700~5300MHz, DC-4.5GHz≥70dB, 4.6GHz≥30dB, SMA
In Stock View Details →
ZBF4-C5.15-0.7G-1121 Filter

Filter ZBF4-C5.15-0.7G-1121

Passband4.8~5.5GHz, DC-4.4GHz≥40dB, 5.9-14GHz≥40dB, SMA-KDetachable
In Stock View Details →
ZBF13-C5000-300-2934 Filter

Filter ZBF13-C5000-300-2934

Passband4850~5150MHz, DC-4.65GHz≥45dBc, 5.4-12GHz≥60dBc, SMA
In Stock View Details →
ZLPF2-M4.8-18G-3373 Filter

Filter ZLPF2-M4.8-18G-3373

Passband4.8~18GHz, DC-4.2GHz≥50dB, dB, SMA
In Stock View Details →
ZBF13-C5015-430-669 Filter

Filter ZBF13-C5015-430-669

Passband4800~5230MHz, DC-4.5GHz≥70dBc, 5.6-11GHz≥80dBc, SMA
In Stock View Details →
ZBF1-M7.25-5G-191 Filter

Filter ZBF1-M7.25-5G-191

Passband4.75~9.75GHz, DC-4GHz≥50dB, 11.75-15GHz≥60dB, SMA
In Stock View Details →
ZCB1-2M4.8-17.4G-368 Diplexer

Diplexer ZCB1-2M4.8-17.4G-368

Passband F14.8~5.8GHz, Passband F29.6~17.4GHz, SMA
In Stock View Details →
ZBSF6-C4890-5010-337 Filter

Filter ZBSF6-C4890-5010-337

Stopband F4890~5010MHz, ≥50dB, PassbandDC~4870MHz, 5030~6000MHz, SMA
In Stock View Details →
ZBF5-C5250-1000-1726 Filter

Filter ZBF5-C5250-1000-1726

Passband4750~5750MHz, DC-3100MHz≥40dBc, 6400-7400MHz≥40dBc, Pin
In Stock View Details →
ZBF13-C4815-30-536 Filter

Filter ZBF13-C4815-30-536

Passband4800~4830MHz, DC-4.43GHz≥80dBc, 4730MHz≥30dBc, SMA
In Stock View Details →
ZCB4-C4.8-15.6G-1421 Diplexer

Diplexer ZCB4-C4.8-15.6G-1421

Passband F14.8~5.2GHz, Passband F29.6~15.6GHz, SMA
View Details →
ZBSF6-M4800-5000-4944 Filter

Filter ZBSF6-M4800-5000-4944

Stopband F4800~5000MHz, ≥50dB, PassbandDC~4600MHz, 5200~12000MHz, SMA
View Details →
ZBSF6-M4780-5000-6052 Filter

Filter ZBSF6-M4780-5000-6052

Stopband F4780~5000MHz, ≥25dB, PassbandDC~4500MHz, 5300~18000MHz, SMA
View Details →

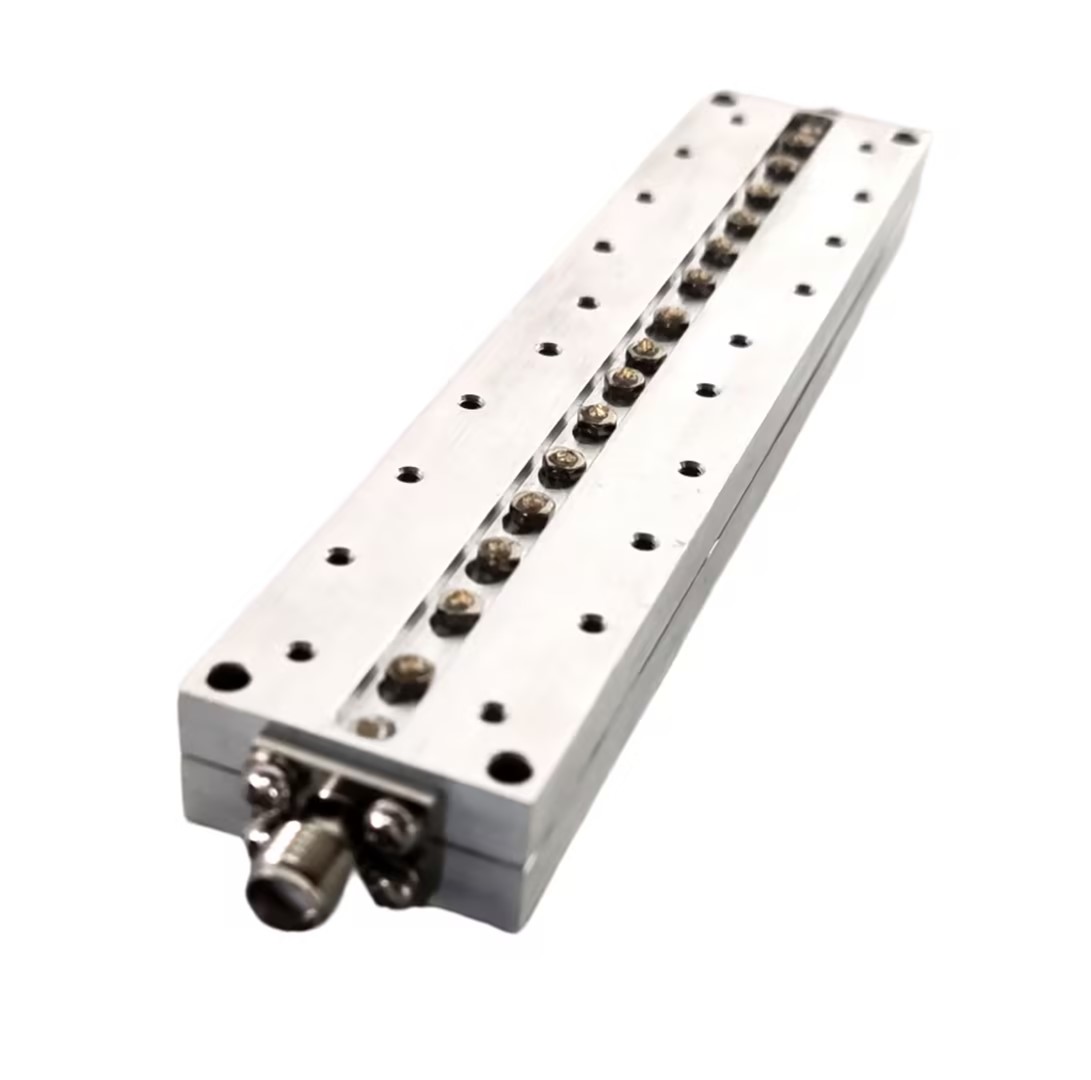

ZBSF6-C4800-5000-4973 Filter

Filter ZBSF6-C4800-5000-4973

Stopband F4800~5000MHz, ≥50dB, PassbandDC~4700MHz, 5100~18000MHz, SMA
View Details →

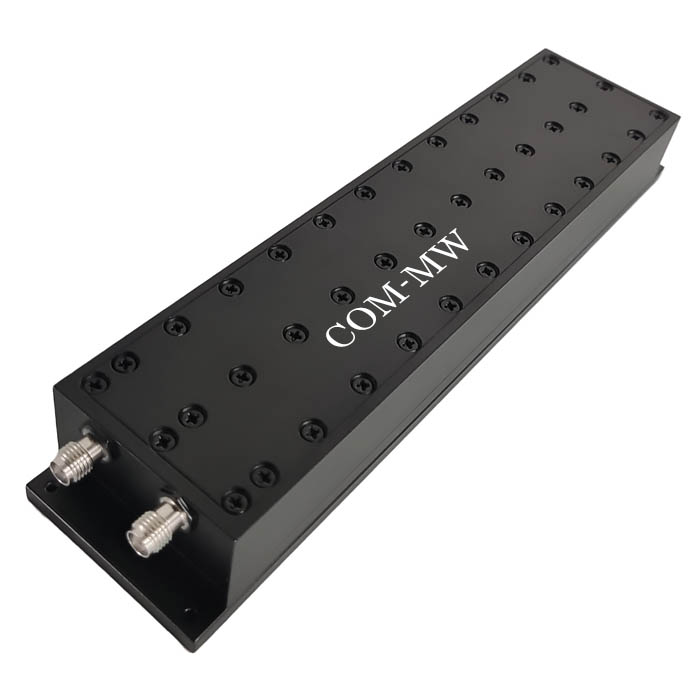

ZBSF6-C4800-5000-4966 Filter

Filter ZBSF6-C4800-5000-4966

Stopband F4800~5000MHz, ≥80dB, Passband1000~4700MHz, 5100~10000MHz, SMA
View Details →
ZBSF6-C4800-5000-314 Filter

Filter ZBSF6-C4800-5000-314

Stopband F4800~5000MHz, ≥50dB, PassbandDC~4755MHz, 5025~7000MHz, SMA
View Details →

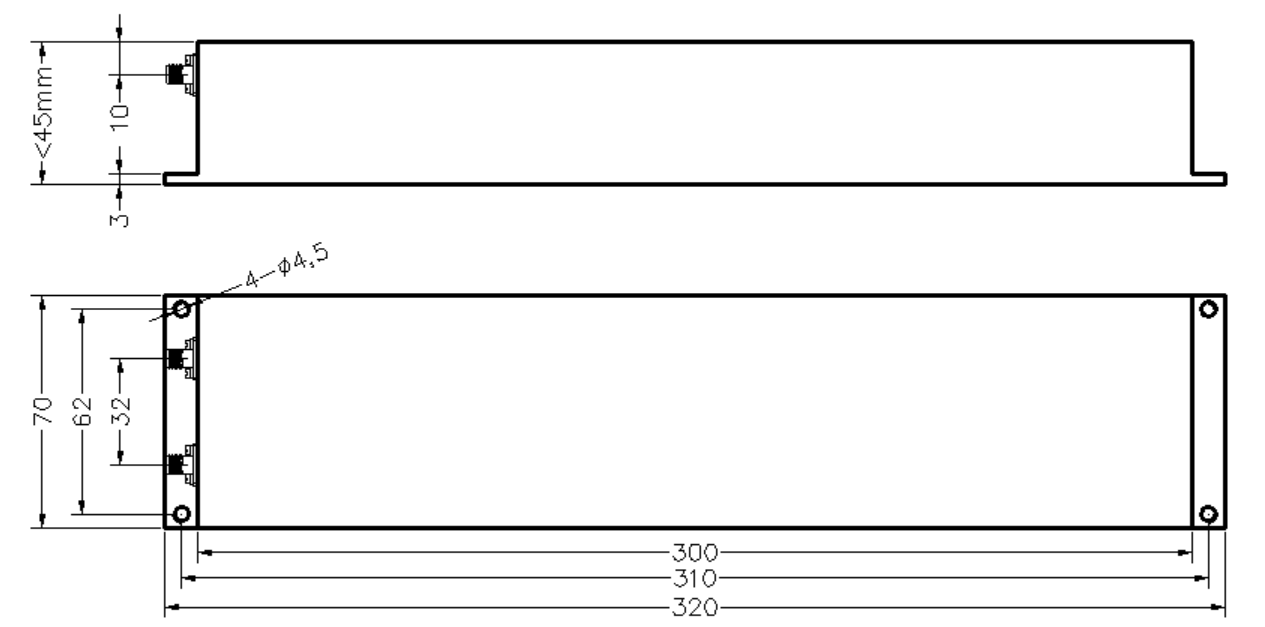

ZBSF6-C4800-5000-2765 Filter

Filter ZBSF6-C4800-5000-2765

Stopband F4800~5000MHz, ≥60dB, PassbandDC~4780MHz, 5020~7000MHz, SMA
View Details →
