Filters
Filters 1
F High MHz
4285 - 4385 12 4390 - 4419 12 4435 - 4560 7 4650 - 5000 9 5380 - 18000 7
–
Connector
SMD 5 SMA 21 Microstrip pad 5 Microstrip needle 16
Power Handling
0.5 - 1 4 2 - 5 21 10 - 15 16 20 - 30 5 150 1
–
Maximum loss of side frequency dB
0.6 - 1.8 7 2 - 3.5 31 4 - 5 4 5.5 - 6 4
–
Rejection dB
25 - 40 12 45 - 55 13 60 - 70 13 75 - 95 9
–
F Low MHz
4264 - 4280 5 4285 - 4315 21 4320 - 4334 11 4340 - 4350 8 4355 - 4357 2
–
Feature
Bandpass 40 Highpass 2 Notch 4
Center frequency MHz
4275 - 4350 12 4370 - 4440 15 4490 - 4530 6 4550 - 5400 5 5950 2
–
IL on center frequency dB
0.3 - 0.4 2 0.5 - 1 21 1.5 - 2 9 3.5 - 3.6 2 4 - 5 5
–
Insertion loss dB
2 1
–
Filter type
LC 1 Cavity&waveguide 32 stripline 6 Thin film 5 Dielectric 2
F Low：4264 - 4357 MHz× Clear all
matches 47 models Default Newest
CA0419 SMD Filter

SMD Filter CA0419

Passband F1DC-3.9, 4.7-18.0, 带阻带抑制35@4.28-4.32GHz
In Stock View Details →
STRP4R3-0R0-M233 Thin film filter

Thin film filter STRP4R3-0R0-M233

PassbandDC-3.8GHz, 4.8-18.0GHz, Stopband Rej.40@4.3GHz
In Stock View Details →
CA0227 SMD Filter

SMD Filter CA0227

Bandwidth4.32-4.72GHz, Rejection40@DC-3.5GHz, 40@5.25-10.0GHz
In Stock View Details →
STRP4R3-0R0-N167 Thin film filter

Thin film filter STRP4R3-0R0-N167

Passband4.8-18.0GHz, Stopband Rej.30@4.3GHz,
In Stock View Details →
STRP4R3-0R0-K925 Thin film filter

Thin film filter STRP4R3-0R0-K925

Passband4.8-18.0GHz, Stopband Rej.40@4.3GHz,
In Stock View Details →
STBP5R4-2R1-M631 Thin film filter

Thin film filter STBP5R4-2R1-M631

Bandwidth4.3-6.4GHz, Rejection40@DC-3.4GHz, 35@7.6-13.0GHz
In Stock View Details →
ZBF1-M5.95-3.3G-418 Filter

Filter ZBF1-M5.95-3.3G-418

Passband4.3~7.6GHz, 3GHz≥50dB, 8.5GHz≥50dB, SMD
In Stock View Details →
ZBF4-C4.49-0.33G-1119 Filter

Filter ZBF4-C4.49-0.33G-1119

Passband4.32~4.65GHz, DC-4.1GHz≥45dB, 4.9-10GHz≥60dB, SMA-KDetachable
In Stock View Details →
ZBF16-C4.37-0.09G-333 Filter

Filter ZBF16-C4.37-0.09G-333

Passband4.329~4.419GHz, DC~4.229GHz≥40dBc, 4.519~9GHz≥40dBc, SMA-KDetachable
In Stock View Details →

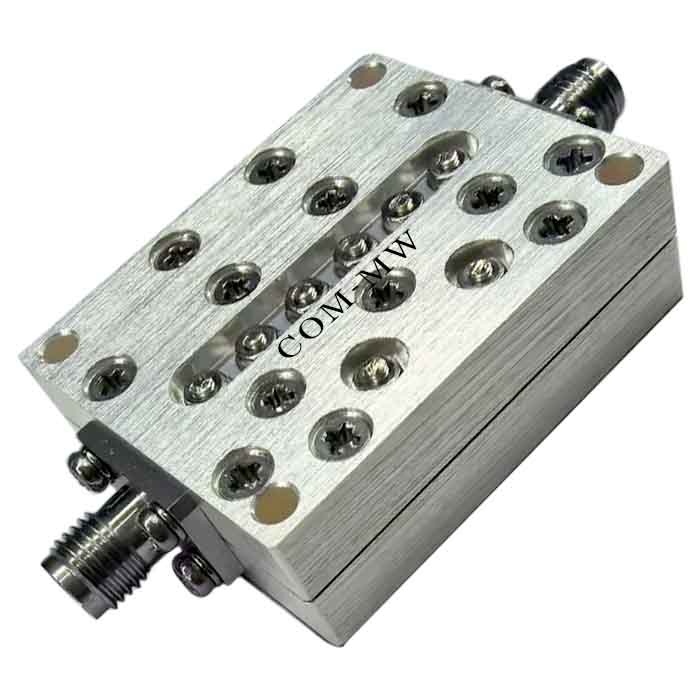

ZLPF2-M4.3-18G-3371 Filter

Filter ZLPF2-M4.3-18G-3371

Passband4.3~18GHz, DC-3.8GHz≥50dB, dB, SMA
In Stock View Details →

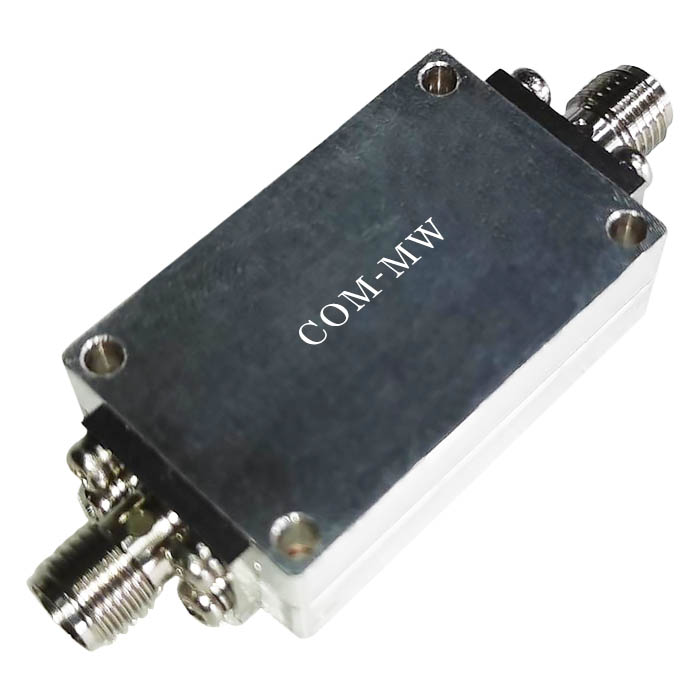

ZHPF3-M4.3-12.75-802 Filter

Filter ZHPF3-M4.3-12.75-802

Passband4300~12750MHz, DC-4000MHz≥70dB, SMA
View Details →
ZCB5-C4300-5200-380 Diplexer

Diplexer ZCB5-C4300-5200-380

Passband F14300~4700MHz, Passband F24800~5200MHz, SMA
View Details →

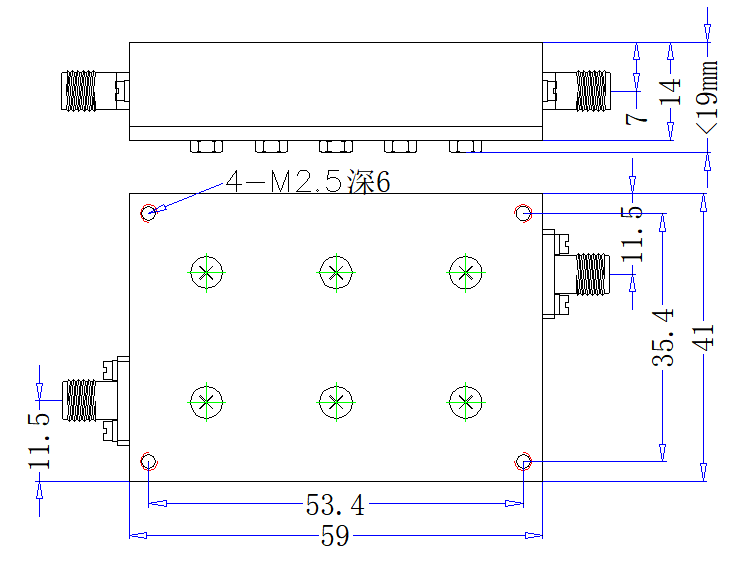

ZBF6-C4350-43.5-4437 Filter

Filter ZBF6-C4350-43.5-4437

Passband4328.25~4371.75MHz, DC-4190MHz≥50dB, 4510-13115.25MHz≥50dB, SMA
View Details →
ZBF5-C5300-2000-1857 Filter

Filter ZBF5-C5300-2000-1857

Passband4300~6300MHz, DC-3.5GHz≥35dBc, 8-11GHz≥35dBc, SMA-K
View Details →
ZBF5-C4500-300-2400 Filter

Filter ZBF5-C4500-300-2400

Passband4350~4650MHz, DC-4100MHz≥50dB, 4900-6000MHz≥50dB, SMA
View Details →

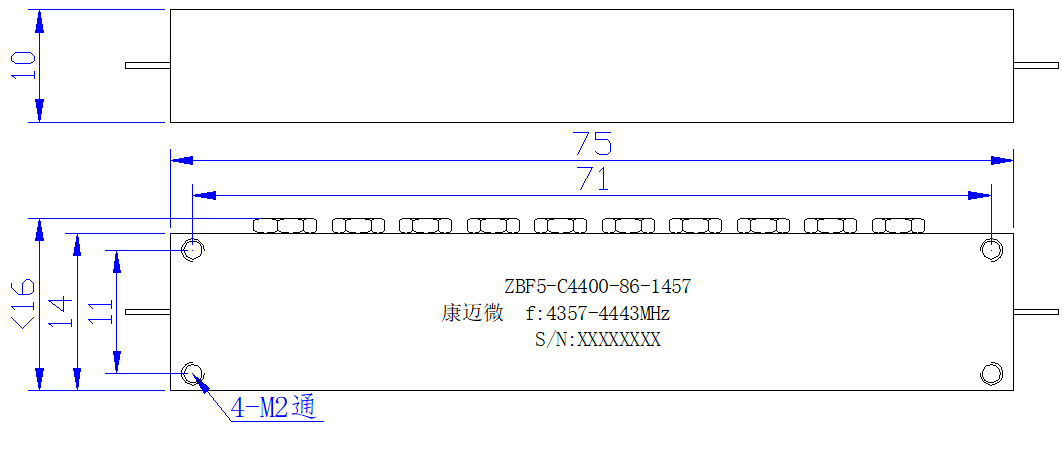

ZBF5-C4400-86-1457 Filter

Filter ZBF5-C4400-86-1457

Passband4357~4443MHz, DC-4260MHz≥60dB, 4470-4540MHz≥30dB, Pin
View Details →
ZBF5-C4350-80-2239 Filter

Filter ZBF5-C4350-80-2239

Passband4310~4390MHz, DC-4.25GHz≥70dBc, 4.42-4.45GHz≥30dBc, Pin
View Details →
ZBF5-C4275-20-3127 Filter

Filter ZBF5-C4275-20-3127

Passband4265~4285MHz, DC-4.05GHz≥50dBc, 4.05-4.145GHz≥75dBc, Pin
View Details →
ZBF5-C4.65-0.7G-3624 Filter

Filter ZBF5-C4.65-0.7G-3624

Passband4.3~5GHz, DC-3GHz≥45dBc, 6.5-9.5GHz≥45dBc, SMA
View Details →

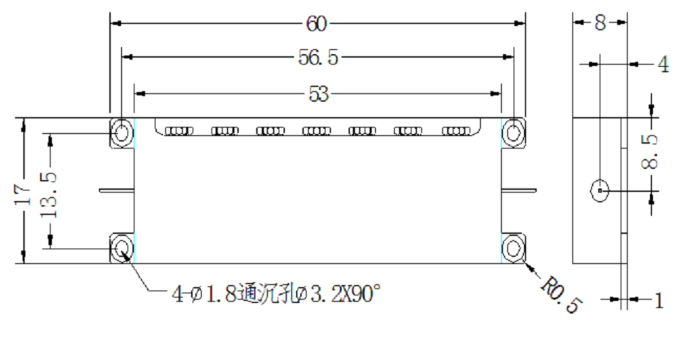

ZBF4-C4320-0-670 Filter

Filter ZBF4-C4320-0-670

Passband4320~4320MHz, DC-4200MHz≥85dBc, 4440-8000MHz≥85dBc, Pin
View Details →

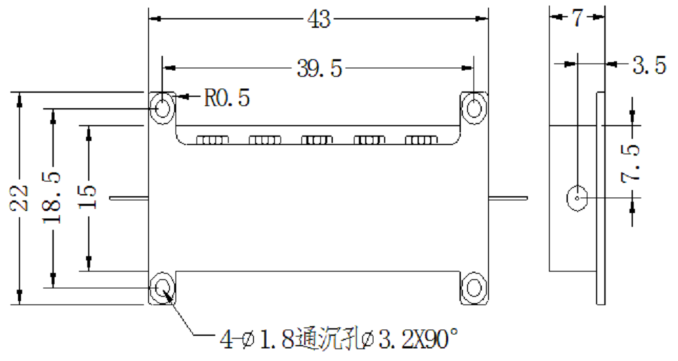

ZBF4-C4.44-0.24G-676 Filter

Filter ZBF4-C4.44-0.24G-676

Passband4320~4560MHz, DC-4080MHz≥35dBc, 5040-8000MHz≥85dBc, Pin
View Details →
ZBF3-C4550-500-1778 Filter

Filter ZBF3-C4550-500-1778

Passband4300~4800MHz, 3500-4000MHz≥60dB, 5100-7300MHz≥20dB, Pin
View Details →

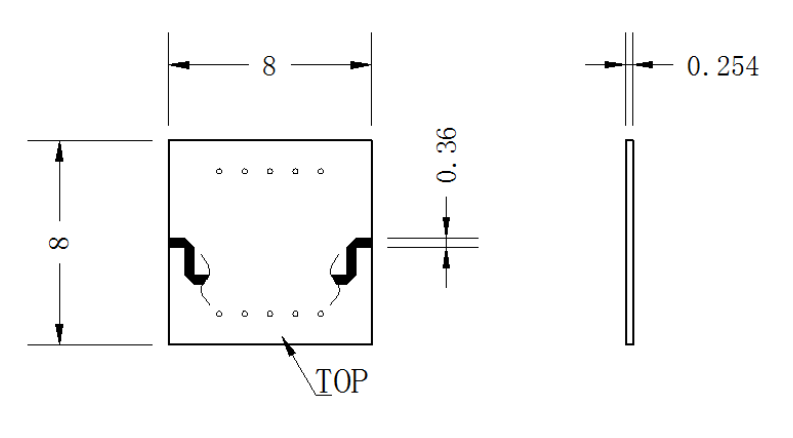

ZBF2-M4400-220-2160 Filter

Filter ZBF2-M4400-220-2160

Passband4290~4510MHz, 300-3650MHz≥42dB, 3650-3800MHz≥40dB, Microstrip pad
View Details →

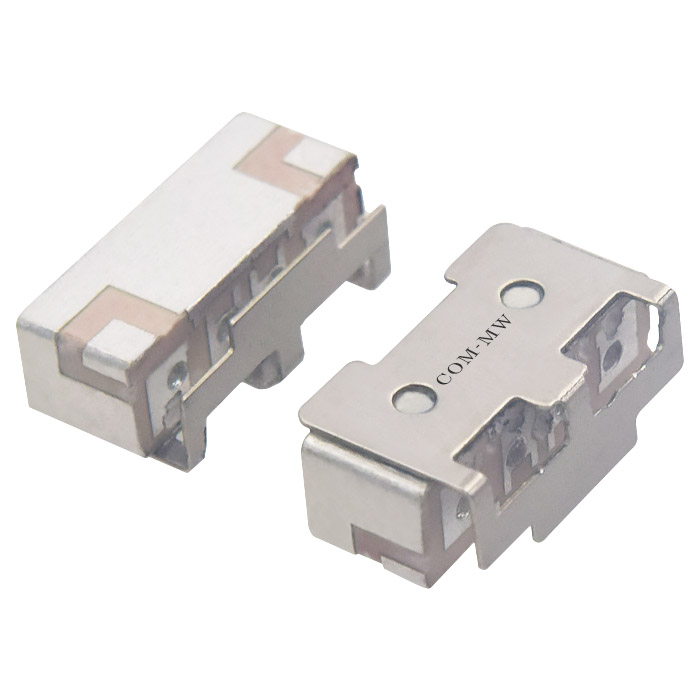

ZBF2-D4350-120-2309 Filter

Filter ZBF2-D4350-120-2309

Passband4290~4410MHz, 4100MHz≥30dB, 4600MHz≥30dB, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
