F Low：38.2 - 40 MHz× Clear all
matches 27 models Default Newest
ZHPF5-L40-1100-3059 Filter

Filter ZHPF5-L40-1100-3059

Passband40~1100MHz, RejectionDC-20MHz≥35dB, SMD
In Stock View Details →
ZBF15-L70-60-858 Filter

Filter ZBF15-L70-60-858

Passband40~100MHz, DC-30MHz≥40dB, 125-1000MHz≥40dB, SMD
In Stock View Details →
ZBF14-L70-60-713 Filter

Filter ZBF14-L70-60-713

Passband40~100MHz, DC-30MHz≥40dB, 120-800MHz≥40dB, SMA-K
In Stock View Details →
ZBF13-L47.75-15-1186 Filter

Filter ZBF13-L47.75-15-1186

Passband40.25~55.25MHz, 47.75±14.5MHz≥45dB, , SMD
In Stock View Details →
ZBF13-L46.52-15-1189 Filter

Filter ZBF13-L46.52-15-1189

Passband39.02~54.02MHz, 46.52±15.5MHz≥45dB, , SMD
In Stock View Details →
ZBF3-L67.5-55-1348 Filter

Filter ZBF3-L67.5-55-1348

Passband40~95MHz, dB, 120-1000MHz≥40dB, SMA
In Stock View Details →
ZLPF2-L45-70-2163 Filter

Filter ZLPF2-L45-70-2163

Passband40~70MHz, 98-1000MHz≥45dBc, dB, SMD
View Details →
ZHPF3-L39-100-1743 Filter

Filter ZHPF3-L39-100-1743

Passband39~500MHz, DC-33MHz≥30dB, dB, SMD
View Details →
ZBSF6-L0-40-3834 Filter

Filter ZBSF6-L0-40-3834

Stopband F40MHz, ≥40dB, PassbandDC~37MHz, 43~300MHz, SMA
View Details →
ZBF5-L52.5-25-1845 Filter

Filter ZBF5-L52.5-25-1845

Passband40~65MHz, DC-30MHz≥50dB, 80-200MHz≥50dB, SMA-K
View Details →
ZBF5-L50-20-2186 Filter

Filter ZBF5-L50-20-2186

Center Frequency50MHz, 1dB BW20~25MHz, DC-25MHz≥55dB, 75-200MHz≥55dB, SMD
View Details →
ZBF5-L50-20-2050 Filter

Filter ZBF5-L50-20-2050

Passband40~60MHz, DC-20MHz≥45dBc, 80-200MHz≥45dBc, SMA-K
View Details →
ZBF5-L50-20-2046 Filter

Filter ZBF5-L50-20-2046

Passband50MHz, 1dB BW20~23MHz, DC-5MHz≥50dB, 100-200MHz≥50dB, SMD
View Details →
ZBF3-L70-60-1975 Filter

Filter ZBF3-L70-60-1975

Passband40~100MHz, DC-25MHz≥30dB, 115-500MHz≥30dB, SMD
View Details →
ZBF3-L70-40-2261 Filter

Filter ZBF3-L70-40-2261

Passband40~90MHz, DC-40MHz≥40dB, 100-500MHz≥40dB, SMA
View Details →

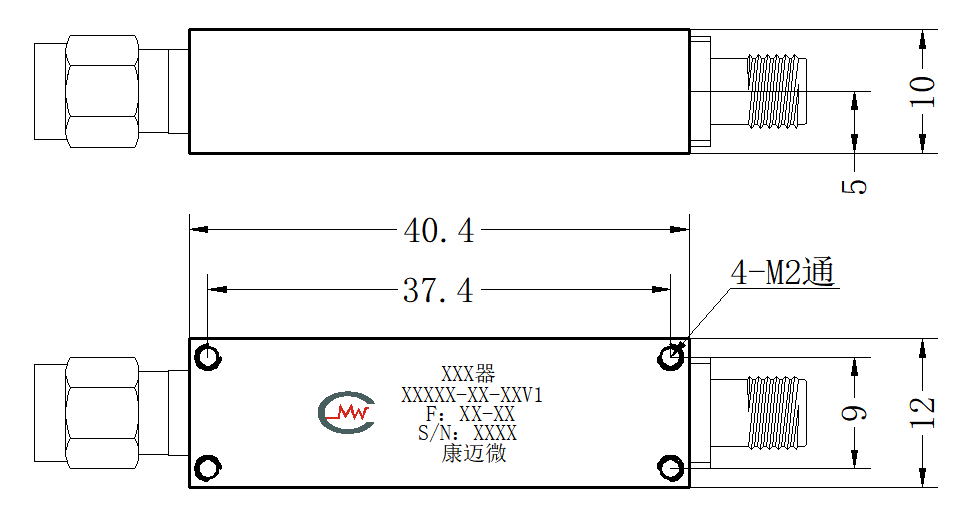

ZBF3-L45-10-3613 Filter

Filter ZBF3-L45-10-3613

Passband40~50MHz, DC-20MHz≥40dB, 70-2000MHz≥40dB, SMA
View Details →
ZBF3-L40-1.2-2976 Filter

Filter ZBF3-L40-1.2-2976

Passband39.4~40.6MHz, DC-35MHz≥60dB, 45-400MHz≥60dB, SMD
View Details →
ZBF3-L40-1-2053 Filter

Filter ZBF3-L40-1-2053

Passband39.5~40.5MHz, DC-35MHz≥40dB, 45-50040dB, SMA
View Details →
ZBF3-L39-1.6-3290 Filter

Filter ZBF3-L39-1.6-3290

Passband38.2~39.8MHz, DC-36.8MHz≥25dB, 45-100MHz≥25dB, SMD
View Details →
ZBF20-L40-0-323 Filter

Filter ZBF20-L40-0-323

Passband39~41MHz, DC-30MHz≥45dBc, 50-1000MHz≥45dBc, SMA
View Details →
ZBF13-L60-40-3022 Filter

Filter ZBF13-L60-40-3022

Passband40~80MHz, DC-30MHz≥60dBc, 100-600MHz≥60dBc, Pin
View Details →
ZBF13-L55-30-1097 Filter

Filter ZBF13-L55-30-1097

Passband40~70MHz, DC-26MHz≥60dB, 32MHz≥20dB, SMD
View Details →

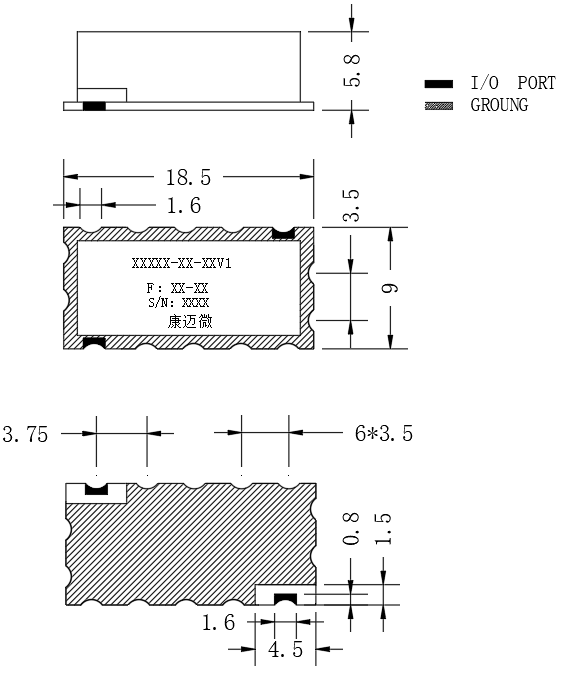

ZBF13-L46.52-15-1188 Filter

Filter ZBF13-L46.52-15-1188

Passband39.02~54.02MHz, 46.52±15.5MHz≥45dB, , SMD
View Details →

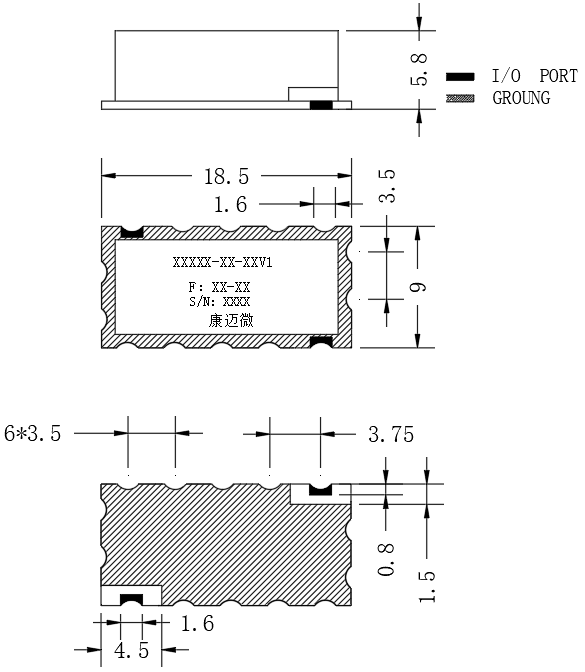

ZBF13-L46.52-15-1187 Filter

Filter ZBF13-L46.52-15-1187

Passband39.02~54.02MHz, 46.52±15.5MHz≥45dB, SMD
View Details →
