RF Filter

Total 16 models
Categories
Categories RF Filter
RF Filter16037
RF Filter15365 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification604
RF Amplifier604
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller641
Limiter77 RF Switch359 Equalizer45 Switching filter62 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
364 - 365 3 366 - 370 2 380 - 387 7 390 - 398 3 3000 1
–
Connector
SMD 2 SMA 5 N 3 Microstrip needle 6
Power Handling
0.5 - 1 4 2 - 5 5 10 - 15 3 50 - 300 3 400 1
–
Maximum loss of side frequency dB
0.8 - 1 5 1.5 - 2 5 3 - 3.5 3 4 3
–
Rejection dB
11 - 20 2 30 - 40 4 45 - 50 5 60 - 65 3 70 - 80 2
–
F Low MHz
360 12 361 1 362 1 363 1 364 1
–
Feature
Bandpass 11 Highpass 1 Notch 4
Center frequency MHz
363 1 364 1 370 5 375 3 380 1
–
IL on center frequency dB
0.4 1 0.5 1 1 3 2 3 3 3
–
Filter type
LC 9 Cavity&waveguide 7
F Low：360 - 364 MHz× Clear all
matches 16 models Default Newest
HF010 Filter

Filter HF010

Highpass F360~3000MHz, DC-125MHz≥40dB, 165MHz≥20dB, SMD, Substitutes RHP-225+
In Stock View Details →

Filter ZTZBF13-C370-20-738

Passband360~380MHz, DC-320MHz≥70dBc, 500-1000MHz≥50dBc, N
In Stock View Details →
ZBSF6-C364-364-5659 Filter

Filter ZBSF6-C364-364-5659

Center Frequency364MHz, ≥20dBc, PassbandDC~356MHz, 372~1000MHz,
View Details →
ZBSF3-L360-370-2560 Filter

Filter ZBSF3-L360-370-2560

Stopband F360~370MHz, ≥40dB, PassbandDC~330MHz, 400~1350MHz, SMA
View Details →
ZBSF15-L361-365-2862 Filter

Filter ZBSF15-L361-365-2862

Stopband F361~365MHz, ≥11dB, Passband225~345MHz, 380~1350MHz, Pin
View Details →
ZBSF15-L360-365-1516 Filter

Filter ZBSF15-L360-365-1516

Stopband F360~365MHz, ≥45dBc, Passband110~300MHz, 450~1000MHz, Pin
View Details →
ZBF5-L375-30-3360 Filter

Filter ZBF5-L375-30-3360

Passband360~390MHz, DC-320MHz≥45dBc, 430-1000MHz≥45dBc, Pin
View Details →
ZBF5-L375-30-3279 Filter

Filter ZBF5-L375-30-3279

Passband360~390MHz, DC-320MHz≥50dBc, 430-1000MHz≥50dBc, SMA-K
View Details →
ZBF5-L280-36-2201 Filter

Filter ZBF5-L280-36-2201

Center Frequency280MHz, -3dB BW36MHz, DC-239MHz≥30dBc, 321-500MHz≥30dBc, Pin
View Details →

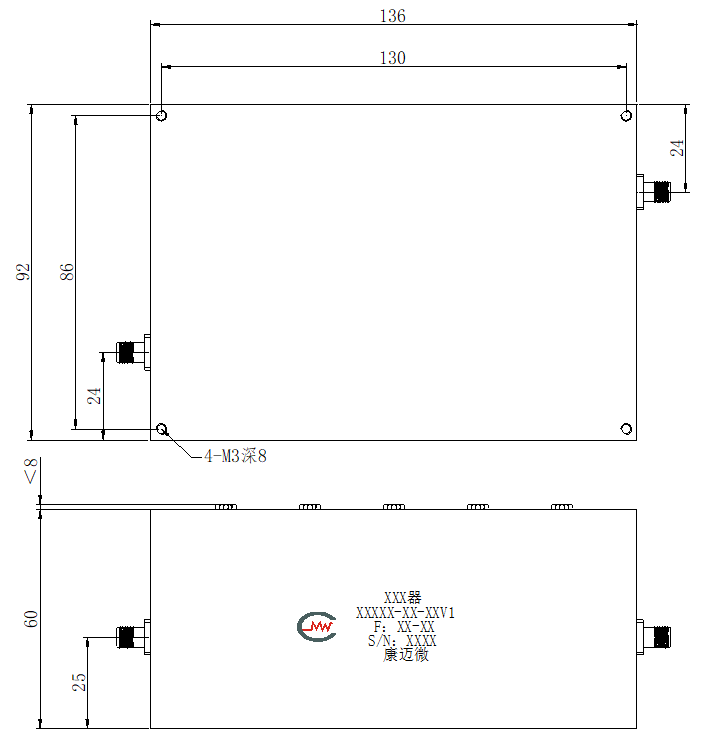

ZBF4-C370-20-008 Filter

Filter ZBF4-C370-20-008

Passband360~380MHz, DC-352MHz≥50dB, 388-1200MHz≥50dB, SMA
View Details →
ZBF3-L375-24-2809 Filter

Filter ZBF3-L375-24-2809

Passband363~387MHz, 356MHz≥20dBc, 394MHz≥20dBc, Pin
View Details →
ZBF3-C265-230-4567 Filter

Filter ZBF3-C265-230-4567

Passband150~170MHz, Passband360~380MHz, DC-130MHz≥60dB, 420-470MHz≥60dB, N
View Details →

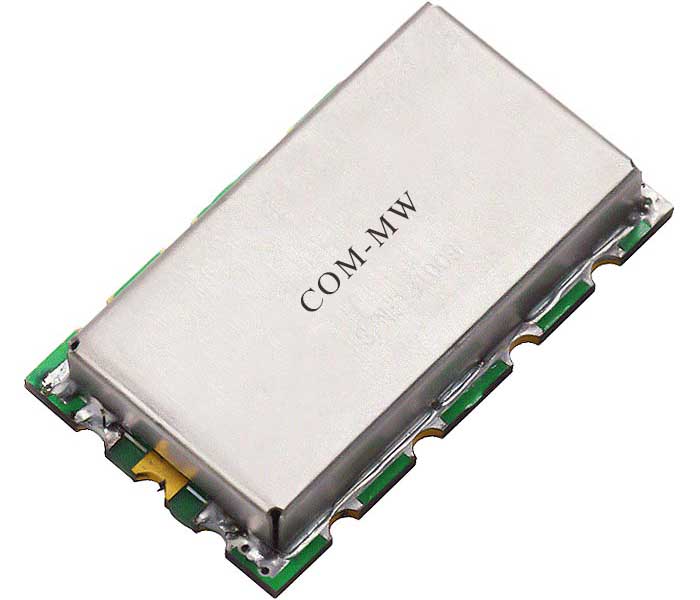

ZBF13-L370-20-2420 Filter

Filter ZBF13-L370-20-2420

Passband360~380MHz, DC-320MHz≥50dBc, 420-1000MHz≥50dBc, SMD
View Details →
ZBF13-C370-20-2669 Filter

Filter ZBF13-C370-20-2669

Passband360~380MHz, DC-320MHz≥35dBc, Pin
View Details →
ZBF13-C370-20-105 Filter

Filter ZBF13-C370-20-105

Passband360~380MHz, DC-260MHz≥80dBc, 400-470MHz≥60dBc, N
View Details →
ZBF13-C363-6-321 Filter

Filter ZBF13-C363-6-321

Passband360~366MHz, DC-351MHz≥60dB, 0.375-1GHz≥60dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
