RF Filter

Total 35 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
356 - 385 7 390 - 414 7 450 - 530 8 550 - 850 7 2000 - 11000 6
–
Connector
SMD 10 SMA 9 N 2 Microstrip pad 2 Microstrip needle 12
Power Handling
0.1 - 0.32 3 0.5 - 1 12 2 - 3 13 5 - 50 6 100 1
–
Ways 路
4 1 6 1
–
Maximum loss of side frequency dB
0.5 - 1 6 1.1 - 1.2 2 1.5 - 2 14 2.5 - 3 11 3.5 1
–
Rejection dB
15 - 25 4 26 - 35 8 40 - 43 10 50 - 65 11 70 2
–
F Low MHz
350 26 354 2 355 4 356 2 357 1
–
Feature
Bandpass 21 low pass 3 Highpass 2 Notch 6
Center frequency MHz
355 - 375 6 377 - 406 6 431 - 450 6 480 - 1175 5
–
IL on center frequency dB
0.3 1 0.5 3 1 10 2 8
–
Insertion loss dB
1.6 1
–
Filter type
LC 28 Cavity&waveguide 2 MMIC 2
F Low：350 - 357 MHz× Clear all
matches 35 models Default Newest
WLD003020-HK Filter

Filter WLD003020-HK

Passband350~2000MHz, 200MHz≥35dBc, Microstrip pad, MMIC
In Stock View Details →
WLD003006K Filter

Filter WLD003006K

Passband350~550MHz, 270MHz≥20dBc, 650MHz≥20dBc, Microstrip pad, MMIC
In Stock View Details →
ZHPF3-L350-8000-4093 Filter

Filter ZHPF3-L350-8000-4093

Passband350~11000MHz, Passband IL, Passband IL, DC-160MHz≥70dB, 160-220MHz≥40dB, SMD
In Stock View Details →
ZBF2-L406-100-3131 Filter

Filter ZBF2-L406-100-3131

Passband356~456MHz, DC-200MHz≥50dB, 200-210MHz≥30dB, SMA
In Stock View Details →
ZLPF-L350-600-3093 Filter

Filter ZLPF-L350-600-3093

Passband350~600MHz, 0.75-4.1GHz≥30dB, 4.1-6.5GHz≥65dB, Pin
In Stock View Details →
ZBF15-L400-100-2807 Filter

Filter ZBF15-L400-100-2807

Passband350~450MHz, DC-220MHz≥40dBc, 600-2000MHz≥40dB, SMA
In Stock View Details →

Component ZS2-450-1700-2462

350~550MHz, 900~1300MHz, 1300~2100MHz, 650~1100MHz, 1100~1500MHz, 450~750MHz, Pin
View Details →
ZLPF2-L0.35-2G-1762 Filter

Filter ZLPF2-L0.35-2G-1762

Passband0.35~2GHz, 2.6-6GHz≥35dBc, Pin
View Details →
ZCB13-C350-366-1655 Diplexer

Diplexer ZCB13-C350-366-1655

Passband F1350~356MHz, Passband F2360~366MHz, SMA
View Details →
ZBSF4-L350-400-1792 Filter

Filter ZBSF4-L350-400-1792

Stopband F350~400MHz, ≥25dB, PassbandDC~300MHz, 500~6000MHz, SMA
View Details →
ZBSF3-L350-530-2240 Filter

Filter ZBSF3-L350-530-2240

Stopband F350~530MHz, ≥40dB, PassbandDC~300MHz, 600~1200MHz, SMA
View Details →

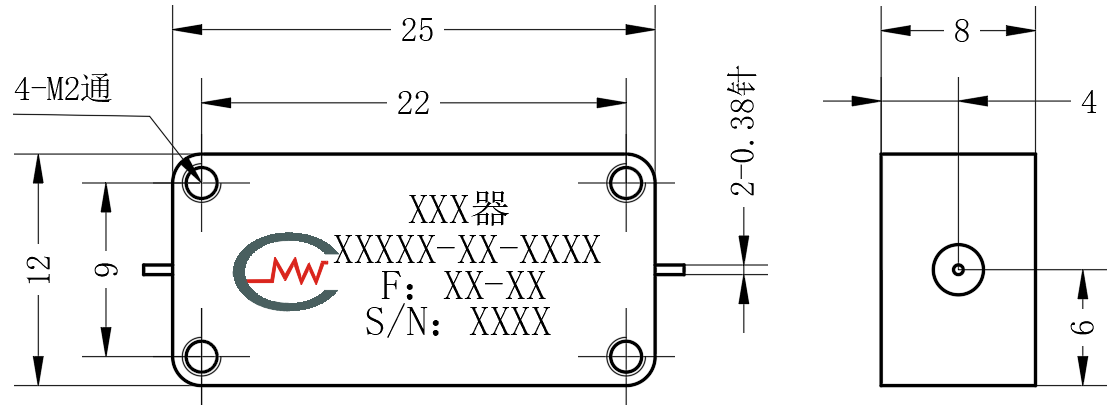

ZBSF15-L355-385-1420 Filter

Filter ZBSF15-L355-385-1420

Stopband F355~385MHz, ≥35dB, PassbandDC~330MHz, 410~500MHz, Pin
View Details →

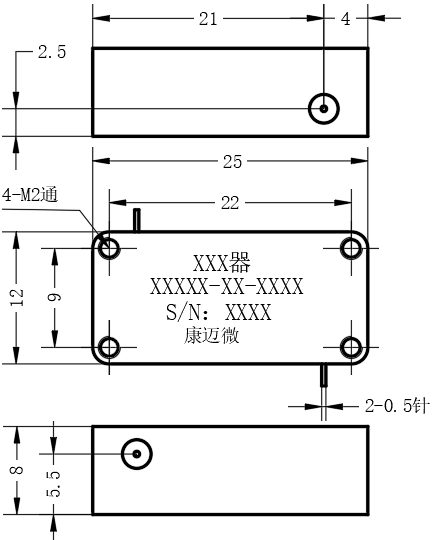

ZBSF15-L315-1350-592 Filter

Filter ZBSF15-L315-1350-592

Stopband F350~370MHz, ≥35dBc, PassbandDC~315MHz, 405~1350MHz, Pin
View Details →
ZBSF15-L315-1350-483 Filter

Filter ZBSF15-L315-1350-483

Stopband F350~370MHz, ≥35dBc, PassbandDC~315MHz, 405~1350MHz, Pin
View Details →

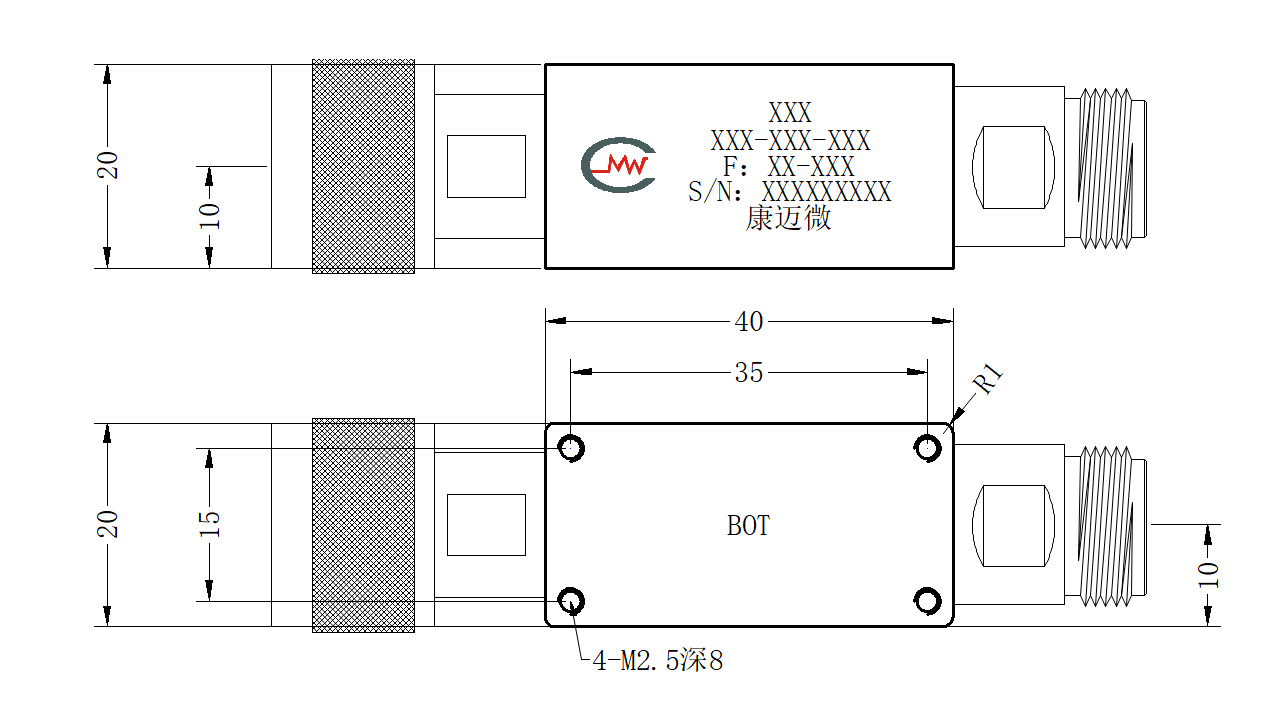

ZBSF13-L20-8000-673 Filter

Filter ZBSF13-L20-8000-673

Stopband F350~390MHz, ≥20dB, Passband20~290MHz, 470~8000MHz, N
View Details →
ZBF6-L437.5-175-2309 Filter

Filter ZBF6-L437.5-175-2309

Passband350~525MHz, DC-200MHz≥70dB, 700-4000MHz≥70dB, 微带针 Ø0.5mm
View Details →
ZBF5-L600-500-2041 Filter

Filter ZBF5-L600-500-2041

Passband350~850MHz, DC-200MHz≥40dBc, 1000-1300MHz≥40dBc, 1300-2300MHz≥30dBc, Pin
View Details →
ZBF5-L440-180-476 Filter

Filter ZBF5-L440-180-476

Passband350~530MHz, DC-250MHz≥60dB, 670-1000MHz≥60dB, SMD
View Details →
ZBF5-L440-180-038 Filter

Filter ZBF5-L440-180-038

Passband350~530MHz, DC-210MHz≥60dB, 670-1000MHz≥60dB, SMD
View Details →
ZBF3-L575-450-2475 Filter

Filter ZBF3-L575-450-2475

Passband350~800MHz, DC~200MHz≥15dBc, 1000-2000MHz≥15dBc, Pin
View Details →
ZBF3-L480-250-3209 Filter

Filter ZBF3-L480-250-3209

Passband355~605MHz, DC-285MHz≥40dB, 675-1500MHz≥40dB, SMD
View Details →
ZBF3-L450-200-563 Filter

Filter ZBF3-L450-200-563

Passband350~550MHz, DC-200MHz≥40dB, 650-1000MHz≥40dB, Pin
View Details →
ZBF3-L384-55-2425 Filter

Filter ZBF3-L384-55-2425

Passband356.5~411.5, 500-1000MHz≥30dB, DC-200MHz≥30dB, SMA
View Details →
ZBF3-L375-40-2387 Filter

Filter ZBF3-L375-40-2387

Passband355~395MHz, DC-295MHz≥50dB, 455-1000MHz≥50dB, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
