RF Filter

Total 19 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
348 - 351 4 360 - 400 6 412.5 - 440 2 450 - 459 4 512 - 660 3
–
Connector
SMD 6 SMA 7 N 1 Microstrip needle 5
Power Handling
1 - 2 15 5 - 20 2 50 - 300 2
–
Maximum loss of side frequency dB
0.9 - 1 3 1.5 - 2 7 2.5 - 3 4 3.5 - 4 2 5.5 1
–
Rejection dB
30 - 40 7 45 - 50 5 52 - 55 2 60 - 75 4 80 1
–
F Low MHz
337.5 1 338 3 339 2 340 10 344 3
–
Feature
Bandpass 16 Highpass 1
Center frequency MHz
343 - 347.5 2 350 - 370 6 375 - 390 2 394 - 399 4 426 - 500 2
–
IL on center frequency dB
0.4 - 0.5 2 1 - 1.5 8 2 - 3 5 4.5 1
–
Insertion loss dB
1 1 1.3 1
–
Filter type
LC 15 Cavity&waveguide 2
F Low：337.5 - 344 MHz× Clear all
matches 19 models Default Newest
ZBF14-L350-20-749 Filter

Filter ZBF14-L350-20-749

Passband340~360MHz, DC-310MHz≥40dB, 400-1500MHz≥40dB, SMD
In Stock View Details →
ZBF14-L350-20-750 Filter

Filter ZBF14-L350-20-750

Passband340~360MHz, DC-310MHz≥40dB, 400-1500MHz≥40dB, SMA-K
In Stock View Details →
ZBF-L500-320-3752 Filter

Filter ZBF-L500-320-3752

Passband340~660MHz, DC-200MHz≥40dBc, 850-2100MHz≥40dBc, Pin
In Stock View Details →
ZHPF3-L340-512-2728 Filter

Filter ZHPF3-L340-512-2728

Passband340~512MHz, DC-172MHz≥52dBc, Pin
View Details →
ZCB4-C344-396-620 Diplexer

Diplexer ZCB4-C344-396-620

Passband F1344~351MHz, Passband F2381~396MHz, SMA
View Details →
ZCB13-C344-396-2118 Diplexer

Diplexer ZCB13-C344-396-2118

Passband F1344~351MHz, Passband F2381~396MHz, N
View Details →
ZBF6-H343-10-2511 Filter

Filter ZBF6-H343-10-2511

Passband338~348MHz, DC-298MHz≥40dB, 388-650MHz≥40dB, SMA
View Details →
ZBF3-L426-172-2858 Filter

Filter ZBF3-L426-172-2858

Passband340~512MHz, DC-172MHz≥52dB, Pin
View Details →
ZBF3-L350-20-926 Filter

Filter ZBF3-L350-20-926

Passband340~360MHz, DC-310MHz≥50dB, 390-1000MHz≥50dB, SMD
View Details →

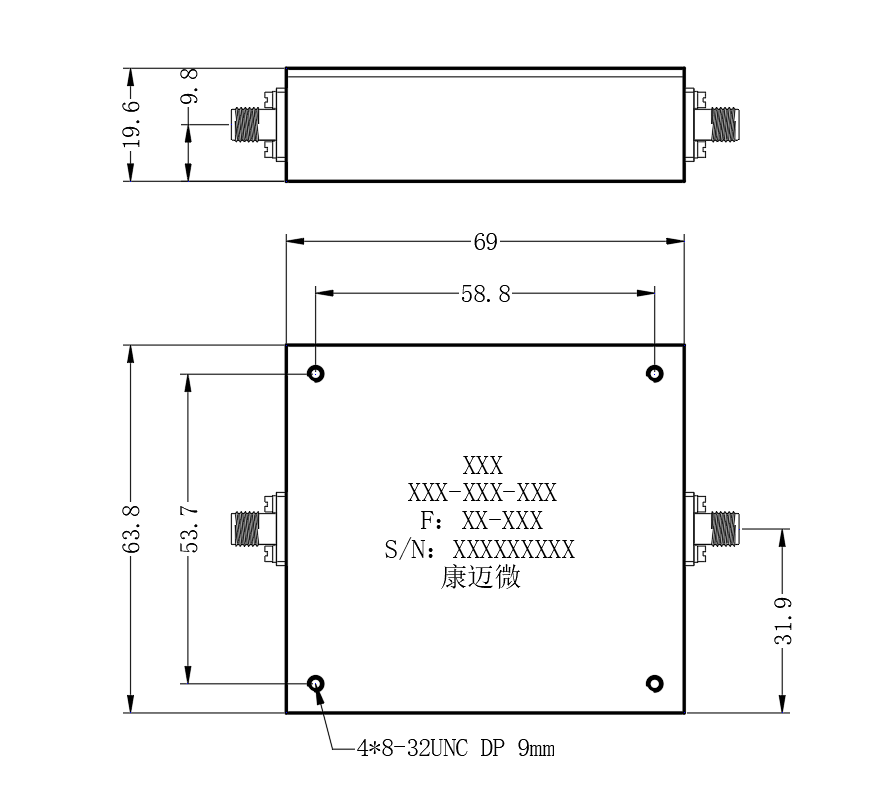

ZBF20-L370-60-246 Filter

Filter ZBF20-L370-60-246

Passband340~400MHz, 280MHz≥47dB, 630MHz≥60dB, SMA
View Details →
ZBF20-L350-20-366 Filter

Filter ZBF20-L350-20-366

Passband340~360MHz, DC-310MHz≥40dB, 400-1500MHz≥40dB, SMA
View Details →
ZBF20-L350-0-350 Filter

Filter ZBF20-L350-0-350

Passband340~360MHz, DC-300MHz≥45dBc, 400-1000MHz≥45dBc, SMA
View Details →
ZBF15-L390-100-1219 Filter

Filter ZBF15-L390-100-1219

Passband340~440MHz, DC-108MHz≥60dB, 108-270MHz≥30dB, SMD
View Details →
ZBF15-L375-75-074 Filter

Filter ZBF15-L375-75-074

Passband337.5~412.5MHz, dBc, SMD
View Details →
ZBF13-L399-120-2898 Filter

Filter ZBF13-L399-120-2898

Passband339~459MHz, DC-249MHz≥30dBc, 549-3000MHz≥30dBc, Pin
View Details →
ZBF13-L399-120-2842 Filter

Filter ZBF13-L399-120-2842

Passband339~459MHz, DC-200MHz≥50dBc, 0.6-4GHz≥50dBc, Pin
View Details →
ZBF-BC347.5-7-2190 Filter

Filter ZBF-BC347.5-7-2190

Passband344~351MHz, DC-330MHz≥40dBc, 340MHz≥15dBc, SMA
View Details →
SC-BP394-3DB Filter

Filter SC-BP394-3DB

Passband338~450MHz, DC-88MHz≥50dBc, 228-282MHz≥30dBc, SMD
View Details →
SC-BP394-112 Filter

Filter SC-BP394-112

Passband338~450MHz, DC-88MHz≥50dBc, 228-282MHz≥30dBc, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
