RF Filter

Total 80 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification601
RF Amplifier601
Connector1427
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter192 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1490
Load228 Attenuator885 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
2882 - 2945 13 2950 - 3035 15 3050 - 3300 21 3345 - 3900 16 4100 - 18000 15
–
Connector
SMD 11 SMA 27 Microstrip pad 10 Microstrip needle 32
Power Handling
0.1 - 0.32 5 1 - 2 30 5 - 10 37 15 - 20 5 50 - 60 3
–
Maximum loss of side frequency dB
0.5 - 1.2 10 1.5 - 2.6 32 3 - 3.6 25 4 - 5 12 5.5 1
–
Rejection dB
25 - 30 4 35 - 40 21 43 - 50 20 55 - 65 19 70 - 80 16
–
F Low MHz
2845 - 2870 11 2875 - 2900 40 2920 - 2938.5 8 2950 - 2975 18 2980 - 2984 3
–
Feature
Bandpass 71 Highpass 5 Notch 4
Center frequency MHz
2870 - 2940 16 2950 - 3050 25 3075 - 3200 14 3250 - 3800 11 3850 - 10450 6
–
IL on center frequency dB
0.3 - 0.5 9 1 - 1.6 26 2 - 2.6 22 3 - 3.5 8 4 - 4.5 6
–
Filter type
LC 22 Cavity&waveguide 35 stripline 9 Coaxial 1 Thin film 5 MMIC 2 Dielectric 4 FBAR 2
F Low：2845 - 2984 MHz× Clear all
matches 80 models Default Newest
CA0235-2410 Filter

Filter CA0235-2410

Bandwidth2.9-3.9GHz, Rejection30@DC-2.4GHz, 20@4.4-9.5GHz
In Stock View Details →
CA0219 SMD Filter

SMD Filter CA0219

Bandwidth2.85-3.65GHz, Rejection38@DC-2.3GHz, 38@4.3-8.7GHz
In Stock View Details →
CA0182 SMD Filter

SMD Filter CA0182

Bandwidth2.85-4.45GHz, Rejection40@DC-1.3GHz, 40@5.9-10.0GHz
In Stock View Details →
CA0035 SMD Filter

SMD Filter CA0035

Center Frequency2.93GHz, Rejection35@DC-2.6GHz, 35@3.3-9.0GHz
In Stock View Details →
ZBF9-D2878-40-2392 Filter

Filter ZBF9-D2878-40-2392

Passband2858~2898MHz, DC-2778MHz≥40dB, 3078MHz≥40dB, SMD
In Stock View Details →
WLD029180-HK Filter

Filter WLD029180-HK

Passband290018000MHz, 2300MHz≥35dBc, Microstrip pad, MMIC
In Stock View Details →
WLD029031K Filter

Filter WLD029031K

Passband2850~3150MHz, 800MHz≥30dBc, 2000MHz≥30dBc, Microstrip pad, MMIC
In Stock View Details →
STBP3R6-1R4-M621 Thin film filter

Thin film filter STBP3R6-1R4-M621

Bandwidth2.9-4.3GHz, Rejection40@DC-1.8GHz, 35@5.5-8.5GHz
In Stock View Details →
STBP3R4-1R0-K972 Thin film filter

Thin film filter STBP3R4-1R0-K972

Bandwidth2.9-.3.9GHz, Rejection35@DC-2.1GHz, 40@4.8-6.5GHz
In Stock View Details →
STBP3R9-1R9-M580 Thin film filter

Thin film filter STBP3R9-1R9-M580

Bandwidth2.9-4.8GHz, Rejection40@DC-1.7GHz, 40@6.2-9.5GHz
In Stock View Details →
WLMF2900B080BK Filter

Filter WLMF2900B080BK

Passband2900MHz, 2.65-2.76GHz≥3035dB, 3.03-3.14GHz≥3540dB, Microstrip pad, FBAR
In Stock View Details →
WLMF2900B000BK Filter

Filter WLMF2900B000BK

Passband2900MHz, 2.8GHz≥4045dB, 3GHz≥4045dB, Microstrip pad, FBAR
In Stock View Details →
STBP3R0-0R1-M633 Thin film filter

Thin film filter STBP3R0-0R1-M633

Bandwidth2.92-3.02GHz, Rejection40@DC-2.5GHz, 40@3.5-7.5GHz
In Stock View Details →
ZBF3-D2985-170-2931 Filter

Filter ZBF3-D2985-170-2931

In Stock View Details →
ZBF8-C3.15-0.5G-2977 Filter

Filter ZBF8-C3.15-0.5G-2977

Passband2.9~3.4GHz, DC-2.6GHz≥25dB, 3.7G-8GHz≥25dB, SMA
In Stock View Details →
M3180-460-D4747 Filter

Filter M3180-460-D4747

Passband2950~3410MHz, DC-285020dBc, 3550-600045dBc, Pin
In Stock View Details →
STBP2R9-0R1-M519 Thin film filter

Thin film filter STBP2R9-0R1-M519

Bandwidth2.85-2.95GHz, Rejection40@DC-2.4GHz, 35@3.3-7.0GHz
In Stock View Details →
CC0035 Filter

Filter CC0035

Center Frequency2.95GHz, Rejection34@DC-2.6GHz, 35@3.3-9.0GHz
In Stock View Details →
ZBF3-D2900-0-3704 Filter

Filter ZBF3-D2900-0-3704

Passband2900MHz, DC-2800MHz≥50dBc, 3000-5000MHz≥50dBc, SMD
View Details →
SMHP2R9-180G-50 Filter

Filter SMHP2R9-180G-50

Passband2.9~18GHz, 2.7GHz≥30dB, DC-2.4GHz≥50dB, SMA
In Stock View Details →
SH2R9A Filter

Filter SH2R9A

Bandwidth2.9-18.0GHz, Rejection40@DC-2.6GHz
View Details →
ZHPF3-L2900-6000-4349 Filter

Filter ZHPF3-L2900-6000-4349

Passband2900~8000MHz, DC-2500MHz≥45dBc, 2500-2700MHz≥15dBc, Pin
View Details →

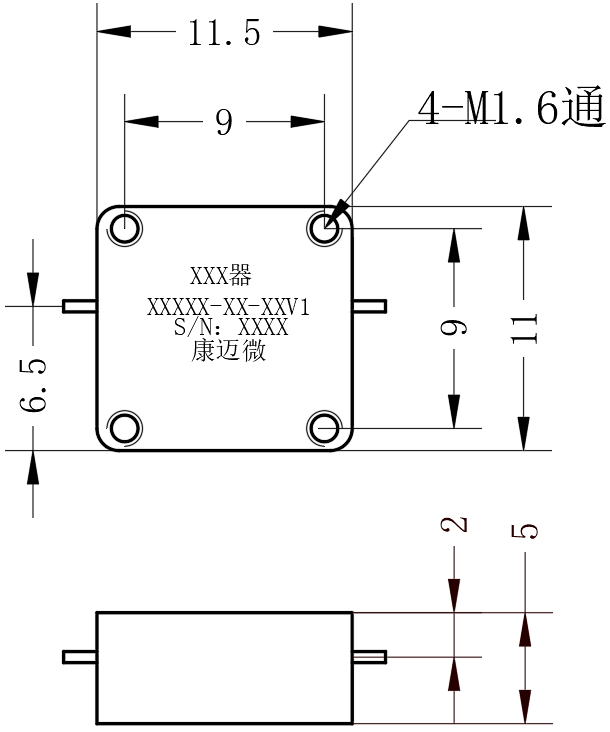

ZHPF15-L2.9-18G-1616 Filter

Filter ZHPF15-L2.9-18G-1616

Passband2.9~18GHz, DC-2.7GHz≥35dBc, dB, Pin
View Details →

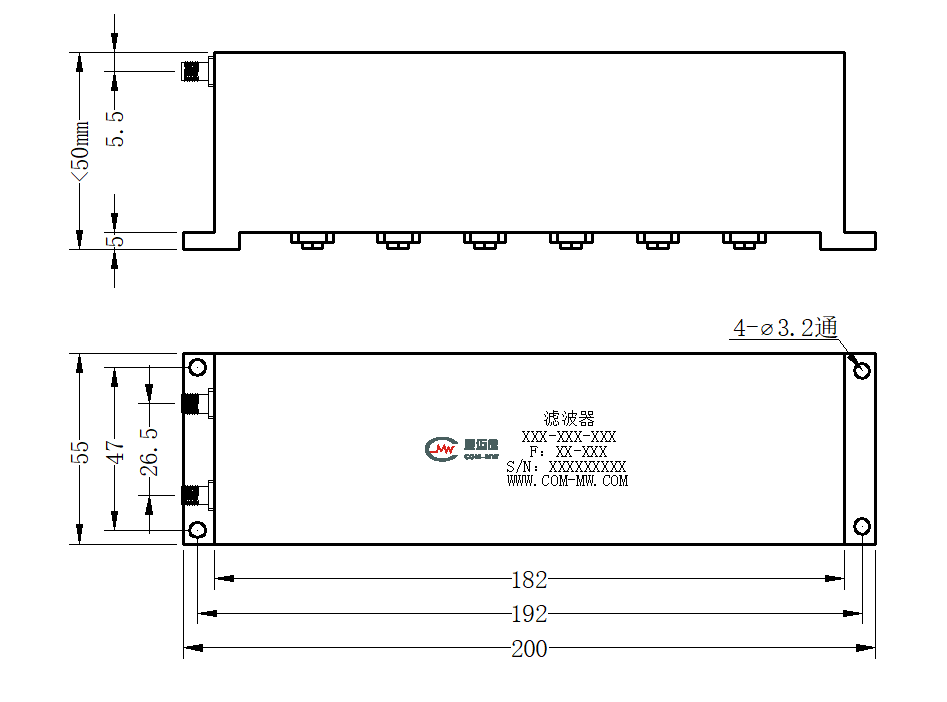

ZBSF6-C2938.5-2958.5-4047 Filter

Filter ZBSF6-C2938.5-2958.5-4047

Stopband F2938.5~2958.5MHz, ≥55dB, PassbandDC~2918.5MHz, 2978.5~4200MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
