RF Filter

Total 63 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
2600 - 2700 23 2710 - 3017 13 3100 - 4000 6 4200 - 6000 18 6300 - 18000 3
–
Connector
Other 2 SMD 7 SMA 18 N 12 Microstrip pad 5 Microstrip needle 18 SMP 1
Power Handling
0.1 - 2 26 3 - 15 12 20 - 32 5 50 - 251.19 20
–
Ways 路
3 1
–
Maximum loss of side frequency dB
0.5 - 1 4 1.2 - 1.6 11 2 - 3 33 3.5 - 4.3 10 5 4
–
Rejection dB
25 - 30 7 35 - 50 33 53 - 65 15 70 - 105 7
–
F Low MHz
2600 43 2610 3 2615 1 2617 1 2620 15
–
Feature
Bandpass 41 low pass 2 Highpass 3 Notch 16
Center frequency MHz
2600 - 2645 5 2650 - 2750 13 2800 - 2915 7 2950 - 3500 4 3600 - 10300 14
–
IL on center frequency dB
0.3 - 0.5 4 0.6 - 1.5 18 2 - 3 16 3.3 - 4 4
–
Filter type
LC 22 Cavity&waveguide 31 stripline 3 Thin film 1 MMIC 1 Dielectric 3 FBAR 1
F Low：2600 - 2620 MHz× Clear all
matches 63 models Default Newest
CA0488 SMD Filter

SMD Filter CA0488

Bandwidth2.6-2.9GHz, Rejection35@DC-2.28GHz, 40@3.4-10.0GHz
In Stock View Details →
WLD026046-2K Filter

Filter WLD026046-2K

Passband2600~4600MHz, 2200MHz≥29dBc, 5000MHz≥29dBc, Microstrip pad, MMIC
In Stock View Details →
WLMF2600B000BK Filter

Filter WLMF2600B000BK

Passband2600MHz, 2.5GHz≥4050dB, 2.7GHz≥4050dB, Microstrip pad, FBAR
In Stock View Details →
SH2R6A Filter

Filter SH2R6A

Bandwidth2.6-18.0GHz, Rejection40@DC-2.3GHz
In Stock View Details →
ZBF4-C2.8-0.4G-1113 Filter

Filter ZBF4-C2.8-0.4G-1113

Passband2.6~3GHz, DC-2.2GHz≥50dB, 3.4-9GHz≥60dB, SMA-KDetachable
In Stock View Details →
K6-2620-2690-10N60100-003 Filter

Filter K6-2620-2690-10N60100-003

Stopband F2620~2690MHz, ≥60dB, PassbandDC~2610MHz, 2700~6000MHz, N
In Stock View Details →
K6-2620-2690-10S60100-003 Filter

Filter K6-2620-2690-10S60100-003

Stopband F2620~2690MHz, ≥60dB, PassbandDC~2610MHz, 2700~6000MHz, SMA
In Stock View Details →
ZBF2-ML3700-2200-840 Filter

Filter ZBF2-ML3700-2200-840

Passband2600~4800MHz, DC-2200MHz≥45dBc, 5.5-7.2GHz≥45dBc, Pin
In Stock View Details →
STBP2R9-0R5-K448 Thin film filter

Thin film filter STBP2R9-0R5-K448

Bandwidth2.6-3.1GHz, Rejection40@DC-1.8GHz, 40@4.0-6.0GHz
In Stock View Details →
ZBSF6-C2600-2680-5876 Filter

Filter ZBSF6-C2600-2680-5876

Stopband F2600~2680MHz, ≥50dB, PassbandDC~2590MHz, 2690~6000MHz, N
In Stock View Details →
ZBF9-D2700-180-2924 Filter

Filter ZBF9-D2700-180-2924

Passband2610~2790MHz, DC-2510MHz≥45dBc, 2890MHz≥45dBc, SMD
In Stock View Details →
ZMC4-3C2600-9300-510 Combiner

Combiner ZMC4-3C2600-9300-510

2600~3100MHz, 5200~6200MHz, 7800~9300MHz, ~MHz, ~MHz, SMA
View Details →

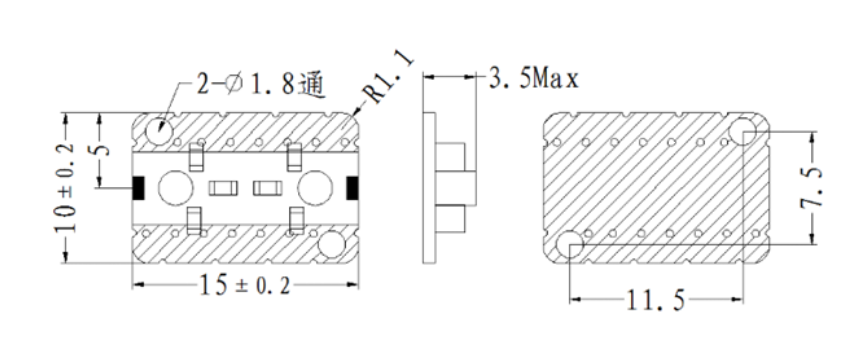

ZLPF2-L2600-4700-2631 Filter

Filter ZLPF2-L2600-4700-2631

Passband2600~4700MHz, 2nd harmonic25dBc, dB,
View Details →

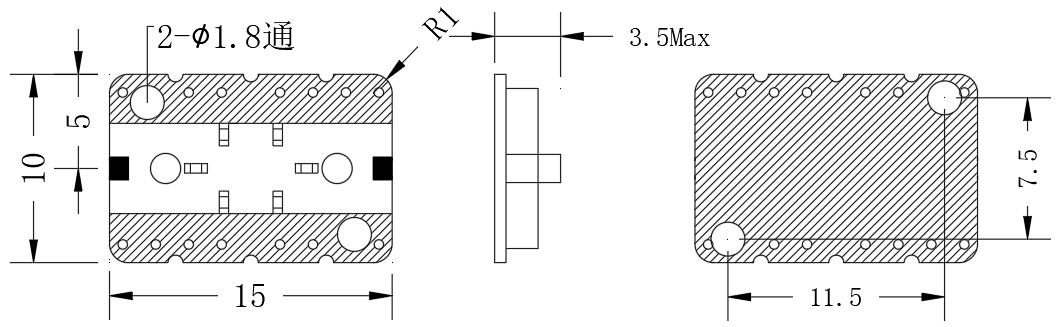

ZLPF15-L2600-4600-364 Filter

Filter ZLPF15-L2600-4600-364

Passband2600~4600, 5200-9200MHz≥40dBc, dB, Microstrip pad
View Details →
ZHPF6-M2600-6300-4473 Filter

Filter ZHPF6-M2600-6300-4473

Passband2600~6300MHz, 1300-2100MHz≥100dB, dB, SMA
View Details →
ZHPF3-L2600-6000-2476 Filter

Filter ZHPF3-L2600-6000-2476

Passband2600~6000, DC-2300MHz≥27dB, dB, Pin
View Details →
ZBSF6-C2620-2710-6008 Filter

Filter ZBSF6-C2620-2710-6008

Stopband F2620~2710MHz, ≥105dB, PassbandDC~2595MHz, 2735~6000MHz, SMA
View Details →
ZBSF6-C2620-2690-5752 Filter

Filter ZBSF6-C2620-2690-5752

Stopband F2620~2690MHz, ≥60dB, PassbandDC~2610MHz, 2700~6000MHz, N
View Details →
ZBSF6-C2620-2690-4289 Filter

Filter ZBSF6-C2620-2690-4289

Stopband F2620~2690MHz, ≥50dB, PassbandDC~2610MHz, 2700~6100MHz, N
View Details →
ZBSF6-C2600-2680-5814 Filter

Filter ZBSF6-C2600-2680-5814

Stopband F2600~2680MHz, ≥60dB, PassbandDC~2590MHz, 2690~6000MHz, N
View Details →
ZBSF4-C2.6-4G-1481 Filter

Filter ZBSF4-C2.6-4G-1481

Stopband F2600~4000MHz, ≥40dB, PassbandDC~2500MHz, 4100~8500MHz, SMA
View Details →
ZBF9-D2700-180-2815 Filter

Filter ZBF9-D2700-180-2815

Passband2610~2790MHz, DC-2500MHz≥45dB, 2900MHz≥45dB, SMD
View Details →
ZBF6-L2950-700-2129 Filter

Filter ZBF6-L2950-700-2129

Passband2600~3300MHz, DC-2200MHz≥60dB, 3700-6000MHz≥60dB, SMA
View Details →

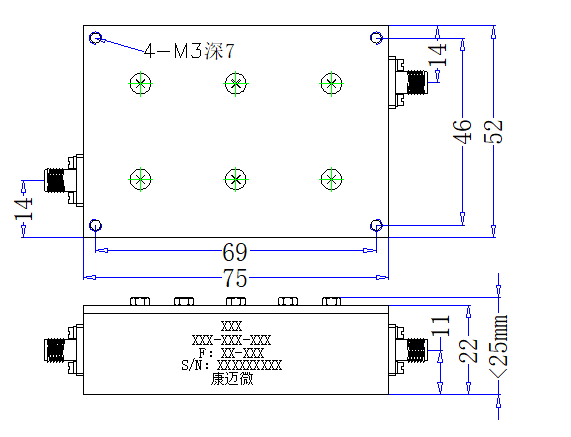

ZBF6-C2655-70-4760 Filter

Filter ZBF6-C2655-70-4760

Passband2620~2690MHz, DC-2570MHz≥50dB, 2740-4000MHz≥50dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
