RF Filter

Total 36 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
2505 - 2510 3 2570 - 2580 2 2687 - 2690 26 2700 - 2810 4 2904 1
–
Connector
SMD 1 SMA 21 N 13
Power Handling
1 - 2 2 10 - 20 6 50 - 100 23 150 5
–
Maximum loss of side frequency dB
1.2 - 1.5 3 2 - 2.5 12 3 - 3.5 19 4 - 5 2
–
Rejection dB
40 - 50 15 53 - 55 2 60 - 70 12 80 - 90 7
–
F Low MHz
2490 4 2494 1 2495 2 2496 28 2499 1
–
Feature
Bandpass 11 Notch 25
Center frequency MHz
2500 3 2593 3 2598 2 2650 1 2700 1
–
IL on center frequency dB
0.6 1 1 8 2 1
–
Filter type
LC 2 Cavity&waveguide 34
F Low：2490 - 2499 MHz× Clear all
matches 36 models Default Newest
K6-2496-2690-10N60100-004 Filter

Filter K6-2496-2690-10N60100-004

Stopband F2496~2690MHz, ≥60dB, PassbandDC~2476MHz, 2710~6000MHz, N
In Stock View Details →
K6-2496-2690-10S60100-004 Filter

Filter K6-2496-2690-10S60100-004

Stopband F2496~2690MHz, ≥60dB, PassbandDC~2471MHz, 2715~6000MHz, SMA
In Stock View Details →
ZBSF6-C2496-2690-6139 Filter

Filter ZBSF6-C2496-2690-6139

Stopband F2496~2690MHz, ≥80dB, PassbandDC~2471MHz, 2715~6000MHz, N
View Details →
ZBSF6-C2496-2690-552 Filter

Filter ZBSF6-C2496-2690-552

Stopband F2496~2690MHz, ≥53dB, PassbandDC~2486MHz, 2700~3000MHz, N
View Details →

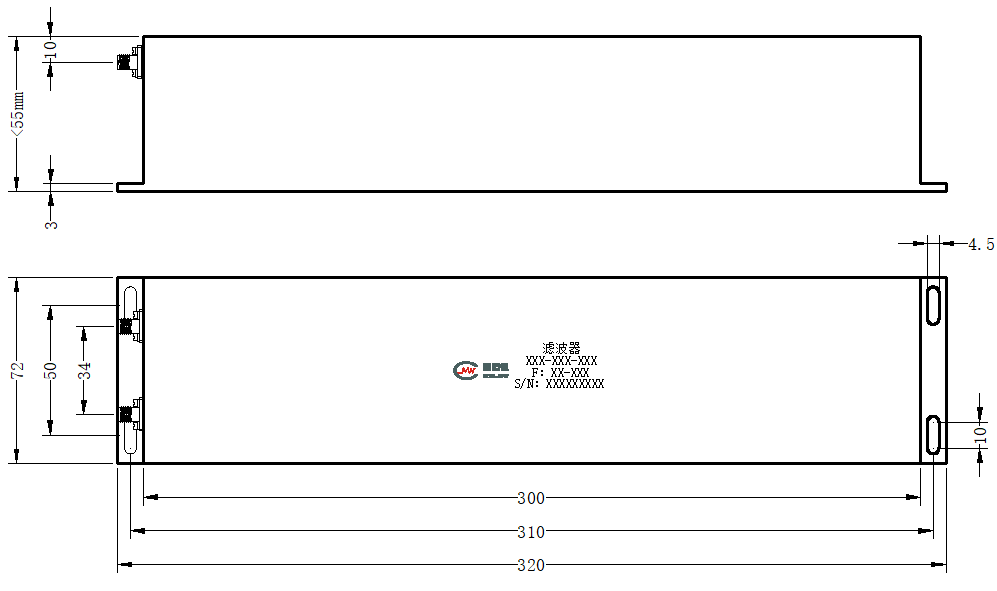

ZBSF6-C2496-2690-3045 Filter

Filter ZBSF6-C2496-2690-3045

Stopband F2496~2690MHz, ≥40dB, PassbandDC~2486MHz, 2700~6000MHz, SMA
View Details →

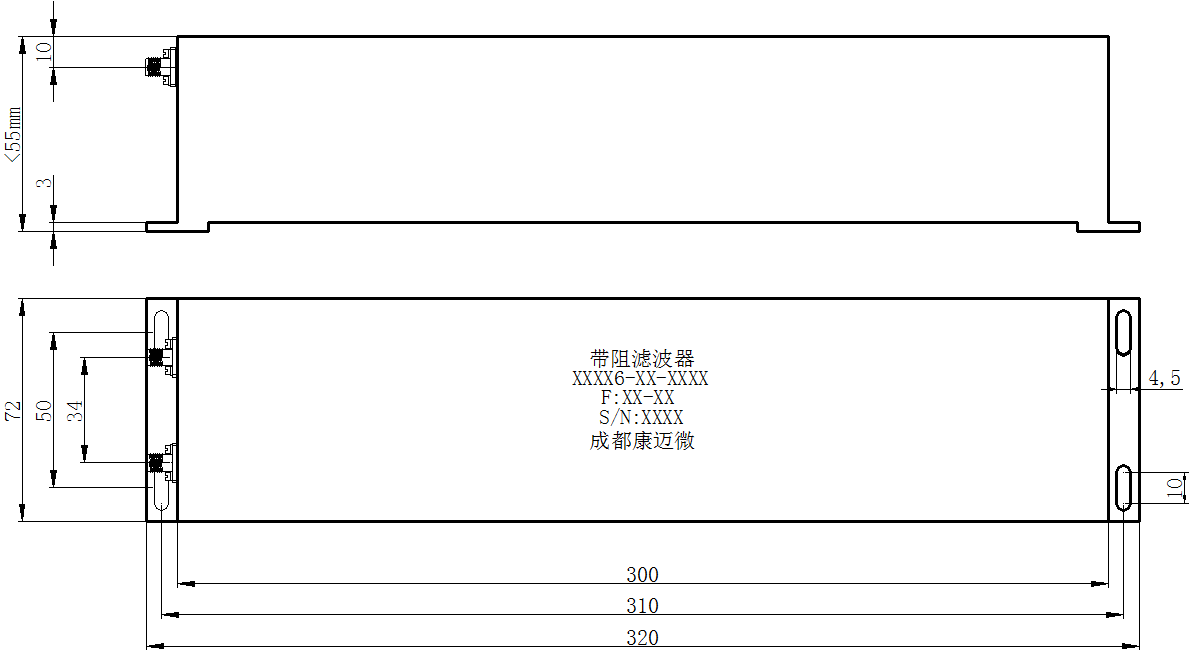

ZBSF6-C2496-2690-3034 Filter

Filter ZBSF6-C2496-2690-3034

Stopband F2496~2690MHz, ≥60dB, PassbandDC~2486MHz, 2700~6000MHz, SMA
View Details →
ZBSF6-C2496-2690-1850 Filter

Filter ZBSF6-C2496-2690-1850

Stopband F2496~2690MHz, ≥50dB, PassbandDC~2456MHz, 2730~4000MHz, SMA
View Details →
ZBSF6-C2496-2690-1695 Filter

Filter ZBSF6-C2496-2690-1695

Stopband F2496~2690MHz, ≥50dB, PassbandDC~2486MHz, 2700~4000MHz, SMA
View Details →
ZBSF6-C2496-2690-1018 Filter

Filter ZBSF6-C2496-2690-1018

Stopband F2496~2690MHz, ≥50dB, PassbandDC~2466MHz, 2720~4500MHz, SMA
View Details →
ZBSF6-C2490-2580-5225 Filter

Filter ZBSF6-C2490-2580-5225

Stopband F2490~2580MHz, ≥80dB, PassbandDC~2480MHz, 2590~6100MHz, N
View Details →
ZBSF4-2496-2690-H8 Notch filter

Notch filter ZBSF4-2496-2690-H8

Stopband F2496~2690MHz, ≥70dB, PassbandDC~2486MHz, 2700~4000MHz, SMA
View Details →
ZBSF2496-2570MHZ Filter

Filter ZBSF2496-2570MHZ

Stopband F2496~2570MHz, ≥50dB, PassbandDC~2486MHz, 2580~3000MHz, SMA
View Details →

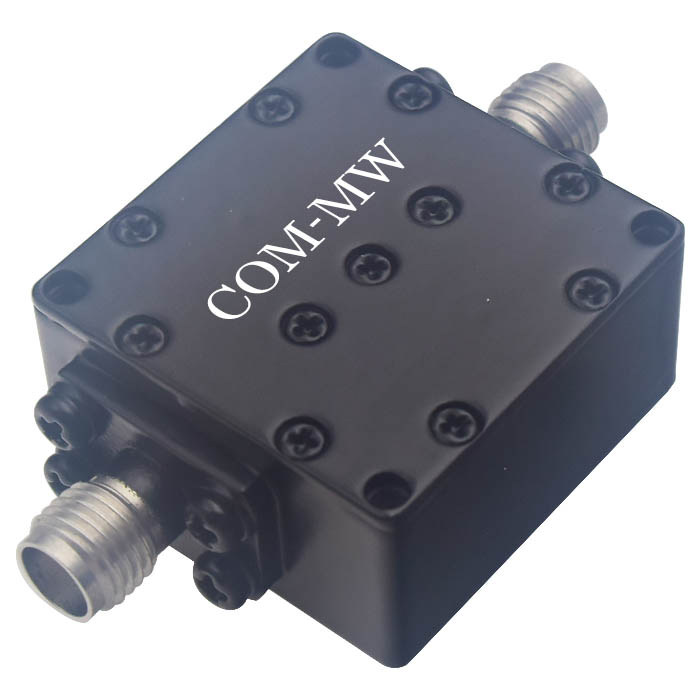

ZBSF15-L2495-2700-1623 Filter

Filter ZBSF15-L2495-2700-1623

Stopband F2495~2700MHz, ≥50dB, PassbandDC~2170MHz, 3200~18000MHz, SMA, Substitutes BRM50702
View Details →

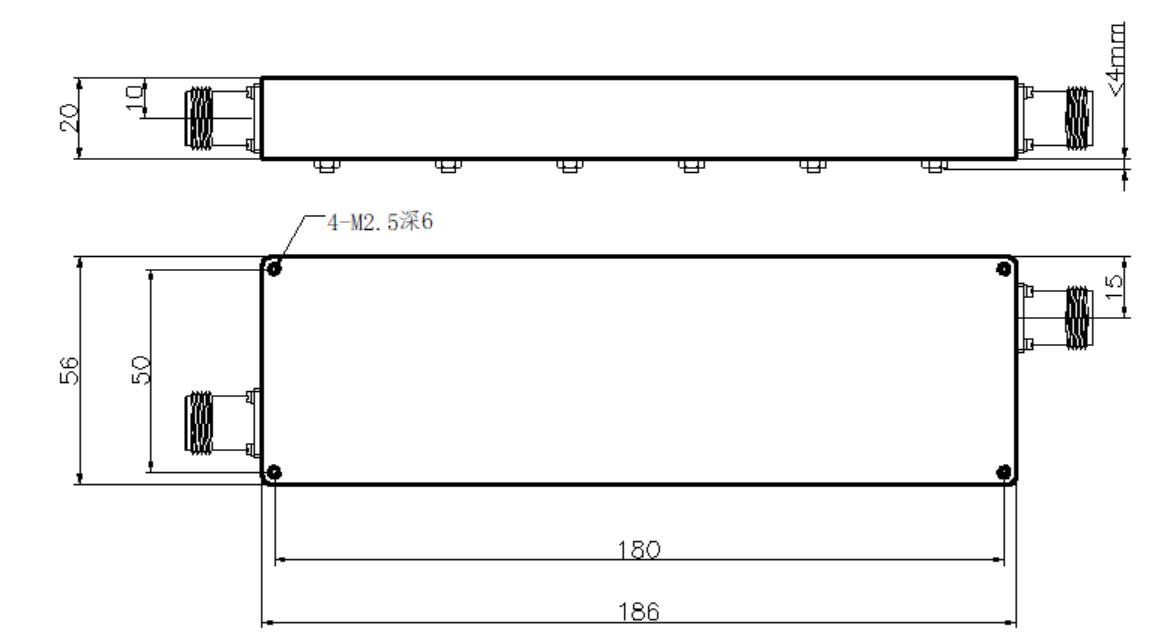

ZBF6-C2598-204-1636 Filter

Filter ZBF6-C2598-204-1636

Passband2496~2700MHz, DC-2452MHz≥80dB, 2752-8100MHz≥80dB, N
View Details →

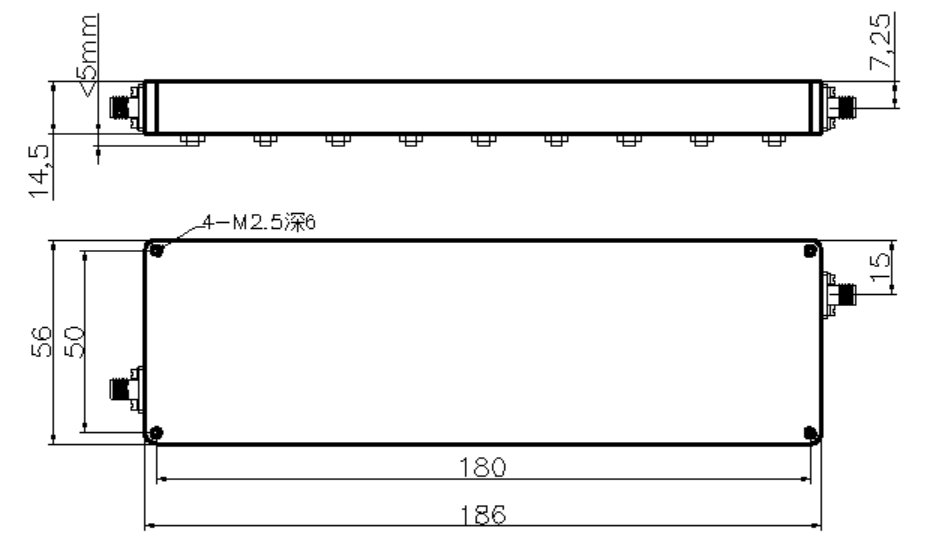

ZBF6-C2593-194-652 Filter

Filter ZBF6-C2593-194-652

Passband2496~2700MHz, DC-2452MHz≥80dB, 2752-8100MHz≥80dB, SMA
View Details →

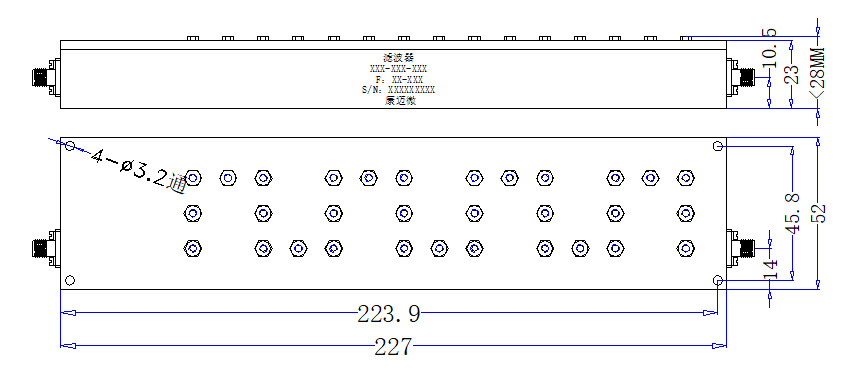

ZBF6-C2593-194-5822 Filter

Filter ZBF6-C2593-194-5822

Passband2496~2690MHz, DC-2476MHz≥70dB, 2710-13000MHz≥70dB, SMA
View Details →
ZBF6-C2593-194-5198 Filter

Filter ZBF6-C2593-194-5198

Passband2496~2690MHz, DC-2400MHz≥40dB, 2780-5000MHz≥40dB, SMA
View Details →
ZBF6-C2593-194-1650 Filter

Filter ZBF6-C2593-194-1650

Passband2496~2690MHz, DC-2366MHz≥90dB, 2820-4000MHz≥90dB, N
View Details →

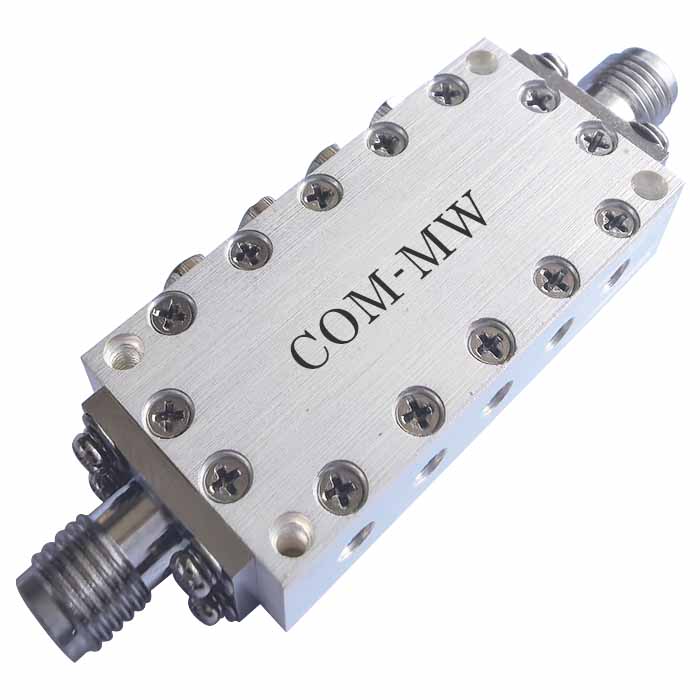

ZBF5-C2500-10-1176 Filter

Filter ZBF5-C2500-10-1176

Passband2495~2505MHz, DC-2400MHz≥50dB, 2600-3000MHz≥50dB, SMA
View Details →

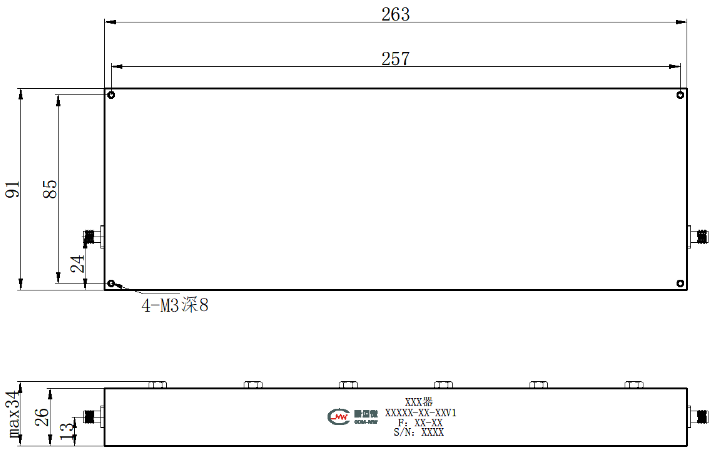

ZBF4-C2593-194-585 Filter

Filter ZBF4-C2593-194-585

Passband2496~2690MHz, DC-2471MHz≥80dB, 2715-4000MHz≥80dB, SMA
View Details →
ZBF13-L2650-320-2562 Filter

Filter ZBF13-L2650-320-2562

Passband2490~2810MHz, DC-2.25GHz≥50dBc, 3GHz≥25dBc, SMD
View Details →

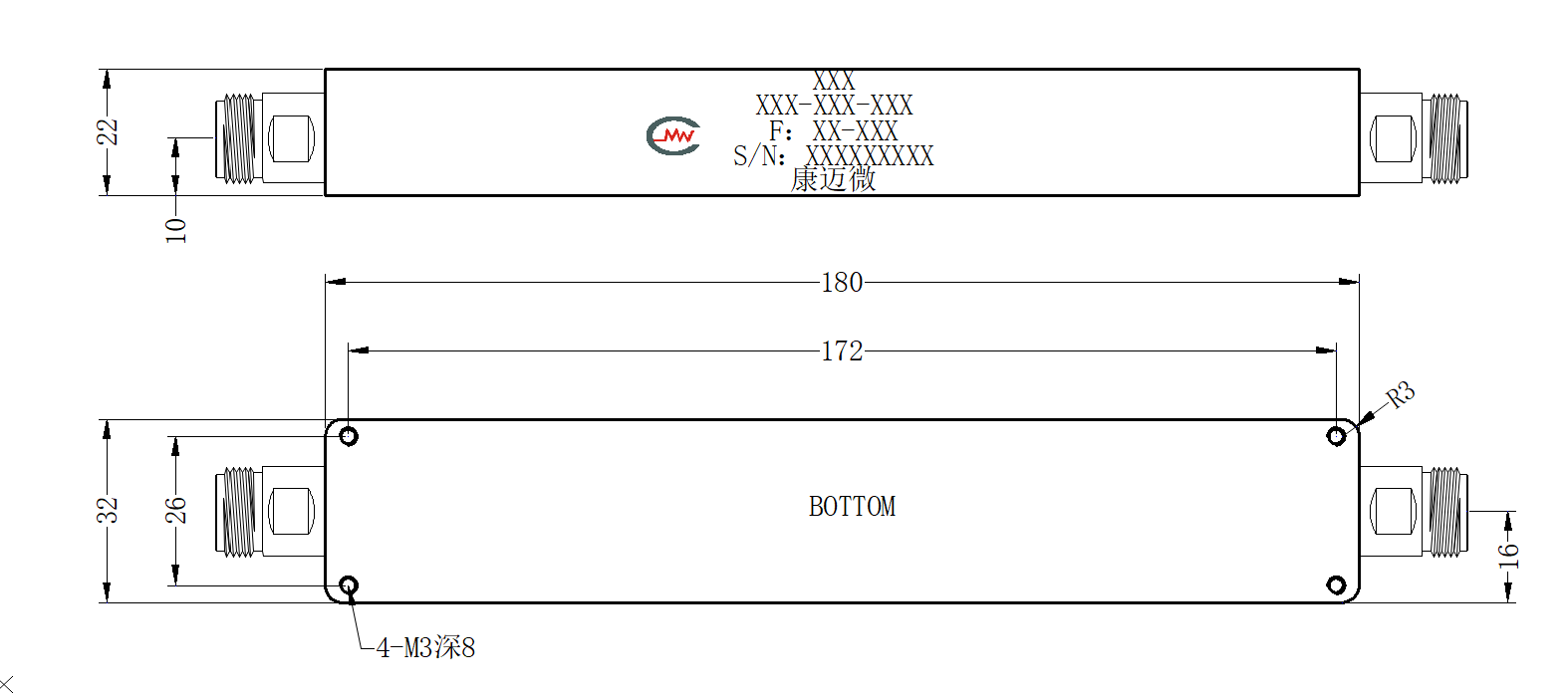

ZBF13-C2700-408-593 Filter

Filter ZBF13-C2700-408-593

Passband2496~2904MHz, DC-2456MHz≥40dB, 2.944-4GHz≥40dB, N
View Details →

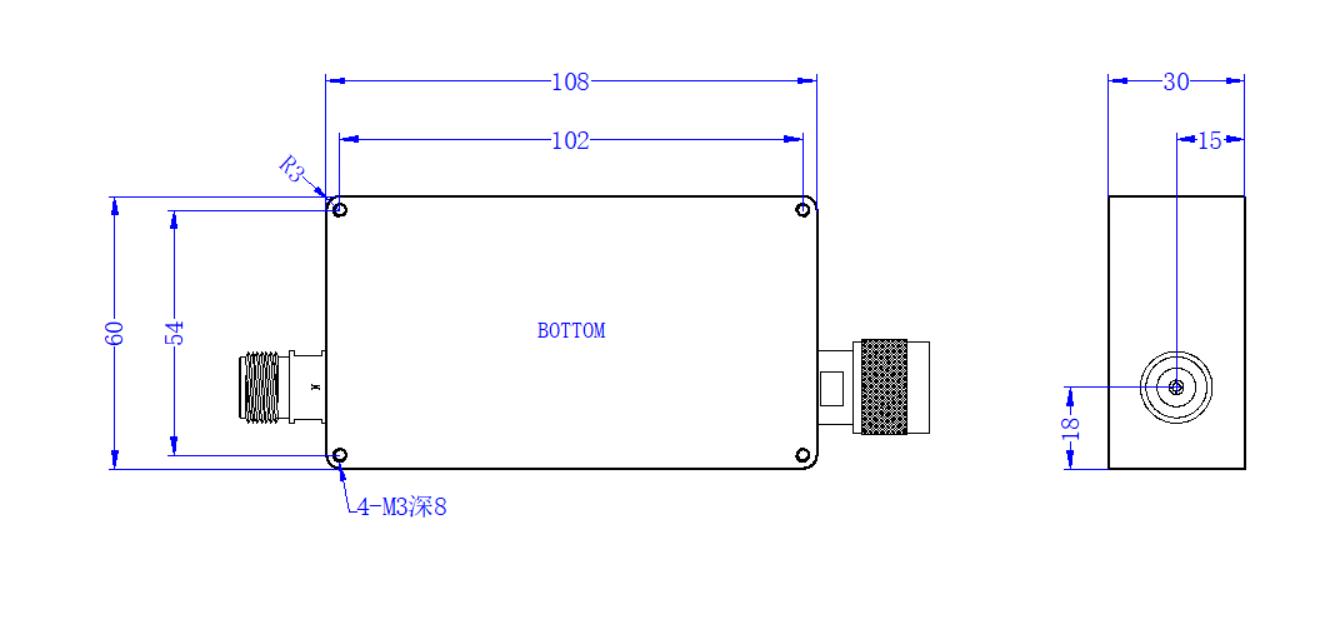

ZBF13-C2500-20-2456 Filter

Filter ZBF13-C2500-20-2456

Passband2490~2510MHz, DC-2.45GHz≥60dBc, 2.55-3GHz≥60dBc, N
View Details →

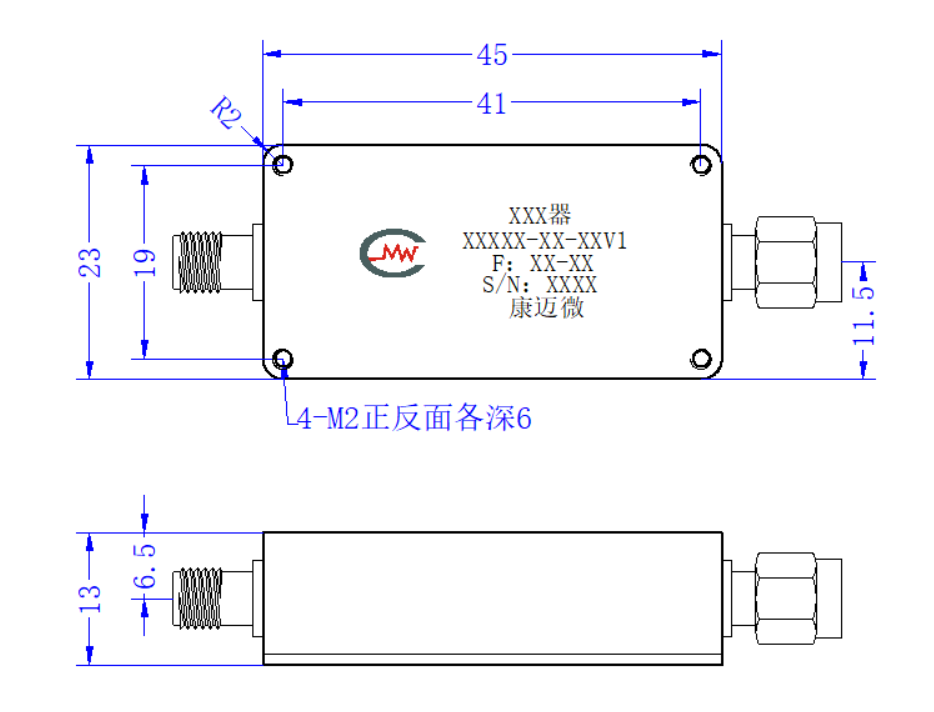

ZBF13-C2500-20-2258 Filter

Filter ZBF13-C2500-20-2258

Passband2490~2510MHz, DC-2.15GHz≥50dBc, 2.8-6GHz≥50dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
