F Low：2110 - 2188 MHz× Clear all
matches 125 models Default Newest
WLMF2185B030BK Filter

Filter WLMF2185B030BK

Passband2185MHz, 1.98-2.01GHz≥45dB, 2.145GHz≥8dB, 2.225GHz≥8dB, Microstrip pad, FBAR
In Stock View Details →
WLMF2150B000AK Filter

Filter WLMF2150B000AK

Passband2150MHz, 2.05GHz≥4045dB, 2.25GHz≥4045dB, Microstrip pad, FBAR
In Stock View Details →
WLMF2149P020AK Filter

Filter WLMF2149P020AK

Passband2149MHz, 1.394-2.049GHz≥4042dB, 2.25-2.905GHz≥4042dB, Microstrip pad, FBAR
In Stock View Details →
WLMF2102B120AK Filter

Filter WLMF2102B120AK

Passband2102MHz, 1187-1427MHz≥3540dB, 2247-2487MHz≥4050dB, Microstrip pad, FBAR
In Stock View Details →
ZBF9-D2156-40-3256 Filter

Filter ZBF9-D2156-40-3256

Passband2136~2176MHz, 2105MHz≥22dBc, 2205MHz≥18dB, SMD
In Stock View Details →
ZBF3-L3000-1680-4066 Filter

Filter ZBF3-L3000-1680-4066

Passband2160~3840MHz, DC-1840MHz≥40dBc, 1840-2000MHz≥10dBc, SMD
In Stock View Details →
K6-2110-2170-10N60100-002 Notch filter

Notch filter K6-2110-2170-10N60100-002

Stopband F2110~2170MHz, ≥60dB, PassbandDC~2100MHz, 2180~6000MHz, N
In Stock View Details →
K6-2110-2170-10S60100-001 Notch filter

Notch filter K6-2110-2170-10S60100-001

Stopband F2110~2170MHz, ≥60dB, PassbandDC~2100MHz, 2180~6000MHz, SMA
In Stock View Details →
K6-2110-2200-10S5050-004 Filter

Filter K6-2110-2200-10S5050-004

Stopband F2110~2200MHz, ≥50dB, PassbandDC~2100MHz, 2210~6000MHz, SMA
In Stock View Details →
K6-2110-2155-8S5050-004 Filter

Filter K6-2110-2155-8S5050-004

Stopband F2110~2155MHz, ≥50dB, PassbandDC~2102MHz, 2163~6000MHz, SMA
In Stock View Details →
ZBF16-C2180-10-487 Filter

Filter ZBF16-C2180-10-487

Passband2175~2185MHz, DC~2155MHz≥50dBc, 2205~5000MHz≥50dBc, N
In Stock View Details →
ZBF16-C2160-10-486 Filter

Filter ZBF16-C2160-10-486

Passband2155~2165MHz, DC~2135MHz≥50dBc, 2185~5000MHz≥50dBc, N
In Stock View Details →
ZHPF15-L2150-5000-2901 Filter

Filter ZHPF15-L2150-5000-2901

Passband2150~5000MHz, DC-1GHz≥60dB, 1000-1227MHz≥45dB, N
View Details →
ZCB4-C2170-2277.5-1258 Diplexer

Diplexer ZCB4-C2170-2277.5-1258

Passband F12170~2200MHz, Passband F22270.5~2277.5MHz, SMA
View Details →
ZBSF6-C2170-2200-5399 Filter

Filter ZBSF6-C2170-2200-5399

Stopband F2170~2200MHz, ≥50dB, PassbandDC~2164MHz, 2206~6000MHz, SMA
View Details →
ZBSF6-C2130-2230-5818 Filter

Filter ZBSF6-C2130-2230-5818

Stopband F2130~2230MHz, ≥60dB, PassbandDC~2120MHz, 2240~6000MHz, N
View Details →
ZBSF6-C2130-2150-2946 Filter

Filter ZBSF6-C2130-2150-2946

Stopband F2130~2150MHz, ≥50dB, PassbandDC~2120MHz, 2160~6000MHz, N
View Details →

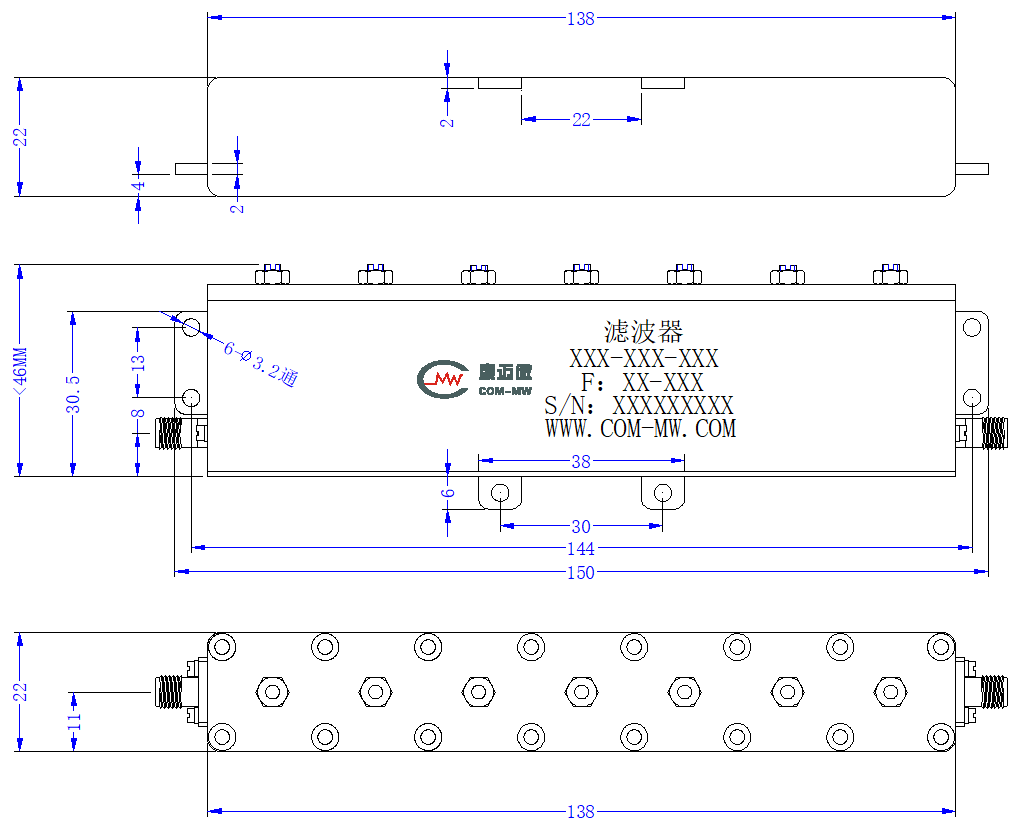

ZBSF6-C2125-2155-5387 Filter

Filter ZBSF6-C2125-2155-5387

Stopband F2125~2155MHz, ≥30dB, PassbandDC~2110MHz, 2170~6000MHz, SMA
View Details →
ZBSF6-C2120-2200-5689 Filter

Filter ZBSF6-C2120-2200-5689

Stopband F2120~2200MHz, ≥60dB, PassbandDC~2110MHz, 2210~6000MHz, N
View Details →
ZBSF6-C2110-2200-5222 Filter

Filter ZBSF6-C2110-2200-5222

Stopband F2110~2200MHz, ≥50dB, PassbandDC~2100MHz, 2210~6100MHz, N
View Details →
ZBSF6-C2110-2180-6005 Filter

Filter ZBSF6-C2110-2180-6005

Stopband F2110~2180MHz, ≥105dB, PassbandDC~2080MHz, 2250~6000MHz, SMA
View Details →

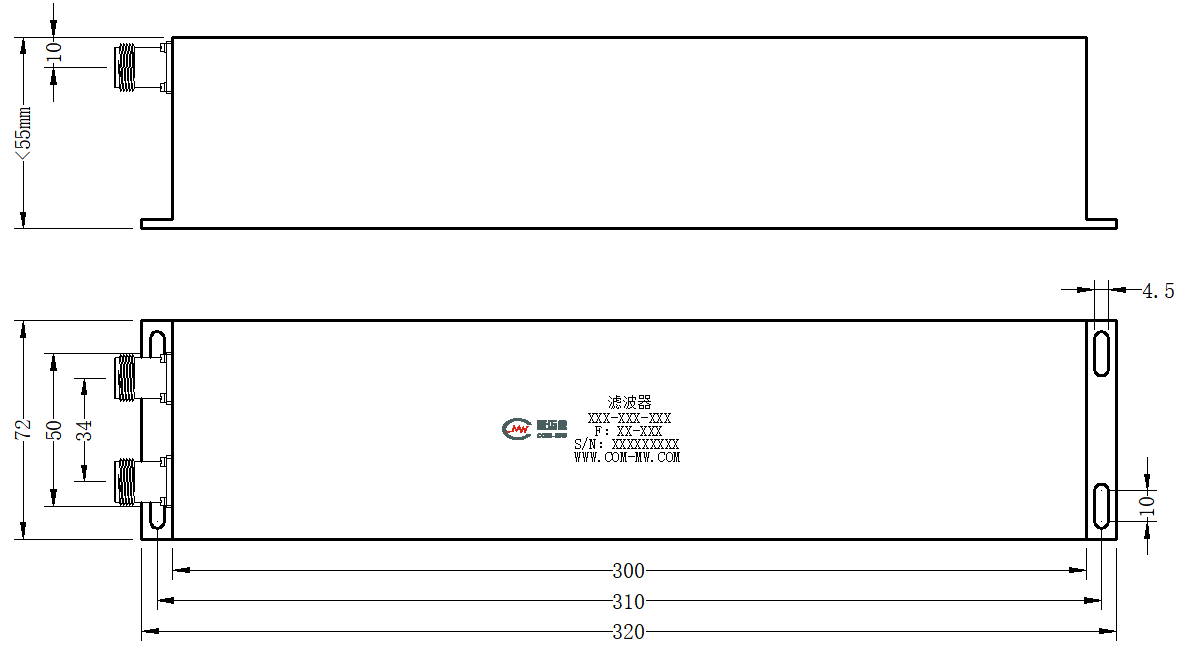

ZBSF6-C2110-2180-3818 Filter

Filter ZBSF6-C2110-2180-3818

View Details →

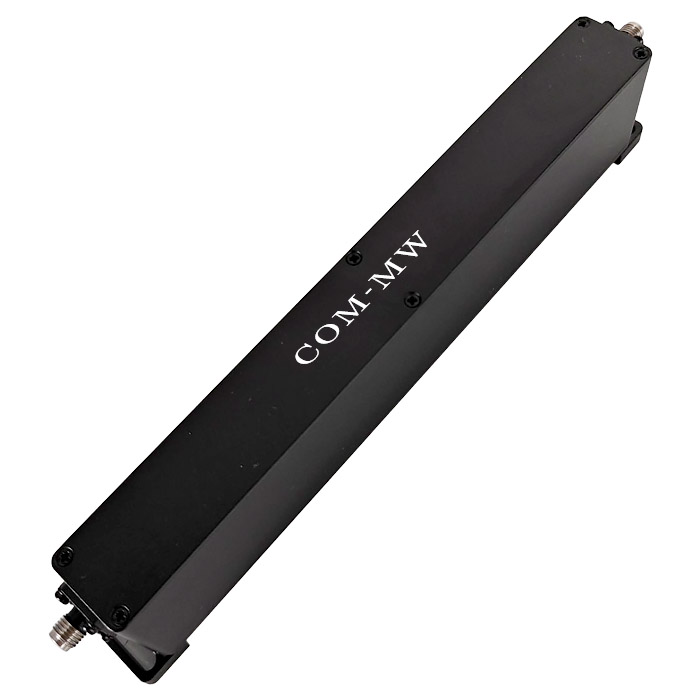

ZBSF6-C2110-2170-5568 Filter

Filter ZBSF6-C2110-2170-5568

Stopband F2110~2170MHz, ≥40dB, PassbandDC~2050MHz, 2230~6000MHz, SMA
View Details →
ZBSF6-C2110-2170-3448 Filter

Filter ZBSF6-C2110-2170-3448

Stopband F2110~2170MHz, ≥80dB, PassbandDC~2090MHz, 2190~4500MHz, N
View Details →
