Filters
Filters 1
F High MHz
1205 - 1210 10 1215 - 1218 7 1220 - 1690 15
–
Connector
SMD 6 SMA 14 Microstrip needle 11
Power Handling
1 10 2 13 5 3 10 6
–
Maximum loss of side frequency dB
1.2 - 1.6 6 2 - 3 10 3.5 - 4 8 4.5 - 5.5 3 6 - 8 5
–
Rejection dB
30 - 35 5 40 - 45 10 46 - 50 4 55 - 60 6 65 - 70 6
–
F Low MHz
1180 14 1182 1 1185 6 1190 9 1195 2
–
Feature
Bandpass 32
Center frequency MHz
1200 31 1440 1
–
IL on center frequency dB
1 - 1.5 11 2 - 3 14 4 - 6 6 7 1
–
Filter type
LC 22 Cavity&waveguide 10
F Low：1180 - 1195 MHz× Clear all
matches 32 models Default Newest
ZBF13-L1200-20-1537 Filter

Filter ZBF13-L1200-20-1537

Passband1190~1210MHz, DC-1.1GHz≥40dB, 1.3-3GHz≥40dB, SMD
In Stock View Details →
ZBF13-L1200-20-1538 Filter

Filter ZBF13-L1200-20-1538

Passband1190~1210MHz, DC-1.1GHz≥40dBc, 1.3-3GHz≥40dBc, SMA
In Stock View Details →
ZBF13-L1200-40-3618 Filter

Filter ZBF13-L1200-40-3618

Passband1180~1220MHz, DC-1.1GHz≥50dB, 1.3-4GHz≥50dB, SMD
In Stock View Details →

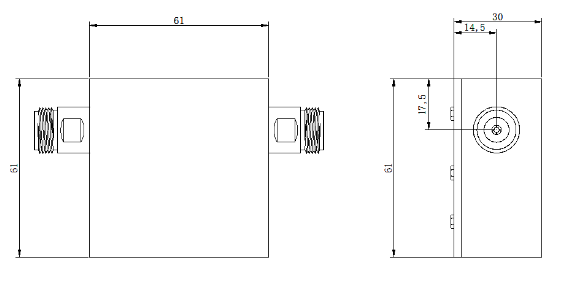

ZBF7-C1200-20-878 Filter

Filter ZBF7-C1200-20-878

Passband1190~1210MHz, DC-1100MHz≥30dB, 1300-2000MHz≥30dB, N
View Details →
ZBF5-L1200-40-3808 Filter

Filter ZBF5-L1200-40-3808

Passband1180~1220MHz, DC-900MHz≥45dB, 1575-2000MHz≥38dB, SMA
View Details →
ZBF5-L1200-30-3817 Filter

Filter ZBF5-L1200-30-3817

Center Frequency1200MHz, 1dB BW30~40MHz, dB, dB, Pin
View Details →
ZBF5-C1200-20-1347 Filter

Filter ZBF5-C1200-20-1347

Passband1190~1210MHz, DC-1150MHz≥40dBc, 1250-3000MHz≥40dBc, SMA
View Details →

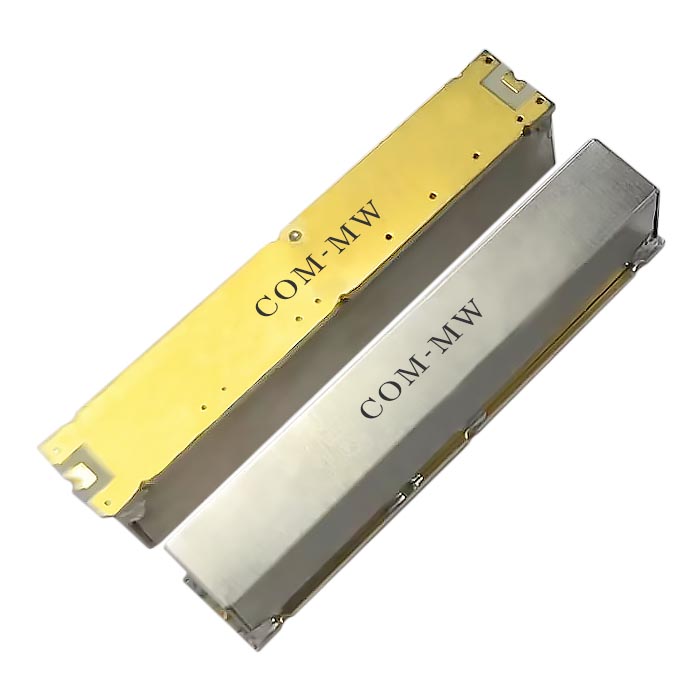

ZBF3-L1200-40-4307 Filter

Filter ZBF3-L1200-40-4307

Passband1180~1220MHz, DC-1135MHz≥40dBc, 1265-3000MHz≥40dBc, SMD
View Details →
ZBF3-L1200-40-2086 Filter

Filter ZBF3-L1200-40-2086

Passband1180~1220MHz, DC-1130MHz≥30dB, 1450MHz≥30dB, SMA
View Details →
ZBF3-L1200-30-3729 Filter

Filter ZBF3-L1200-30-3729

Passband1185~1215MHz, DC-1110MHz≥40dBc, 1290-2000MHz≥40dBc, SMD
View Details →
ZBF3-L1200-30-2435 Filter

Filter ZBF3-L1200-30-2435

Passband1185~1215MHz, DC-800MHz≥50dB, 800-1100MHz≥55dB, Pin
View Details →

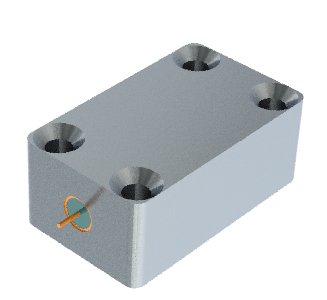

ZBF2-L1200-40-668 Filter

Filter ZBF2-L1200-40-668

Passband1180~1220MHz, DC-950MHz≥40dBc, 1500-5000MHz≥40dBc, Pin
View Details →
ZBF2-L1200-40-2588 Filter

Filter ZBF2-L1200-40-2588

Passband1180~1220MHz, DC-1120MHz≥30dBc, 1285-3000MHz≥30dBc, Pin
View Details →

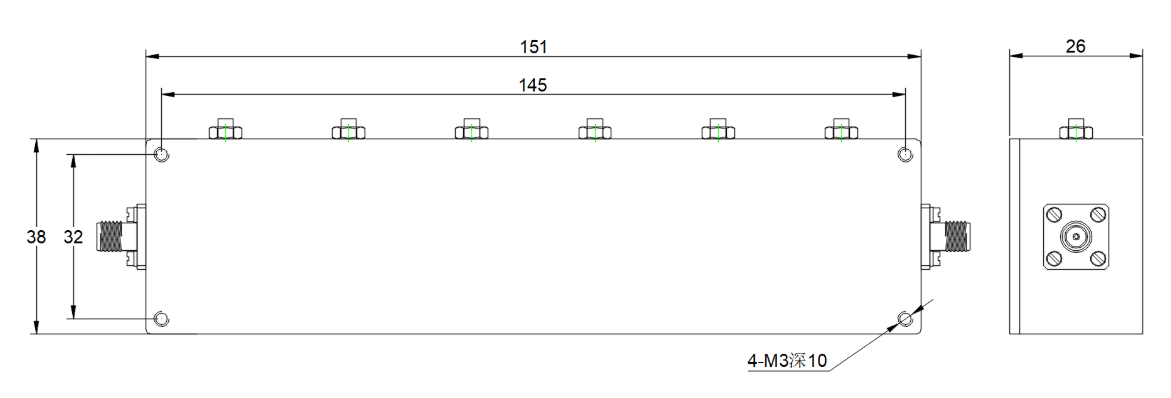

ZBF2-C1200-20-2603 Filter

Filter ZBF2-C1200-20-2603

Passband1200MHz, 1000-1117MHz≥35dB, 1220-1500MHz≥35dB, SMA
View Details →

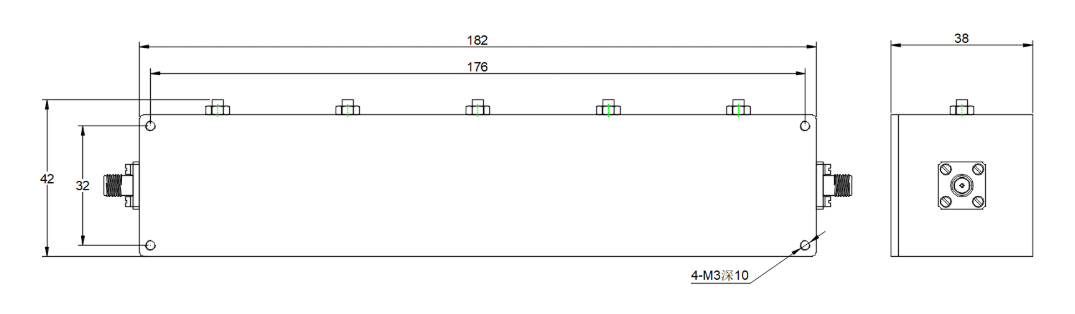

ZBF2-C1200-10-2602 Filter

Filter ZBF2-C1200-10-2602

Passband1200MHz, 1000-1185MHz≥35dB, 1215-1500MHz≥35dB, SMA
View Details →
ZBF15-L1440-500-2820 Filter

Filter ZBF15-L1440-500-2820

Passband1190~1690MHz, DC-700MHz≥60dB, 2350-3450MHz≥65dB, SMD
View Details →

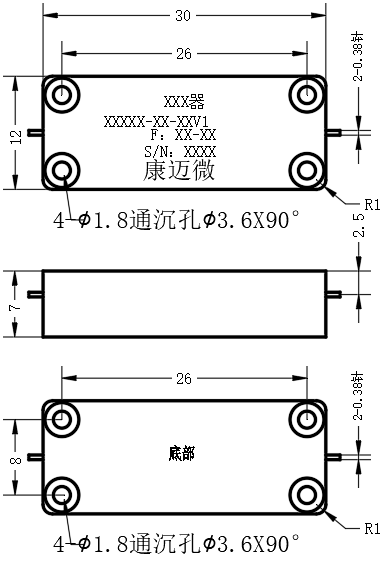

ZBF15-L1200-40-1759 Filter

Filter ZBF15-L1200-40-1759

Passband1180~1220MHz, DC-1060MHz≥50dBc, 1340-3000MHz≥50dBc, Pin
View Details →
ZBF15-L1200-40-151 Filter

Filter ZBF15-L1200-40-151

Passband1180~1220MHz, 1060MHz≥50dBc, 900-940MHz≥55dBc, 120-320MHz≥40dBc, 1300-3000MHz≥40dBc, Pin
View Details →
ZBF15-L1200-30-152 Filter

Filter ZBF15-L1200-30-152

Passband1185~1215MHz, DC-170MHz≥40dBc, 1130MHz≥50dBc, 1045-1075MHz≥60dBc, 1300-3000MHz≥35dBc, Pin
View Details →
ZBF15-L1200-20-1722 Filter

Filter ZBF15-L1200-20-1722

Passband1190~1210MHz, DC-870GHz≥70dBc, 1.5-3GHz≥45dBc, Pin
View Details →
ZBF13-L1200-40-2510 Filter

Filter ZBF13-L1200-40-2510

Passband1180~1220MHz, F0±100MHz≥30dB, F0±150MHz≥40dB, SMA
View Details →

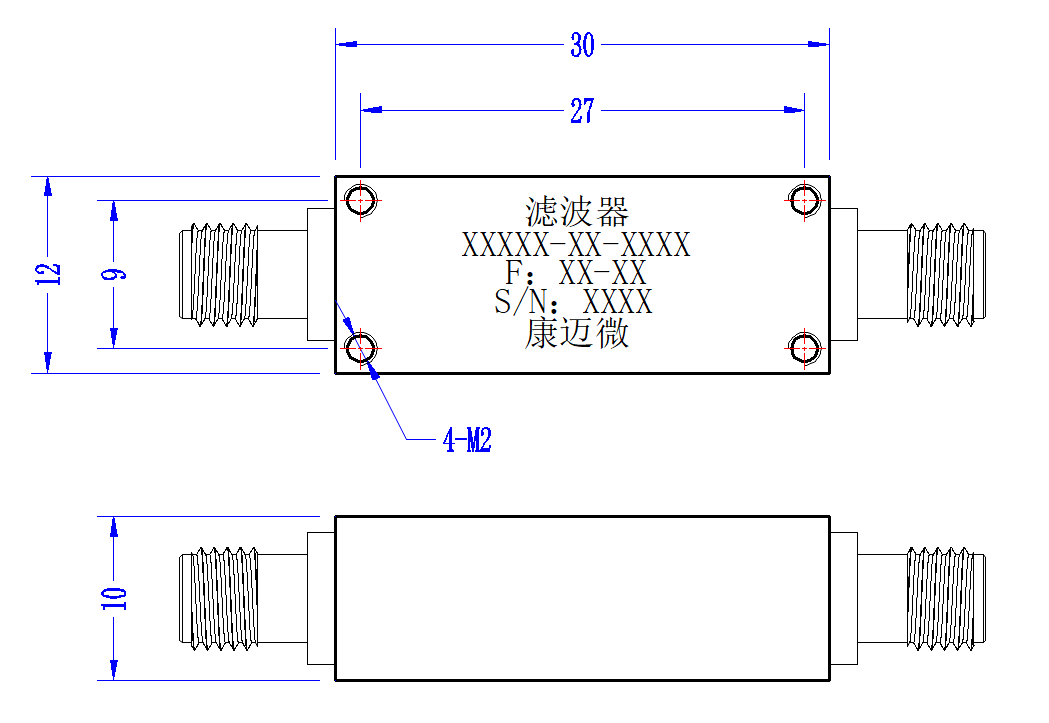

ZBF13-L1200-30-2284 Filter

Filter ZBF13-L1200-30-2284

Passband1185~1215MHz, 1130MHz≥70dB, 1.45-3GHz≥35dB, SMA
View Details →

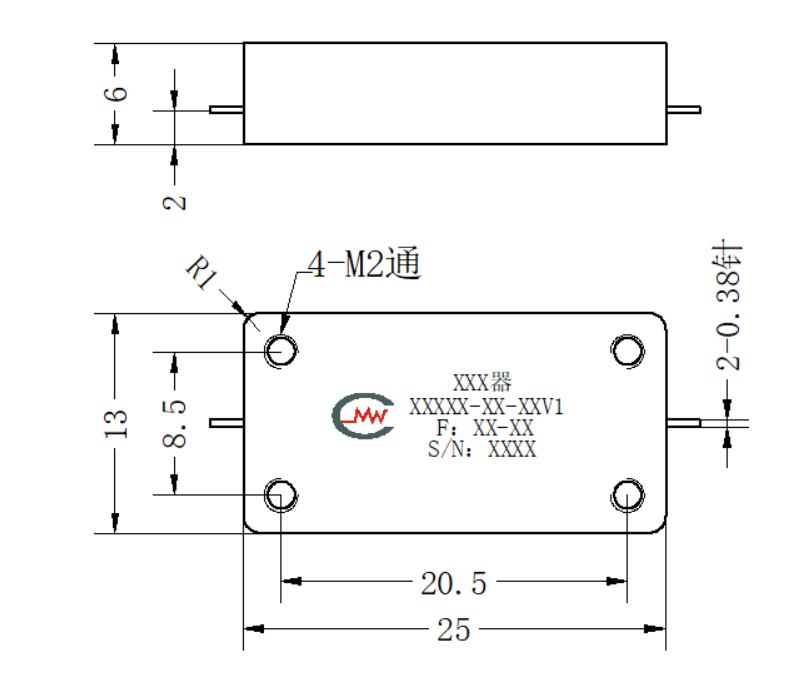

ZBF13-L1200-30-1946 Filter

Filter ZBF13-L1200-30-1946

Passband1185~1215MHz, 1130MHz≥70dB, 1.45-3GHz≥35dB, Pin
View Details →
ZBF13-L1200-20-2511 Filter

Filter ZBF13-L1200-20-2511

Passband1190~1210MHz, F0±50MHz≥18dB, F0±100MHz≥40dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
